Citroen C-Crosser (2012 year). Instruction - part 10





IX

P R A C T I C A L   I N F O R M A T I O N

143

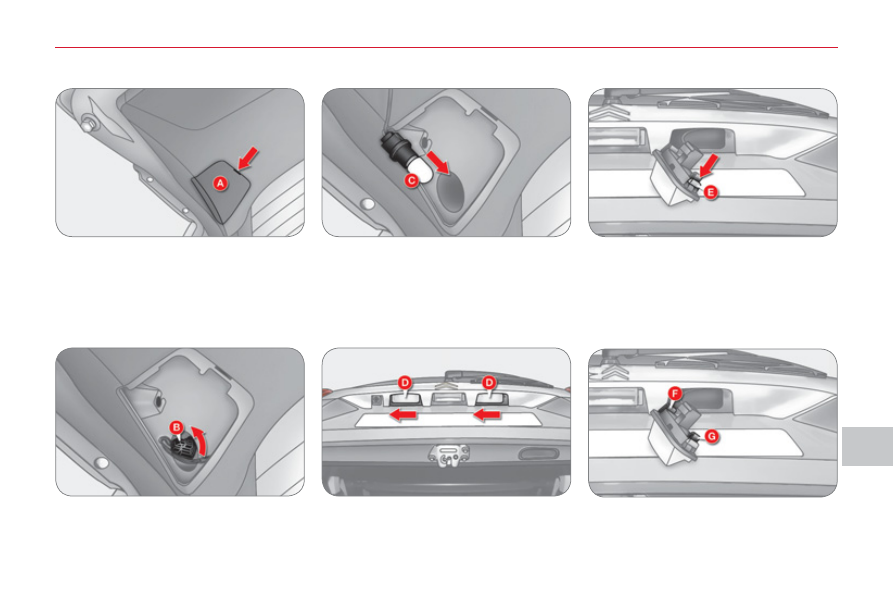

  Changing reversing lamp bulbs

   )   Open the tailgate (refer to the "Ac-

cess" section),

  )   From the inside of the tailgate, in-

sert a screwdriver in the opening on

the cover  A  to use it as a lever to

open the cover.

  Changing number plate lamp bulbs

   )   Open the tailgate (refer to the "Ac-

cess" section) to gain access to the

number plate lamps  D ,

  )  Remove the lamp unit

D  while

pressing it to the left.

  )   Turn the pin  B  to the left and remove it.

  )   Pull the bulb  C  out and change it.
 To refi t, carry out these operations in

reverse order.

  )   Insert a thin screwdriver in the open-

ing on the lens to press the tab  E .

  )   Remove the lens.
  )   Pull the bulb out and change it.
 To refi t, carry out these operations in

reverse order.

   )  To

refi t the lamp unit, insert the end of

the tab  F  fi rst, then align the tab  G .

IX

P R A C T I C A L   I N F O R M A T I O N

144

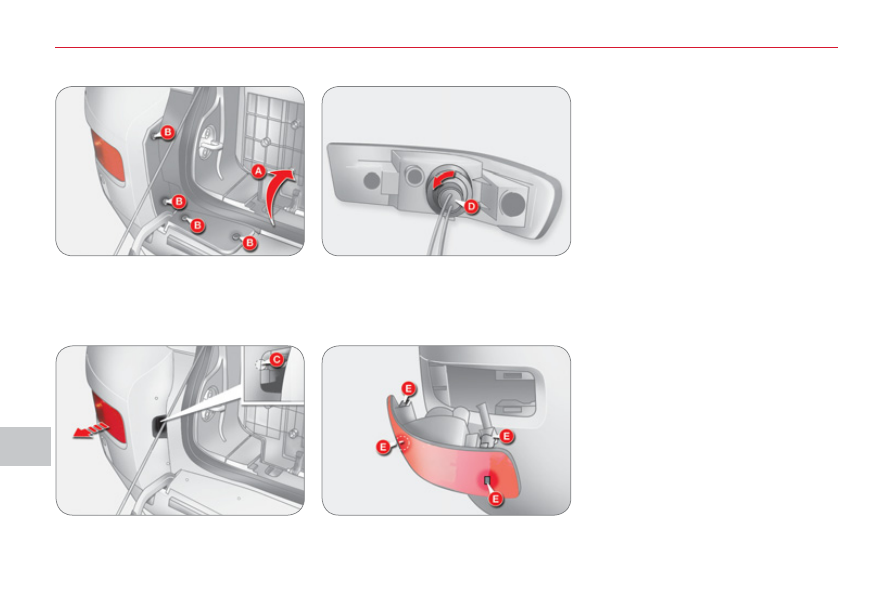

  Changing foglamp bulbs

   )   Open the tailgate and the lower tail-

gate (refer to the "Access" section)

and fold down the cover  A .

  )   Remove the 4 clips  B  using a screw-

driver to detach the lamp cover.

  )   Remove the bolts  C  and remove the

lamp unit.

  )   Turn the pin and bulb assembly  D  to

the left.

  )   Remove the bulb.
 To refi t, carry out these operations in

reverse order.

   )  When refi tting the lamp unit, align

the clips  E  with the openings on the

bodywork.

IX

P R A C T I C A L   I N F O R M A T I O N

145

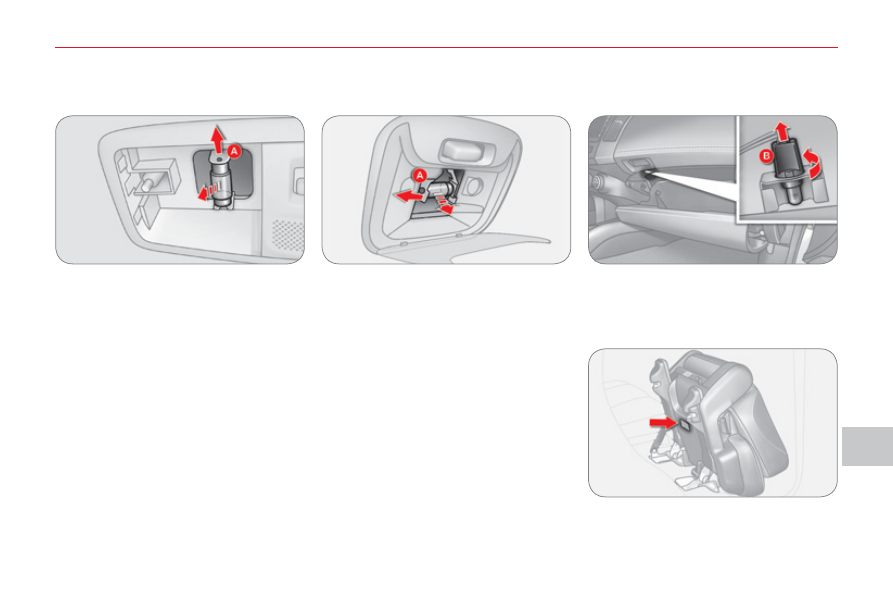

 INTERIOR LAMP BULBS

  Front and rear courtesy lamps

   )   Insert a screwdriver to remove the courtesy lamp cover.
  )   Remove the bulb while pressing the tab  A .
 To refi t the cover, align the hooks on the holes located in the body of the vehicle.

Glove box lamp

   )   Turn the pin  B  anticlockwise and re-

move it.

  )   Remove the bulb.

Low level lamp

   )   Insert a screwdriver to remove the

lamp cover.

  )   Remove the bulb.

IX

!

P R A C T I C A L   I N F O R M A T I O N

146

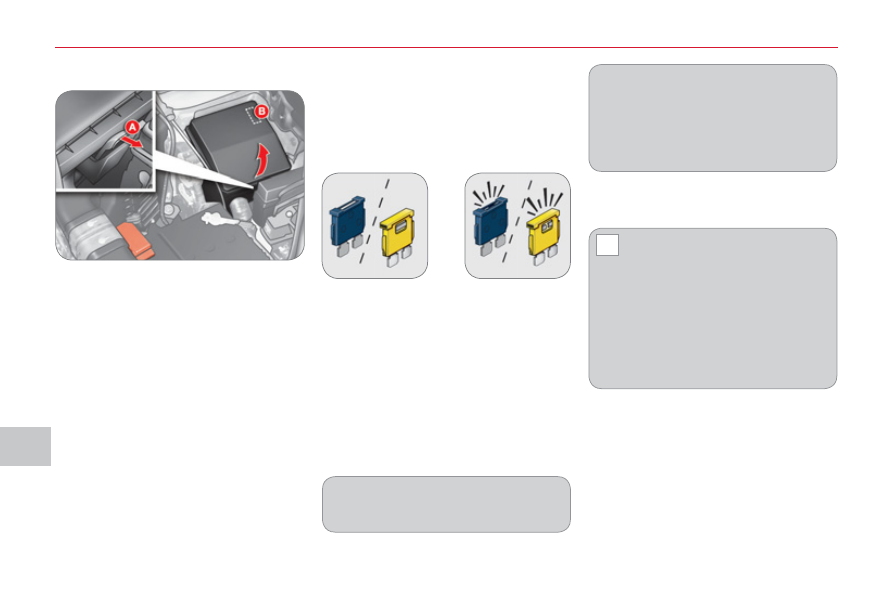

 CHANGING A FUSE

  Changing a fuse

 Before changing a fuse, the cause of

the failure must be identifi ed and recti-

fi ed.
   )   Identify the failed fuse by checking

the condition of its fi lament.

  Access to the tools

 The extraction tweezer is installed in

the engine compartment fusebox.
 To gain access to it:
   )   Open the bonnet (refer to the "Ac-

cess" section),

  )   Press on the hook

A  and release

the catch,

  )   Remove the cover completely,
  )   Remove the tweezer  B .

 Good

Failed

   )   Use the special tweezer to extract

the fuse from its location.

  )   Always replace the faulty fuse with

a fuse of the same rating.

  )   Check that the number marked on

the box, the rating marked on the

top of the fuse and the tables below

all agree.

 The spare fuses are located on the

engine compartment fusebox cover.

 Your vehicle’s electrical system is

designed to operate with standard or

optional equipment.
 Before installing other electrical

equipment or accessories in your ve-

hicle, contact a CITROËN dealer or a

qualifi ed workshop.

 CITROËN will not accept re-

sponsibility for the cost incurred

in repairing your vehicle or for

rectifying the malfunctions resulting

from the installation of accessories

not supplied and not recommended

by CITROËN and not installed in ac-

cordance with its instructions, in par-

ticular when the consumption of all of

the additional equipment connected

exceeds 10 milliamperes.

IX

P R A C T I C A L   I N F O R M A T I O N

147

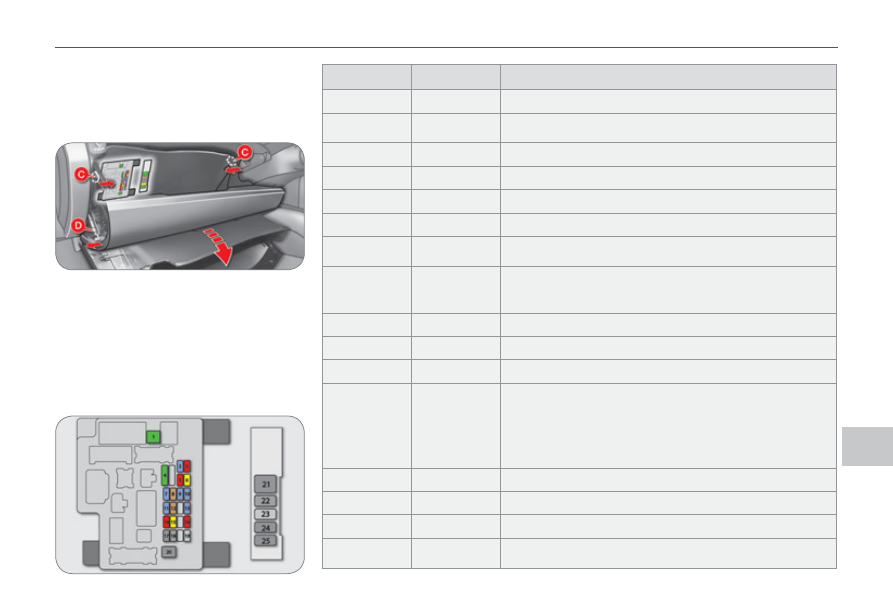

  Dashboard fuses

 The fuseboxes are placed in the lower

dashboard behind the glove box.

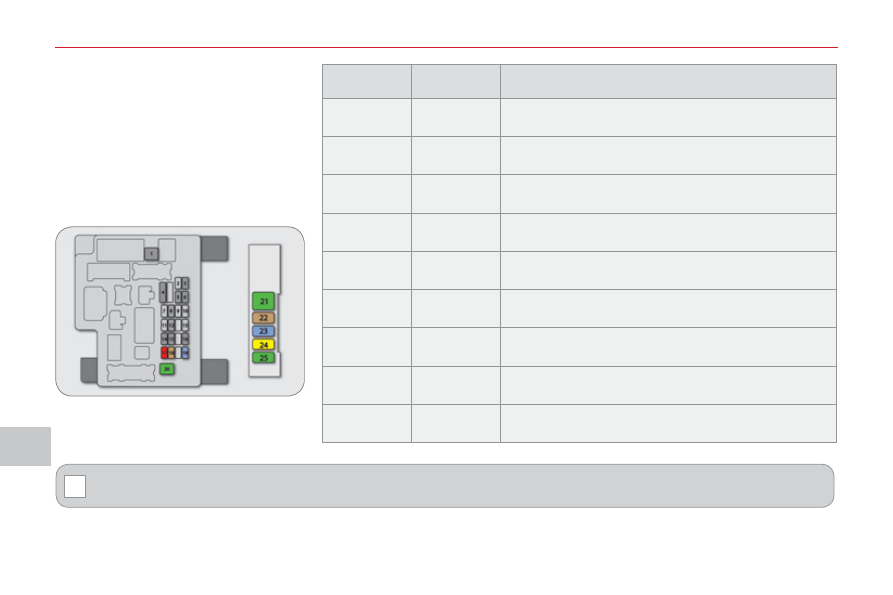

  Access to the fuses
   )   Open the glove box,

  )   Push the two opening guides  A  in-

wards to pass the fi rst notch,

  )   Remove the retaining tab  B  pulling

it outwards,

  )   Support the cover and tilt it down-

wards,

  )   Change the fuse (refer to the cor-

responding paragraph).

   Fuse N°

   Rating

   Functions

   1*

   30 A

 Heating.

   2

   15 A

 Brake lamps, third brake lamp, built-in systems

interface.

   3

   10 A

 Rear foglamps.

   4

   30 A

 Windscreen wipers and screenwash.

   5

   10 A

 Diagnostic socket.

   6

   20 A

 Central locking, door mirrors.

   7

   15 A

 Audio system, telematics, multifunction screen,

hands-free kit.

   8

   7.5 A

 Remote control key, air conditioning control unit,

instrument panel, switch panel, steering mounted

controls.

   9

   15 A

 Multifunction screen, instrument panel.

   10

   15 A

 Built-in systems interface.

   11

   15 A

 Rear wiper.

   12

   7.5 A

 Instrument panel, 4 wheel drive control unit,

air conditioning control panel, ABS control

unit, multifunction screen, automatic headlamp

adjustment, heated seats, airbag control unit,

steering wheel angle sensor, sunroof, rear screen

demisting, remote control.

   13

   -

 Not used.

   14

   10 A

 Ignition switch.

   15

   20 A

 Sunroof.

   16

   10 A

 Door mirrors, audio system, telematics.

IX

!

P R A C T I C A L   I N F O R M A T I O N

148

  Access to the fuses
   )   Open the glove box,
  )   Push the two opening guides  A  in-

wards to pass the fi rst notch,

  )   Remove the retaining tab  B  pulling

it outwards,

  )   Support the cover and tilt it down-

wards,

  )   Change the fuse (refer to the cor-

responding paragraph).

 *  The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried

out by a CITROËN dealer or a qualifi ed workshop.

   Fuse N°

   Rating

   Functions

   17

   10 A

 4 wheel drive control unit.

   18

   7.5 A

 Reversing lamps, parking sensors control unit,

reversing camera, airbag control unit.

   19

   15 A

 Accessory socket.

   20*

   30 A

 Electric window controls.

   21 *

   30 A

 Rear screen demisting.

   22

   7.5 A

 Heated door mirrors.

   23

   -

 Not used.

   24

   25 A

 Driver’s electric seat, footwell lighting, rear bench

seat release.

   25

   30 A

 Heated seats.

IX

P R A C T I C A L   I N F O R M A T I O N

149

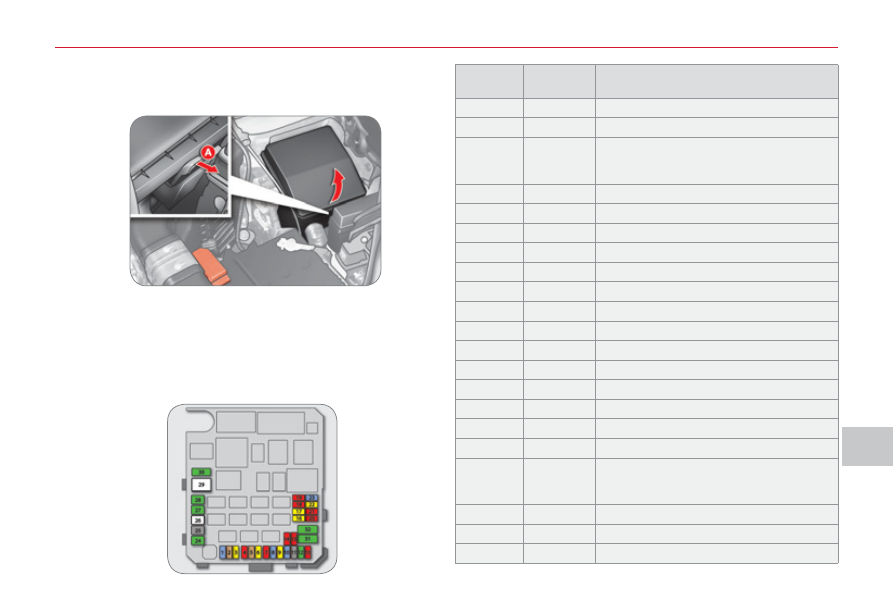

  Engine compartment fuses

 The fuse box is placed in the engine compartment near the

battery (left-hand side).

  Access to the fuses
   )   Open the bonnet (refer to the "Access" section),
  )   Press on the hook  A  to release the catch,
  )   Remove the cover completely,
  )   Change the fuse (refer to the corresponding paragraph).
  )   When you have fi nished, close the cover carefully to en-

sure sealing of the fusebox.

   Fuse N°

   Rating

   Functions

   1

   15 A

 Front foglamps.

   2

   7 A

 2.4 litre 16V engine control unit.

   3

   20 A

 CVT automatic gearbox control unit,

CVT automatic gearbox control

relay.

   4

   10 A

 Horn.

   5

   7.5 A

 2.4 litre 16V alternator.

   6

   20 A

 Headlamp wash.

   7

   10 A

 Air conditioning.

   8

   15 A

 2.4 litre 16V engine control unit.

   9

   -

 Not used.

   10

   15 A

 Demisting, wipers.

   11

   -

 Not used.

   12

   -

 Not used.

   13

   -

 Not used.

   14

   10 A

 Left-hand main beam headlamp.

   15

   10 A

 Right-hand main beam headlamp.

   16

   20 A

 Left-hand dipped beam headlamp (xenon).

   17

   20 A

 Right-hand dipped beam headlamp (xenon).

   18

   10 A

 Left-hand dipped beam headlamp,

manual and automatic headlamp

adjustment.

   19

   10 A

 Right-hand dipped beam headlamp.

   20

   -

 Not used.

   21

   10 A

 Ignition coils.

IX

!

P R A C T I C A L   I N F O R M A T I O N

150

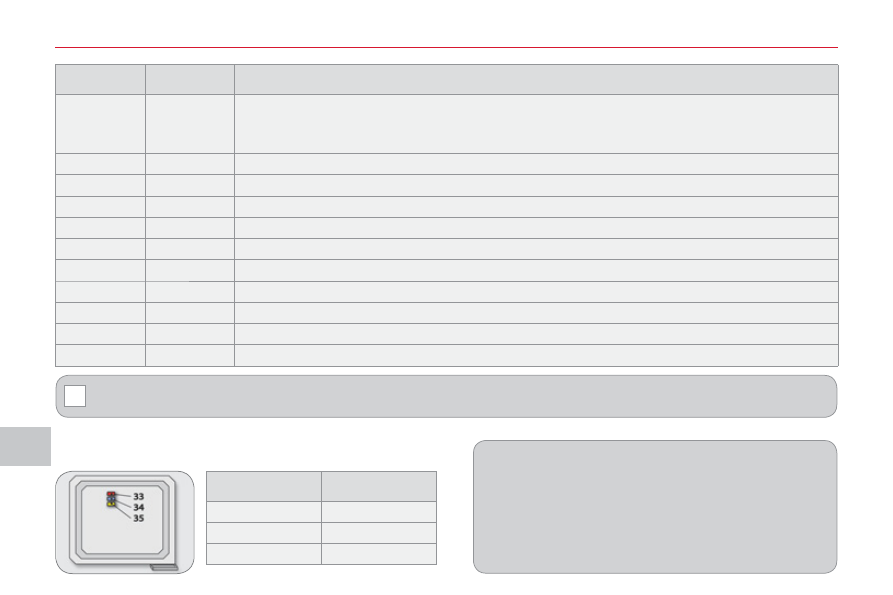

  Spare fuses
 The spare fuses are located under the engine compartment

fuse box cover.

 The cover does not contain spare fuses with an amperage

of 7.5 A, 25 A or 30 A. If one of the fuses with these amper-

ages develops a fault, replace it with the following fuse:
 A  7.5 A fuse  must be replaced with the  10 A spare fuse ,

a  25 A fuse  with a  20 A spare fuse  and a  30 A fuse  with

the  audio system fuse (N° 31) .

 *  The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried

out by a CITROËN dealer or a qualifi ed workshop.

   Fuse N°

   Rating

   Functions

   22

   20 A

 Engine control unit, water in Diesel detector, injection pump (Diesel), air fl ow sensor, water

presence sensors, oxygen sensor, camshaft position sensor, canister purge electrovalve,

vehicle speed sensor, variable timing (VTC) electrovalve, EGR electrovalve.

   23

   15 A

 Petrol pump, fuel gauge.

   24 *

   30 A

 Starter.

   25

   -

 Not used.

   26 *

   40 A

 ABS control unit, ASC control unit.

   27*

   30 A

 ABS control unit, ASC control unit.

   28 *

   30 A

 Condenser fan.

   29 *

   40 A

 Radiator fan.

   30

   30 A

 Passenger compartment fusebox.

   31

   30 A

 Audio amplifi er.

   32

   30 A

 Diesel engine control unit.

   Fuse N°

   Rating

   33

   10 A

   34

   15 A

   35

   20 A

IX

P R A C T I C A L   I N F O R M A T I O N

151

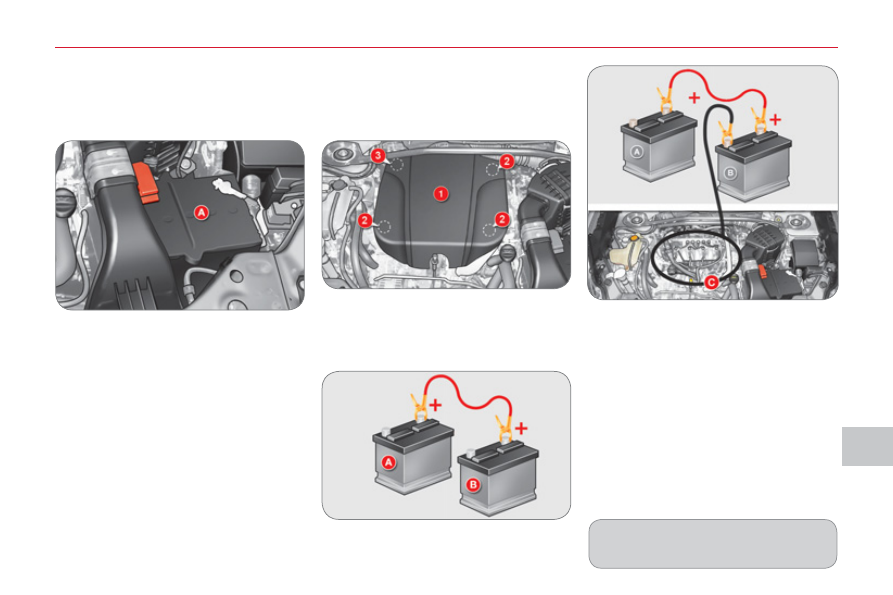

 The battery  A  is located under the bon-

net on the left.
 To gain access to it:
   )   open the bonnet using the interior re-

lease lever, then the exterior safety

catch,

  )   secure the bonnet stay.

BATTERY

  Access to the battery

   )   Connect the red cable to the posi-

tive terminal (+) of the fl at battery  A ,

then to the positive terminal (+) of

the slave battery  B .

  )   Connect one end of the green or black

cable to the negative terminal (-) of the

slave battery  B .

  )   Connect the other end of the green

or black cable to an earth point  C  on

the broken down vehicle, as far as

possible from the battery (for exam-

ple, right-hand engine mounting).

  )   Start the engine of the assisting ve-

hicle.

  )   Operate the starter, let the engine

run.

  )   Wait until the engine returns to idle

and disconnect the cables.

   )   Raise the front of the cover  1  to re-

lease the three clips  2 .

  )   Then pull the cover  1  towards you

to release the clip  3  and remove the

cover.

  Check the electrolyte level regularly.

If necessary, top up the level with dis-

tilled water.

  Starting using another battery

 Looking for an earth point at

the right-hand engine mounting

IX

!

!

P R A C T I C A L   I N F O R M A T I O N

152

  Charging the battery using a

battery charger

   )   Disconnect the battery from the ve-

hicle.

  )   Remove the battery and place it in a

ventilated area.

  )   Remove the top-up caps and top up

the level with distilled water if nec-

essary.

  )   Connect the battery to the charger

observing the instructions for use

provided by the manufacturer and

start charging.

  )  Disconnect the battery from the

charger and let it to cool.

  )   If necessary, top up the level with

distilled water.

  )   Clean the top of the battery care-

fully.

  )   Put the top-up caps back in place.
  )   Check that the terminals and connec-

tors are clean. If they are covered with

sulphate (whitish or greenish deposit),

remove them and clean them.

  )   Reconnect the battery starting with

the positive terminal (+).

 Do not charge the batteries with-

out disconnecting the terminals

fi rst.

 Avoid prolonged contact of the

electrolyte with the skin.

 Most of these fl uids are harmful to

health and very corrosive.

 Do not disconnect the terminals while

the engine is running.

 The batteries contain harmful sub-

stances such as sulphuric acid

and lead. They must be disposed

of in accordance with regulations and

must not, in any circumstances, be dis-

carded with household waste.
 Take used remote control batteries

and vehicle batteries to a special col-

lection point.
 It is advisable to disconnect the bat-

tery if the vehicle is to be left unused

for more than one month.

 When charging the battery, it is normal

to observe an increase in temperature

and bubbling of the electrolyte.

  Following reconnection of the

battery
 Following reconnection of the battery,

switch on the ignition and wait 1 minute

before starting to permit initialisation

of the electronic systems. However, if

slight diffi culties are encountered follow-

ing this operation, contact a CITROËN

dealer or a qualifi ed workshop.
 Referring to the corresponding section,

you must yourself reinitialise:
   -

the one-touch electric windows,

  -  the

sunroof,

  -

the satellite navigation system.

  Before disconnecting the battery
 Wait 2 minutes after switching off the ig-

nition before disconnecting the battery.
 Close the windows, the sunroof, the

doors and the tailgate before discon-

necting the battery.

IX

P R A C T I C A L   I N F O R M A T I O N

153

CHANGING A WIPER BLADE

  Removing a front or rear wiper

blade

   )   Raise the corresponding wiper arm.
  )   Remove the wiper blade, sliding it

towards the outside.

  Fitting a front or rear wiper

blade

   )   At the front, check the size of the

wiper blade as the shorter blade is

fi tted on the right-hand side of the

vehicle.

  )  Put the corresponding new wiper

blade in place and fi x it.

  )   Fold down the wiper arm carefully.

IX

!

P R A C T I C A L   I N F O R M A T I O N

154

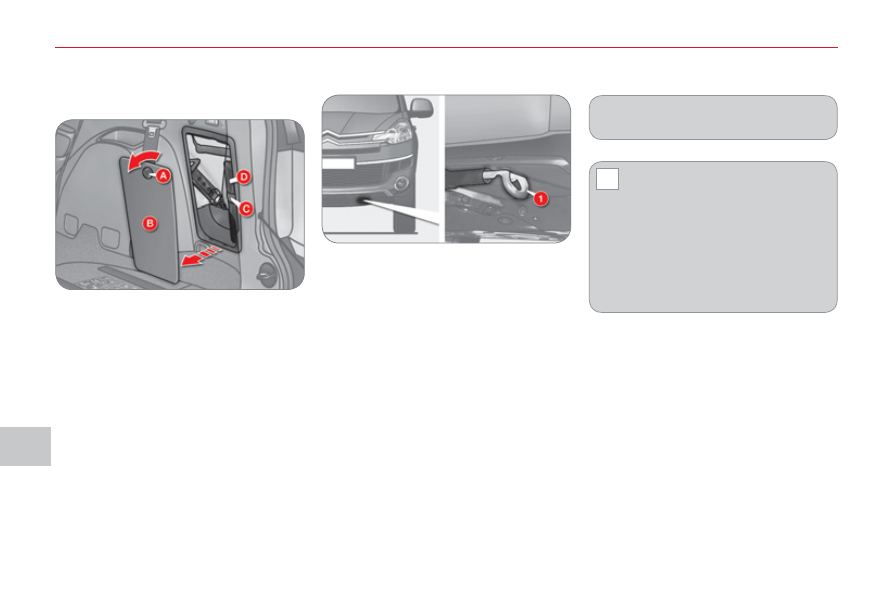

TOWING

  Access to the tools

  Having your vehicle towed on

a flatbed

   )   Below the front bumper, install the

towing system on the towing eye  1 .

 The towing eye and the tools are stored

in the storage compartment in the right-

hand boot trim.
 To gain access to them:
   )   open the boot,
  )   turn button  A  to the left,
  )   remove the cover  B ,
  )  remove the fi xing band   and take out

the tool bag  D  containing the tools,

  )   take the towing eye and the tools re-

quired out of the tool bag.

 Place the gear lever in neutral.

  Always have the vehicle

towed on a fl atbed.

 Never have the vehicle towed with

the four wheels on the ground, this

could damage the transmission.
 The vehicle must not be towed with

the front or rear wheels on the ground

even if it is in front "2WD" (2 wheel

drive) mode.

IX

!

P R A C T I C A L   I N F O R M A T I O N

155

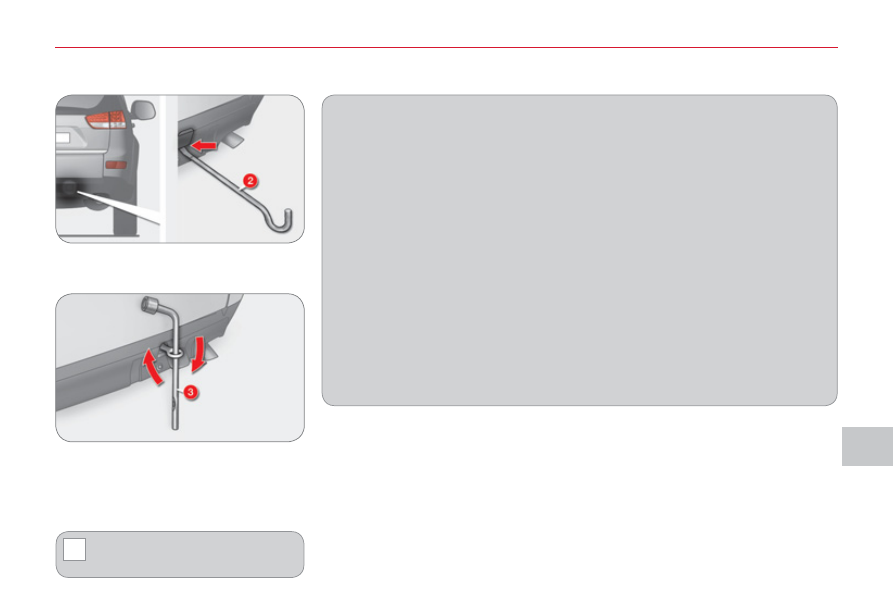

  Towing another vehicle

   )  On the rear bumper, remove the

cover by pulling at the bottom using

the jack handle  2 .

  )   Screw in the towing eye fully using

the wheelbrace  3 .

  )   Install the towbar.
  )   Switch on the hazard warning lamps

on the towed vehicle.

 When being towed with the en-

gine off, there is no longer any

braking or steering assistance.

  General recommendations

 Observe the legislation in force in your country.
 Ensure that the weight of the towing vehicle is higher than that of the towed

vehicle.
 The driver must stay at the wheel of the towed vehicle.
 Driving on motorways and fast roads is prohibited when towing.
 When towing a vehicle with all four wheels on the ground, always use an ap-

proved towing bar; rope and straps are prohibited.
 When towing a vehicle with the engine off, there is no longer any power assis-

tance for braking or steering.
 In the following cases, you must always call on a professional recovery service:
   -

vehicle broken down on a motorway or fast road,

  -   when it is not possible to put the gearbox into neutral, unlock the steering,

or release the parking brake,

  -

towing with only two wheels on the ground,

  -

where there is no approved towing bar available...

IX

!

!

P R A C T I C A L   I N F O R M A T I O N

156

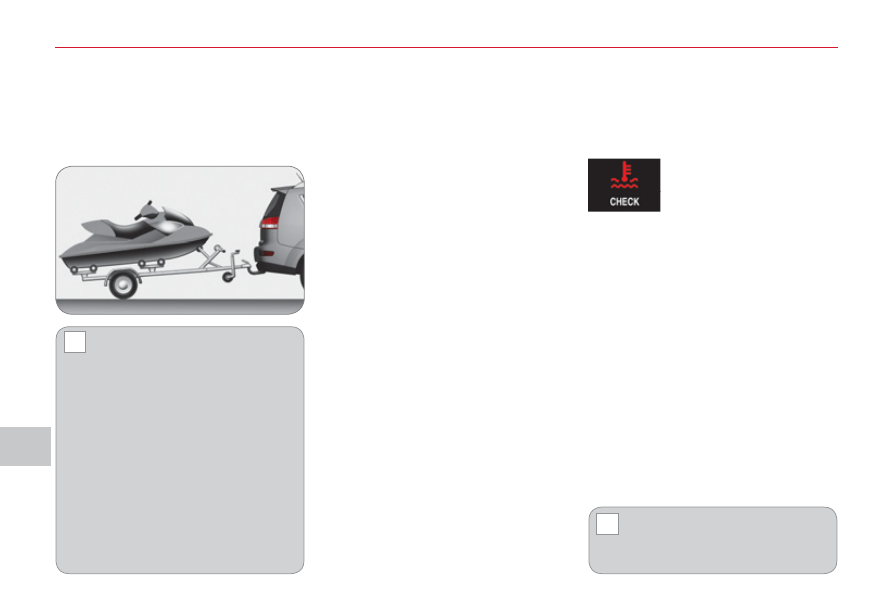

TOWING A TRAILER,
CARAVAN, ETC.

  Driving advice

 The maximum towing load on a long

slope depends on the gradient and the

outside temperature.
 In all cases, pay attention to the coolant

temperature.

  Side wind
   )  Take into account the increased

sensitivity to side wind.

  Cooling
 Towing a trailer on a slope increases

the temperature of the coolant.
 As the fan is electrically controlled, its

cooling capacity is not dependent on

the engine speed.
   )   To lower the engine speed, reduce

your speed.

  Braking
 Towing a trailer increases the braking

distance.

  Tyres
   )   Check the tyre pressures of the towing

vehicle and of the trailer, observing the

recommended pressures.

  Lighting
   )   Check the lighting and signalling on

the trailer.

   )   If this message is dis-

played,  stop your ve-

hicle as soon as it is

safe to do so.

 If the message fl ashes slowly, wait for

the engine to cool before topping up the

level, if necessary.
 If the message fl ashes rapidly, contact

a CITROËN dealer or a qualifi ed work-

shop without delay.

 Opening of the lower tailgate is

prohibited if a towbar is being

used.

 We recommend the use of gen-

uine CITROËN towbars and

their harnesses that have been

tested and approved from the design

stage of your vehicle and that the fi t-

ting of the towbar is entrusted to a

CITROËN dealer or a qualifi ed work-

shop.
 If the towbar is not fi

tted by a

CITROËN dealer, it is imperative

that it is fi tted using the electrical pre-

equipment located at the rear of the

vehicle and in accordance with the

manufacturer's instructions.
 Driving with a trailer subjects the

towing vehicle to more signifi cant

stress and its driver must be particu-

larly careful.

  Your vehicle is primarily designed for

transporting people and luggage, but it

may also be used for towing a trailer.

  Distribution of loads
   )   Distribute the load in the trailer so

that the heaviest items are as close

as possible to the axle and the nose

weight approaches the maximum

permitted without exceeding it.

 Air density decreases with altitude, thus

reducing engine performance. Above

1 000 metres, the maximum towing

load must be reduced by 10 % of the

GTW and so on for every 1 000 metres

of altitude.
 Refer to the "Technical Data" section for

details of the weights and towing loads

which apply to your vehicle.

IX

P R A C T I C A L   I N F O R M A T I O N

157

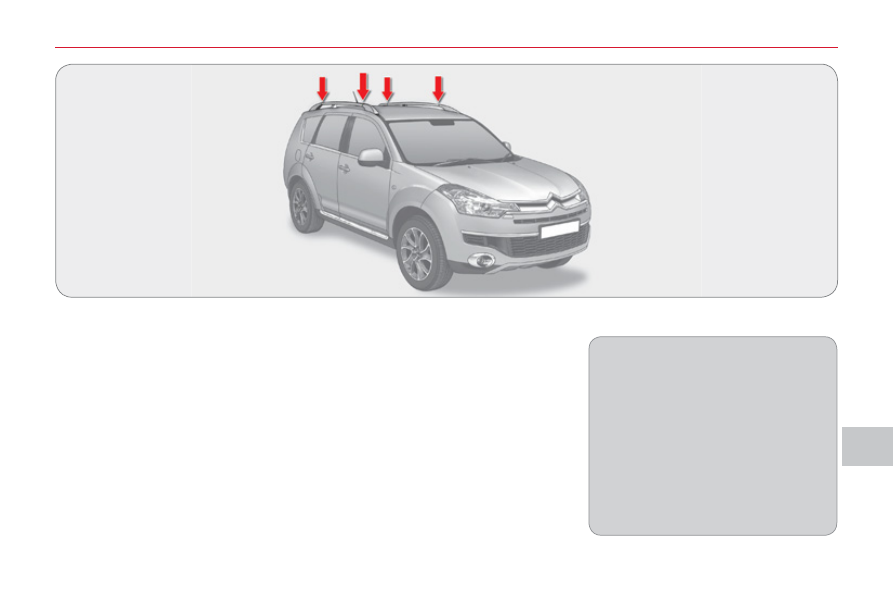

FITTING ROOF BARS

 Maximum authorised weight on the roof

bars, for a loading height not exceeding

40 cm (except bicycle carriers): 80 kg.
 If the height exceeds 40 cm, adapt

the speed of the vehicle to the con-

dition of the road, to avoid damaging

the roof bars and the fi xings on the

roof.
 Please refer to national legislation

to comply with the regulations re-

garding the transportation of objects

which are longer than the vehicle.

 Consult a CITROËN dealer or a quali-

fi ed workshop for the installation of lon-

gitudinal roof bars.
 When  fi tting transverse roof bars, en-

sure that they are positioned correctly

as shown by marks on the longitudinal

roof bars.

 Use accessories recommended by

CITROËN and follow the accessory

manufacturer's fi tting instructions.
 In order to place a load on the roof, your

vehicle must be fi tted  with  longitudinal

roof bars with transverse roof bars fi tted

on top of these.
 The longitudinal roof bars cannot be re-

moved.

IX

!

P R A C T I C A L   I N F O R M A T I O N

158

 A wide range of accessories and genu-

ine parts is available from the CITROËN

dealer network.
 These accessories and parts have

been tested and approved for reliability

and safety.
 They are all adapted to your vehicle and

benefi t from CITROËN's recommenda-

tion and warranty.

"Comfort":

 rear parking sensors, side sun blinds,

insulated module...

  "Transports solutions":

 boot liner, dog guard, roof bars, bicycle

carrier for roof bars, ski carrier, roof

box...
 Trailer towbar which must be fi tted  by

a CITROËN dealer or a qualifi ed work-

shop.

  "Security and safety":

 anti-intrusion alarm, glass etching,

wheel security bolts, fi rst aid kit, warn-

ing triangle, high visibility vest, stolen

vehicle tracking system, child seats and

booster cushions, under-infl ation detec-

tion, anti-slip covers...

  "Protection":

 mat * , side protective mouldings...

  "Multimedia":

 MP3/USB audio systems, audio-tele-

phone, amplifi ers, satellite navigation

systems, hands-free kit, speakers, DVD

player, connection kit for MP3 player or

portable CD player...

  Depending on the legislation in force

in the country, it may be compulsory

to have a high visibility safety vest,

warning triangle and spare bulbs and

fuses available in the vehicle.

 The  fi tting of electrical equip-

ment or accessories which are

not recommended by CITROËN

may result in a failure of your vehi-

cle's electronic system and exces-

sive electrical consumption.
 Please note this precaution. You are

advised to contact a CITROËN rep-

resentative to be shown the range

of recommended equipment and ac-

cessories.

  Installation of radio

communication transmitters
 Before installing any after-market ra-

dio communication transmitter, you

can contact a CITROËN dealer for

the specifi cation of transmitters which

can be fi tted (frequency, maximum

power, aerial position, specifi c instal-

lation requirements), in line with the

Vehicle Electromagnetic Compatibility

Directive (2004/104/EC).

  *

 To prevent any risk of jamming of

the pedals:

   -   ensure that the mat is positioned

and secured correctly,

  -  never

fi t one mat on top of another.

  "Style":

 PVC door sill protectors, style rear

mudfl aps, Hortaz 18 inch alloy wheels,

chromed door handle shells, diffuser on

rear bumper, brushed aluminium look

boot sill protector...

     ACCESSORIES















Content   ..  8  9  10  11   ..
