Hood Open Warning Light

Liftgate Open Warning Light

Oil Temperature Warning Light

Oil Pressure Warning Light

Red Warning Lights

Seat Belt Reminder Warning Light

Transmission Temperature Warning Light

Vehicle Security Warning Light

Yellow Warning Lights

Anti-Lock Brake System (ABS) Warning Light

Electronic Park Brake Warning Light

Electronic Stability Control (ESC) Active Warning Light

Electronic Stability Control (ESC) OFF Warning Light

Red Warning Lights

Engine Check/Malfunction Indicator Warning Light (MIL)

Low Fuel Warning Light

Low Washer Fluid Warning Light

Service Automatic Emergency Braking (AEB) Warning Light

Service Stop/Start System Warning Light

Tire Pressure Monitoring System (TPMS) Warning Light

page 100

Yellow Warning Lights

Yellow Indicator Lights

Automatic Emergency Braking (AEB) OFF Indicator Light

Green Indicator Lights

Cruise Control Set Indicator Light

Front Fog Indicator Light

KeySense Indicator Light

GETTING TO KNOW YOUR VEHICLE

KEYS

Your vehicle is equipped with a key fob which

supports Passive Entry, Remote Keyless Entry

(RKE), Keyless Enter ‘n Go™ (if equipped), and

Remote Start (if equipped). The key fob allows you

to lock or unlock all doors and liftgate, as well as

activate the Panic Alarm from distances up to

approximately 66 ft (20 m). The key fob does not

need to be pointed at the vehicle to activate the

system. The key fob also contains an emergency

key, which is stored in the rear of the key fob.
The emergency key allows for entry into the vehicle

should the battery in the vehicle or the key fob

become depleted. The emergency key is also for

locking/unlocking the glove compartment. You can

keep the emergency key with you when valet

parking.

NOTE:



The key fob’s wireless signal may be blocked if

the key fob is located next to a mobile phone,

laptop, or other electronic device. This may

result in poor performance.



A low key fob battery condition may be indicated

by a message in the instrument cluster display,

or by the LED light on the key fob. If the LED key

fob light no longer illuminates from key fob

button pushes, then the key fob battery requires

replacement.



The key fob LED light brightness is designed for

indoor light viewing, so the LED light may not be

visible in direct sunlight

Key Fob

1 — LED Light
2 — Unlock
3 — Liftgate
4 — Left Power Sliding Side Door
5 — Emergency Key
6 — Lock
7 — Remote Start
8 — Right Power Sliding Side Door
9 — PANIC Alarm

GETTING TO KNOW YOUR VEHICLE

To Lock/Unlock The Doors And Liftgate

Push and release the unlock button on the key fob

once to unlock the driver’s front door and sliding

door or twice within five seconds to unlock all

doors and the liftgate. Push and release the lock

button on the key fob to lock all doors and the

liftgate.
When the doors are unlocked, the turn signals will

flash and the illuminated entry system will be

activated. When the doors are locked, the turn

signals will flash and the horn will chirp. Settings in

the Uconnect system can change to lights only,

chirp only, or both.
Vehicles Equipped With Keyless Enter ‘n Go™ —

Passive Entry
If one or more doors are open, or the liftgate is

open, the doors can be locked. The doors will

unlock again only if the key fob is inside the

passenger compartment.
All doors can be programmed to unlock on the first

push of the unlock button within the Uconnect

system

Replacing The Battery In The Key Fob

The recommended replacement battery is one

CR2032 battery.

NOTE:



Customers are recommended to use a battery

obtained from Mopar®. Aftermarket coin

battery dimensions may not meet the original

OEM coin battery dimensions.



Batteries contain harmful chemicals. Dispose

old batteries by placing them in correct

containers according to the law or by taking

them to a dealership, where they will be handled

appropriately.



Perchlorate Material — special handling may

apply. See

www.dtsc.ca.gov/hazard

ouswaste/perchlorate

for further information.



Do not touch the battery terminals that are on

the back housing or the printed circuit board.

1. Remove the emergency key by pushing the

mechanical release button on the side of the

key fob with your thumb and then pulling the

key out with your other hand.

Emergency Key Removal

2. Insert a coin or a flat blade screwdriver into the

now exposed slot and carefully pry on both

sides to disengage the snaps. Gently remove

the back cover from the fob, being careful not

to damage any of the snaps.

3. Remove the battery by sliding the battery

rearward in its pocket until the battery lifts up.

Remove the depleted battery from the battery

pocket and dispose appropriately.

4. Fit a new CR2032 battery ensuring that the

positive (+) side is facing upwards. Push the

battery into the pocket until it is firmly seated

in place and secured under both tabs.

5. Align the back cover into its original position

and snap it back in place by pushing it against

the fob until it is seated all around.

GETTING TO KNOW YOUR VEHICLE

Programming And Requesting Additional

Key Fobs

Programming the key fob may be performed by an

authorized dealer.

NOTE:



Once a key fob is programmed to a vehicle, it

cannot be repurposed and reprogrammed to

another vehicle.



Only key fobs that are programmed to the

vehicle electronics can be used to start and

operate the vehicle. Once a key fob is

programmed to a vehicle, it cannot be

programmed to any other vehicle.

Duplication of key fobs may be performed at an

authorized dealer. This procedure consists of

programming a blank key fob to the vehicle

electronics. A blank key fob is one that has never

been programmed.

NOTE:



When having the Sentry Key Immobilizer system

serviced, bring all vehicle keys with you to an

authorized dealer.



Keys must be ordered to the correct key cut to

match the vehicle locks.

KeySense Features — If Equipped

This feature provides the vehicle owner with the

ability to customize vehicle settings for the driving

experience for other drivers of the vehicle. The

vehicle settings are protected by a unique

four-digit PIN, which the vehicle owner creates

when accessing the specific settings for the first

time.

KeySense also has additional features that are

always enabled when the specific key is in use that

cannot be set by the vehicle owner. While this

specific key fob is in use, the vehicle will respond

accordingly to the customized vehicle settings and

mandatory features. This includes enhanced

driving assistance features, increased driver

alerts, and the locking of certain optional features.

Settings can be customized within the Uconnect

system

KeySense Key Fob

KeySense Unique Splash Screen
At start-up the KeySense splash screen should

inform the driver that the vehicle will be

functioning in KeySense mode when the KeySense

key is in use.

WARNING!



The integrated key fob contains a coin cell

battery. Do not ingest the battery; there is a

chemical burn hazard. If the coin cell battery is

swallowed, it can cause severe internal burns

in just two hours and can lead to death.



If you think a battery may have been swal

lowed or placed inside any part of the body,

seek immediate medical attention.



Keep new and used batteries away from chil

dren. If the battery compartment does not

close securely, stop using the product and

keep it away from children.

WARNING!



Always remove the key fobs from the vehicle

and lock all doors when leaving the vehicle

unattended.



Always place the Keyless Enter ‘n Go™ Ignition

in the OFF position.

GETTING TO KNOW YOUR VEHICLE

Start Up Display Features



Unique splash screen graphic



Telltale illuminated



After unique splash screen, and after stored

messages are cycled, then start-up KeySense

messages (Range & Max Speed) are displayed

The following features are always enabled when

this key is in use:



Entertainment audio muted if front row occu

pied seat belts are not fastened



Consistent seat belt unfastened chime



Maximum radio volume limited to 15 out of 39



Daytime Running Lights

SENTRY KEY

The Sentry Key Immobilizer system prevents

unauthorized vehicle operation by disabling the

engine. The system does not need to be armed or

activated. Operation is automatic, regardless of

whether the vehicle is locked or unlocked.
The system uses a key fob, keyless push button

ignition and a Radio Frequency (RF) receiver to

prevent unauthorized vehicle operation. Therefore,

only key fobs that are programmed to the vehicle

can be used to start and operate the vehicle. The

system cannot reprogram a key fob obtained from

another vehicle.

After placing the ignition in the ON/RUN position,

the Vehicle Security Light will turn on for three

seconds for a bulb check. If the light remains on

after the bulb check, it indicates that there is a

problem with the electronics. In addition, if the light

begins to flash after the bulb check, it indicates

that someone attempted to start the engine with

an invalid key fob. In the event that a valid key fob

is used to start the engine but there is an issue

with the vehicle electronics, the engine will start

and shut off after two seconds.
If the Vehicle Security Light turns on during normal

vehicle operation (vehicle running for longer than

10 seconds), it indicates that there is a fault in the

electronics. Should this occur, have the vehicle

serviced as soon as possible by an authorized

dealer.

All of the key fobs provided with your new vehicle

have been programmed to the vehicle electronics

IGNITION SWITCH

EYLESS

NTER

‘

™ I

GNITION

This feature allows the driver to operate the

ignition switch with the push of a button as long as

the key fob is in the passenger compartment.
The START/STOP ignition button has four

operating positions; three of which are labeled and

will illuminate when in position. The three positions

are OFF, ACC, and ON/RUN. The fourth position is

START. During START, RUN will illuminate.

START/STOP Ignition Button

CAUTION!

The Sentry Key Immobilizer system is not

compatible with some aftermarket Remote Start

systems. Use of these systems may result in

vehicle starting problems and loss of security

protection.

1 — OFF
2 — ACC
3 — ON/RUN

GETTING TO KNOW YOUR VEHICLE

(Continued)

The push button ignition can be placed in the

following modes:
OFF



The engine is stopped



Some electrical devices

(e.g. power locks, alarm, etc.) are still available

ACC



The engine is stopped



Some electrical devices are available

(e.g. power windows)

ON/RUN



Driving position



All electrical devices are available

(e.g. climate controls, etc.)

START



The engine will start

(when foot is on the brake pedal)

The engine only runs in the ON/RUN ignition

position or from a Remote Start request.
In case the ignition switch does not change with

the push of a button, the key fob may have a low or

depleted battery. In this situation, a back up

method can be used to operate the ignition switch.

Put the nose side (side opposite of the emergency

key) of the key fob against the START/STOP

ignition button and push to operate the ignition

switch.

Backup Starting Method

NOTE:



The key fob may not be detected by the vehicle

Keyless Enter ‘n Go™ system if it is located next

to a mobile phone, laptop or other electronic

device; these devices may block the key fob’s

wireless signal and prevent the Keyless Enter ‘n

Go™ system from starting the vehicle.



For the proper engine starting procedure, see

page 104.

WARNING!



When leaving the vehicle, always remove the

key fob from the vehicle and lock your vehicle.



Never leave children alone in a vehicle, or with

access to an unlocked vehicle.



Allowing children to be in a vehicle unattended

is dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the gear

selector.



Do not leave the key fob in or near the vehicle,

or in a location accessible to children, and do

not leave the Keyless Enter ‘n Go™ Ignition in

the ON/RUN position. A child could operate

power windows, other controls, or move the

vehicle.



Do not leave children or animals inside parked

vehicles in hot weather. Interior heat buildup

may cause serious injury or death.

CAUTION!

An unlocked car is an invitation. Always remove

the key fobs from the vehicle and lock all doors

when leaving the vehicle unattended.

WARNING!

GETTING TO KNOW YOUR VEHICLE

REMOTE START — IF EQUIPPED

This system uses the key fob to start the

engine conveniently from outside the

vehicle while still maintaining security.

The system has a range of 328 ft

(100 m).

Remote Start is used to defrost windows in cold

weather and to reach a comfortable climate in all

ambient conditions before the customer enters the

vehicle.

NOTE:

Obstructions between the vehicle and key fob may

reduce this range

EMOTE

TART

Push and release the Remote Start button on the

key fob twice within five seconds. The vehicle

doors will lock, the parking lights will flash, and the

horn will chirp twice (if programmed). Then, the

engine will start, and the vehicle will remain in the

Remote Start mode for a 15 minute cycle.
Pushing the Remote Start button a third time shuts

the engine off.
To drive the vehicle, push the unlock button and

place the ignition in the ON/RUN position.

NOTE:



With Remote Start, the engine will only run for

15 minutes.



Remote Start can only be used twice.



If an engine fault is present or fuel level is

low, the vehicle will start and then shut down in

10 seconds.



The parking lights will turn on and remain on

during Remote Start mode.



For security, power window operations are

disabled when the vehicle is in the Remote Start

mode.



The ignition must be placed in the ON/RUN posi

tion before the Remote Start sequence can be

repeated for a third cycle.

All of the following conditions must be met before

the engine will Remote Start:



Gear selector in PARK



Doors closed



Hood closed



Liftgate closed



Hazard switch off



Brake switch inactive (brake pedal not pressed)



Battery at an acceptable charge level



PANIC button not pushed



System not disabled from previous Remote

Start event



Vehicle Security system indicator flashing



Ignition in OFF position



Fuel level meets minimum requirement



Vehicle Security system is not signaling an intru

sion



Malfunction Indicator Light (MIL) is not

illuminated

WARNING!



Do not start or run an engine in a closed

garage or confined area. Exhaust gas contains

Carbon Monoxide (CO) which is odorless and

colorless. Carbon Monoxide is poisonous and

can cause serious injury or death when

inhaled.



Keep key fobs away from children. Operation

of the Remote Start system, windows, door

locks or other controls could cause serious

injury or death.

GETTING TO KNOW YOUR VEHICLE

XIT

EMOTE

TART

ODE

To drive the vehicle after starting the Remote Start

system, either push and release the unlock button

on the key fob to unlock the doors, or unlock the

vehicle using Keyless Enter ‘n Go™ — Passive Entry

via the door handles, and disarm the Vehicle

Security system (if equipped). Then, prior to the

end of the 15 minute cycle, push and release the

START/STOP ignition button.
The Remote Start system will turn the engine off if

the Remote Start button on the key fob is pushed

again, or if the engine is allowed to run for the

entire 15 minute cycle. Once the ignition is placed

in the ON/RUN position, the climate controls will

resume previously set operations (temperature,

blower control, etc.).

NOTE:



For vehicles equipped with the Keyless Enter ‘n

Go™ — Passive Entry feature, the message

“Remote Start Active — Push Start Button” will

show in the instrument cluster display until you

push the START/STOP ignition button.



To avoid unintentional shutdowns, the system

will disable for two seconds after receiving a

valid Remote Start request.

EMOTE

TART

RONT

EFROST

CTIVATION

— I

QUIPPED

When Remote Start is active, and the outside

ambient temperature is 40°F (4.5°C) or below, the

system will automatically activate front defrost for

15 minutes or less. The time is dependent on the

ambient temperature. Once the timer expires, the

system will automatically adjust the settings

depending on ambient conditions. See “Remote

Start Comfort Systems — If Equipped” in the next

section for detailed operation.

EMOTE

TART

OMFORT

YSTEMS

—

QUIPPED

When Remote Start is activated, the front and rear

defrost will automatically turn on in cold weather.

The heated steering wheel and driver heated seat

feature will also turn on if programmed in the

comfort menu screen within Uconnect Settings

page 141. In warm weather, the driver vented

seat feature will automatically turn on when the

Remote Start is activated, if programmed via the

comfort menu screen. The vehicle will adjust the

climate control settings depending on the outside

ambient temperature.
Automatic Temperature Control (ATC) —

If Equipped
The climate controls automatically adjust to an

optimal temperature and mode, dependent upon

the outside ambient temperature. When the

ignition is placed in the ON/RUN position, the

climate controls will resume their previous

settings.
Manual Temperature Control (MTC) — If Equipped



In ambient temperatures of 40°F (4.5°C) or

below, the climate settings will default to

maximum heat, with fresh air entering the

cabin. If the front defrost timer expires, the

vehicle will enter Mix Mode.



In ambient temperatures from 40°F (4.5°C) to

78°F (26°C), the climate settings will be based

on the last settings selected by the driver.



In ambient temperatures of 78°F (26°C) or

above, the climate settings will default to MAX

A/C, Bi-Level mode, and Recirculation on.

For more information on ATC, MTC, and climate

control settings, see

page 60.

WARNING!



Do not start or run an engine in a closed

garage or confined area. Exhaust gas contains

Carbon Monoxide (CO) which is odorless and

colorless. Carbon Monoxide is poisonous and

can cause serious injury or death when

inhaled.



Keep key fobs away from children. Operation

of the Remote Start system, windows, door

locks or other controls could cause serious

injury or death.

GETTING TO KNOW YOUR VEHICLE

NOTE:

These features will stay on through the duration

of Remote Start until the ignition is placed in the

ON/RUN position. The climate control settings will

change, and exit automatic operation, if manually

adjusted by the driver while the vehicle is in

Remote Start mode. This includes the OFF button

on the climate controls, which will turn the system

off.

EMOTE

TART

INDSHIELD

IPER

-I

CER

CTIVATION

— I

QUIPPED

When the Remote Start system is active and the

outside ambient temperature is less than 33°F

(0.6°C), the Windshield Wiper De-Icer will activate.

Exiting Remote Start will resume its previous

operation. If the Windshield Wiper De-Icer was

active, the timer and operation will continue.

EMOTE

TART

ANCEL

ESSAGE

The following messages will display in the

instrument cluster if the vehicle fails to Remote

Start or exits Remote Start prematurely:



Remote Start Cancelled — Door Open



Remote Start Cancelled — Hood Open



Remote Start Cancelled — Fuel Low



Remote Start Cancelled — Liftgate Open



Remote Start Cancelled — Too Cold



Remote Start Cancelled — Time Expired



Remote Start Disabled — Start Vehicle To Reset

The message will stay active until the ignition is

placed in the ON/RUN position.

VEHICLE SECURITY SYSTEM — IF EQUIPPED

The Vehicle Security system monitors the vehicle

doors for unauthorized entry and the ignition

switch for unauthorized operation. When the alarm

is activated, the interior switches for door locks,

power sliding doors and power liftgate are

disabled. The Vehicle Security system provides

both audible and visible signals. If something

triggers the alarm, the Vehicle Security system will

provide the following audible and visible signals:

the horn will pulse, the park lamps and/or turn

signals will flash, and the Vehicle Security Light in

the instrument cluster will flash.

YSTEM

Follow these steps to arm the Vehicle Security

system:
1. Make sure the vehicle’s ignition is placed in

the OFF position.



For vehicles equipped with Keyless Enter ‘n

Go™ — Passive Entry, make sure the vehicle

ignition system is OFF.

2. Perform one of the following methods to lock

the vehicle:



Push lock on the interior power door lock

switch with the driver and/or passenger

door open.



Push the lock button on the exterior Passive

Entry door handle with a valid key fob avail

able in the same exterior zone

page 21.



Push the lock button on the key fob.

3. If any doors are open, close them.

ISARM

YSTEM

The Vehicle Security system can be disarmed using

any of the following methods:



Push the unlock button on the key fob.



Grab the Passive Entry door handle (if equipped)

page 21.



Cycle the vehicle ignition system out of the OFF

position.



For vehicles equipped with Keyless Enter ‘n

Go™ — Passive Entry, push the keyless igni

tion START/STOP ignition button (requires

at least one valid key fob in the vehicle).

GETTING TO KNOW YOUR VEHICLE

NOTE:



The driver's door key cylinder and the liftgate

button on the key fob cannot arm or disarm the

Vehicle Security system.



The Vehicle Security system remains armed

during power liftgate entry. Pushing the liftgate

button will not disarm the Vehicle Security

system. If someone enters the vehicle through

the liftgate and opens any door, the alarm will

sound.



When the Vehicle Security system is armed, the

interior power door lock switches will not unlock

the doors.

The Vehicle Security system is designed to protect

your vehicle. However, you can create conditions

where the system will give you a false alarm. If one

of the previously described arming sequences has

occurred, the Vehicle Security system will arm

regardless of whether you are in the vehicle or not.

If you remain in the vehicle and open a door, the

alarm will sound. If this occurs, disarm the Vehicle

Security system.
If the Vehicle Security system is armed and the

battery becomes disconnected, the Vehicle

Security system will remain armed when the

battery is reconnected; the exterior lights will flash,

and the horn will sound. If this occurs, disarm the

Vehicle Security system.

EARMING

YSTEM

If something triggers the alarm and no action is

taken to disarm it, the Vehicle Security system will

turn the horn off after a 29 second cycle (with five

seconds between cycles and up to eight cycles if

the trigger remains active) and then rearm itself.

DOORS

ANUAL

OOR

OCKS

— I

QUIPPED

To lock each door, rotate the door lock knob on

each door trim panel forward. To unlock the front

doors, pull the inside door handle to the first detent

or rotate the door lock button until the ribbing is

visible. To unlock the rear doors, rotate the door

lock button until the red indicator is visible.

Manual Front Door Lock

Manual Rear Door Lock Location

If the door lock button is locked (no ribbing is

visible) when you shut the door, the door will lock.

Therefore, make sure the key fob is not inside the

vehicle before closing the door.

NOTE:

The manual door locks will not lock or unlock the

liftgate.

1 — Door Handle
2 — Manual Door Lock

GETTING TO KNOW YOUR VEHICLE

OWER

OOR

OCKS

— I

QUIPPED

A power door lock switch is on each front door trim

panel. Use this switch to lock or unlock the doors.

Driver Power Door Lock Switches

If you push the power door lock switch while the

ignition is in the ACC or ON/RUN position, and any

front door is open, the power locks will not operate.

This prevents you from accidentally locking your

keys in the vehicle. Placing the ignition in the OFF

position or closing the door will allow the locks to

operate. A chime will sound if the ignition is in the

ACC or ON/RUN position and a door is open, as a

reminder to place the ignition in the OFF position

and remove the key fob.

EYLESS

NTER

‘

™ — P

ASSIVE

NTRY

The Passive Entry system is an enhancement to

the vehicle’s Remote Keyless Entry system and a

feature of Keyless Enter ‘n Go™ — Passive Entry.

This feature allows you to lock and unlock the

vehicle’s door(s) without having to push the key fob

lock or unlock buttons.

NOTE:



Passive Entry may be programmed on/off

through the Uconnect system



The key fob may not be detected by the vehicle

passive entry system if it is located next to a

mobile phone, laptop, or other electronic device;

these devices may block the key fob’s wireless

signal and prevent the passive entry handle

from locking/unlocking the vehicle.



If set by the customer in the Uconnect Settings,

unlocking with Passive Entry will initiate

illuminated approach (low beams, license plate

lamp, position lamps) for the time 0, 30, 60 or

90 seconds. Passive Entry also initiates two

flashes of the turn signals.



If wearing gloves, or if it has been raining/

snowing on the Passive Entry door handle, the

unlock sensitivity can be affected, resulting in a

slower response time.

WARNING!



For personal security and safety in the event

of a collision, lock the vehicle doors before you

drive as well as when you park and leave the

vehicle.



Never use the PARK position as a substitute

for the parking brake. Always apply the

parking brake fully when parked to guard

against vehicle movement and possible injury

or damage.



When exiting the vehicle, always make sure

the keyless ignition is in the OFF position,

remove the key fob from the vehicle and lock

the vehicle.



Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing chil

dren to be in a vehicle unattended is

dangerous for a number of reasons. A child or

others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the gear

selector.



Do not leave the key fob in or near the vehicle,

or in a location accessible to children, and do

not leave the Keyless Enter ‘n Go™ Ignition in

the ACC or ON/RUN position. A child could

operate power windows, other controls, or

move the vehicle.

GETTING TO KNOW YOUR VEHICLE



If the vehicle is unlocked by Passive Entry and

no door is opened within 60 seconds, the

vehicle will relock and will arm the security

system (if equipped).



The sliding side doors can be unlocked from the

outside using the Passive Entry system.

To Unlock From The Driver Or Passenger Side:
With a valid key fob within 5 ft (1.5 m) of the door

handle, grab the handle to unlock the vehicle.

Grabbing the driver’s door handle will unlock the

driver’s side doors (driver/sliding door)

automatically. Grabbing the front passenger door

handle to unlock all four doors and the liftgate

automatically. The interior door panel lock knob

will rotate when the door is unlocked.

Grab The Door Handle To Unlock

NOTE:



Either the driver door only or all doors will unlock

when you grab hold of the front driver’s door

handle, depending on the selected setting in the

Uconnect system



All doors will unlock when the front passenger

door handle is grabbed regardless of the

driver’s door unlock preference setting.

Frequency Operated Button Integrated Key

(FOBIK-Safe)
To minimize the possibility of unintentionally

locking a key fob inside your vehicle, the Passive

Entry system is equipped with an automatic door

unlock feature.
There are three situations that trigger a

FOBIK-Safe search in any Passive Entry vehicle:



A lock request is made by a valid key fob while a

door is open.



A lock request is made by the Passive Entry door

handle while a door is open.



A lock request is made by the door panel switch

while the door is open.

When any of these situations occur, after all open

doors are shut, the FOBIK-Safe search will be

executed. If it detects a key fob inside the car, and

it does not detect any key fob outside the car, then

the car will unlock and alert the customer.

NOTE:

The vehicle will only unlock the doors when a valid

Passive Entry key fob is detected inside the

vehicle, and no valid key fob is detected outside

the vehicle. The vehicle will not unlock the doors

when any of the following conditions are met:



The doors are manually locked using the door

lock knobs.



Three attempts are made to lock the doors

using the door panel switch and then the doors

are closed.



There is a valid Passive Entry key fob outside the

vehicle and within 5 ft (1.5 m) of either Passive

Entry door handle.

NOTE:

On the third attempt ALL doors will lock and the key

fob can be locked in the vehicle.
To Lock The Vehicle’s Doors And Liftgate
With one of the vehicle’s key fobs within 5 ft

(1.5 m) of the driver or passenger front door

handle, push the door handle lock button to lock all

four doors and the liftgate.

GETTING TO KNOW YOUR VEHICLE

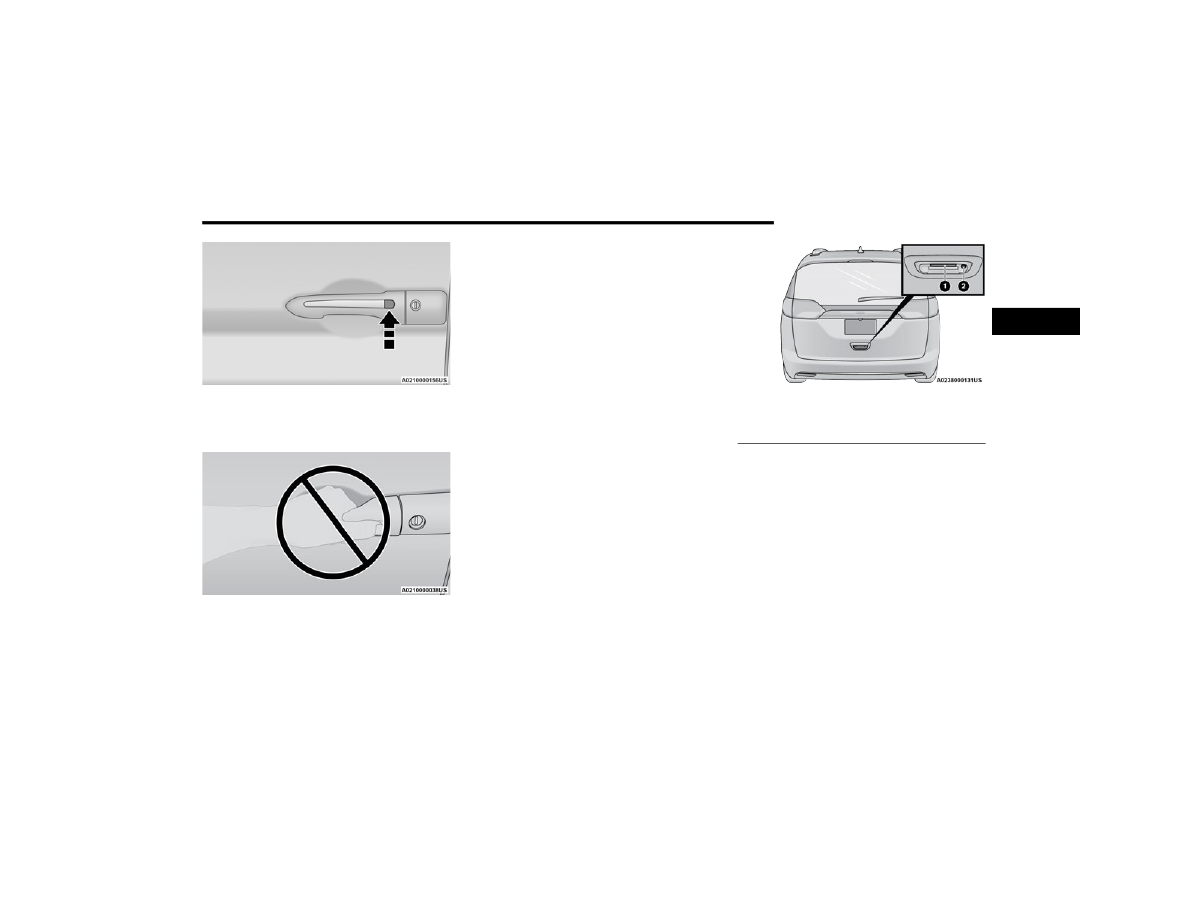

Push The Door Handle Button To Lock

Do NOT grab the door handle when pushing the

door handle button. This could unlock the door(s).

Do NOT Grab The Door Handle When Locking

NOTE:



After pushing the door handle button, you must

wait two seconds before you can lock or unlock

the doors, using either Passive Entry door

handle. This is done to allow you to check if the

vehicle is locked by pulling the door handle,

without the vehicle unlocking.



The Passive Entry system will not operate if the

key fob battery is depleted.

To Unlock/Enter The Liftgate
The liftgate Passive Entry unlock feature is built

into the electronic liftgate release button. With a

valid Passive Entry key fob within 5 ft (1.5 m) of the

liftgate, push the electronic liftgate release button

for a power open on vehicles equipped with Power

Liftgate. Pull the electronic liftgate handle and lift

for Manual Liftgate vehicles.

Electronic Liftgate

To Lock The Liftgate
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the liftgate, push the Passive Entry lock

button located to the right of the liftgate release

handle.
The vehicle doors can also be locked by using the

key fob lock button, or the lock button located on

the vehicle’s interior door panel
