Chrysler Town & Country (2016 year). Manual - part 39





compact spare tire/cover assembly is positioned cor-
rectly against the underside of the vehicle.

CAUTION!

The winch mechanism is designed specifically to
stow a compact spare tire only. Do not attempt to use
the winch to stow the full size deflated tire, or any
other full-size tire, as the tire may not be held
securely. Vehicle damage may result.

Road Tire Installation

Vehicles Equipped With Wheel Covers

1. Mount the road tire on the axle.

2. To ease the installation process for steel wheels with

wheel covers, install two lug nuts on the mounting
studs which are on each side of the valve stem. Install
the lug nuts with the cone shaped end of the nut
toward the wheel. Lightly tighten the lug nuts.

3. Align the valve notch in the wheel cover with the

valve stem on the wheel. Install the cover by hand,

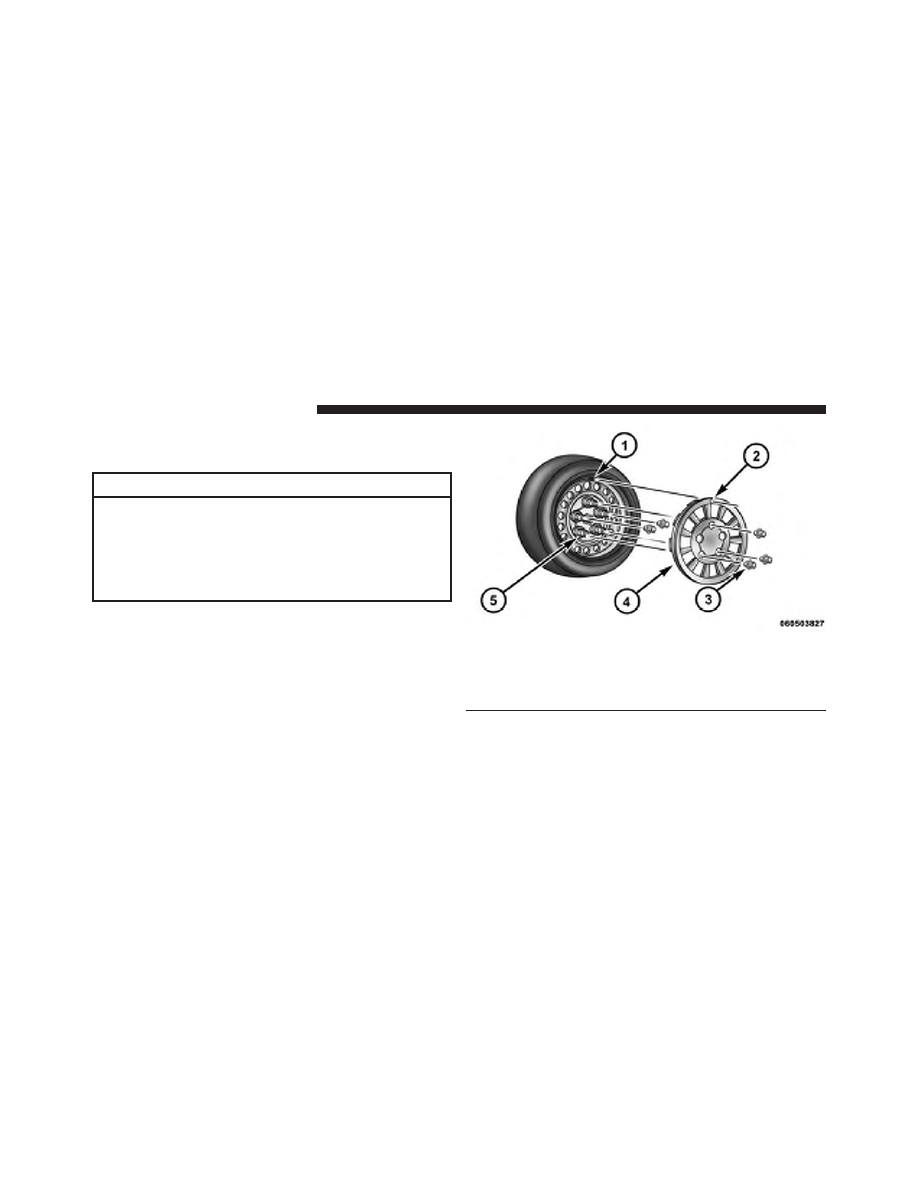

Tire And Wheel Cover Or Center Cap

1 — Valve Stem

4 — Wheel Cover

2 — Valve Notch

5 — Mounting Stud

3 — Wheel Lug Nut

620

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

snapping the cover over the two lug nuts. Do not use
a hammer or excessive force to install the cover.

4. Install the remaining lug nuts with the cone shaped

end of the nut toward the wheel. Lightly tighten the
lug nuts.

WARNING!

To avoid the risk of forcing the vehicle off the jack,
do not tighten the wheel nuts fully until the vehicle
has been lowered. Failure to follow this warning may
result in serious injury.

5. Lower the vehicle to the ground by turning the jack

handle counterclockwise.

6. Refer to “Torque Specifications” in this section for

proper wheel lug nut torque.

7. After 25 miles (40 km) check the lug nut torque with a

torque wrench to ensure that all lug nuts are properly
seated against the wheel.

Vehicles Without Wheel Covers

1. Mount the road tire on the axle.

2. Install the remaining lug nuts with the cone shaped

end of the nut toward the wheel. Lightly tighten the
lug nuts.

WARNING!

To avoid the risk of forcing the vehicle off the jack,
do not tighten the wheel nuts fully until the vehicle
has been lowered. Failure to follow this warning may
result in serious injury.

6

WHAT TO DO IN EMERGENCIES

621

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Lower the vehicle to the ground by turning the jack

handle counterclockwise.

4. Refer to “Torque Specifications” in this section for

proper wheel lug nut torque.

5. After 25 miles (40 km) check the lug nut torque with a

torque wrench to ensure that all lug nuts are properly
seated against the wheel.

JUMP-STARTING

If your vehicle has a discharged battery it can be jump-
started using a set of jumper cables and a battery in
another vehicle or by using a portable battery booster
pack. Jump-starting can be dangerous if done improperly
so please follow the procedures in this section carefully.

NOTE:

When using a portable battery booster pack

follow the manufacturer’s operating instructions and
precautions.

CAUTION!

Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.

WARNING!

Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.

622

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Preparations For Jump-Start

The battery in your vehicle is located on the left side of
the engine compartment.

WARNING!

• Take care to avoid the radiator cooling fan when-

ever the hood is raised. It can start anytime the
ignition switch is ON. You can be injured by
moving fan blades.

• Remove any metal jewelry such as rings, watch

bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.

• Batteries contain sulfuric acid that can burn your

skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

1. Set the parking brake, shift the automatic transmission

into PARK and turn the ignition to LOCK.

2. Turn off the heater, radio, and all unnecessary electri-

cal accessories.

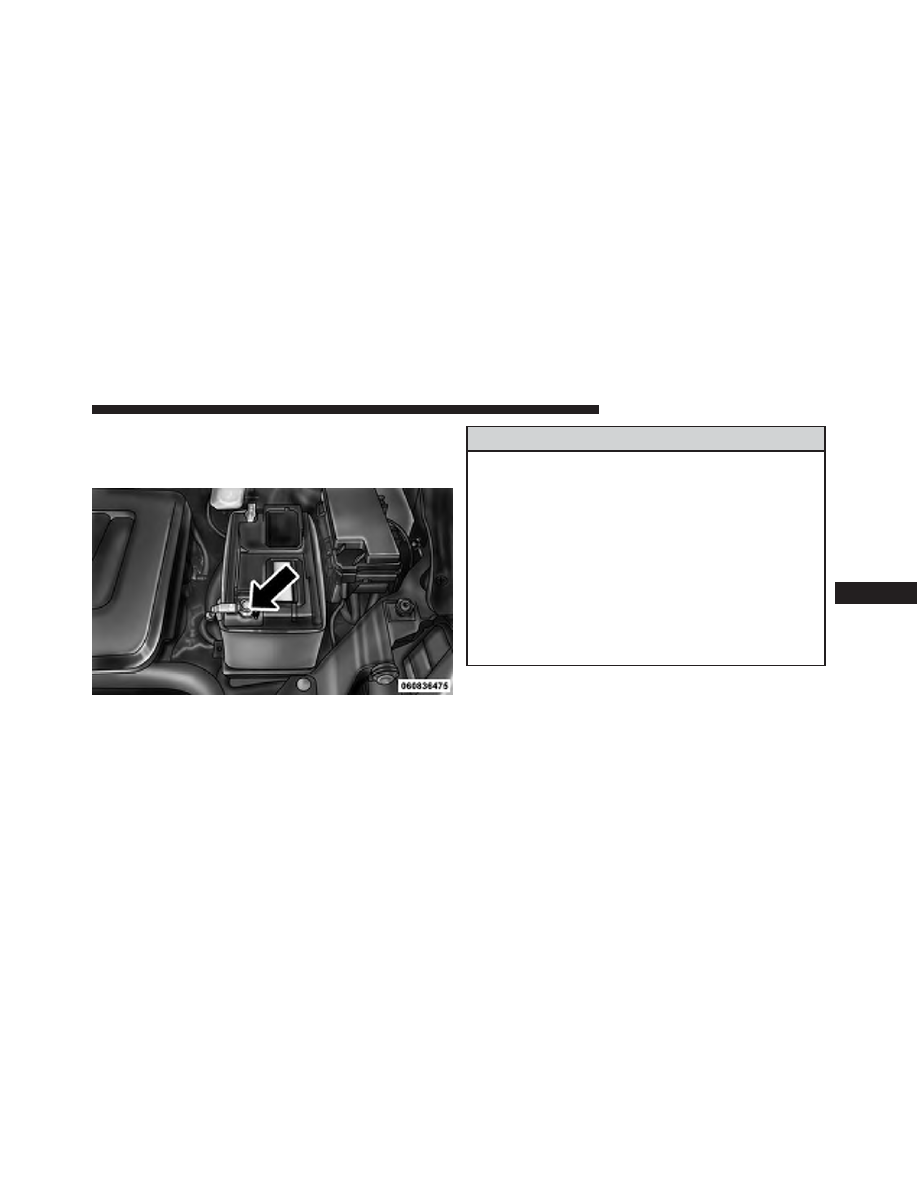

Positive Battery Post

6

WHAT TO DO IN EMERGENCIES

623

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. If using another vehicle to jump-start the battery, park

the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.

WARNING!

Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.

Jump-Starting Procedure

WARNING!

Failure to follow this jump-starting procedure could
result in personal injury or property damage due to
battery explosion.

CAUTION!

Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.

Connecting The Jumper Cables

1. Connect the positive (+) end of the jumper cable to the

positive (+) post of the vehicle with the discharged
battery.

2. Connect the opposite end of the positive (+) jumper

cable to the positive (+) post of the booster battery.

3. Connect the negative (-) end of the jumper cable to the

negative (-) post of the booster battery.

624

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Connect the opposite end of the negative (-) jumper

cable to a good engine ground (exposed metal part of
the discharged vehicle’s engine) away from the battery
and the fuel injection system.

WARNING!

Do not connect the jumper cable to the negative (-)
post of the discharged battery. The resulting electri-
cal spark could cause the battery to explode and
could result in personal injury. Only use the specific
ground point, do not use any other exposed metal
parts.

5. Start the engine in the vehicle that has the booster

battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.

6. Once the engine is started, remove the jumper cables

in the reverse sequence:

Disconnecting The Jumper Cables

1. Disconnect the negative (-) end of the jumper cable

from the engine ground of the vehicle with the dis-
charged battery.

2. Disconnect the opposite end of the negative (-) jumper

cable from the negative (-) post of the booster battery.

3. Disconnect the positive (+) end of the jumper cable

from the positive (+) post of the booster battery.

4. Disconnect the opposite end of the positive (+) jumper

cable from the positive (+) post of the vehicle with the
discharged battery.

If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.

6

WHAT TO DO IN EMERGENCIES

625

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough without engine operation,
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVE
and REVERSE while gently pressing the accelerator. Use
the least amount of accelerator pedal pressure that will

maintain the rocking motion, without spinning the
wheels or racing the engine.

CAUTION!

Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
least one minute after every five rocking-motion
cycles. This will minimize overheating and reduce
the risk of transmission failure during prolonged
efforts to free a stuck vehicle.

NOTE:

Push the

⬙ESC Off⬙ switch, to place the Electronic

Stability Control (ESC) system in

⬙Partial Off⬙ mode

before rocking the vehicle. Refer to “Electronic Brake
Control System” in “Starting and Operating” for further
information. Once the vehicle has been freed, push the

⬙ESC Off⬙ switch again to restore ⬙ESC On⬙ mode.

626

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

• When “rocking” a stuck vehicle by shifting be-

tween DRIVE and REVERSE, do not spin the
wheels faster than 15 mph (24 km/h), or drivetrain
damage may result.

• Revving the engine or spinning the wheels too fast

may lead to transmission overheating and failure.
It can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no trans-
mission shifting occurring).

WARNING!

Fast spinning tires can be dangerous. Forces gener-
ated by excessive wheel speeds may cause damage, or
even failure, of the axle and tires. A tire could

(Continued)

WARNING! (Continued)

explode and injure someone. Do not spin your vehi-
cle’s wheels faster than 30 mph (48 km/h) or for
longer than 30 seconds continuously without stop-
ping when you are stuck and do not let anyone near
a spinning wheel, no matter what the speed.

SHIFT LEVER OVERRIDE

If a malfunction occurs and the shift lever cannot be
moved out of the PARK position, you can use the
following procedure to temporarily move the shift lever:

1. Turn the engine OFF.

2. Firmly apply the parking brake.

3. Using a small screwdriver or similar tool, remove the

shift lever override access cover (located near the top
right of the shift lever in the instrument panel).

6

WHAT TO DO IN EMERGENCIES

627

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Press and maintain firm pressure on the brake pedal.

5. Insert the screwdriver or similar tool into the access

hole, and push and hold the override release lever
forward.

6. Move the shift lever to the NEUTRAL position.

7. The vehicle may then be started in NEUTRAL.

8. Reinstall the shift lever override access cover.

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled
vehicle using a commercial towing service.

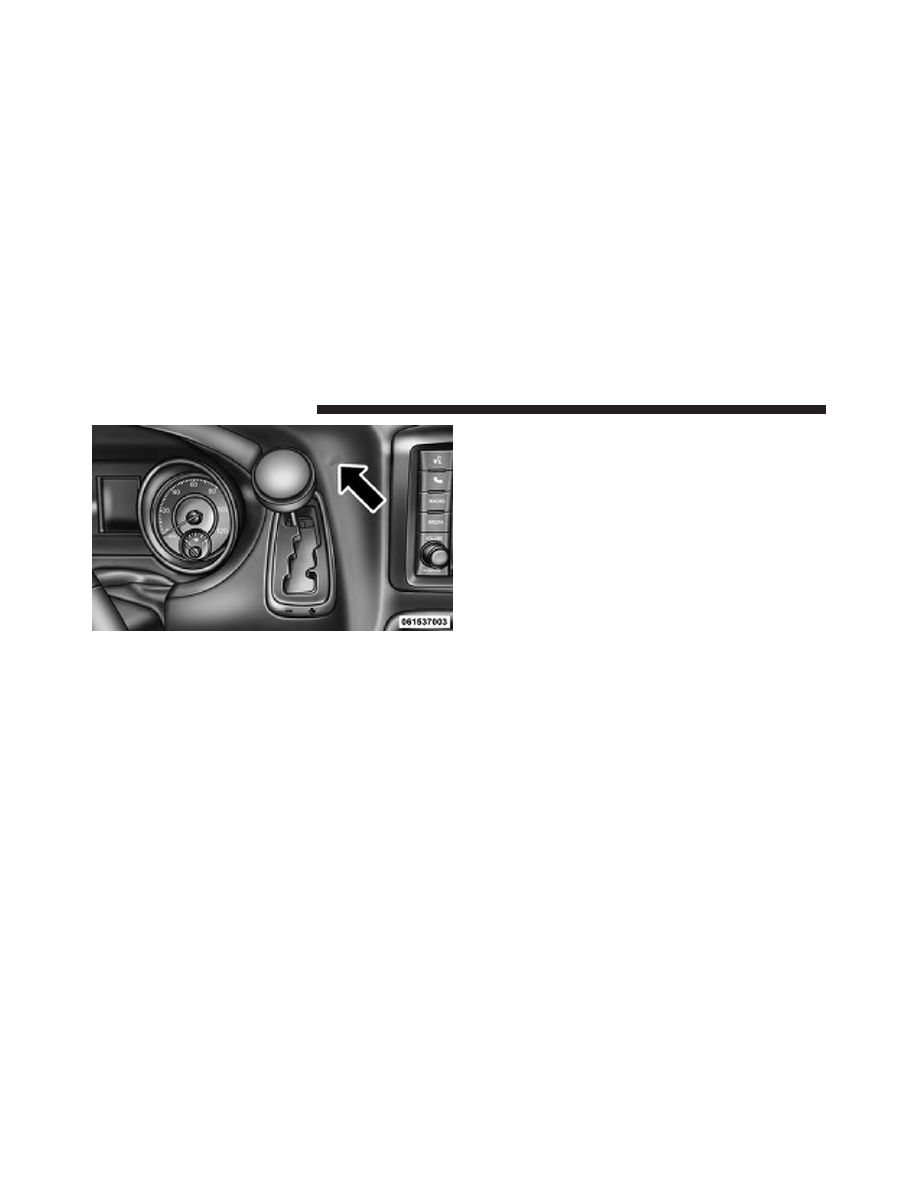

Shift Lever Override Access Cover

628

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Towing Condition

Wheels OFF the Ground

ALL MODELS

Flat Tow

NONE

If transmission is operable:

• Transmission in NEUTRAL

• 25 mph (40 km/h) max speed

• 15 miles (24 km) max distance

Wheel lift

Rear

Front

OK

Flatbed

ALL

BEST METHOD

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.

If the key fob is unavailable or the vehicle’s battery is
discharged, refer to

⬙Shift Lever Override⬙ in this section

for instructions on shifting the transmission out of PARK
for towing.

6

WHAT TO DO IN EMERGENCIES

629

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION!

• Do not use sling type equipment when towing.

Vehicle damage may occur.

• When securing the vehicle to a flatbed truck, do not

attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.

• Do not push or tow this vehicle with another vehicle

as damage to the bumper fascia and transmission
may result.

The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed. If flatbed
equipment is not available, and the transmission is
operable, the vehicle may be flat towed (with all four
wheels on the ground) under the following conditions:

• The transmission must be in NEUTRAL.
• The towing distance must not exceed 15 miles (24 km).

• The towing speed must not exceed 25 mph (40 km/h).

If the transmission is not operable, or the vehicle must
be towed faster than 25 mph (40 km/h) or farther than 15
miles (24 km), it must be towed with the front wheels
OFF the ground (using a flatbed truck, or wheel lift
equipment with the front wheels raised).

CAUTION!

• Towing faster than 25 mph (40 km/h) or farther than

15 mi (24 km) with front wheels on the ground can
cause severe transmission damage. Damage from
improper towing is not covered under the New
Vehicle Limited Warranty.

• Towing this vehicle in violation of the above re-

quirements can cause severe transmission damage.
Damage from improper towing is not covered un-
der the New Vehicle Limited Warranty.

630

WHAT TO DO IN EMERGENCIES

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTAINING YOUR VEHICLE

CONTENTS

䡵 ENGINE COMPARTMENT — 3.6L . . . . . . . . . .633
䡵 ONBOARD DIAGNOSTIC SYSTEM — OBD II . .634

▫ Loose Fuel Filler Cap Message . . . . . . . . . . . .634

䡵 EMISSIONS INSPECTION AND MAINTENANCE

PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . .635

䡵 REPLACEMENT PARTS . . . . . . . . . . . . . . . . . .637
䡵 DEALER SERVICE . . . . . . . . . . . . . . . . . . . . . .637
䡵 MAINTENANCE PROCEDURES . . . . . . . . . . .637

▫ Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . .638
▫ Engine Oil Filter . . . . . . . . . . . . . . . . . . . . . .641

▫ Engine Air Cleaner Filter . . . . . . . . . . . . . . . .641
▫ Exhaust System . . . . . . . . . . . . . . . . . . . . . .642
▫ Maintenance-Free Battery . . . . . . . . . . . . . . .644
▫ Air Conditioner Maintenance . . . . . . . . . . . . .645
▫ Body Lubrication . . . . . . . . . . . . . . . . . . . . .647
▫ Windshield Wiper Blades . . . . . . . . . . . . . . .648
▫ Cooling System . . . . . . . . . . . . . . . . . . . . . .649
▫ Brake System . . . . . . . . . . . . . . . . . . . . . . . .655
▫ Automatic Transmission . . . . . . . . . . . . . . . .657

7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

▫ Appearance Care And Protection From

Corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . .659

▫ Cleaning The Instrument Panel Cupholders . .665

䡵 FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .666

▫ Totally Integrated Power Module (Fuses) . . . .666

䡵 VEHICLE STORAGE . . . . . . . . . . . . . . . . . . . .674
䡵 REPLACEMENT BULBS . . . . . . . . . . . . . . . . .674
䡵 BULB REPLACEMENT . . . . . . . . . . . . . . . . . .676

▫ High Intensity Discharge Headlamps (HID) — If

Equipped . . . . . . . . . . . . . . . . . . . . . . . . . . .676

▫ Quad Headlamps . . . . . . . . . . . . . . . . . . . . .677
▫ Front Park/Turn Signal Lamps . . . . . . . . . . . .677

▫ Front Side Marker Lamp . . . . . . . . . . . . . . . .677
▫ Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . .678
▫ Rear Turn Signal And Backup Lamp . . . . . . . .678
▫ Center High-Mounted Stop Lamp (CHMSL) . .679
▫ License Lamp . . . . . . . . . . . . . . . . . . . . . . . .679

䡵 FLUID CAPACITIES . . . . . . . . . . . . . . . . . . . .680
䡵 FLUIDS, LUBRICANTS, AND GENUINE

PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .681

▫ Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . .681
▫ Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . .682

632

MAINTAINING YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

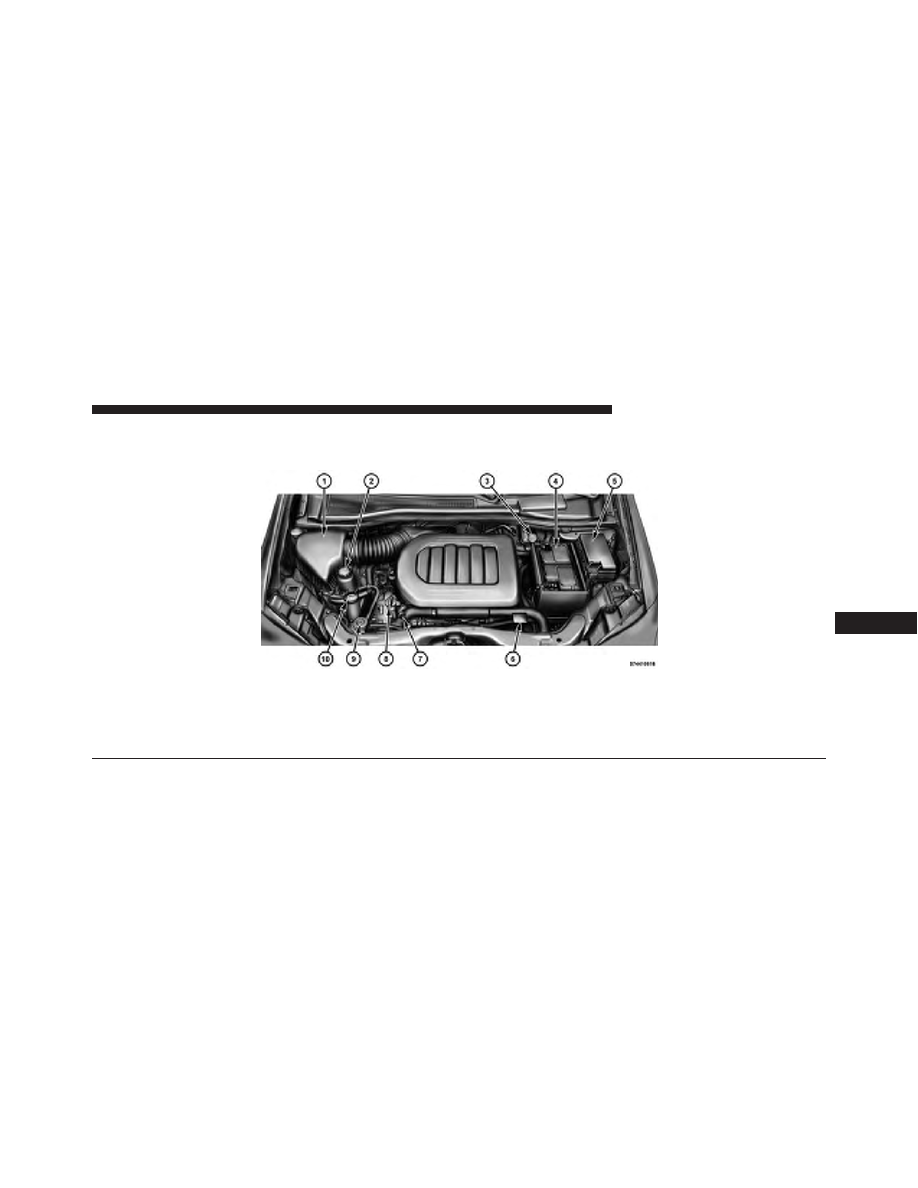

ENGINE COMPARTMENT — 3.6L

1 — Air Filter

6 — Engine Coolant Reservoir

2 — Power Steering Fluid Reservoir

7 — Engine Oil Dipstick

3 — Brake Fluid Reservoir

8 — Engine Oil Fill

4 — Battery

9 — Coolant Pressure Cap

5 — Totally Integrated Power Module (Fuses)

10 — Washer Fluid Reservoir

7

MAINTAINING YOUR VEHICLE

633

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ONBOARD DIAGNOSTIC SYSTEM — OBD II

Your vehicle is equipped with a sophisticated Onboard
Diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.

If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.

CAUTION!

• Prolonged driving with the MIL on could cause

further damage to the emission control system. It
could also affect fuel economy and driveability.
The vehicle must be serviced before any emissions
tests can be performed.

• If the MIL is flashing while the engine is running,

severe catalytic converter damage and power loss
will soon occur. Immediate service is required.

634

MAINTAINING YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Loose Fuel Filler Cap Message

If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“gASCAP” message will display in the odometer or a
“CHECK GASCAP” message will be displayed in the
Electronic Vehicle Information Center (EVIC). Refer to
“Electronic Vehicle Information Center (EVIC)” in “Un-
derstanding Your Instrument Panel” for further informa-
tion. Tighten the gas cap until a “clicking” sound is
heard. This is an indication that the gas cap is properly
tightened.

Push the odometer reset button to turn the message off. If
the problem persists, the message will appear the next
time the vehicle is started. This might indicate a damaged
cap. If the problem is detected twice in a row, the system
will turn on the MIL. Resolving the problem will turn the
MIL light off.

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS

In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.

For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not

on when the engine is running, and that the OBD II
system is ready for testing.

Normally, the OBD II system will be ready. The OBD II
system may not be ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.

7

MAINTAINING YOUR VEHICLE

635

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     37      38      39      40     ..
