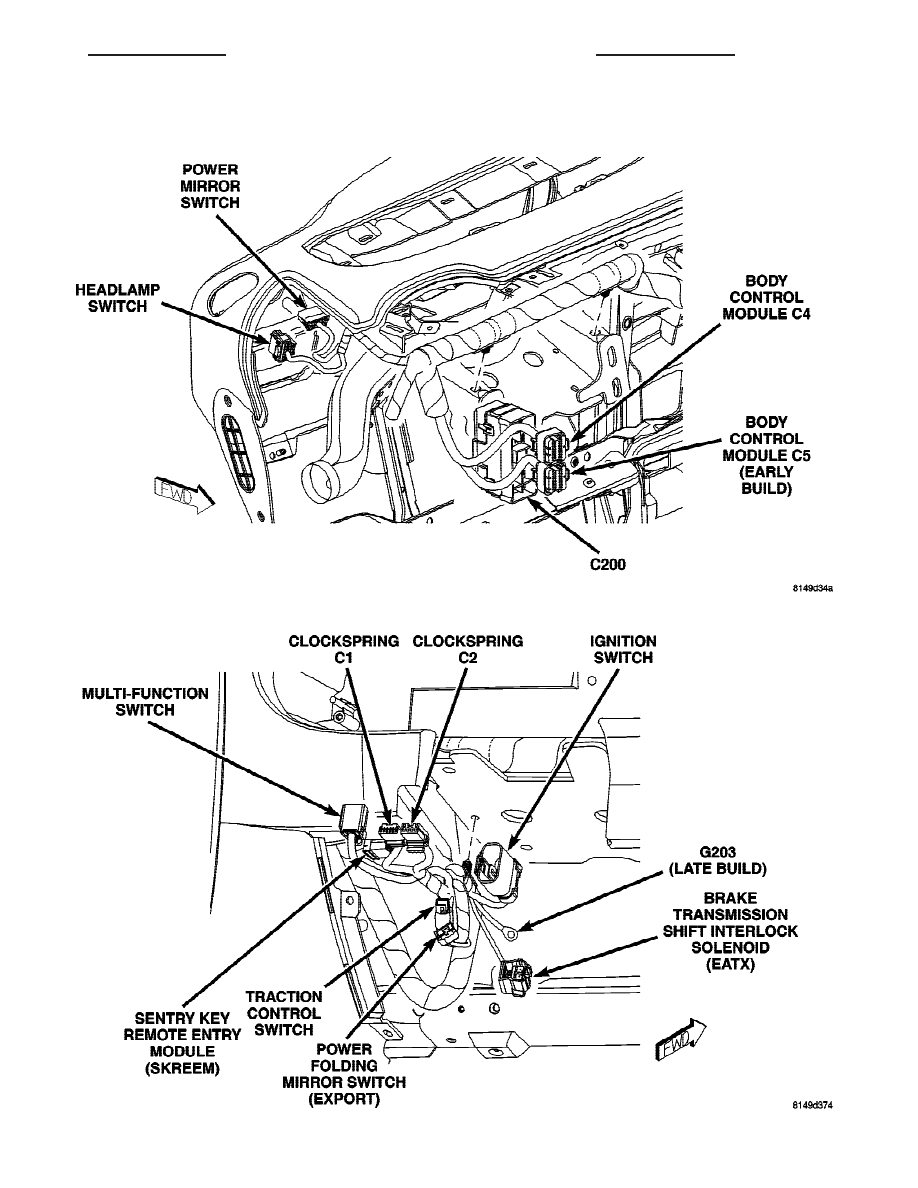

Fig. 30 RIGHT SIDE INSTRUMENT PANEL LOWER RHD

Fig. 31 STEERING COLUMN CONNECTORS RHD

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 43

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

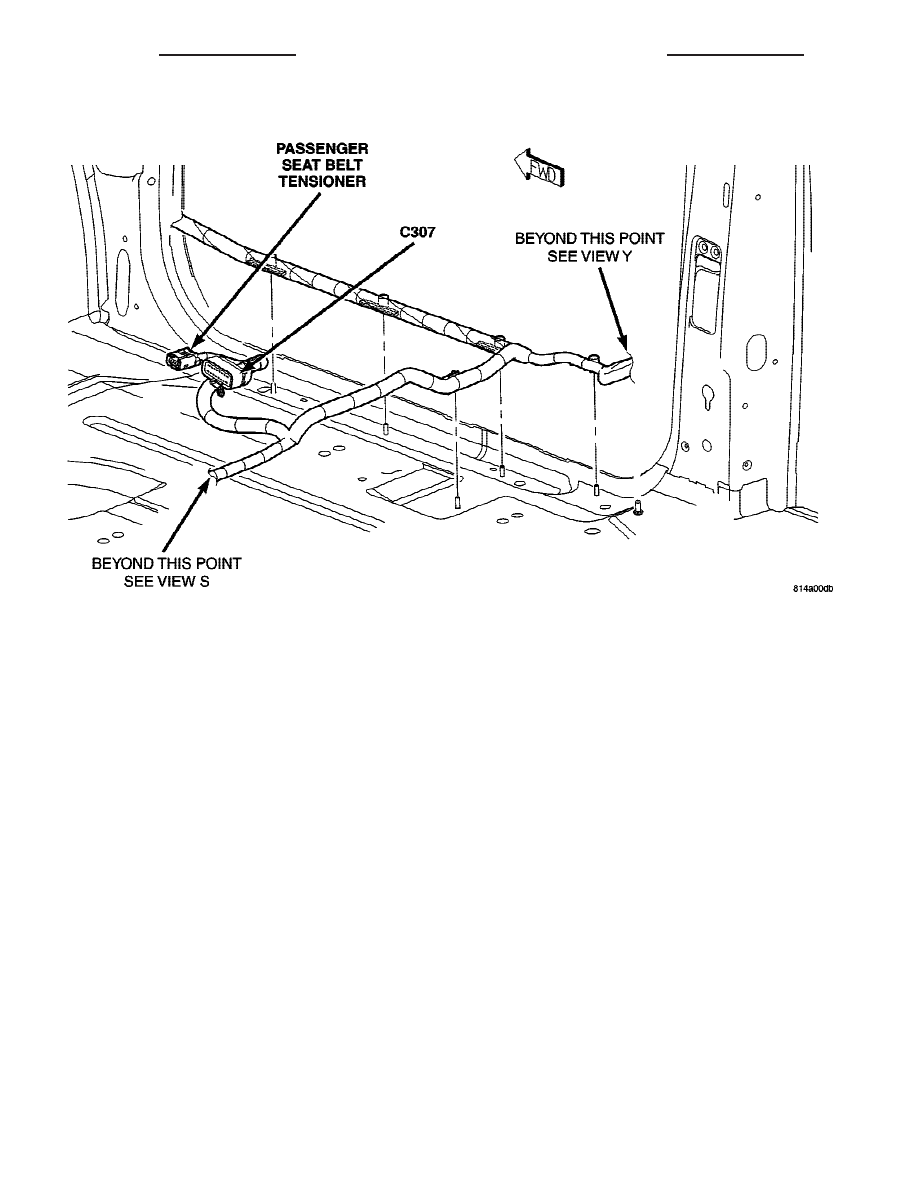

Fig. 32 LEFT SIDE BODY LHD

8W - 91 - 44

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

33

RIGHT

SIDE

BODY

FRONT

LHD

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 45

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

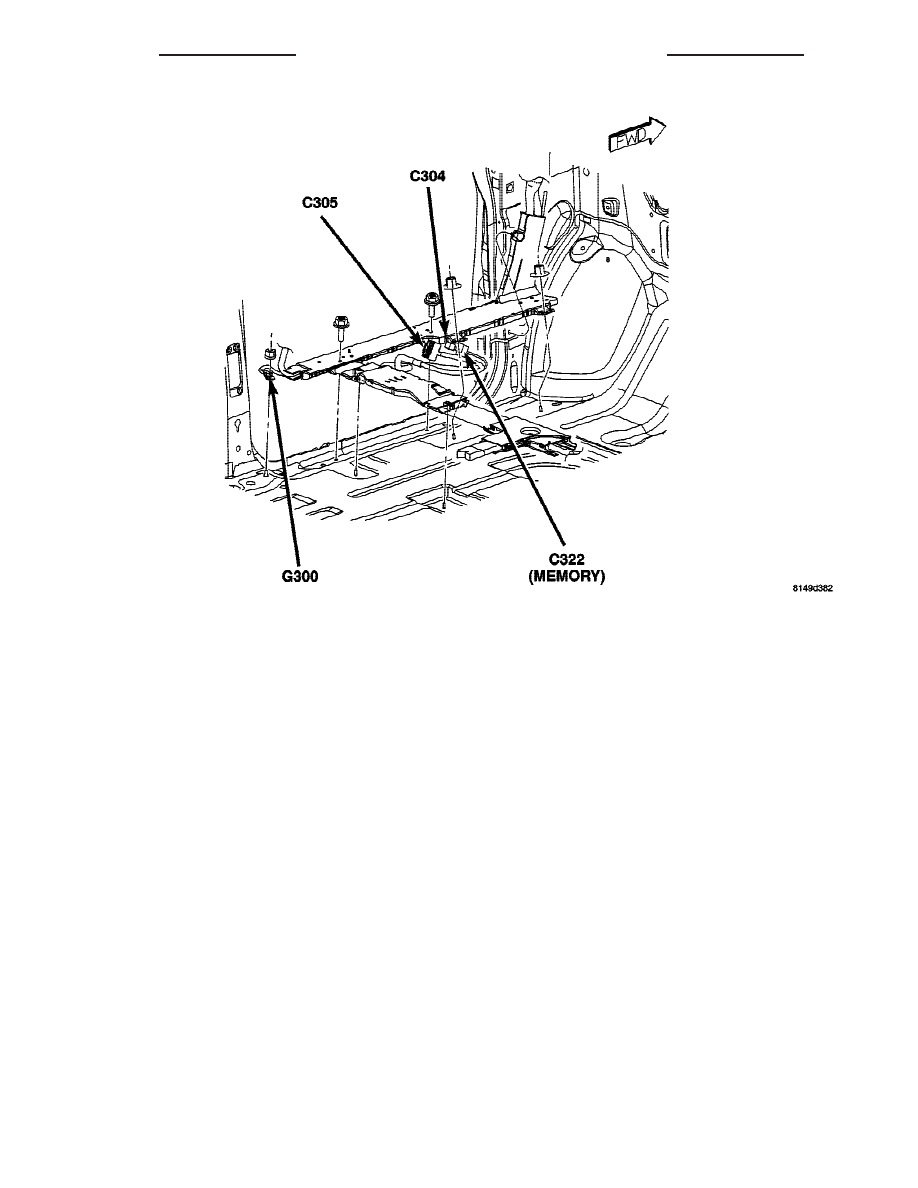

Fig. 34 RIGHT SIDE BODY LHD

8W - 91 - 46

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
