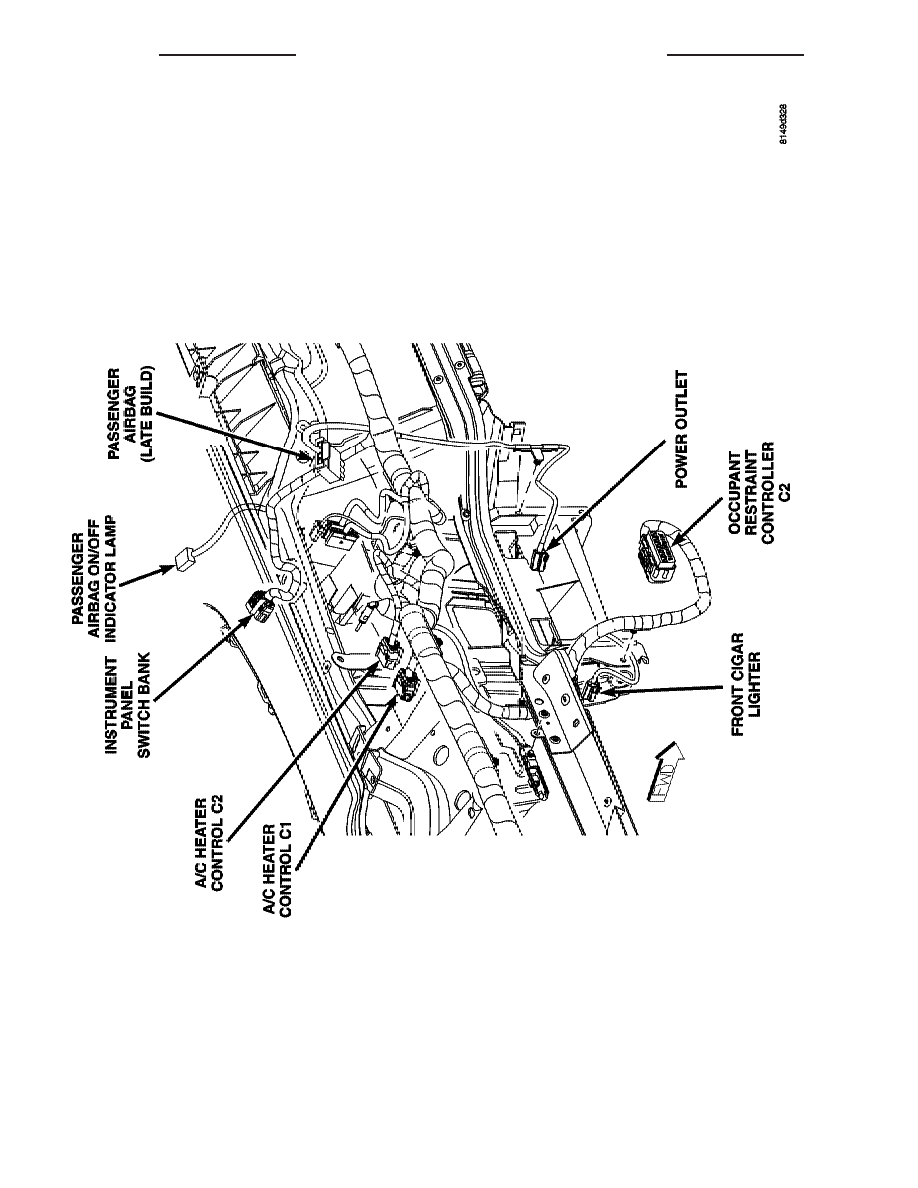

Fig. 24 RIGHT SIDE INSTRUMENT PANEL

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 39

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

25

CENTER

INSTRUMENT

P

ANEL

RHD

8W - 91 - 40

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

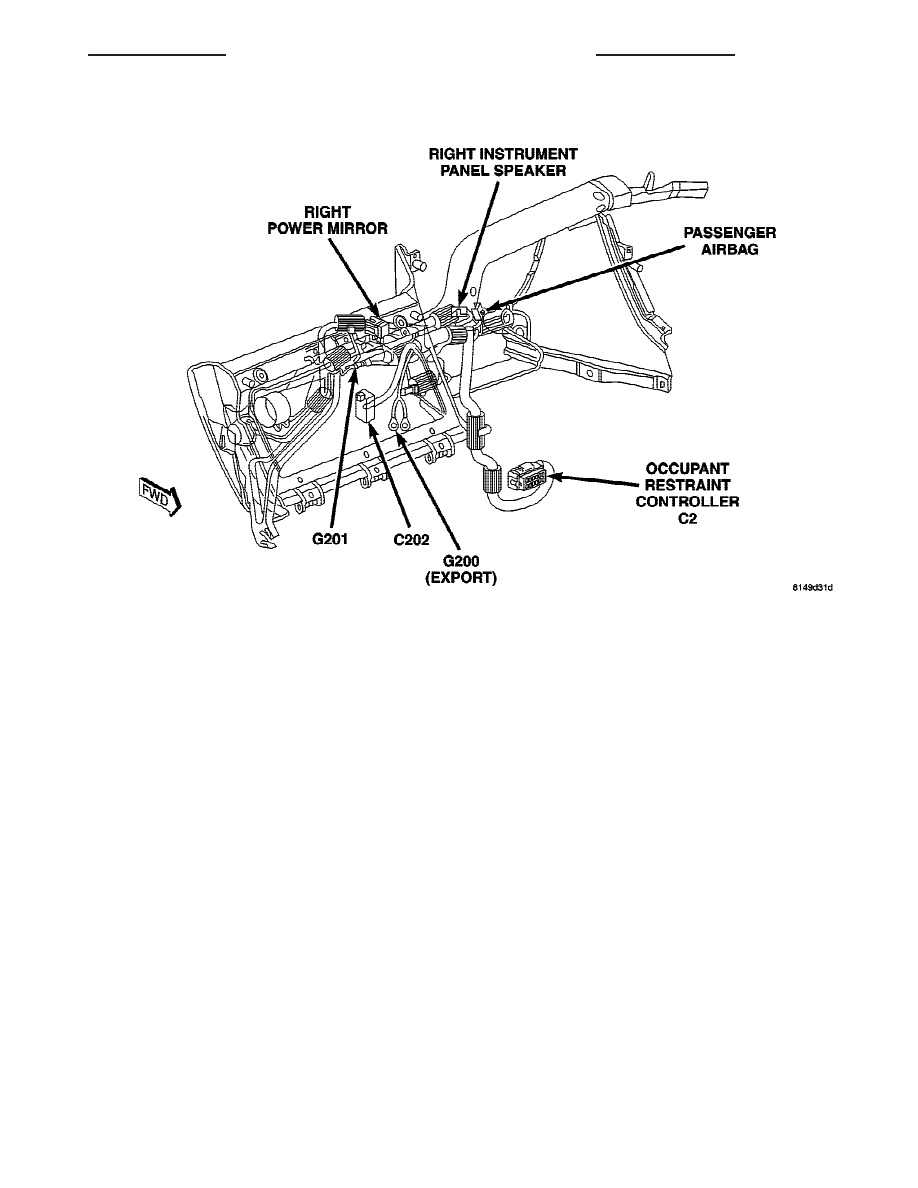

Fig. 26 INSTRUMENT PANEL RHD

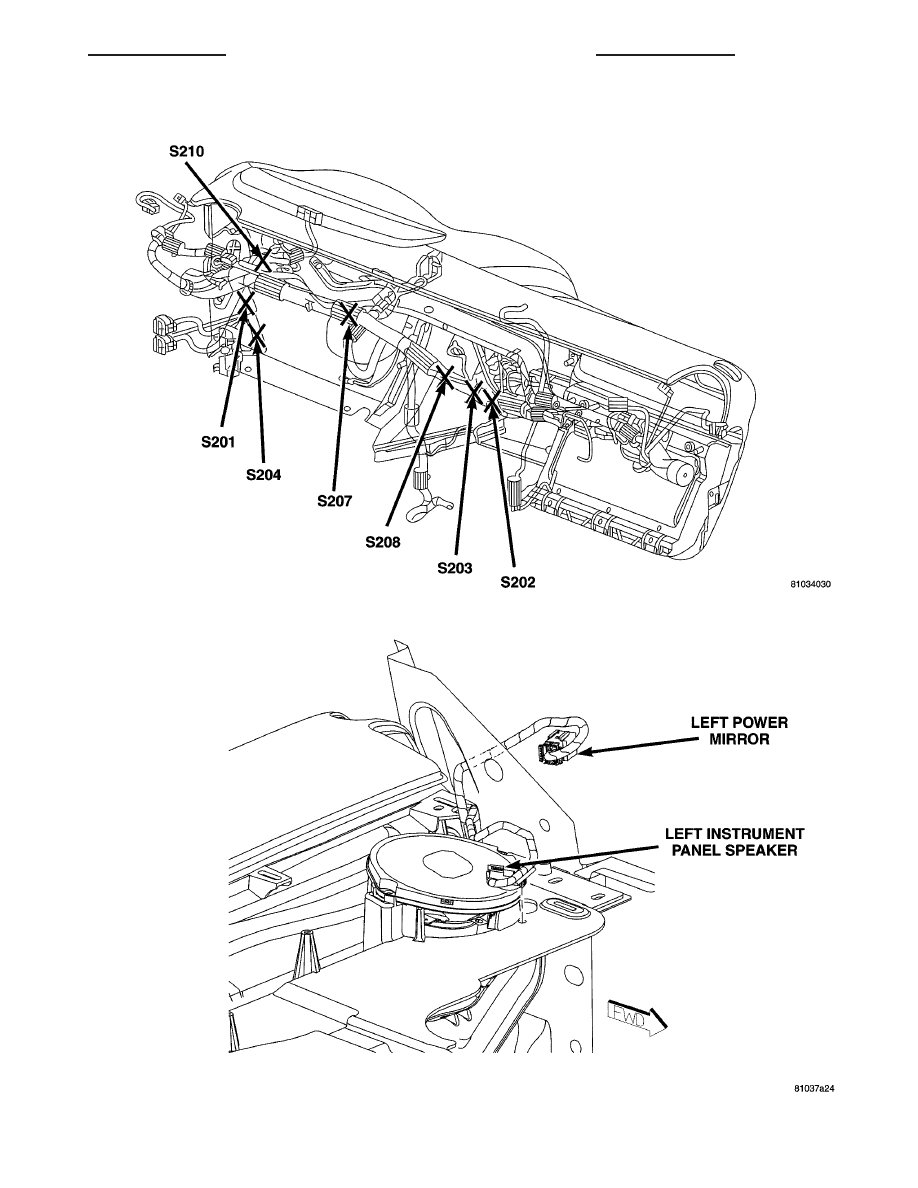

Fig. 27 LEFT SIDE INSTRUMENT PANEL UPPER RHD

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 41

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

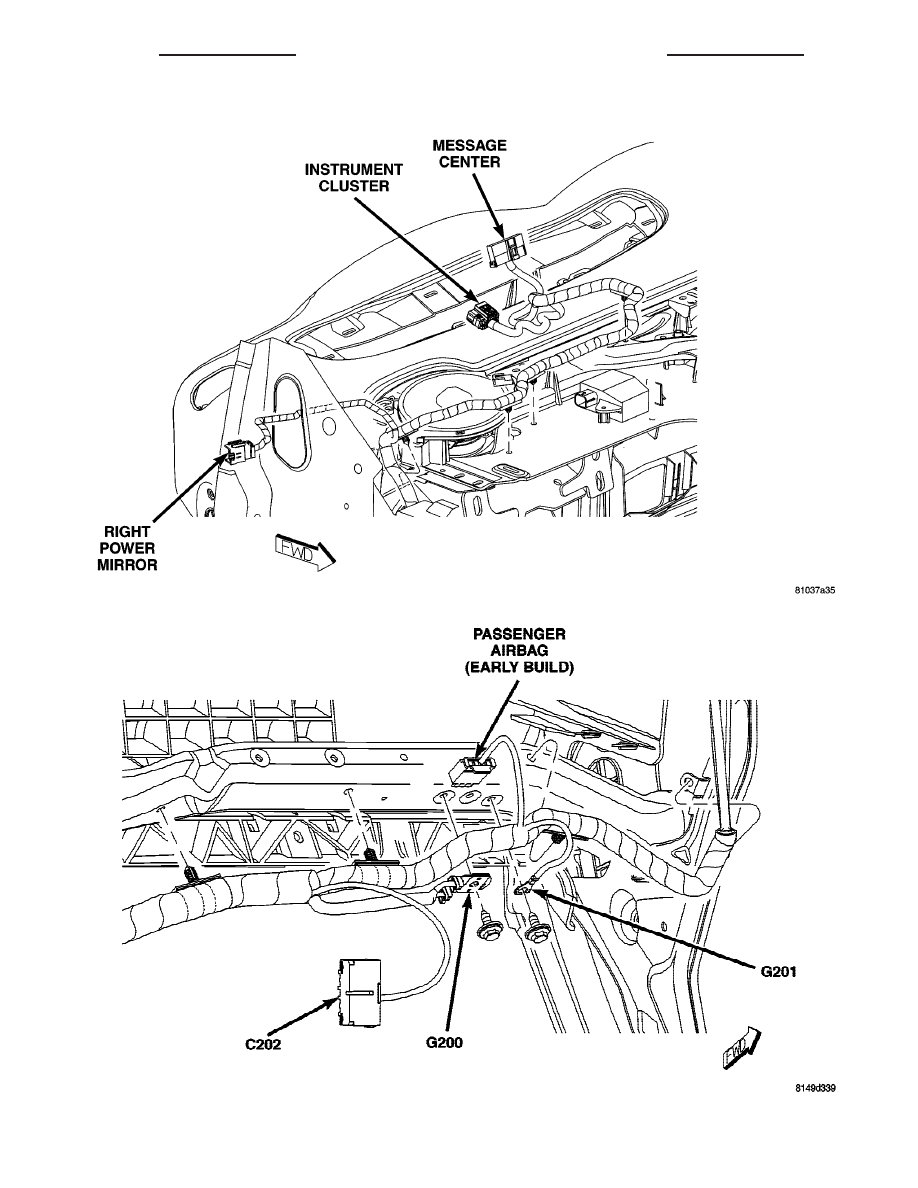

Fig. 28 RIGHT SIDE INSTRUMENT PANEL UPPER RHD

Fig. 29 LEFT SIDE INSTRUMENT PANEL LOWER RHD

8W - 91 - 42

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
