a second time. Pressing the Panic button also acti-
vates the courtesy lamps. Pressing the Panic button
again stops the exterior lamps from flashing and the
horn from sounding. However, the courtesy lamps
will remain illuminated until either the BCM times
out lamp operation or until the turning of the igni-
tion. The panic feature will operate if the ignition is
ON, but only if the Panic button is pressed prior to
starting the vehicle. A vehicle speed of about 25.7
km/h (15 miles-per-hour) will also cancel the panic
event.

The RKE system can also perform other functions

on this vehicle. If the vehicle is equipped with the
optional Vehicle Theft Security System (VTSS), the
RKE transmitter will arm the VTSS when the Lock
button is depressed, and disarm the VTSS when the
Unlock button is depressed.

The RKE system includes two transmitters when

the vehicle is shipped from the factory, but the sys-
tem can retain the vehicle access codes of up to a
total of eight transmitters. If an RKE transmitter is
inoperative or lost, new transmitter vehicle access
codes can be programmed into the system using a
DRB III

t scan tool.

This vehicle also offers several customer program-

mable features, which allows the selection of several
optional electronic features to suit individual prefer-
ences.

Customer

programmable

feature

options

affecting the RKE system include:

• Automatic Door Lock - Customer programma-

ble feature that allows the BCM to perform an auto-
matic door lock if the vehicle speed is above 25.7
km/h (15 miles-per-hour).

• Automatic Door Unlock On Exit - Customer

programmable feature that allows the BCM to per-
form an automatic door unlock if the vehicle speed is
0, vehicle in park and driver door is opened.

• Flash Lights with Lock and Unlock - Allows

the option of having the park lamps flash as an opti-
cal verification that the RKE system received a valid
Lock request or Unlock request from the RKE trans-
mitter, or having no optical verification.

• Programming Additional Transmitters -

Allows up to a total of four transmitter vehicle access
codes to be stored.

• Remote Unlock Sequence - Allows the option

of having only the driver side front door unlock when
the RKE transmitter Unlock button is depressed the
first time. The remaining doors unlock when the but-
ton is depressed a second time within 5 seconds of
the first unlock press. Another option is having all
doors unlock upon the first depression of the RKE
transmitter Unlock button.

• Sound Horn on Lock - Allows the option of

having the horn sound a short chirp as an audible
verification that the RKE system received a valid

Lock request from the RKE transmitter, or having no
audible verification.

OPERATION

POWER LOCKS

The Body Control Module (BCM) locks or unlocks

the doors when an actuation input signal from a door
lock switch, Central Lock key cylinder or Remote
Keyless Entry (RKE) is received. The BCM turns on
the output drivers and provides a voltage level to the
door lock motor for a specified time.

REMOTE KEYLESS ENTRY

The RKE transmitter uses radio frequency signals

to communicate with the SKREEM module. The
SKREEM is on the PCI bus. When the operator
presses a button on the transmitter, it sends a spe-
cific request to the SKREEM. In turn, the SKREEM
sends the appropriate request over the PCI bus to
the following:

• Integrated Power Module (IPM) - to activate

the park lamps, the headlamps and the horn for the
horn chirp.

• Power Liftgate Module (PLGM) - to control

the liftgate lock and unlock functions.

After pressing the lock button on the RKE trans-

mitter, all of the door locks will lock, the illuminated
entry will turn off (if all doors are closed) and the
vehicle theft security system (if equipped) will arm.

Pressing the unlock button one time will unlock

the driver door, or all doors based on the customer
programmable feature enabled, the illuminated entry
will turn on the courtesy lamps and the vehicle theft
security system (if equipped) will disarm. Pressing
the unlock button a second time, the remaining door
locks will unlock.

If the vehicle is equipped with the memory system,

the memory message will identify which transmitter
(1 or 2) sent the signal.

ROLLING CODE

The rolling code feature changes part of the trans-

mitter message each time that it is used. The trans-
mitter message and the receiver message increment
together. Under certain conditions with a rolling code
system, such as pressing a button on the RKE trans-
mitter over 255 times outside of receiver range or
replacing the battery, the receiver and transmitter
can fall out of synchronization. To re-synchronize,
press and release the UNLOCK button on the RKE
transmitter repeatedly (it may take up to eight
cycles) while listening carefully for the power door
locks in the vehicle to cycle, indicating that resyn-
chronization has occurred.

RS

POWER LOCKS

8N - 21

POWER LOCKS (Continued)

The lock function works from the RKE transmitter

even in an out of synchronization condition, therefore
it could be verified by pressing the LOCK button on
the RKE key fob.

DOOR CYLINDER LOCK
SWITCH - EXPORT

DESCRIPTION

The Door Cylinder Lock Switch (If equipped) is

used to:

• Unlock/Lock all the doors via the Central Lock-

ing feature.

• Arm/Disarm the Vehicle Theft Security System.

• Trigger the Illuminated Entry feature.
The door cylinder lock switch is mounted to the

rear of the driver door lock cylinder. When installed
on the rear of the cylinder, there is a tab on the lock
cylinder that aligns with the switch to prevent it
from turning. An anti-rotating device. The door cylin-
der lock switch is a one time use switch. Once it is
removed from the rear of the door lock cylinder, it
may not be reinstalled and a new switch must be
used.

OPERATION

When the Door Cylinder Lock Switch is turned

either way using the door key cylinder, the BCM
reads a direct message signal from the switch.

If turning the key cylinder once, toward the front

of the vehicle, this will:

(1) Mechanically unlock the door lock.
(2) Disarm the Vehicle Theft Security System (if

equipped).

(3) Turn on the Illuminated Entry (if equipped) for

approximately 30 seconds.

If the key cylinder is turned to the unlock position

(toward the front of vehicle) twice within two sec-
onds, all the doors and liftgate will unlock (if
equipped with the central locking feature).

To lock the vehicle using the door cylinder lock

switch, turn the key cylinder toward the rear of the
vehicle once. This will lock the door that you are
using the key on. If equipped with the central locking
feature, this will lock all the other doors and liftgate.
Furthermore, this will arm the vehicle theft security
system and turn off the illuminated entry.

DIAGNOSIS AND TESTING

DOOR CYLINDER LOCK SWITCH - EXPORT

Any diagnosis of the power lock system

should begin with the use of the DRB III

diag-

nostic tool. For information on the use of the

DRB III

t, refer to the appropriate Diagnostic

Service Manual.

For complete circuit diagrams, refer to the appro-

priate wiring information.

(1) Visually inspect the switch for proper installa-

tion. Make sure it is seated on the rear of the key
cylinder, with the tab of the door key cylinder prop-
erly aligned with the slot on the door cylinder lock
switch.

(2) Disconnect the switch at the harness connector

and check the resistance in each switch position.

CAUTION: Do not disconnect the switch from the
rear of the door key cylinder. This switch is a one
time use switch. Once it is removed from the rear of
the switch, it is not reusable and must be replaced.
Test the switch at the harness connector.

DOOR CYLINDER LOCK SWITCH RESISTANCE

SWITCH POSITION

RESISTANCE VALUE

COUNTERCLOCKWISE

5.4K OHMS

NEUTRAL

18.4K OHMS

CLOCKWISE

2K OHMS

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the door trim panel of the effected door

cylinder lock switch (Refer to 23 - BODY/DOOR -
FRONT/TRIM PANEL - REMOVAL).

(3) Close the door window.
(4) Disconnect the door cylinder lock switch wire

connector from the door harness, and wiring clip
from the impact beam.

(5) Remove the outer door handle from the door.
(6) Remove the switch from the key cylinder in the

door handle and remove from vehicle.

INSTALLATION

(1) Install the switch on the key cylinder in the

door handle.

(2) Install the door handle.
(3) Connect the door cylinder lock switch wire con-

nector to the door harness, and the wiring clip to the
impact beam.

(4) Install the door trim panel of the affected door

cylinder lock switch (Refer to 23 - BODY/DOOR -
FRONT/TRIM PANEL - INSTALLATION).

(5) Connect the battery negative cable.
(6) Verify system operation.

8N - 22

POWER LOCKS

RS

POWER LOCKS (Continued)

DOOR LOCK MOTOR

DIAGNOSIS AND TESTING

DOOR LOCK MOTOR

Any diagnosis of the power lock system

should begin with the use of the DRB III

diag-

nostic tool. For information on the use of the
DRB III

t, refer to the appropriate Diagnostic

Service Manual.

For complete circuit diagrams, refer to the appro-

priate wiring information.

Verify battery condition before testing door lock

motor(s).

To determine which motor is faulty, check each

individual door for electrical lock and unlock or dis-
connect the motor connectors one at a time, while
operating the door lock switch. In the event that
none of the motors work, the problem may be caused
by a shorted motor or a faulty switch. Disconnecting
the faulty motor will allow the others to work.

To test an individual door lock motor, disconnect

the electrical connector from the motor. To lock the
door, connect a fused 12 volt power source to the pos-
itive pin of the lock motor and a ground wire to the
other pin. To unlock the door reverse the wire con-
nections at the motor pin terminals. If these results
are not obtained, replace the door latch.

DOOR LOCK SWITCH

DIAGNOSIS AND TESTING

DOOR LOCK SWITCH

(1) Remove door trim panel. Refer to Body, Door -

Front, Trim Panel, Removal and Installation.

(2) Disconnect wire connector from back of door

lock switch.

(3) Depress switch to LOCK position.
(4) Using an ohmmeter, test switch resistance

between Pins 2 and 3. Refer to the DOOR LOCK
SWITCH CONTINUITY test and (Fig. 1).

(5) Depress switch to UNLOCK position.
(6) Test resistance between Pins 2 and 3.
(7) Test resistance between pins 2 and 3 while

switch is in its normal unactuated mode.

(8) If resistance values are not within the param-

eters shown replace the door lock switch.

DOOR LOCK SWITCH CONTINUITY

SWITCH

POSITION

CONTINUITY

BETWEEN

RESISTANCE

VALUE

LOCK

2 and 3

5.3K Ohm ± 5%

UNLOCK

2 and 3

2.0K Ohm ± 5%

UNACTUATED

2 and 3

18.3K Ohms ±

5%

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove door trim panel. Refer to Body, Door -

Front, Trim Panel, Removal.

(3) Disconnect wire connector from back of door

lock switch.

(4) Remove two screws to door lock switch.
(5) Remove switch from vehicle.

INSTALLATION

(1) Install the switch into the vehicle.
(2) Install the two screws to door lock switch.
(3) Connect wire connector to back of door lock

switch.

(4) Install door trim panel. Refer to Body, Door -

Front, Trim Panel, Installation.

(5) Connect the battery negative cable.

Fig. 1 DOOR LOCK SWITCH

RS

POWER LOCKS

8N - 23

KEYLESS ENTRY
TRANSMITTER

DIAGNOSIS AND TESTING

KEYLESS ENTRY TRANSMITTER

Using special tool 9001, first test to ensure that

the transmitter is functioning. Typical testing dis-
tance is 2.5 centimeters (1 inch) for Asian transmit-
ters and 30.5 centimeters (12 inches) for all others.
To test, position the transmitter as shown (Fig. 2).
Press any transmitter button, then test each button
individually. The tool will beep if a radio signal
strength that lights five or more LED’s is detected.
Repeat this test three times. If transmitter fails any
of the test, refer to the Diagnostic Procedures man-
ual.

STANDARD PROCEDURE

STANDARD PROCEDURE - HORN CHIRP
PREFERENCE

DISABLING

The horn chirp can be toggled using a DRB III

t or

by using a programmed Remote Keyless Entry (RKE)
transmitter.

To DISABLE (cancelling) the horn chirp feature,

press and hold the transmitter LOCK button for a
minimum of five seconds. While pressing the LOCK
button in, press the PANIC button. The horn chirp
feature will not function until the above procedure is
repeated.

ENABLING

The horn chirp can be toggled using a DRB III

t or

by using the Remote Keyless Entry (RKE) transmit-
ter.

To ENABLE (reinstate) the horn chirp feature, use

any one of the four programmed integrated key/key
fob transmitters and reverse the above procedures. It
will ENABLE the horn chirp feature for all transmit-
ters.

STANDARD PROCEDURE - BATTERY
REPLACEMENT

(1) With the transmitter buttons facing down, use

a coin to pry the two halves of the transmitter apart.
Make sure not to damage the rubber gasket during
separation of the housing halves.

(2) Remove the battery from the transmitter back

housing holder.

(3) Replace the batteries. Avoid touching the new

batteries with your fingers, Skin oils may cause bat-
tery deterioration. If you touch a battery, clean it off
with rubbing alcohol.

(4) To assemble the transmitter case, snap the two

halves together.

STANDARD PROCEDURE - REMOTE KEYLESS
ENTRY TRANSMITTER PROGRAMMING

(Refer to 8 - ELECTRICAL/VEHICLE THEFT

SECURITY/TRANSPONDER

KEY

-

STANDARD

PROCEDURE) for programming procedures.

SPECIFICATIONS

SPECIFICATIONS - TRANSMITTER RANGE

Normal operation range is up to a distance of 7

meters (23 ft.) of the vehicle. Range may be better or
worse depending on the environment around the
vehicle.

SPECIFICATIONS - BATTERY

The batteries can be removed without special tools

and are readily available at local retail stores. The
recommended battery is Duracell DL 2016 or equiva-
lent, TWO cells are required. Battery life is about
three years minimum.

CAUTION: Do not touch the battery terminals or
handle the batteries any more than necessary.
Hands must be clean and dry.

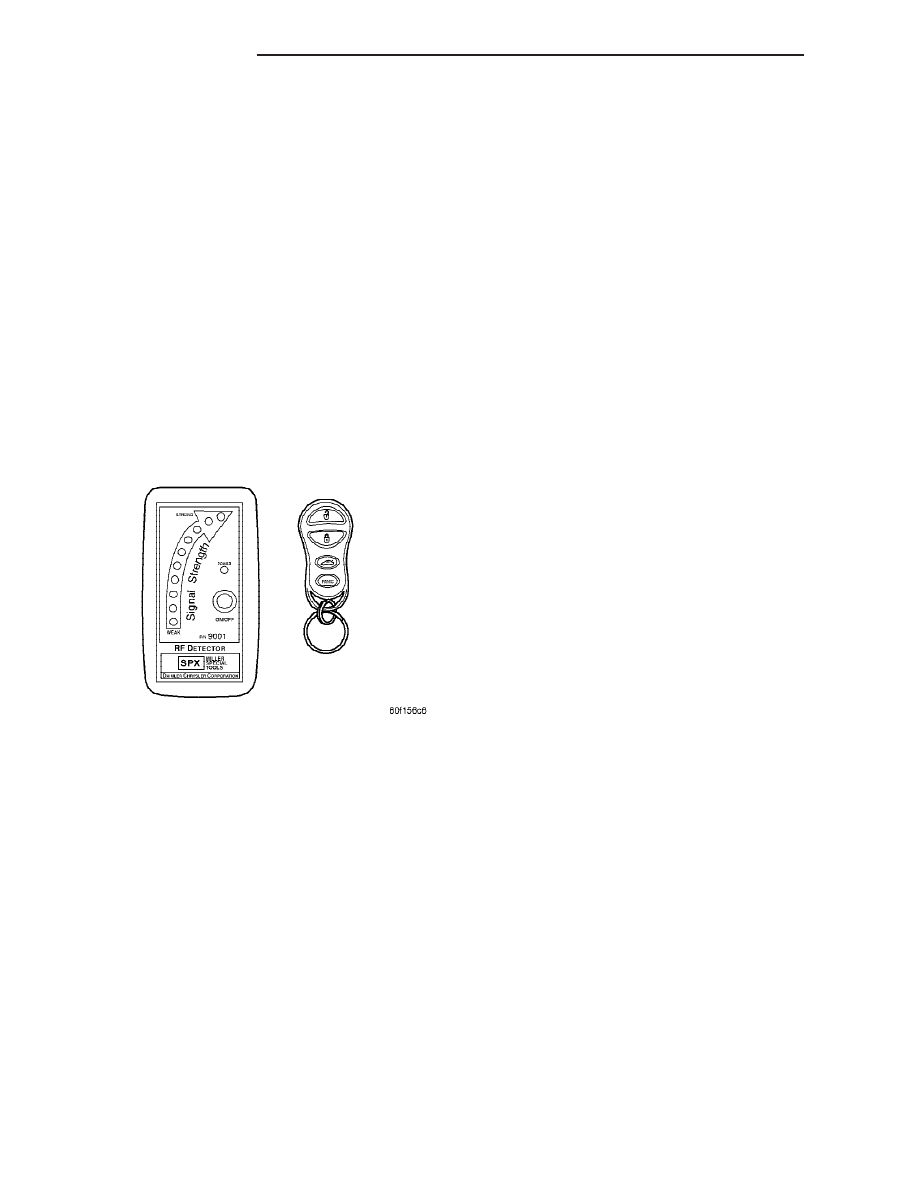

Fig. 2 TRANSMITTER DIAGNOSIS - TYPICAL

8N - 24

POWER LOCKS

RS















Content   ..  735  736  737  738   ..
