Chrysler RG Voyager. Manual - part 694

REMOTE RADIO SWITCH TEST

Switch

Switch Position

Resistance

Right

(White)

Volume Up

1.210 Kilohms

Right

(White)

Volume Down

3.010 Kilohms

Right

(White)

Mode Advance

0.0511 Kilohms

Left

(Black)

Seek Up

0.261 Kilohms

Left

(Black)

Seek Down

0.681 Kilohms

Left

(Black)

Pre-Set Station

Advance

0.162 Kilohms

NOTE: The right remote radio switch back is white
in color. The left switch back is black in color. The
right/left remote radio switch orientation is with the
steering wheel installed, and driver in drivers seat.

(4) If the switch resistance checks OK, go to Step

5. If not OK, replace the faulty switch.

(5) Check for continuity between the ground cir-

cuit cavity of the switch wire harness connector and
a good ground. There should be continuity. If OK, go
to Step 6. If not OK, repair the open circuit as
required.

(6) Unplug the 24-way white wire harness connec-

tor from the Body Control Module (BCM). Check for
continuity between the radio control circuit cavity of
the remote radio switch wire harness connector and a
good ground. There should be no continuity. If OK, go
to Step 7. If not OK, repair the short circuit as
required.

(7) Check for continuity between the radio control

circuit cavities of the remote radio switch wire har-
ness connector and the BCM wire harness connector.
There should be continuity. If OK, refer to the proper
Diagnostic Procedures manual to test the BCM and
the PCI data bus. If not OK, repair the open circuit
as required.

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the driver side airbag (Refer to 8 -

ELECTRICAL/RESTRAINTS/DRIVER

AIRBAG

REMOVAL).

(3) Remove the steering wheel (Refer to 19 -

STEERING/COLUMN/STEERING

WHEEL

REMOVAL).

(4) Unplug the wire harness connector from the

remote radio switch (es).

(5) Remove three screws securing steering wheel

rear cover.

(6) Remove the remote radio switch from the steer-

ing wheel by depressing tabs on each side of each
switch.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Install remote radio switch to the steering

wheel.

(2) Install three screws securing steering wheel

rear cover.

(3) Connect the wire harness to the remote radio

switch.

(4) Install the steering wheel (Refer to 19 -

STEERING/COLUMN/STEERING

WHEEL

INSTALLATION).

(5) Install the driver side airbag (Refer to 8 -

ELECTRICAL/RESTRAINTS/DRIVER

AIRBAG

INSTALLATION).

(6) Connect the battery negative cable.

AUDIO/VIDEO

8A - 17

REMOTE SWITCHES (Continued)

SPEAKER

DIAGNOSIS AND TESTING

SPEAKER

WARNING:

DISABLE

THE

AIRBAG

SYSTEM

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING COLUMN, SEAT BELT TENSIONER, SIDE
AIRBAG, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

Any diagnosis of the Audio system should

begin with the use of the DRB III

t diagnostic

tool. For information on the use of the DRB
III

t, refer to the appropriate Diagnostic Service

Manual.

(1) If all speakers are inoperative, check the radio

fuses in the Junction Block (JB). If OK, go to Step 2.
If not OK, repair the shorted circuit or component as
required and replace the faulty fuse.

(2) Check the amplifier fuse (if equipped) in the

junction block. If OK, go to Step 3. If not OK, repair
the shorted circuit or component as required and
replace the faulty fuse.

(3) Turn the ignition switch to the ON position.

Turn the radio receiver ON. Adjust the balance and
fader control controls to check the performance of
each individual speaker. Note the speaker locations
that are not performing correctly. Go to Step 4.

(4) Turn the radio receiver OFF. Turn the ignition

OFF. Disconnect and isolate the battery negative
cable. If vehicle is not equipped with a amplifier,
remove the radio receiver. If vehicle is equipped with
an amplifier. disconnect wire harness connector at
output side of amplifier. Go to Step 4.

(5) Check both the speaker feed (+) circuit and

return (-) circuit cavities for the inoperative speaker
at the radio receiver wire harness connector for con-
tinuity to ground. There should be no continuity. If
OK, go to Step 5. If not OK, repair the shorted
speaker feed (+) and/or return (-) circuits(s) to the
speaker as required.

(6) Disconnect wire harness connector at the inop-

erative speaker. Check for continuity between the
speaker feed (+) circuit cavities of the radio receiver
wire harness connector or if equipped, the amplifier
wire harness connector and the speaker wire harness
connector. Repeat the check between the speaker
return (-) circuit cavities of the radio receiver wire
harness connector and the speaker wire harness con-
nector. In each case, there should be continuity. If
OK, replace the faulty speaker. If not OK, repair the
open speaker feed (+) and/or return (-) circuits(s) as
required.

REMOVAL

D-PILLAR SPEAKER

(1) Disconnect and isolate the battery negative

cable.

(2) Remove rear header trim (right side speaker).
(3) Remove jack cover (left side speaker).
(4) Remove liftgate scuff plate.
(5) Remove upper seat belt bolt. (Refer to 8 -

ELECTRICAL/RESTRAINTS/SEAT

BELT

OUT-

BOARD FRONT - REMOVAL).

(6) Partially remove quarter trim panel to access

the D-pillar speaker.

(7) Slide the speaker from the retainer (Fig. 17).

(8) Disconnect the wire harness connector from the

speaker.

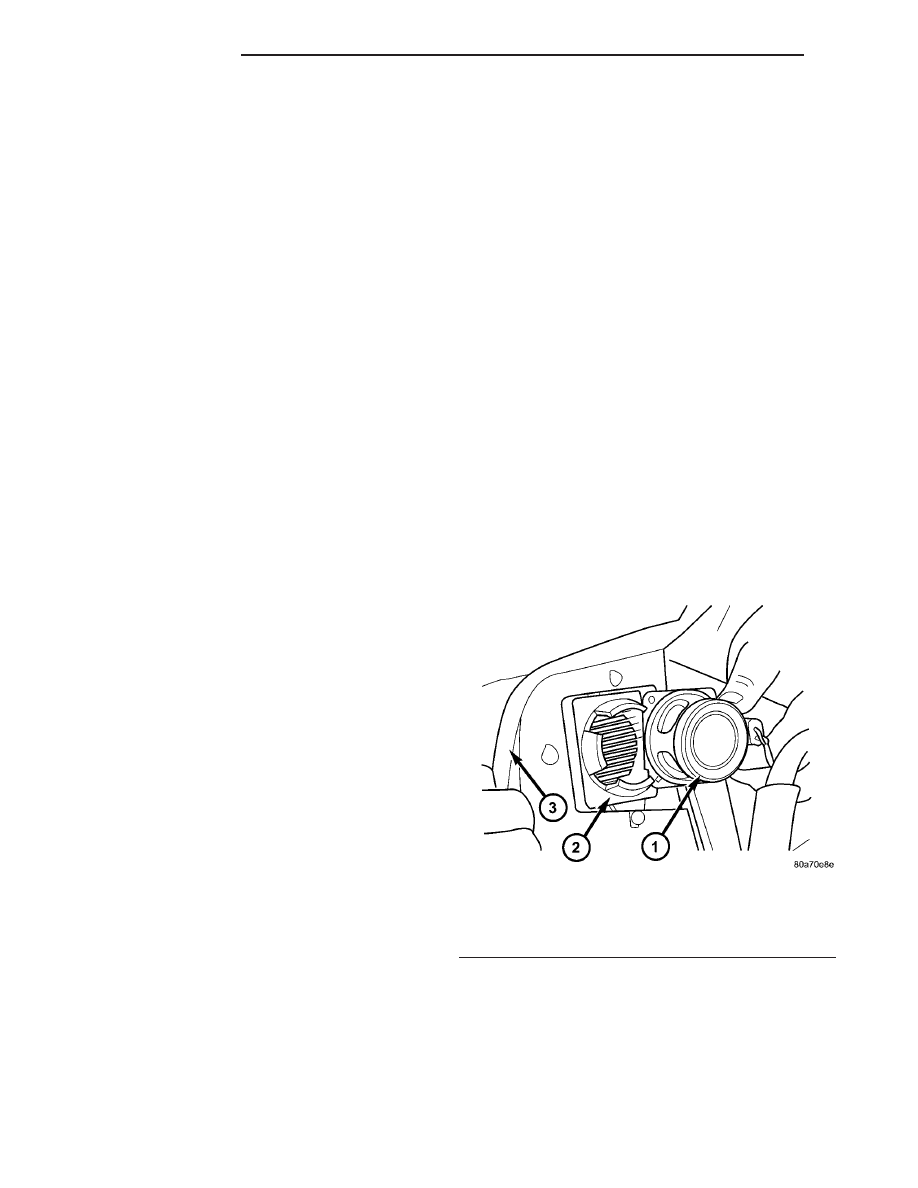

Fig. 17 D-PILLAR SPEAKER

1 - SPEAKER
2 - RETAINER
3 - TRIM PANEL

8A - 18

AUDIO/VIDEO

FRONT DOOR SPEAKER

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the front door trim panel. (Refer to 23

BODY/DOOR

FRONT/TRIM

PANEL

REMOVAL).

(3) Remove the speaker mounting screws (Fig. 18).

(4) Disconnect wire harness connector and remove

speaker from door.

INSTRUMENT PANEL SPEAKER

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the A-pillar trim. (Refer to 23 - BODY/

INTERIOR/A-PILLAR TRIM - REMOVAL).

(3) Remove instrument panel top pad (Refer to 23 -

BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL TOP PAD - REMOVAL).

(4) Remove speaker screws (Fig. 19).
(5) Disconnect wire harness connector and remove

speaker.

QUARTER PANEL SPEAKER

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the quarter trim bolster (Refer to 23 -

BODY/INTERIOR/QUARTER

TRIM

BOLSTER

REMOVAL).

(3) Remove speaker retaining screws (Fig. 20).
(4) Disconnect wire harness connector and remove

speaker.

INSTALLATION

D-PILLAR SPEAKER

(1) Connect the wire harness connector to the

speaker.

(2) Slide the speaker into the retainer.
(3) Install quarter panel trim.
(4) Install upper seat belt bolt (right side).
(5) Install liftgate scuff plate.
(6) Install rear header trim (right side).
(7) Install jack cover (left side).
(8) Connect battery negative cable.

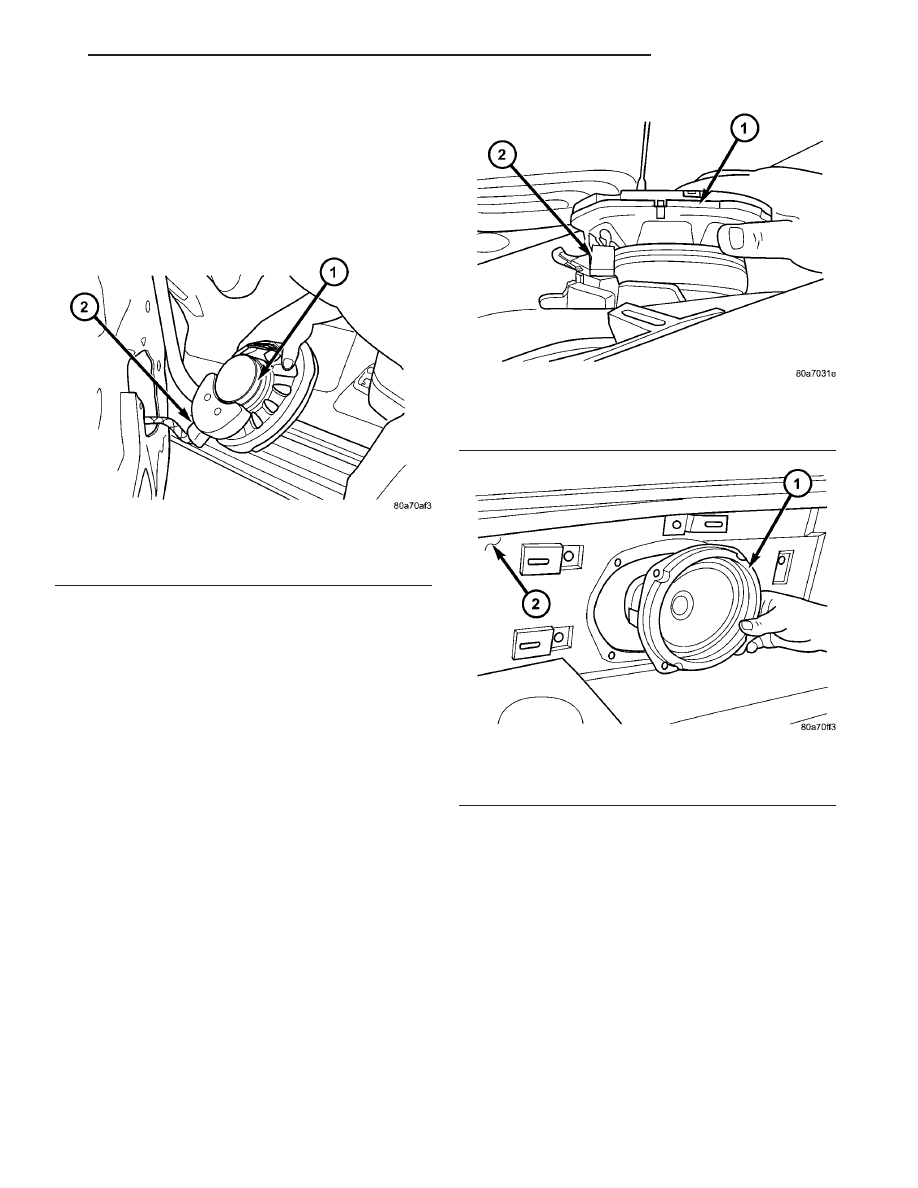

Fig. 18 DOOR SPEAKER

1 - SPEAKER
2 - WIRE HARNESS CONNECTOR

Fig. 19 INSTRUMENT PANEL SPEAKER

1 - SPEAKER
2 - WIRE HARNESS CONNECTOR

Fig. 20 QUARTER PANEL SPEAKER

1 - SPEAKER
2 - TRIM PANEL

AUDIO/VIDEO

8A - 19

SPEAKER (Continued)

FRONT DOOR SPEAKER

(1) Connect the wire harness connector and install

speaker to door.

(2) Install the speaker mounting screws.
(3) Install the front door trim panel (Refer to 23 -

BODY/DOOR - FRONT/TRIM PANEL - INSTALLA-
TION).

(4) Connect battery negative cable.

INSTRUMENT PANEL SPEAKER

(1) Connect the wire harness connector and install

speaker to instrument panel.

(2) Install the speaker mounting screws.
(3) Install instrument panel top pad (Refer to 23 -

BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL TOP PAD - INSTALLATION).

(4) Install A-pillar trim (Refer to 23 - BODY/INTE-

RIOR/A-PILLAR TRIM - INSTALLATION).

(5) Connect battery negative cable.

QUARTER PANEL SPEAKER

(1) Connect the wire harness connector and install

speaker to trim panel.

(2) Install the speaker mounting screws.
(3) Install quarter trim bolster (Refer to 23 -

BODY/INTERIOR/QUARTER

TRIM

BOLSTER

INSTALLATION).

(4) Connect battery negative cable.

VIDEO SCREEN

DESCRIPTION

The video screen (if equipped) is mounted on the

headliner behind the driver and front passenger seat.
Pressing the release button will allow the screen to
be opened.

OPERATION

Operating instructions for the factory installed

video screen can be found in the owner’s manual pro-
vided with this vehicle.

REMOVAL

(1) Disconnect and isolate the battery negative

battery cable.

(2) Remove the lens bezel.
(3) Remove the rear console screws (Fig. 21).

(4) Remove the rear A/C trim bezel.
(5) Disconnect A/C wire harness connector.
(6) Remove remaining mounting screws.
(7) Disconnect wire harness connectors.

INSTALLATION

(1) Connect wire harness connectors.
(2) Install front mounting screws.
(3) Install the rear A/C trim bezel.
(4) Install the rear mounting screws.
(5) Install the lens bezel.
(6) Connect the battery negative cable.

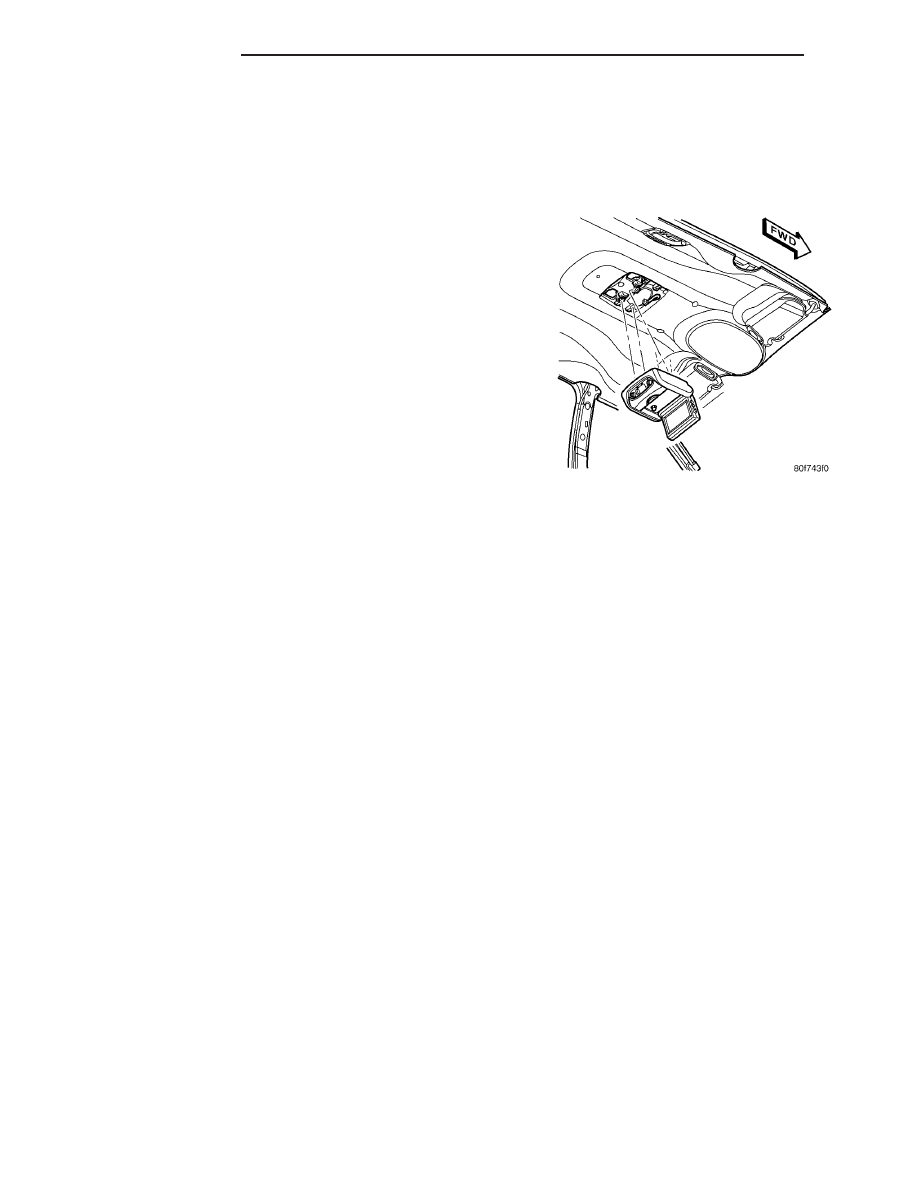

Fig. 21 VIDEO SCREEN

8A - 20

AUDIO/VIDEO

SPEAKER (Continued)
