Chrysler RG Voyager. Manual - part 370

8.4A

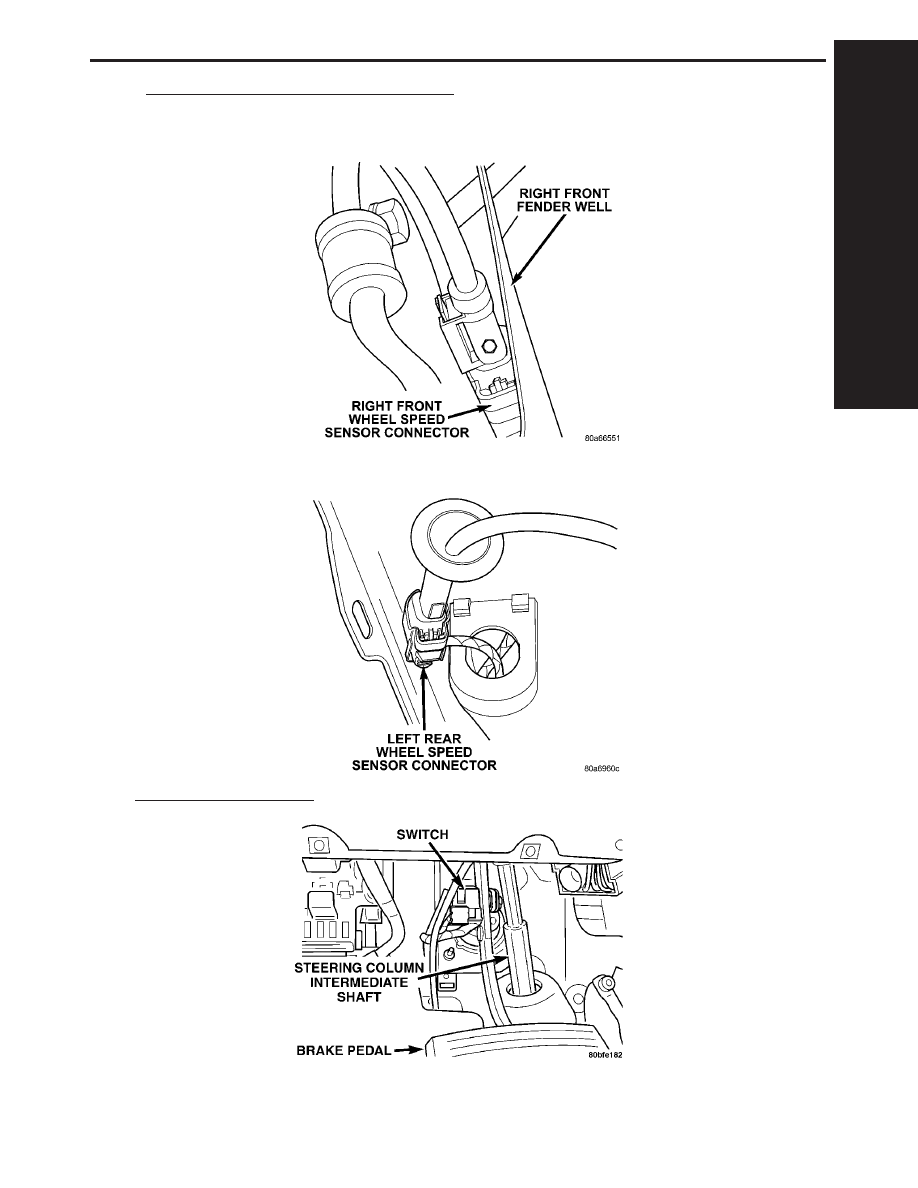

WHEEL SPEED SENSOR CONNECTORS

8.4A.1

FRONT

8.4A.2

REAR

8.5

BRAKE LAMP SWITCH

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

81

COMPONENT LOCATIONS

NOTES

82

9.0

CONNECTOR PINOUTS

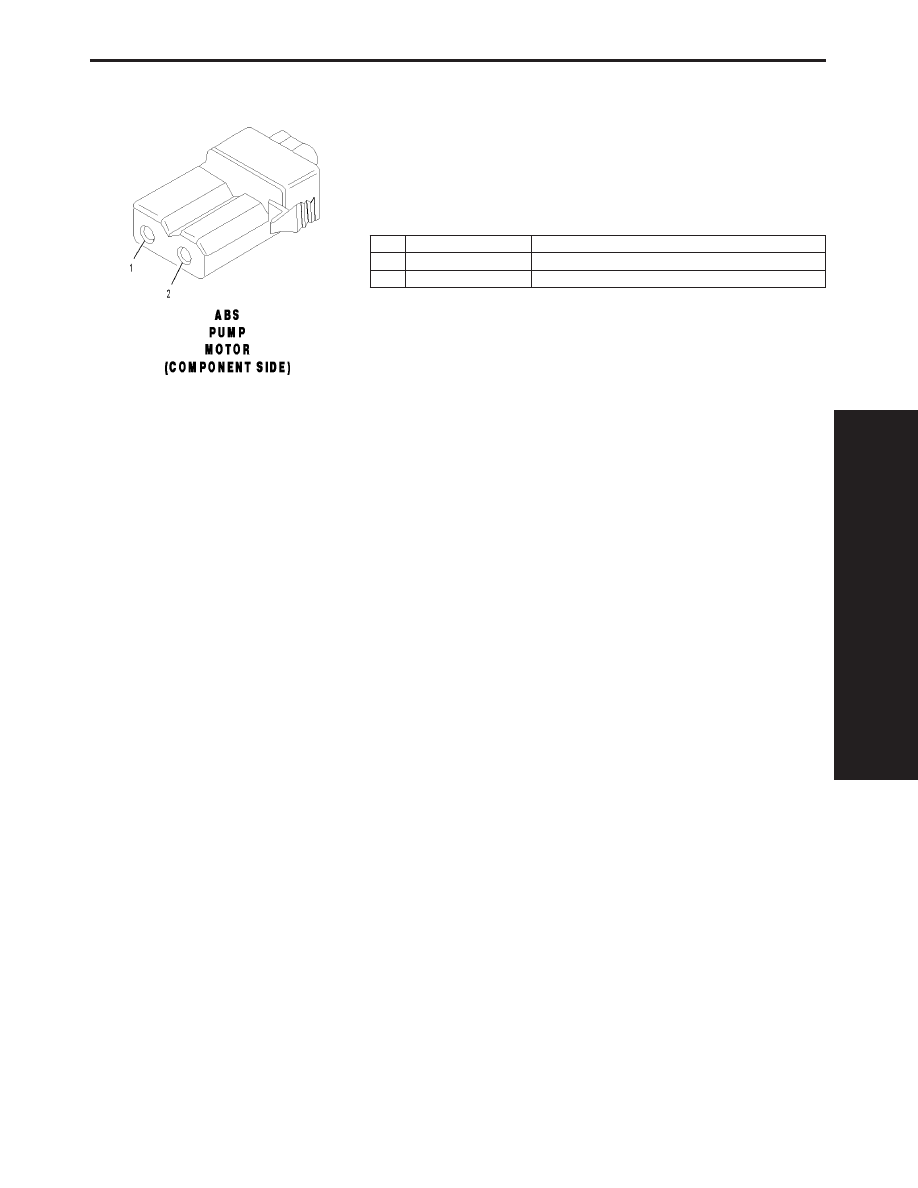

ABS PUMP MOTOR (COMPONENT SIDE) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

-

GROUND

2

-

PUMP/MOTOR RELAY OUTPUT

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

83

CONNECTOR PINOUTS

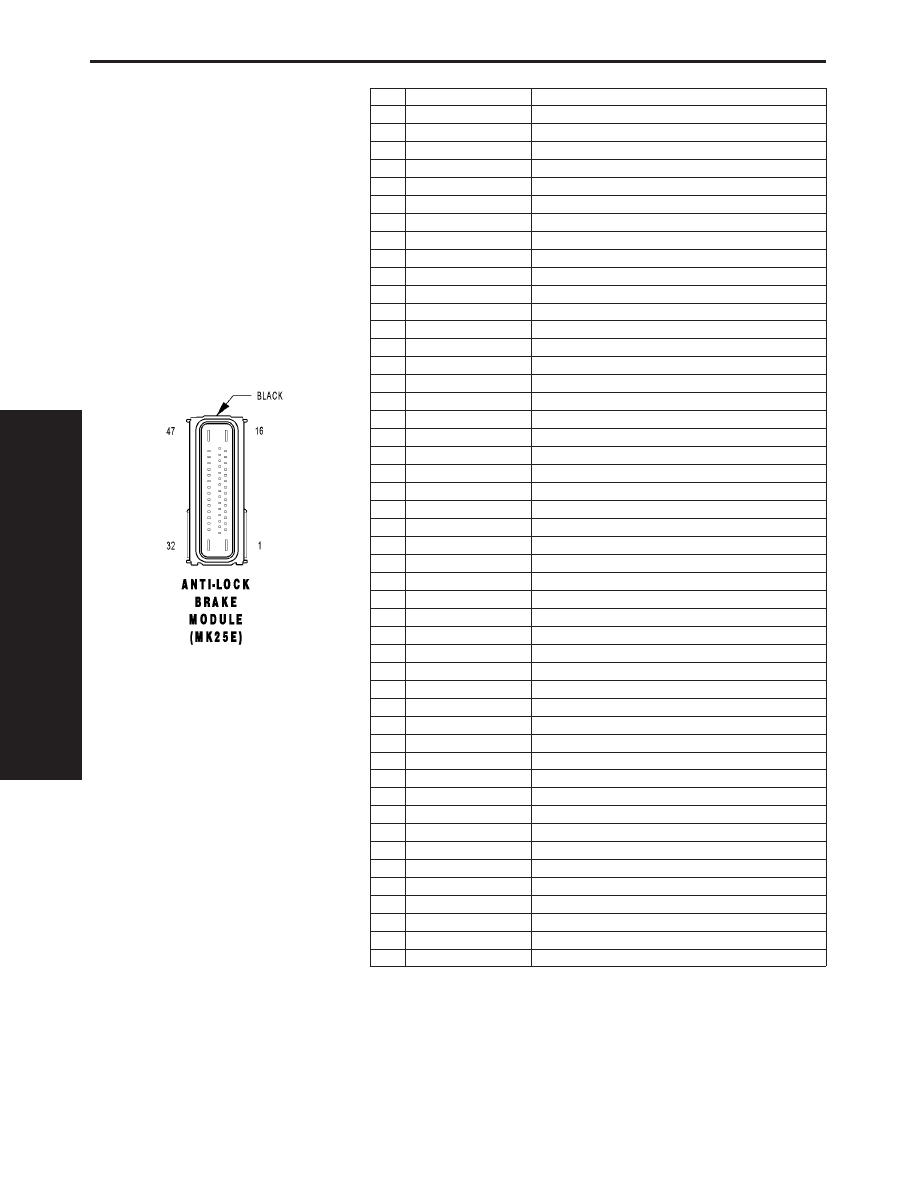

ANTI-LOCK BRAKE MODULE (MK25E) - BLACK 47 WAY

CAV

CIRCUIT

FUNCTION

1

A107 12TN/RD

FUSED B(+) (PUMP)

2

-

-

3

-

-

4

-

-

5

-

-

6

L50 18WT/TN (DIESEL)

PRIMARY BRAKE SWITCH SIGNAL

6

L50 18WT/TN (GAS)

BRAKE LAMP SWITCH OUTPUT

7

-

-

8

F500 18DG/PK

FUSED IGNITION SWITCH OUTPUT (RUN)

9

-

-

10

-

-

11

D25 18WT/VT

PCI BUS

12

-

-

13

-

-

14

-

-

15

-

-

16

Z127 12BK/DG

GROUND

17

-

-

18

-

-

19

-

-

20

-

-

21

-

-

22

-

-

23

-

-

24

-

-

25

-

-

26

-

-

27

-

-

28

-

-

29

-

-

30

-

-

31

-

-

32

A111 12DG/RD

FUSED B(+) (VALVE)

33

B6 18DG/WT

RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

34

B7 18DG/VT

RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY

35

-

-

36

B4 18DG/GY

LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY

37

B3 18DG/YL

LEFT REAR WHEEL SPEED SENSOR SIGNAL

38

-

-

39

-

-

40

-

-

41

-

-

42

B1 18DG/OR

RIGHT REAR WHEEL SPEED SENSOR SIGNAL

43

B2 18DG/LB

RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY

44

-

-

45

B9 18DG/LG

LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY

46

B8 18DG/TN

LEFT FRONT WHEEL SPEED SENSOR SIGNAL

47

Z107 12BK/DG

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

84

CONNECTOR PINOUTS
