system air filter. The filter is mounted under the
hood in the outside-air intake of the HVAC housing.
The filter should be checked and replaced at least
once every 24,000 km (15,000 miles) and checked if
A/C-heater system performance seems lower than
expected.

REMOVAL

(1) Remove the passenger side cowl grille screen

(Refer to 23 - BODY/EXTERIOR/COWL GRILLE
SCREEN - REMOVAL).

(2) Loosen the bolts that secure the windshield

washer reservoir to the body.

NOTE: Removal of the reservoir is not necessary.
Loosen reservoir just enough to allow access to the
filter element.

(3) Remove the filter element by lifting the filter

element up and out of the housing.

INSTALLATION

(1) Install filter element by inserting the element

down directly into the element housing. The filter is
held in place by friction between the filter element
and the housing so no fasteners are used.

(2) Position

windshield

washer

reservoir

and

tighten the retaining bolts to 8 N·m (70 in. lbs.).

(3) Install passenger side cowl grill screen (Refer

to 23 - BODY/EXTERIOR/COWL GRILLE SCREEN -
INSTALLATION).

AIR OUTLETS

REMOVAL

AIR OUTLET DISTRIBUTION DUCT

(1) Remove the instrument panel assembly from

the vehicle (Refer to 23 - BODY/INSTRUMENT PAN-
EL/INSTRUMENT

PANEL

ASSEMBLY

REMOVAL).

(2) Remove the screws that secure the air outlet

distribution duct to the instrument panel (Fig. 1).

(3) Disengage the right demister hose from the

integral retainer on the right side of the air outlet
distribution duct.

(4) Disconnect the right demister hose from the

right intermediate demister duct.

(5) Disconnect the left and right demister hoses

from the air outlet distribution duct.

(6) Disengage the air outlet distribution duct from

the left panel duct intermediate elbow.

(7) Disengage the air outlet distribution duct from

the right panel duct.

(8) Remove the air outlet distribution duct from

the instrument panel.

24 - 26

DISTRIBUTION

AIR OUTLET CENTER DUCT

(1) Remove the dash panel top cover (Refer to 23 -

BODY/INSTRUMENT

PANEL/INSTRUMENT

PANEL TOP COVER - REMOVAL).

(2) Remove the center bezel from the instrument

panel (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT

PANEL

CENTER

BEZEL

REMOVAL).

(3) Remove the two screws that secure the A/C-

heater control to the instrument panel and position
the control out of the way (Fig. 2).

(4) Remove the screw that secures the air outlet

center duct to the instrument panel.

(5) Disengage the air outlet center duct from the

air outlet distribution duct.

(6) Remove the air outlet center duct from the

instrument panel.

INSTALLATION

AIR OUTLET DISTRIBUTION DUCT

(1) Position the air outlet distribution duct into the

instrument panel.

(2) Engage the air outlet distribution duct to the

right panel duct.

(3) Engage the air outlet distribution duct to the

left panel duct intermediate elbow.

(4) Connect the left and right demister hoses to

the air outlet distribution duct.

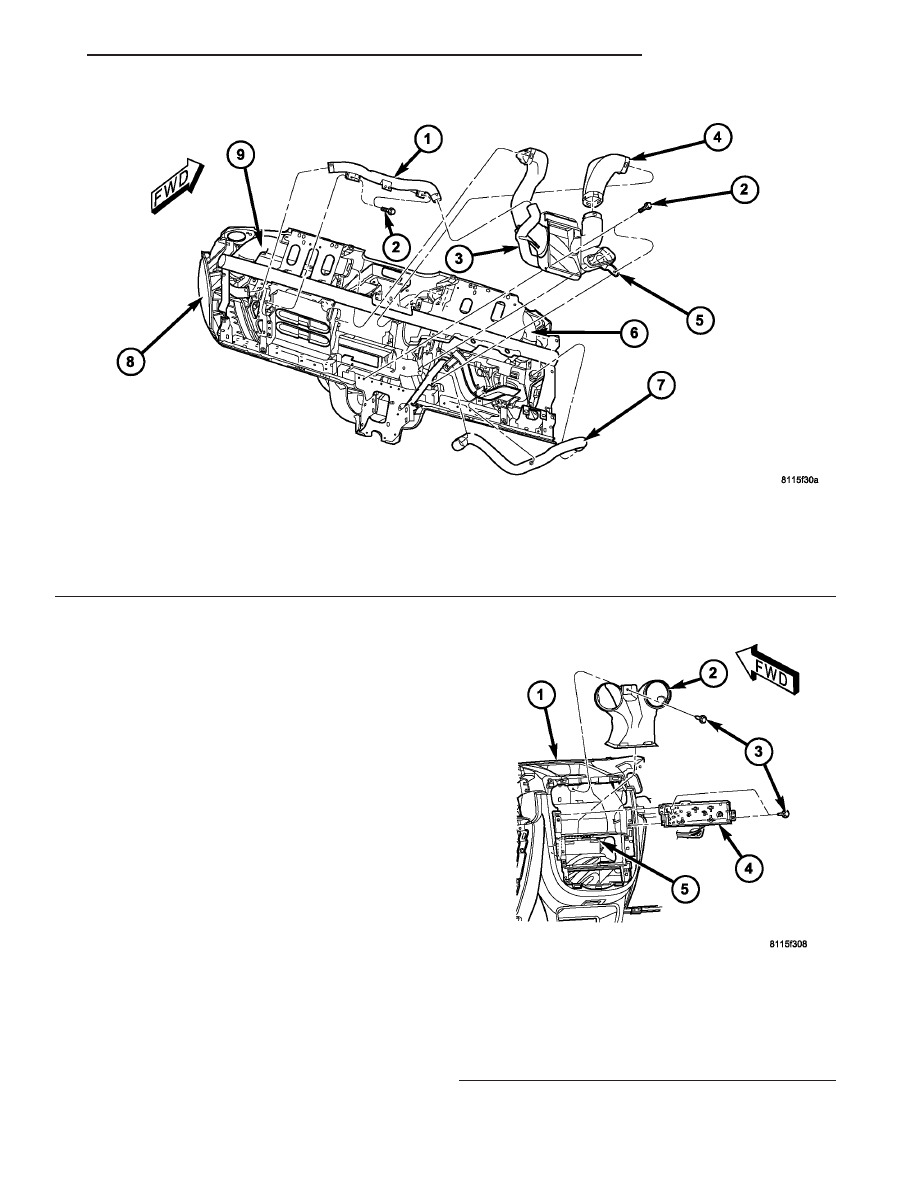

Fig. 1 HVAC IP Ducts - LHD Shown, RHD Typical

1 - RIGHT INTERMEDIATE DEMISTER DUCT
2 - SCREW (4)
3 - RIGHT DEMISTER HOSE
4 - LEFT PANEL DUCT INTERMEDIATE ELBOW
5 - AIR OUTLET DISTRIBUTION DUCT

6 - LEFT PANEL DUCT
7 - LEFT DEMISTER HOSE
8 - INSTRUMENT PANEL
9 - RIGHT PANEL DUCT

Fig. 2 Air Outlet Center Duct - LHD Shown, RHD

Typical

1 - INSTRUMENT PANEL
2 - AIR OUTLET CENTER DUCT
3 - SCREW (3)
4 - A/C-HEATER CONTROL
5 - AIR OUTLET DISTRIBUTION DUCT

DISTRIBUTION

24 - 27

AIR OUTLETS (Continued)

(5) Connect the right demister hose to the right

intermediate demister duct.

(6) Engage the right demister hose to the integral

retainer on the right side of the air outlet distribu-
tion duct.

(7) Install the screws that secure the air outlet dis-

tribution duct to the instrument panel. Tighten the
screws to 2 N·m (17 in. lbs.).

(8) Install the instrument panel assembly (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL ASSEMBLY - INSTALLATION).

AIR OUTLET CENTER DUCT

(1) Position the air outlet center duct to the instru-

ment panel.

(2) Engage the air outlet center duct to the air out-

let distribution duct.

(3) Install the screw that secures the air outlet

center duct to the instrument panel. Tighten the
screw to 2 N·m (17 in. lbs.).

(4) Position the A/C-heater control into the instru-

ment panel and install the two retaining screws.
Tighten the screws to 2 N·m (17 in. lbs.).

(5) Install the center bezel onto the instrument

panel (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT PANEL CENTER BEZEL - INSTAL-
LATION).

(6) Install the instrument panel top cover (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL TOP COVER - INSTALLATION).

BLOWER MOTOR

DESCRIPTION

The blower motor is a 12-volt, Direct Current (DC)

motor with a squirrel cage-type blower wheel that is
secured to the blower motor shaft (Fig. 3). The
blower motor and wheel are located near the passen-
ger side end of the HVAC housing in the passenger
compartment

below

the

instrument

panel.

The

blower motor and blower motor wheel are a factory
balanced unit and cannot be adjusted or repaired. If
faulty or damaged, the blower motor and blower
wheel must be replaced as a unit (Refer to 24 -
HEATING & AIR CONDITIONING/DISTRIBUTION/
BLOWER MOTOR - REMOVAL).

OPERATION

The blower motor will operate whenever the igni-

tion switch is in the On position, and the blower con-
trol switch is in any position except Off. The blower
motor circuit is protected by a fuse in the instrument
panel fuse block. The blower motor speed is con-
trolled by regulating the battery feed through the
blower control switch and the blower motor resistor.

The blower motor and wheel are used to control the
velocity of air moving through the heater-only or A/C-
heater systems. The blower motor controls the veloc-
ity of the air flowing through the HVAC housing by
spinning the blower wheel within the housing at the
selected speed.

DIAGNOSIS AND TESTING

BLOWER MOTOR

WARNING: On vehicles equipped with airbags, dis-
able the airbag system before attempting any steer-
ing wheel, steering column, or instrument panel
component diagnosis or service. Disconnect and
isolate the negative battery (ground) cable, then
wait two minutes for the airbag system capacitor to
discharge before performing further diagnosis or
service. Failure to take the proper precautions
could result in accidental airbag deployment and
possible personal injury or death.

NOTE: For circuit descriptions and diagrams, refer
to Air Conditioning/Heater in Group 8W - Wiring
Diagrams.

OPERATION

Possible causes of an inoperative blower motor or

blower motor not operating in all speeds include:

• Faulty fuse

• Faulty blower motor resistor

• Faulty blower motor switch

• Faulty blower motor

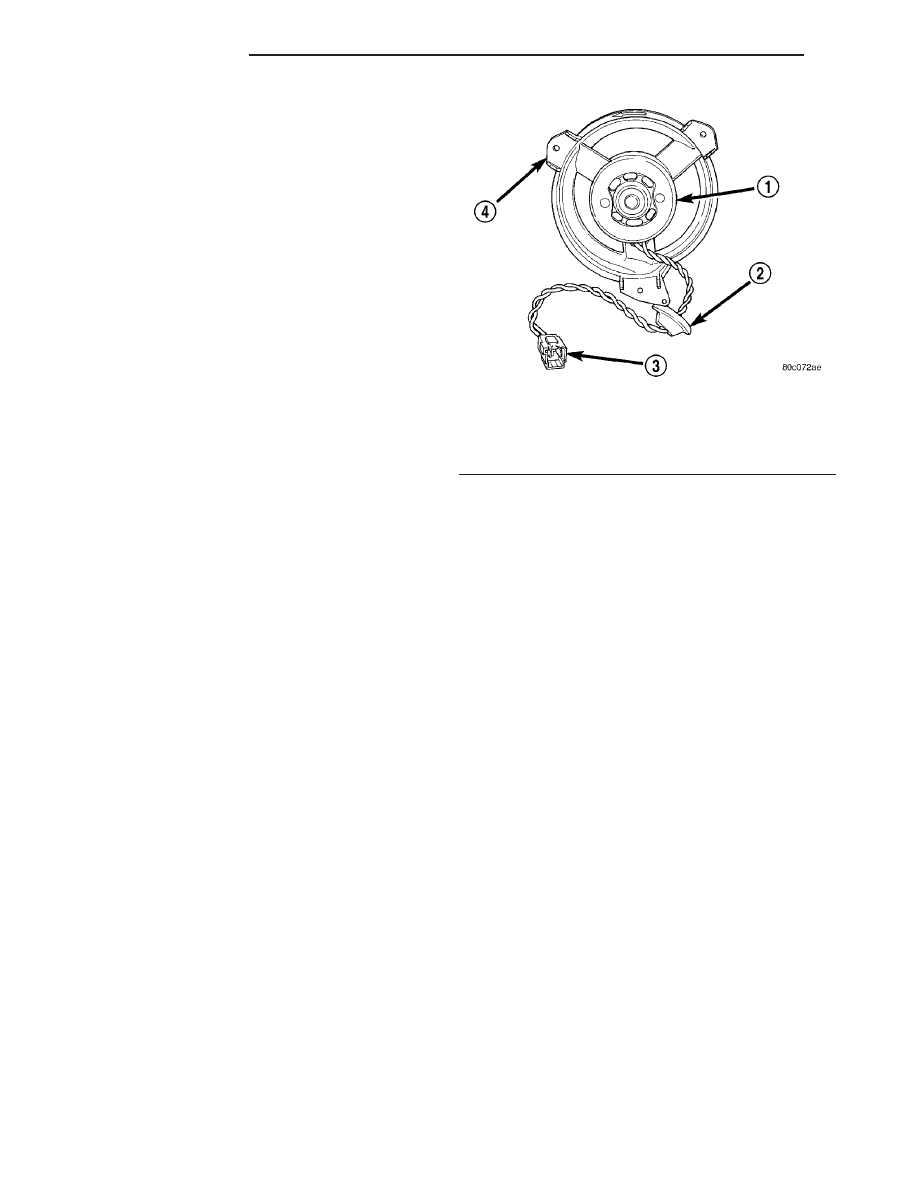

Fig. 3 Blower Motor

1 - BLOWER MOTOR
2 - RUBBER GROMMET
3 - BLOWER MOTOR CONNECTOR
4 - MOUNTING TABS

24 - 28

DISTRIBUTION

AIR OUTLETS (Continued)

• Faulty blower motor circuit wiring or wire har-

ness connectors

VIBRATION

Possible causes of blower motor vibration include:
• Improper blower motor mounting

• Improper blower wheel mounting

• Deformed blower wheel

• Out of balance blower wheel due to foreign

material in the wheel

• Faulty blower motor

NOISE

To determine if the blower motor is the source of

the noise, simply switch the blower motor from Off to
On. To verify that the blower motor is the source of
the noise, unplug the blower motor wire harness con-
nector and operate the heating-A/C system. If the
noise goes away, possible causes include:

• Foreign material in the HVAC air inlet housing

• Improper blower motor mounting

• Improper blower wheel mounting

• Faulty blower motor

REMOVAL

NOTE: The blower motor is located on the bottom
right side of the HVAC housing. The blower motor
can be removed from the vehicle without having to
remove the HVAC housing.

WITH AIR CONDITIONING

(1) Disconnect and isolate the negative battery

cable.

(2) Remove the passenger side door sill scuff plate.
(3) Pull back the carpet to access the blower motor.
(4) Disconnect the blower motor wire harness con-

nector.

(5) Remove the screws that secure the blower

motor to the HVAC housing (Fig. 4).

(6) Remove the blower motor from the HVAC hous-

ing.

WITHOUT AIR CONDITIONING

(1) Disconnect and isolate the negative battery

cable.

(2) Disconnect the blower motor wire harness con-

nector.

(3) Grasp the blower motor while pulling down on

the locking tab. Turn the blower motor approximately
1/8 turn counterclockwise (Fig. 5).

(4) Remove the blower motor from the HVAC hous-

ing.

INSTALLATION

WITH AIR CONDITIONING

(1) Position the blower motor into the HVAC hous-

ing.

(2) Install the blower motor retaining screws.

Tighten the screws to 2 N·m (17 in. lbs.).

(3) Connect the blower motor wire harness connec-

tor.

(4) Reposition the carpet.
(5) Install the door sill scuff plate.
(6) Reconnect the negative battery cable.

WITHOUT AIR CONDITIONING

(1) Position the blower motor into the housing.

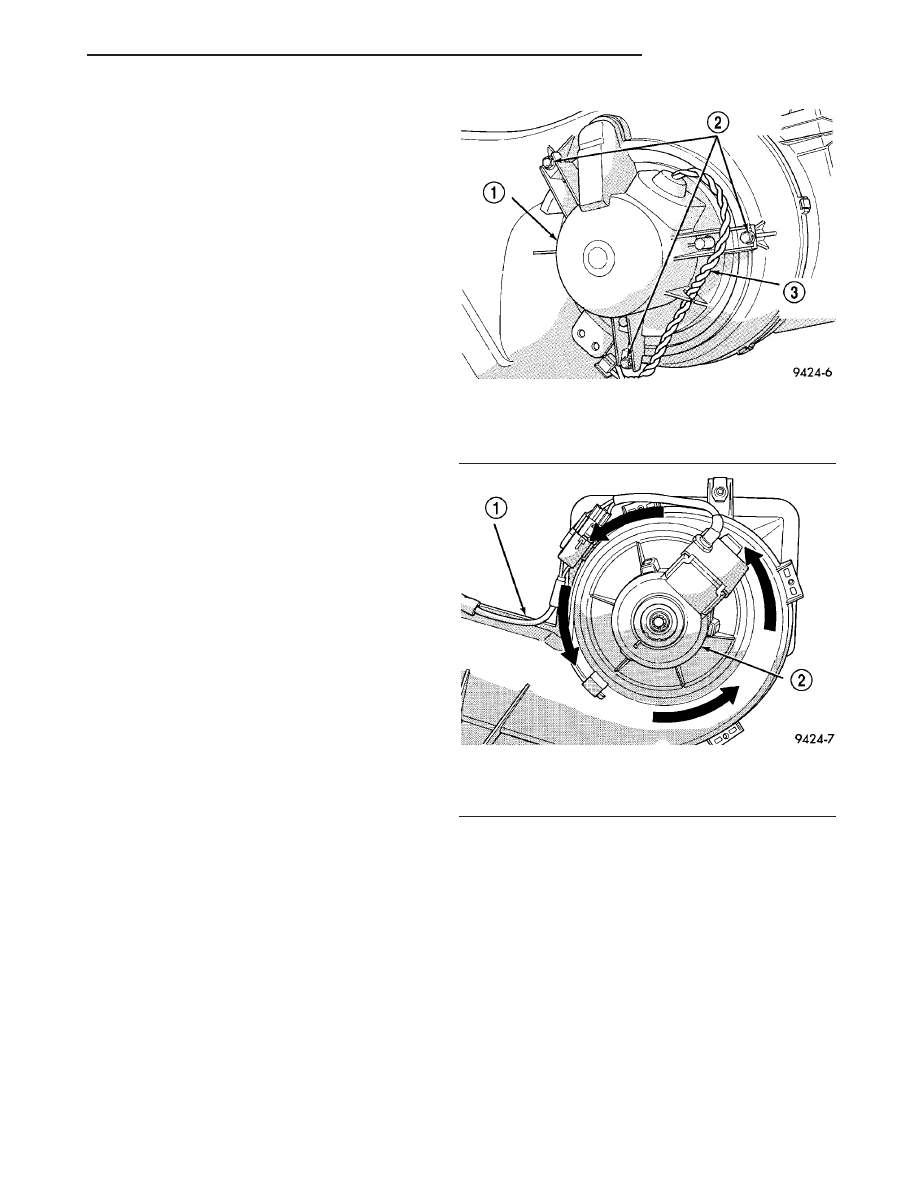

Fig. 4 Blower Motor - With A/C, Typical

1 - BLOWER MOTOR
2 - BLOWER MOTOR RETAINING SCREW (3)
3 - BLOWER MOTOR WIRING

Fig. 5 Blower Motor - Without A/C, Typical

1 - HVAC HOUSING
2 - BLOWER MOTOR

DISTRIBUTION

24 - 29

BLOWER MOTOR (Continued)
