(3) When installing hood, align all marks and

secure bolts. The hood should be aligned to 4 mm
(0.160 in.) gap to the front fenders and flush across
the top surfaces along fenders.

(4) Verify hood operation and alignment.

HOOD LATCH

REMOVAL

(1) Release hood latch and open hood.
(2) Support hood on prop rod.
(3) Remove grille.
(4) Remove screws attaching hood latch to radiator

closure panel (Fig. 3).

(5) Remove hood latch from closure panel.
(6) Disengage remote release cable from latch (Fig.

4).

INSTALLATION

(1) Engage remote release cable into latch (Fig. 4).
(2) Place hood latch onto radiator closure panel

(Fig. 3).

(3) Install bolts attaching latch to closure panel.
(4) Install grille.
(5) Close hood and verify alignment of hood and

that latch is securely engaged.

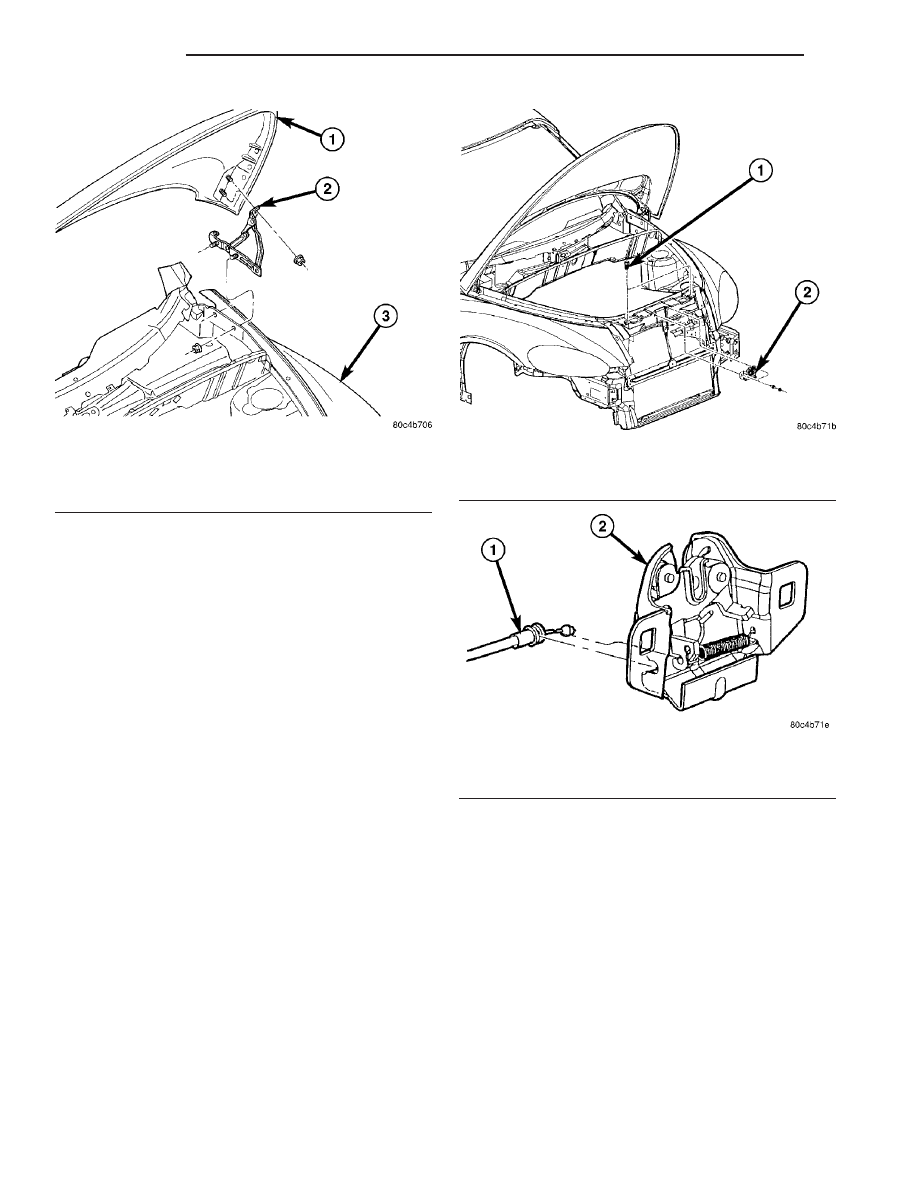

Fig. 2 HOOD

1 - HOOD
2 - HOOD HINGE
3 - FRONT FENDER

Fig. 3 HOOD LATCH

1 - HOOD ADJUSTER BUMPER
2 - HOOD LATCH

Fig. 4 HOOD LATCH RELEASE CABLE

1 - HOOD LATCH RELEASE CABLE
2 - HOOD LATCH

23 - 98

HOOD

PT

HOOD (Continued)

HOOD LATCH RELEASE CABLE

REMOVAL

(1) Remove hood latch.
(2) Disconnect remote hood release cable from

hood latch (Fig. 4).

(3) Remove left front cowl trim panel.
(4) Remove screws attaching hood release handle

to cowl panel.

(5) Disconnect rubber grommet from dash panel

behind instrument panel.

(6) Pull release cable through hole in dash panel.
(7) Remove cable and handle from vehicle.

INSTALLATION

(1) Assemble cable and handle onto vehicle.
(2) Push release cable through hole in dash panel.
(3) Connect rubber grommet into dash panel.
(4) Install screws attaching hood release handle to

cowl panel.

(5) Install left front cowl trim panel.
(6) Connect remote hood release cable to hood

latch (Fig. 4).

(7) Install hood latch.
(8) Close hood and verify operation.

HOOD LATCH STRIKER

REMOVAL

(1) Release hood latch and open hood.
(2) Remove bolts attaching striker to inside of

hood (Fig. 5).

(3) Remove hood latch striker from vehicle.

INSTALLATION

(1) Position hood latch striker on vehicle (Fig. 5).
(2) Install bolts attaching hood latch striker to

hood.

(3) Align hood latch striker to engage smoothly

into hood latch.

(4) Verify hood operation and alignment. Adjust as

necessary.

(5) Tighten attaching bolts to 13.5 N·m (10 ft. lbs.)

torque.

SILENCER PAD

REMOVAL

(1) Open hood.
(2) Remove fasteners attaching hood silencer to

hood (Fig. 6).

(3) Remove hood silencer from vehicle.

INSTALLATION

(1) Place hood silencer in position on hood (Fig. 6).
(2) Install fastener attaching hood silencer to hood.
(3) Close hood.

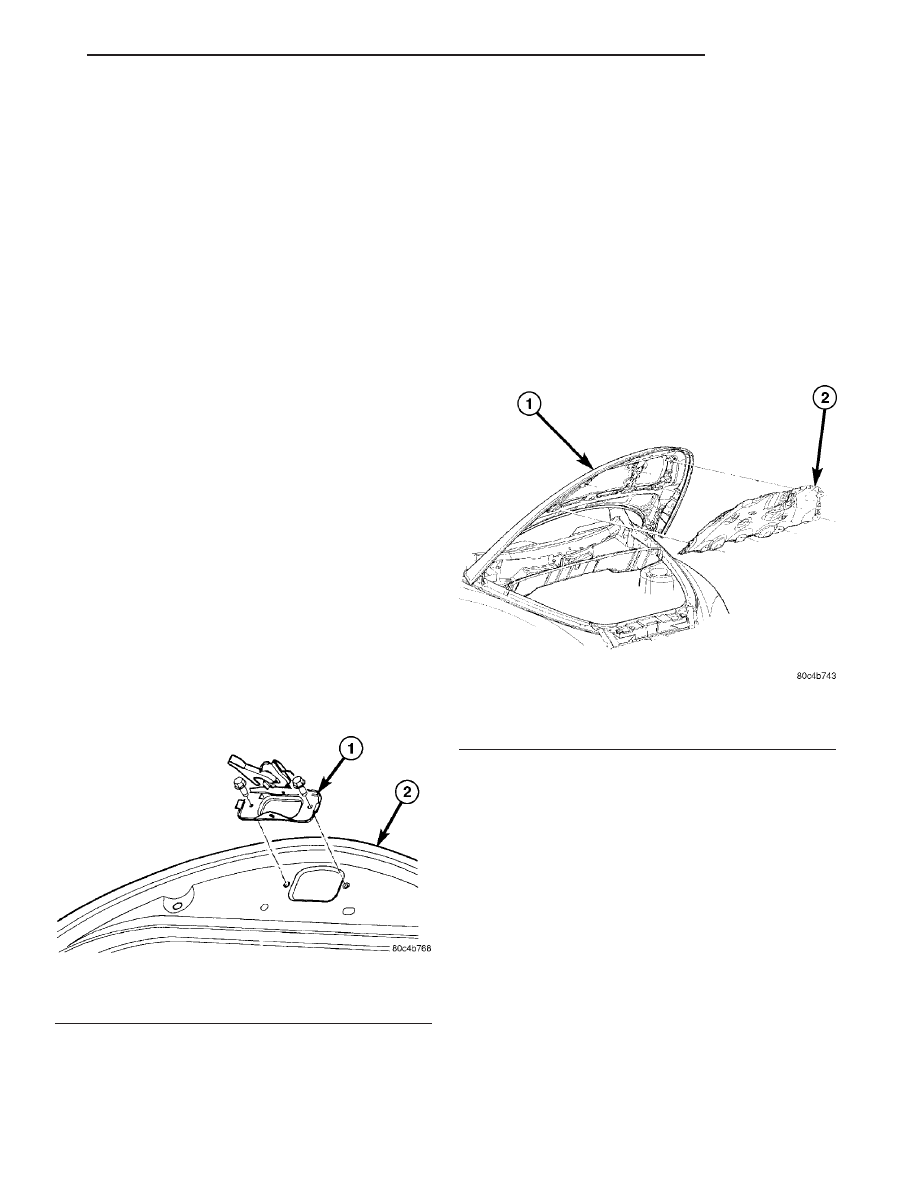

Fig. 5 HOOD STRIKER

1 - HOOD STRIKER
2 - HOOD

Fig. 6 HOOD SILENCER

1 - HOOD
2 - HOOD INNER PANEL SILENCER

PT

HOOD

23 - 99

INSTRUMENT PANEL

TABLE OF CONTENTS

page

page

ACCESSORY SWITCH BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 100

CLUSTER BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 102

GLOVE BOX

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 103

GLOVE BOX LATCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 103

GLOVE BOX LOCK CYLINDER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 104

INSTRUMENT PANEL ASSEMBLY

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 109

INSTRUMENT PANEL CENTER BEZEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 112

INSTRUMENT PANEL CENTER BEZEL

CONTROL KNOBS
REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 112

INSTRUMENT PANEL END CAP

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 113

INSTRUMENT PANEL TOP COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 113

STEERING COLUMN OPENING COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 115

ACCESSORY SWITCH BEZEL

REMOVAL

NOTE: The accessory switches are serviced sepa-
rately, but the cigar lighter/power outlet is not (Fig.
1).

(1) Open hood.
(2) Disconnect and isolate the battery negative

cable (Fig. 2).

(3) Remove the instrument panel center bezel.

Refer to Removal and Installation, Instrument Panel
Center Bezel in this section.

(4) Remove two screws retaining the accessory

switch bezel (Fig. 3).

(5) Disconnect the harness connectors to the fol-

lowing (Fig. 4):

• Rear Window Defogger Switch (if equipped)

• Traction Control Switch (if equipped)

• Cigar Lighter/Power Outlet

• Rear Windshield Washer/Wiper Switch
(6) To remove switches from bezel, use both

thumbs and slightly pull out on the two walls that
are holding the switches (Fig. 5).

INSTALLATION

NOTE: The accessory switches are serviced sepa-
rately, but the cigar lighter/power outlet is not.

If replacing the accessory switch bezel, you must

transfer the switches to the new bezel.

(1) Reconnect accessory switch bezel connectors

(Fig. 4).

(2) Reinstall switch bezel into instrument panel

opening and install two retaining screws (Fig. 3).

(3) Reinstall instrument panel center bezel. Refer

to Removal and Installation, Instrument Panel Cen-
ter Bezel in this section.

(4) Reconnect the battery negative cable (Fig. 2).
(5) Close the hood.
(6) Verify vehicle and system operation.

23 - 100

INSTRUMENT PANEL

PT

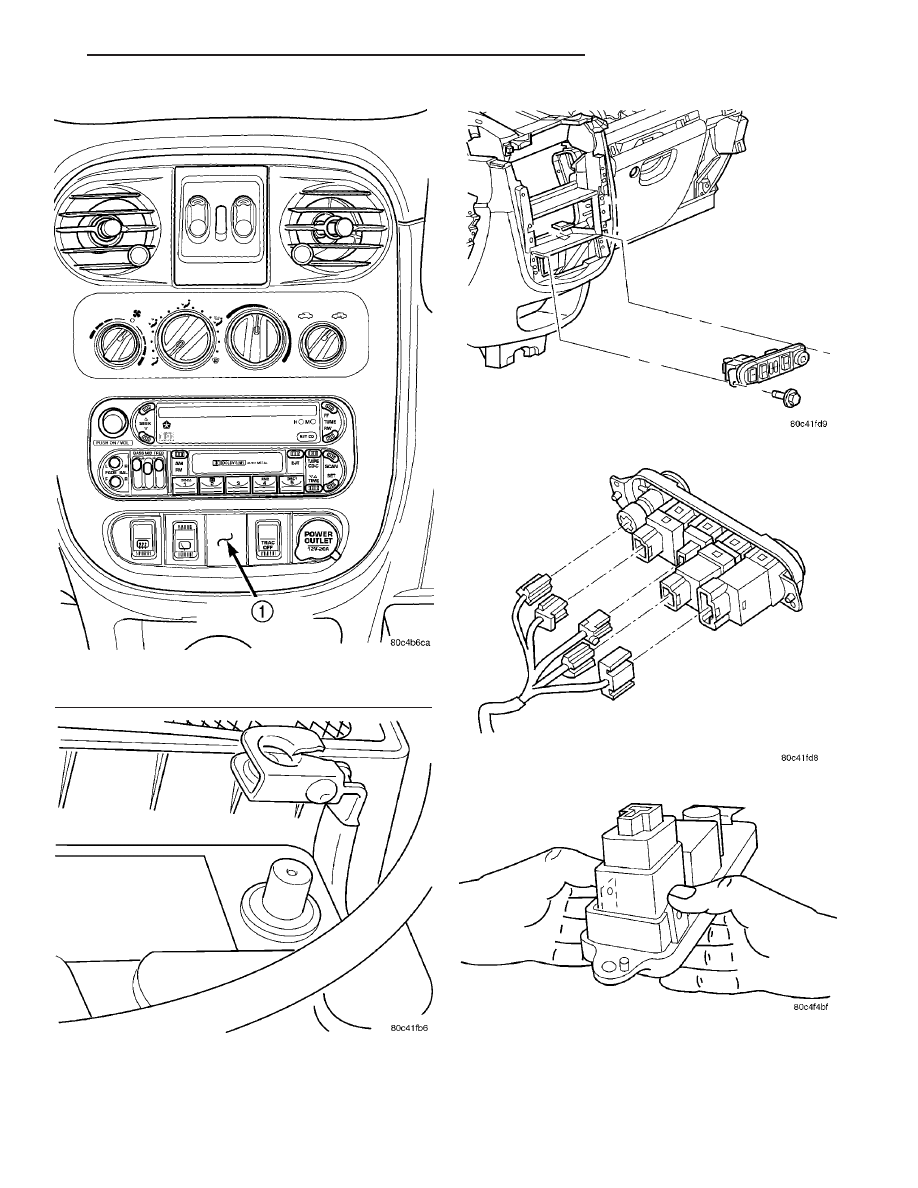

Fig. 1 ACCESSORY SWITCH BEZEL LOCATION

1 - ACCESSORY SWITCH BEZEL

Fig. 2 DISCONNECT AND ISOLATE BATTERY

NEGATIVE CABLE

Fig. 3 ACCESSORY SWITCH BEZEL

Fig. 4 ACCESSORY SWITCH BEZEL CONNECTORS

Fig. 5 ACCESSORY SWITCH BEZEL SWITCH

PT

INSTRUMENT PANEL

23 - 101

ACCESSORY SWITCH BEZEL (Continued)
