(1) If necessary, paint new door hinge prior to

installation.

(2) Position door hinge on vehicle (Fig. 5).
(3) Loosely install bolts attaching hinge to lower

B-pillar.

(4) Loosely install bolts attaching hinge to door

end frame.

(5) Align hinge to marks made previously and

tighten all bolts.

(6) Verify door fit and operation. Adjust door hinge

for proper door alignment, if necessary.

(7) Install B-pillar lower trim panel.

REAR DOOR LATCH

REMOVAL

(1) Remove door trim panel.
(2) Raise door glass to full up position.
(3) Remove lower rear run channel.
(4) Disconnect clips attaching linkage rods to door

latch.

(5) Remove linkage rods from latch (Fig. 8).
(6) Remove screws attaching latch to door end

frame

(7) Remove door latch from vehicle.

INSTALLATION

CAUTION: Do not close door before adjusting the
door latch. Door may fail to open.

(1) Position door latch on vehicle and install

screws attaching latch to door end frame (Fig. 8).

(2) Connect linkage rods to latch.
(3) Connect lock and latch rods to door latch.
(4) Install lower rear run channel.
(5) Install door trim panel.

ADJUSTMENTS

REAR DOOR LATCH ADJUSTMENT

(1) Insert a Torx

t wrench through the elongated

hole in the door end frame near the latch striker
opening.

(2) Loosen screw on the side of the latch linkage.
(3) Push button on outside door handle and release

it.

(4) Tighten screw on latch.
(5) Verify latch operation.

REAR DOOR LATCH STRIKER

REMOVAL

(1) Mark outline of door latch striker on B-pillar to

aid installation (Fig. 9).

(2) Remove screws attaching door latch striker to

B-pillar.

(3) Remove door latch striker from vehicle.

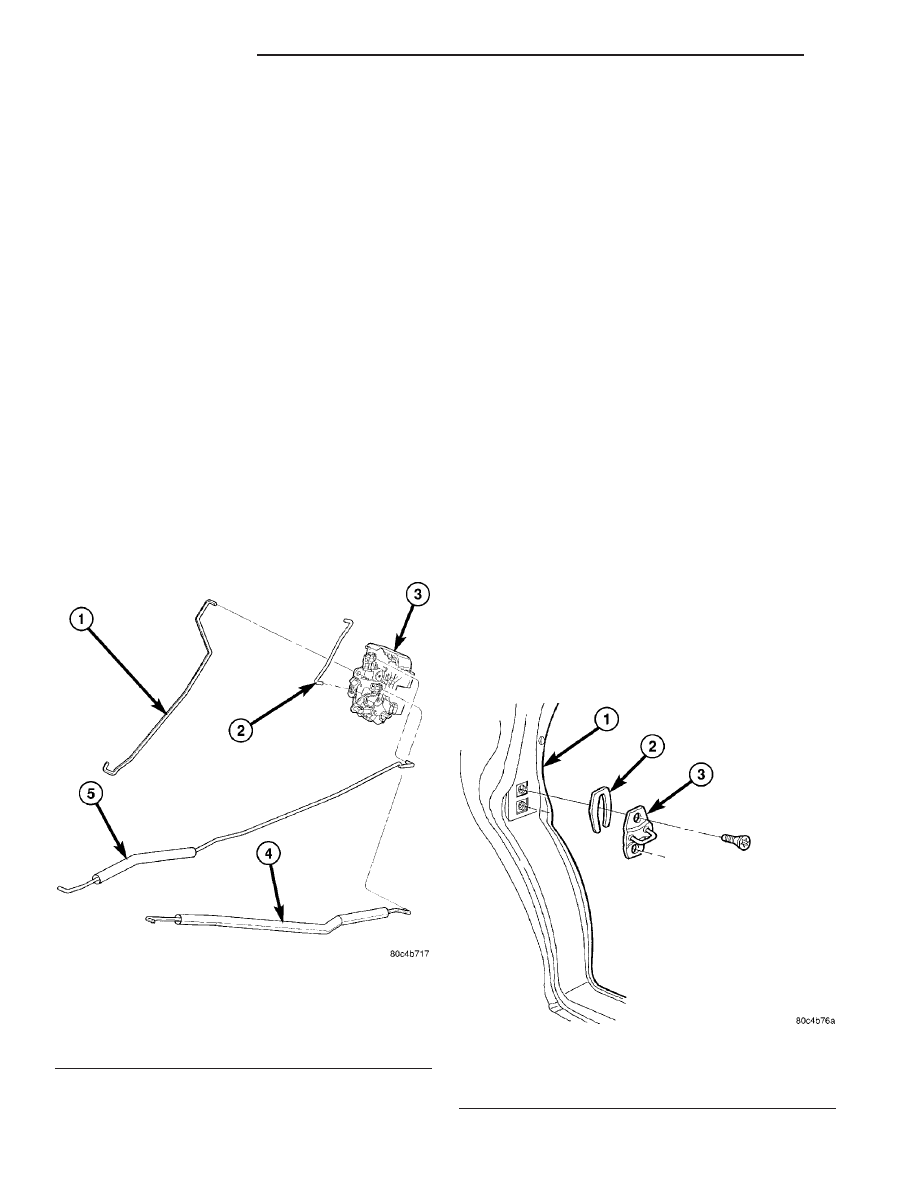

Fig. 8 REAR DOOR LATCH

1 - REAR DOOR POWER LOCK ACTUATOR TO LATCH LINK
2 - REAR DOOR OUTSIDE HANDLE TO LATCH LINK
3 - REAR DOOR LOCK LATCH
4 - REAR DOOR INSIDE ROD TO LATCH LINK AND SLEEVE
5 - REAR DOOR BELLCRANK TO LATCH LINK AND SLEEVE

Fig. 9 REAR DOOR LATCH STRIKER

1 - C-PILLAR
2 - SPACER
3 - REAR DOOR STRIKER

23 - 78

DOORS - REAR

PT

REAR DOOR HINGE (Continued)

INSTALLATION

(1) Install door latch striker from vehicle (Fig. 9).
(2) Install screws attaching door latch striker to

B-pillar.

(3) Align marked outline of door latch striker on

B-pillar to aid installation.

REAR DOOR TRIM PANEL

REMOVAL

(1) Release door latch and open door.
(2) Lower window glass.
(3) Remove screw from inside arm rest pull cup

(Fig. 10).

(4) Remove screw from behind inside latch release

handle.

(5) Remove fasteners from door trim panel.
(6) Disengage push in fasteners attaching trim to

door panel around perimeter of trim panel.

(7) Disengage push-in metal spring clip attaching

trim in sail flag area.

(8) Lift trim panel up off belt weatherstrip.
(9) Tilt top of trim panel away from door and dis-

engage clip attaching latch rod to handle.

(10) Remove latch rod from handle.
(11) Remove trim panel from door.

INSTALLATION

(1) Replace any damaged or missing push in fas-

teners from around perimeter of door trim panel.

(2) Place trim panel in position on door (Fig. 10).

(3) Insert latch rod into handle and engage clip.
(4) Engage trim panel into retainer channel at top

of door.

(5) Locate door trim panel to inner door panel by

aligning locating pins on backside of trim panel to
mating holes in inner door panel.

(6) Engage push in fasteners attaching trim to

door panel around perimeter of trim panel.

(7) Install fasteners in door trim panel.
(8) Install screw behind inside latch release han-

dle.

(9) Install screw inside arm rest pull cup.

REAR DOOR WATER DAM

REMOVAL

(1) Remove door trim panel.
(2) Remove door speaker, if equipped (Fig. 11).
(3) Remove door trim pull cup mount bracket.
(4) Disconnect clip attaching lock linkage to lock

button bell-crank.

(5) Peel water dam away from adhesive around

perimeter of inner door panel.

INSTALLATION

(1) Insure

that

enough

adhesive

remains

to

securely retain the water dam. Replace as necessary.

(2) Place the water dam into position and press

securely to adhesive making sure to properly route
wiring and linkages (Fig. 11).

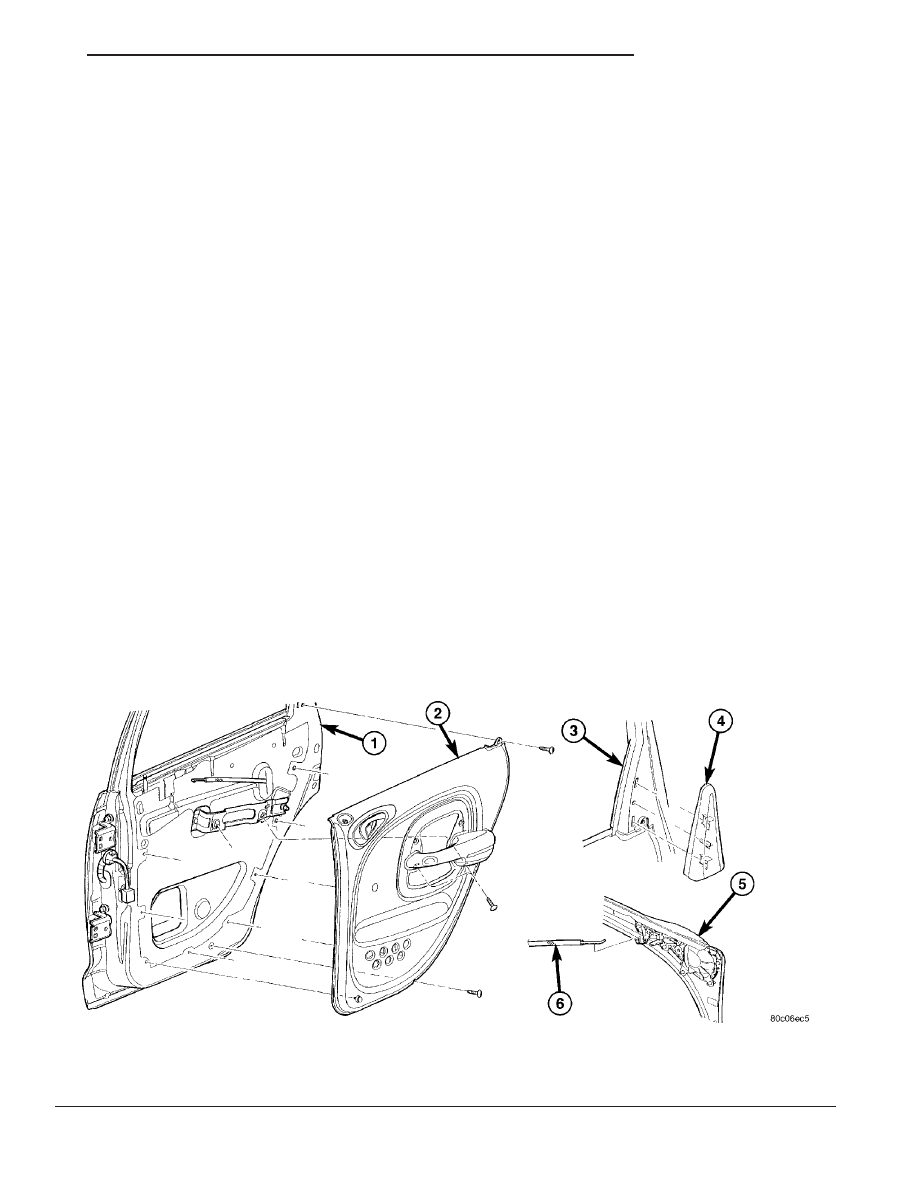

Fig. 10 REAR DOOR TRIM PANEL

1 - REAR DOOR
2 - REAR DOOR TRIM PANEL
3 - REAR DOOR REAR EDGE

4 - REAR DOOR FLAG TRIM
5 - REAR DOOR REMOTE HANDLE/BEZEL ASSEMBLY
6 - REAR DOOR LATCH LINK AND SLEEVE

PT

DOORS - REAR

23 - 79

REAR DOOR LATCH STRIKER (Continued)

(3) Engage clip attaching lock linkage to lock but-

ton bell-crank.

(4) Install door trim pull cup mount bracket.
(5) Install door speaker, if equipped.
(6) Install door trim panel.

REAR DOOR WINDOW
REGULATOR

REMOVAL

(1) Remove door trim panel and watershield.
(2) Remove door glass from regulator channel.

Secure glass in the door frame in the “UP” position.

(3) Remove fasteners attaching window regulator

channel and crank motor to door panel (Fig. 6).

(4) Disengage wiring at clip.
(5) Disengage regulator from door panel, and

motor housing.

(6) Slide regulator rearward and rotate forward

end of channel through access hole in door panel.

(7) Remove window regulator from door through

access hole in inner panel.

INSTALLATION

(1) Position window regulator and motor housing

on door panel through access hole in door panel (Fig.
6).

(2) Install fasteners attaching window regulator to

door panel.

(3) Position glass to regulator roller channel.
(4) Tighten fasteners attaching door glass to lift

plate.

(5) Engage electrical wiring.
(6) Position watershield, and install door trim

panel.

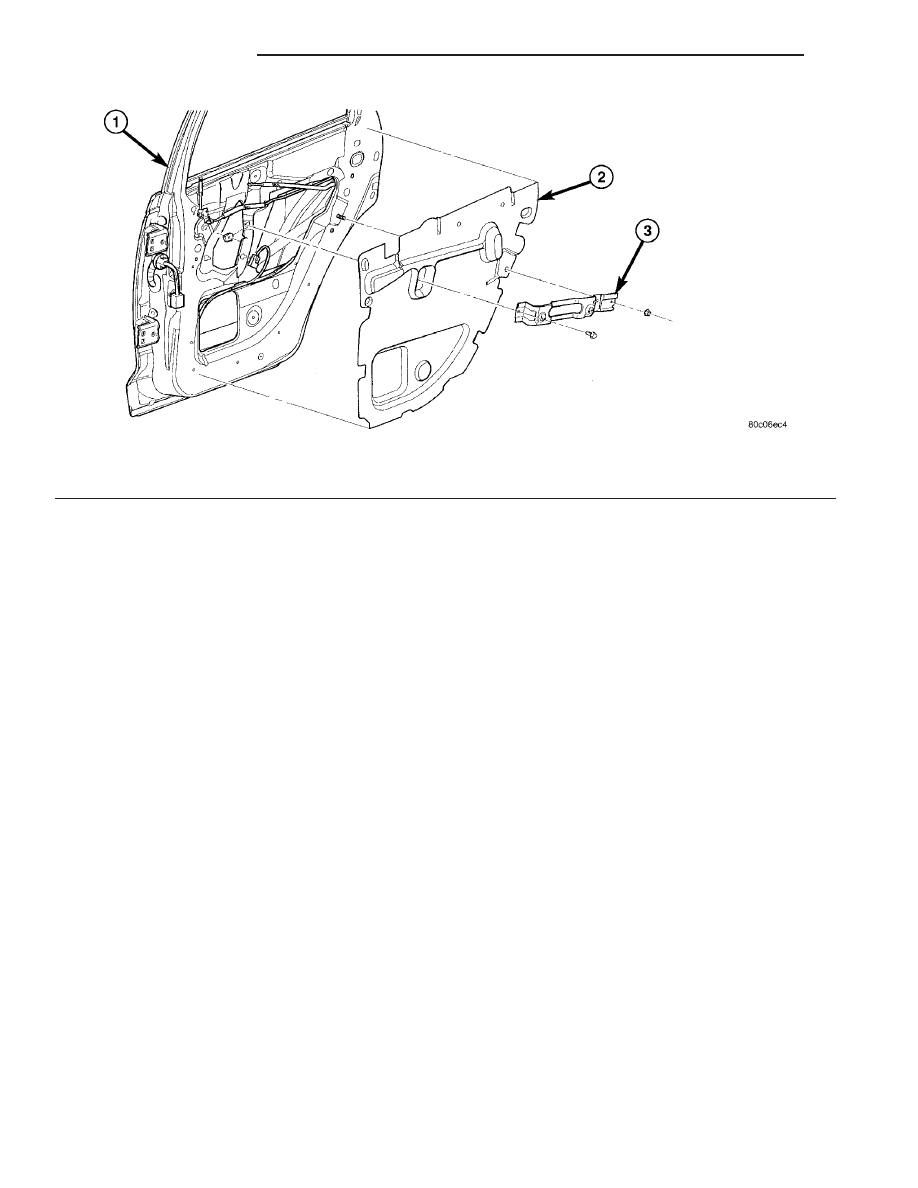

Fig. 11 WATER DAM

1 - REAR DOOR
2 - REAR DOOR WATER DAM

3 - REAR DOOR ARMREST TO INNER PANEL ATTACHING
BRACKET

23 - 80

DOORS - REAR

PT

REAR DOOR WATER DAM (Continued)

EXTERIOR
