(5) After five seconds, the displayed zone will auto-

matically be set in the compass mini-trip computer
module memory and normal operation will resume.

(6) Confirm that the correct directions are now

indicated by the compass.

COMPASS DEMAGNETIZING

A degaussing tool (Special Tool 6029) is used to

demagnetize, or degauss, the overhead console for-
ward mounting screw and the roof panel above the
overhead console. Equivalent units must be rated as
continuous duty for 110/115 volts and 60 Hz. They
must also have a field strength of over 350 gauss at 7
millimeters (0.25 inch) beyond the tip of the probe.

To demagnetize the roof panel and the overhead

console forward mounting screw, proceed as follows:

(1) Be certain that the ignition switch is in the Off

position, before you begin the demagnetizing proce-
dure.

(2) Connect the degaussing tool (Fig. 3)to an elec-

trical outlet, while keeping the tool at least 61 centi-
meters (2 feet) away from the compass unit.

(3) Slowly approach the head of the overhead con-

sole forward mounting screw with the degaussing
tool connected.

(4) Contact the head of the screw with the plastic

coated tip of the degaussing tool for about two sec-
onds.

(5) With the degaussing tool still energized, slowly

back it away from the screw. When the tip of the tool
is at least 61 centimeters (2 feet) from the screw
head, disconnect the tool.

(6) Place a piece of paper approximately 22 by 28

centimeters (8.5 by 11 inches), oriented on the vehicle
lengthwise from front to rear, on the center line of
the roof at the windshield header (Fig. 4). The pur-
pose of the paper is to protect the roof panel from
scratches, and to define the area to be demagnetized.

(7) Connect the degaussing tool to an electrical

outlet, while keeping the tool at least 61 centimeters
(2 feet) away from the compass unit.

(8) Slowly approach the center line of the roof

panel at the windshield header, with the degaussing
tool connected.

(9) Contact the roof panel with the plastic coated

tip of the degaussing tool. Be sure that the template
is in place to avoid scratching the roof panel. Using a

slow, back-and-forth sweeping motion, and allowing
13 millimeters (0.50 inch) between passes, move the
tool at least 11 centimeters (4 inches) to each side of
the roof center line, and 28 centimeters (11 inches)
back from the windshield header.

(10) With the degaussing tool still energized,

slowly back it away from the roof panel. When the
tip of the tool is at least 61 centimeters (2 feet) from
the roof panel, disconnect the tool.

(11) Calibrate the compass and adjust the compass

variance. Refer to Compass Variation Adjustment
and Compass Calibration in this section for the
procedures.

REMOVAL

(1) Disconnect and isolate the negative battery

cable.

(2) Grasp the front of the overhead console and

pull downward to disconnect the front retaining clips.

(3) Slide the overhead console forward to disen-

gage the rear tabs from the headliner.

(4) Disconnect the overhead console wire connector.
(5) Unsnap compass module from inner roof panel.

Push module all the way forward to disengage the
front retaining clip. Once the front clip is discon-
nected, push the module all the way rearward to dis-
engage the rear retaining clip.

Fig. 3 Degaussing Tool 6029

Fig. 4 Roof Demagnetizing Pattern

8M - 6

OVERHEAD CONSOLE

PT

OVERHEAD CONSOLE (Continued)

(6) Remove console from vehicle.

INSTALLATION

(1) Position overhead console into vehicle and snap

compass module onto inner roof panel.

(2) Connect overhead console wire harness connec-

tor.

(3) Engage the rear tabs on the overhead console

into the headliner.

(4) Align the front retaining clips of the overhead

console with the corresponding holes in the inner roof
panel and firmly snap into place.

(5) Connect the battery negative cable.
(6) Calibrate compass (Refer to 8 - ELECTRICAL/

OVERHEAD

CONSOLE

-

STANDARD

PROCE-

DURE).

SPECIAL TOOLS

OVERHEAD CONSOLE

AMBIENT TEMP SENSOR

DESCRIPTION

Ambient air temperature is monitored by the com-

pass/temperature display unit. It receives a hard
wired input from the ambient temperature sensor.
The ambient temperature sensor is a variable resis-
tor mounted to a bracket that is secured with a nut
to the bracket in front of the A/C condenser, behind
the radiator grille.

The

ambient

temperature

sensor

cannot

be

adjusted or repaired and, if faulty or damaged, it
must be replaced.

OPERATION

The ambient temperature sensor is a variable

resistor that operates on a five-volt reference signal.
The resistance in the sensor changes as temperature
changes, changing the temperature sensor signal cir-
cuit voltage to compass/temperature display unit.
Based upon the resistance in the sensor, the com-
pass/temperature display unit senses a specific volt-
age on the temperature sensor signal circuit, which it
is programmed to correspond to a specific tempera-
ture. The compass/temperature display unit then dis-
plays the proper ambient temperature.

DIAGNOSIS AND TESTING

AMBIENT TEMPERATURE SENSOR

The thermometer function is supported by the

ambient temperature sensor, a wiring circuit, and the
compass/temperature display unit.

If the display shows OC (-49° F (-45° C) or SC

(140° F (60° C),, there is an OPEN or SHORT CIR-
CUIT and it must be repaired before the VFD can be
tested.

The ambient temperature sensor circuit can also be

diagnosed using the following Sensor Test, and Sen-
sor Circuit Test. If the temperature sensor and cir-
cuit are confirmed to be OK, but the temperature
display is inoperative or incorrect, replace the com-
pass/temperature display.

SENSOR TESTING

(1) Turn the ignition switch to the OFF position.

Disconnect and isolate the battery negative cable
(Fig. 5). Disconnect the ambient temperature sensor
wire harness connector.

(2) Measure the resistance of the ambient temper-

ature sensor. At room temperature (approx. 68°F),
the sensor resistance should be between 9-11 Kilo-
hms (9000-11000 ohms). The sensor resistance should
read between these two values. If OK, refer to Sensor
Circuit Testing below. If not OK, replace the faulty
ambient temperature sensor.

SENSOR CIRCUIT TESTING

(1) Turn the ignition switch to the OFF position.

Disconnect and isolate the battery negative cable.
Disconnect the ambient temperature sensor wire har-
ness connector and the compass/temperature display
unit wire harness connector.

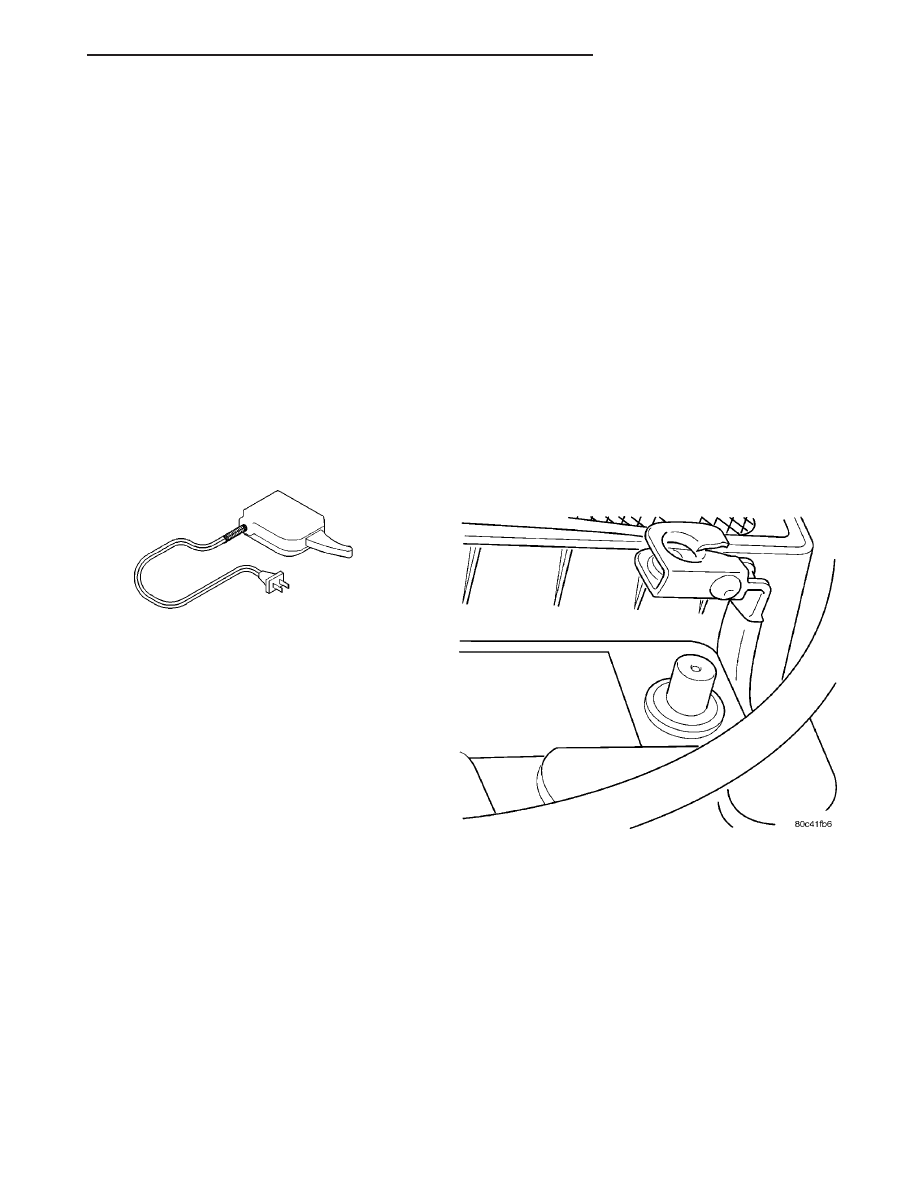

Degaussing Tool 6029

Fig. 5 Battery Negative Cable Remove/Install

PT

OVERHEAD CONSOLE

8M - 7

OVERHEAD CONSOLE (Continued)

(2) Connect a jumper wire between the two termi-

nals in the body half of the ambient temperature sen-
sor wire harness connector.

(3) Check for continuity between the sensor return

circuit and the ambient temperature sensor signal
circuit cavities of the compass/temperature display
unit wire harness connector. There should be conti-
nuity. If OK, go to Step 4. If not OK, repair the open
sensor return circuit or ambient temperature sensor
signal circuit to the ambient temperature sensor as
required.

(4) Remove the jumper wire from the body half of

the ambient temperature sensor wire harness con-
nector. Check for continuity between the sensor
return circuit cavity of the compass/temperature dis-
play unit wire harness connector and a good ground.
There should be no continuity. If OK, go to Step 5. If
not OK, repair the shorted sensor return circuit as
required.

(5) Check for continuity between the ambient tem-

perature sensor signal circuit cavity of the compass/
temperature display unit wire harness connector and
a good ground. There should be no continuity. If OK,
replace the compass/temperature display unit. If not
OK, repair the shorted ambient temperature sensor
signal circuit as required.

REMOVAL

(1) Open hood.
(2) Working through the hole in the top center of

the grille, remove the one retaining nut from the
appropriate ambient temperature sensor (Fig. 6).

(3) Disconnect the ambient air temperature sensor

electrical connector and remove the sensor from the
vehicle.

INSTALLATION

(1) Install the one retaining nut to ambient tem-

perature sensor.

(2) Connect the battery negative cable.
(3) Close hood.

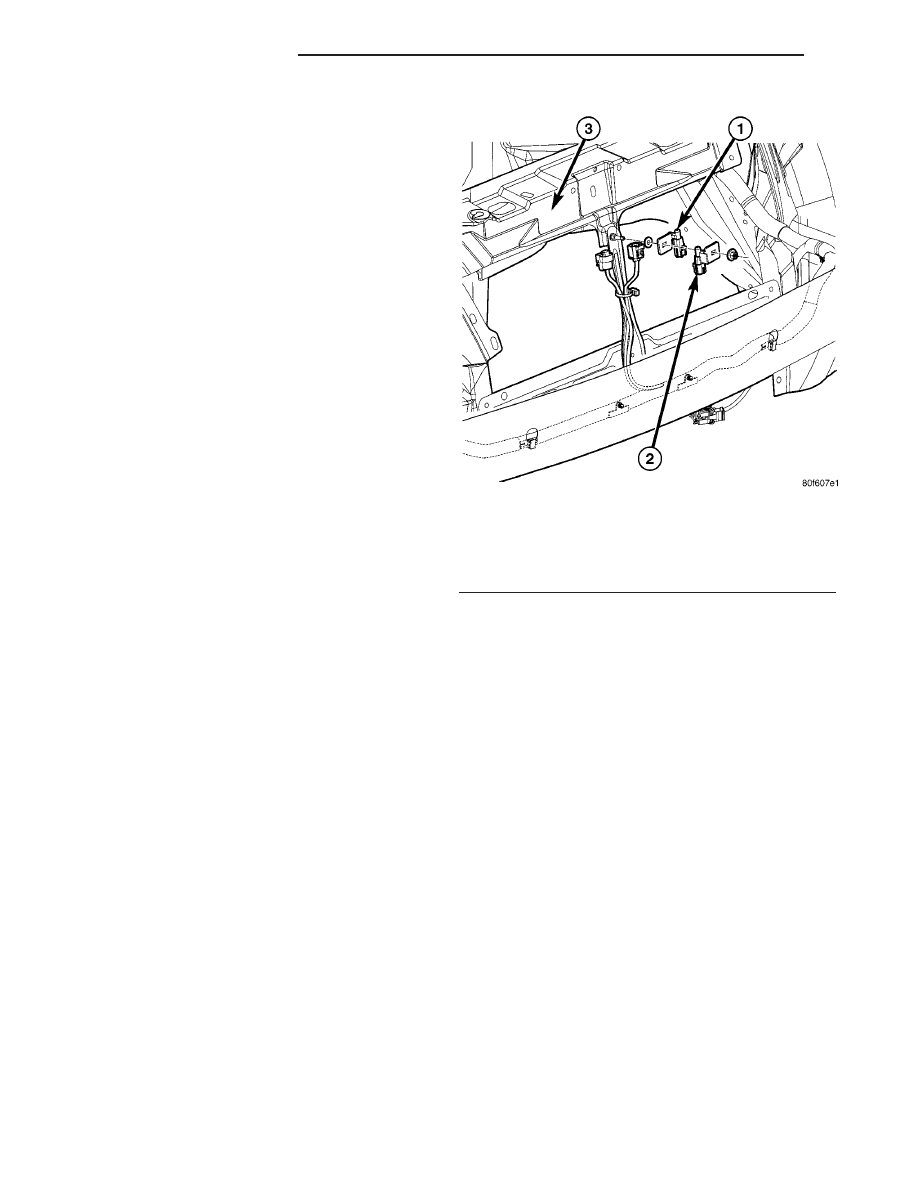

Fig. 6 AMBIENT AIR TEMPERATURE SENSOR

LOCATION

1 - Air Temperature Sensor - NGC Engine Controller
2 - Air Temperature Sensor - Overhead Console
3 - Radiator Closure Panel

8M - 8

OVERHEAD CONSOLE

PT

AMBIENT TEMP SENSOR (Continued)
