charged and returned to service after the excessive
IOD condition has been corrected.

(1) Verify that all electrical accessories are off.

Turn off all lamps, remove the ignition key, and close
all doors. If the vehicle is equipped with an illumi-
nated entry system or an electronically tuned radio,
allow the electronic timer function of these systems
to automatically shut off (time out). This may take
up to three minutes.

(2) Determine that the underhood lamp is operat-

ing properly, then disconnect the lamp wire harness
connector or remove the lamp bulb.

(3) Disconnect the battery negative cable.
(4) Set an electronic digital multi-meter to its

highest amperage scale. Connect the multi-meter
between the disconnected battery negative cable ter-
minal clamp and the battery negative terminal post.
Make sure that the doors remain closed so that the
illuminated entry system is not activated. The multi-
meter amperage reading may remain high for up to
three minutes, or may not give any reading at all
while set in the highest amperage scale, depending
upon the electrical equipment in the vehicle. The
multi-meter leads must be securely clamped to the
battery negative cable terminal clamp and the bat-
tery negative terminal post. If continuity between the
battery negative terminal post and the negative cable
terminal clamp is lost during any part of the IOD
test, the electronic timer function will be activated
and all of the tests will have to be repeated.

(5) After about three minutes, the high-amperage

IOD reading on the multi-meter should become very
low or nonexistent, depending upon the electrical
equipment in the vehicle. If the amperage reading
remains high, remove and replace each fuse or circuit
breaker in the Power Distribution Center (PDC) and
then in the Junction Block (JB), one at a time until
the amperage reading becomes very low, or nonexist-
ent. Refer to the appropriate wiring information in
this service manual for complete PDC and JB fuse,
circuit breaker, and circuit identification. This will
isolate each circuit and identify the circuit that is the
source of the high-amperage IOD. If the amperage
reading remains high after removing and replacing
each fuse and circuit breaker, disconnect the wire
harness from the generator. If the amperage reading
now becomes very low or nonexistent, refer to Charg-
ing System for the proper charging system diagnosis
and testing procedures. After the high-amperage IOD
has been corrected, switch the multi-meter to pro-
gressively lower amperage scales and, if necessary,
repeat the fuse and circuit breaker remove-and-re-
place process to identify and correct all sources of
excessive IOD. It is now safe to select the lowest mil-
liampere scale of the multi-meter to check the low-
amperage IOD.

CAUTION: Do not open any doors, or turn on any
electrical accessories with the lowest milliampere
scale selected, or the multi-meter may be damaged.

(6) Observe the multi-meter reading. The low-am-

perage IOD should not exceed thirty-five milliam-
peres (0.035 ampere). If the current draw exceeds
thirty-five milliamperes, isolate each circuit using the
fuse and circuit breaker remove-and-replace process
in Step 5. The multi-meter reading will drop to
within the acceptable limit when the source of the
excessive current draw is disconnected. Repair this
circuit as required; whether a wiring short, incorrect
switch adjustment, or a component failure is at fault.

REMOVAL

REMOVAL - GASOLINE ENGINE

WARNING:
TO PROTECT THE HANDS FROM BATTERY ACID, A
SUITABLE

PAIR

OF

HEAVY

DUTY

RUBBER

GLOVES, NOT THE HOUSEHOLD TYPE, SHOULD
BE WORN WHEN REMOVING OR SERVICING A
BATTERY. SAFETY GLASSES ALSO SHOULD BE
WORN.

(1) Make sure ignition switch is in OFF position

and all accessories are OFF.

(2) Open hood.
(3) Remove the air cleaner housing(Refer to 9 -

ENGINE/AIR

INTAKE

SYSTEM/AIR

CLEANER

HOUSING - REMOVAL).

(4) Disconnect and isolate the battery negative

cable then the positive cable.

(5) Loosen bolt and retainer that holds the battery

down to the tray (Fig. 10) or (Fig. 11).

(6) Lift battery out of battery tray and remove

from vehicle.

(7) Remove thermal guard (if equipped) from bat-

tery.

REMOVAL - DIESEL ENGINE

(1) Make sure ignition switch is in OFF position

and all accessories are OFF.

(2) Open the passenger door.
(3) Position passenger seat to the full rear loca-

tion.

(4) Remove the two screws from the seat front

trim panel.

(5) Lift trim panel to disengage the lower tabs

from the lower mounting slots and set aside.

(6) Disconnect and isolate the battery negative

cable.

8F - 14

BATTERY SYSTEM

PT

BATTERY (Continued)

(7) Disconnect the vent tube assembly by pulling

the elbow straight forward from the battery vent
port.

(8) Unclip the vent tubing assembly from the bat-

tery hold down strap. Note the position of the clip for
installation reference.

(9) Loosen bolt that holds the battery down to the

tray and slide battery forward enough to access the
battery temperature sensor (Fig. 12). Remove the
battery temperature sensor from the battery case
(Fig. 13) by pulling straight out.

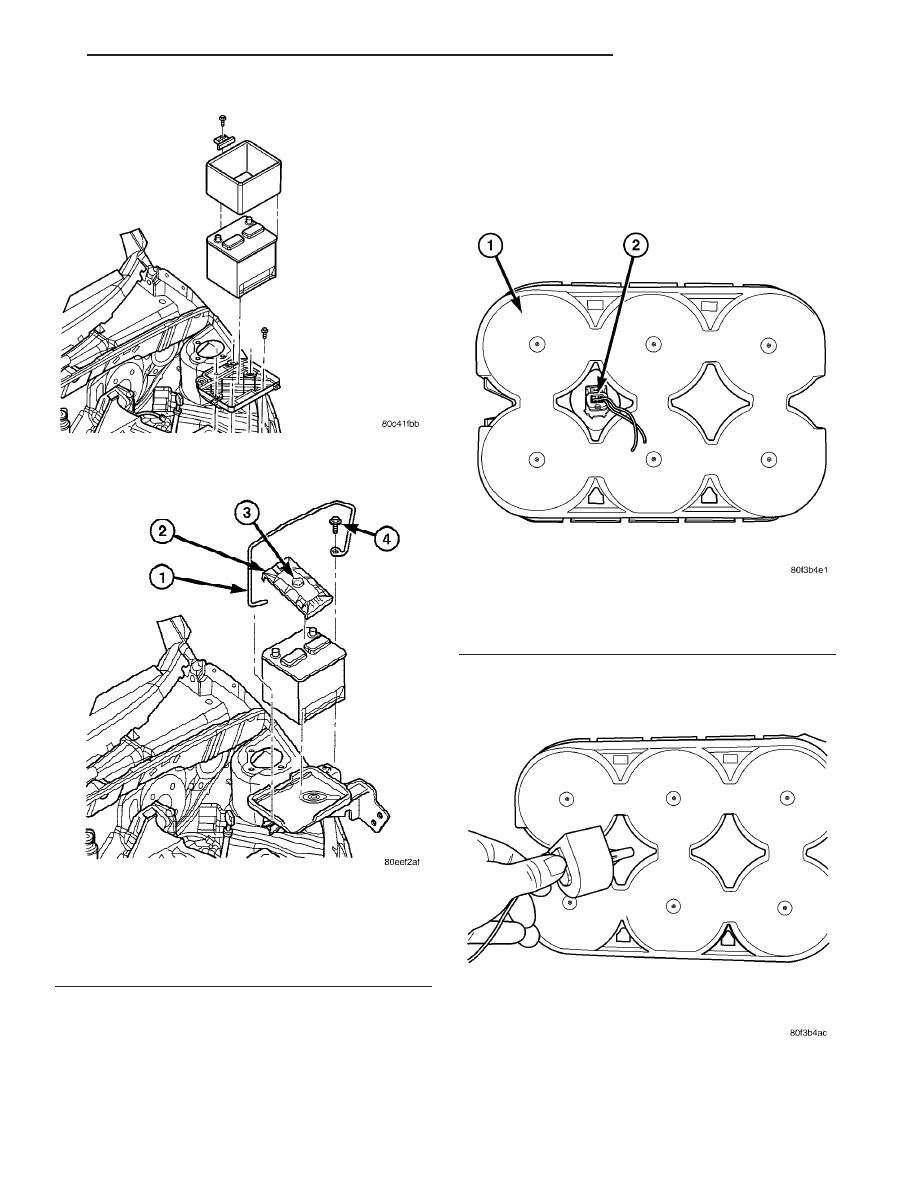

Fig. 10 Battery Remove/Install - Gasoline Engine

Only

Fig. 11 Battery Remove/Install - Turbo Gasoline

Engine Only

1 - HOLD DOWN ROD
2 - HOLD DOWN RETAINER
3 - NON CORROSIVE SPACERS FOR SERVICE BATTERY
4 - BOLT

Fig. 12 Battery Temperature Sensor Location

1 - Bottom of Battery
2 - Battery Temperature Sensor

Fig. 13 Removing Battery Temperature Sensor

PT

BATTERY SYSTEM

8F - 15

BATTERY (Continued)

(10) Lift the battery retaining strap and pull the

battery forward (Fig. 14), in front of the passenger
seat.

(11) Disconnect and isolate the battery positive

cable. Note the position of the battery positive cable
for installation reference.

(12) Remove the battery from the vehicle.

WARNING: DO NOT USE A CONVENTIONAL LEAD-
ACID

BATTERY

IN

PLACE

OF

THE

FACTORY

EQUIPPED SPIRAL-PLATE BATTERY. FAILURE TO
USE A SEALED SPIRAL-PLATE BATTERY COULD
RESULT IN ACID BEING RELEASED INSIDE THE
PASSENGER

COMPARTMENT

AND

PERSONAL

INJURY.

INSTALLATION

INSTALLATION - GASOLINE ENGINE

When replacing battery, the thermal guard MUST

be transferred to the new battery (if equipped).

(1) Install battery in vehicle making sure that the

thermal guard (if equipped) is present and battery is
properly positioned on battery tray.

(2) Install battery hold down clamp, making sure

that it is properly positioned on battery. Torque
clamp to 110 in. lbs. ± 20 in. lbs.

CAUTION: Vehicles equipped with the turbocharged
engine use a unique battery hold down. If the
replacement battery is not identical, in size to the
original, it may be necessary to use non-corrosive
spacers on top of the hold down retainer (Fig. 15)
to properly secure the battery in the battery tray.

(3) Install battery cables on battery posts. Install

battery positive cable first.

(4) Torque clamp nuts to 110 in. lbs. ± 20 in. lbs.
(5) Install air cleaner housing (Refer to 9 -

ENGINE/AIR

INTAKE

SYSTEM/AIR

CLEANER

HOUSING - INSTALLATION).

(6) Close hood.
(7) Verify operation of vehicle and systems.

INSTALLATION - DIESEL ENGINE

WARNING: DO NOT USE A CONVENTIONAL LEAD-
ACID

BATTERY

IN

PLACE

OF

THE

FACTORY

EQUIPPED SPIRAL-PLATE BATTERY. FAILURE TO
INSTALL

A

SEALED

SPIRAL-PLATE

BATTERY

COULD RESULT IN ACID BEING RELEASED INSIDE
THE PASSENGER COMPARTMENT AND PERSONAL
INJURY.

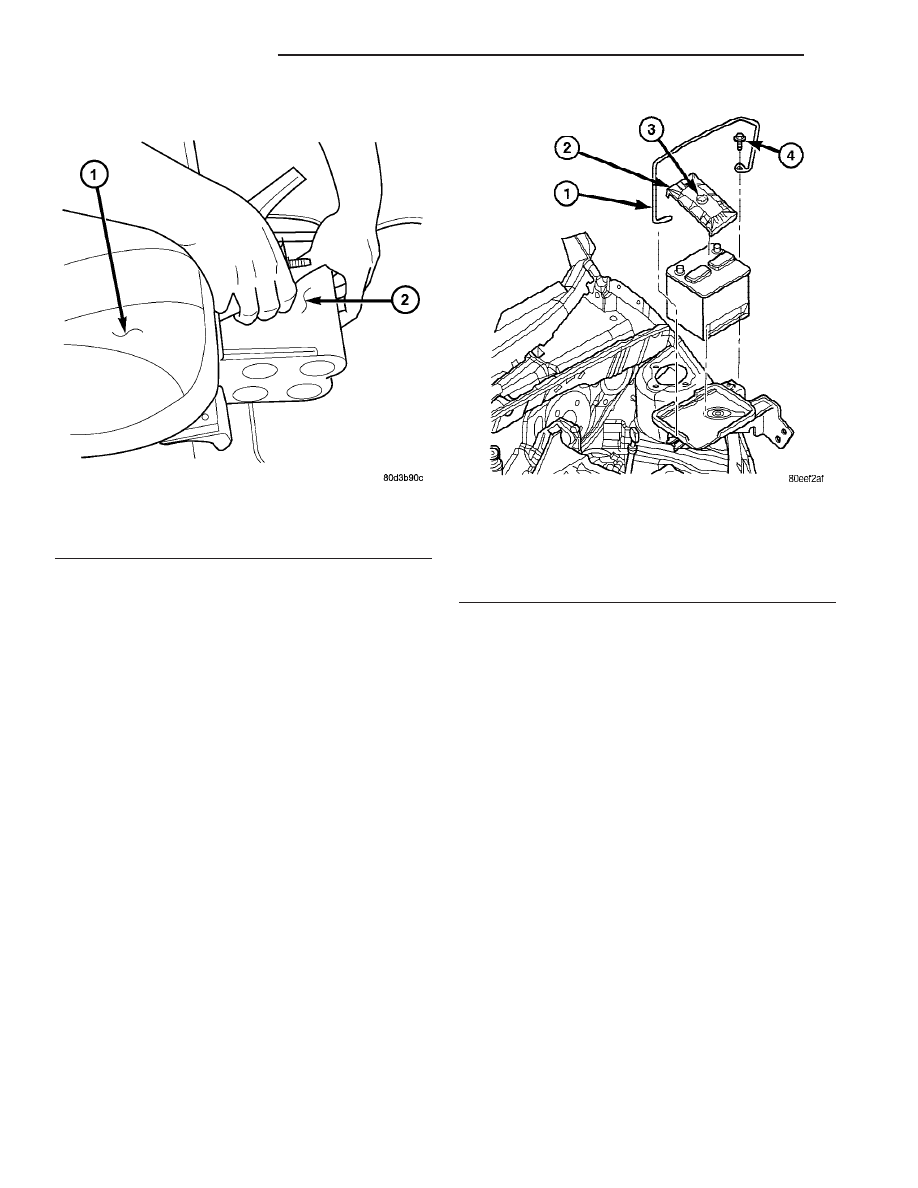

Fig. 14 Battery Removal

1 - Passenger Seat
2 - Spiral-Plate Battery

Fig. 15 Battery Remove/Install - Turbo Gasoline

Engine Only

1 - HOLD DOWN ROD
2 - HOLD DOWN RETAINER
3 - NON CORROSIVE SPACERS FOR SERVICE BATTERY
4 - BOLT

8F - 16

BATTERY SYSTEM

PT

BATTERY (Continued)

CAUTION: The battery must be securely fastened in
the battery tray. Some Spiral-Plate batteries may be
slightly different in size, if compared to the original
factory installed battery. Measure the circumference
of the replacement battery with a flexible tape mea-
sure as shown (Fig. 16).

(1) Position the battery in the vehicle.
(2) Connect the battery positive cable.

WARNING: THE POSITIVE BATTERY CABLE MUST
BE CORRECTLY POSITIONED ON THE BATTERY
POST (Fig. 19). FAILURE TO INSTALL THE CABLE
CORRECTLY COULD RESULT IN SERIOUS PER-
SONAL INJURY OR VEHICLE DAMAGE.

(3) Lift the battery hold down strap and slide the

battery in its tray far enough to install the battery
temperature sensor. Install the battery temperature
sensor (Fig. 20).

(4) Slide the battery all the way into its tray and

install the bolt. Torque to 30 ft. lbs. ±10 ft. lbs. Make
certain the battery is securely held in place, you
should not be able to move the battery in any direc-
tion using normal hand force.

(5) Clip the vent tubing assembly on the battery

hold down strap.

(6) Connect the vent tube assembly (Fig. 18) or

(Fig. 17).

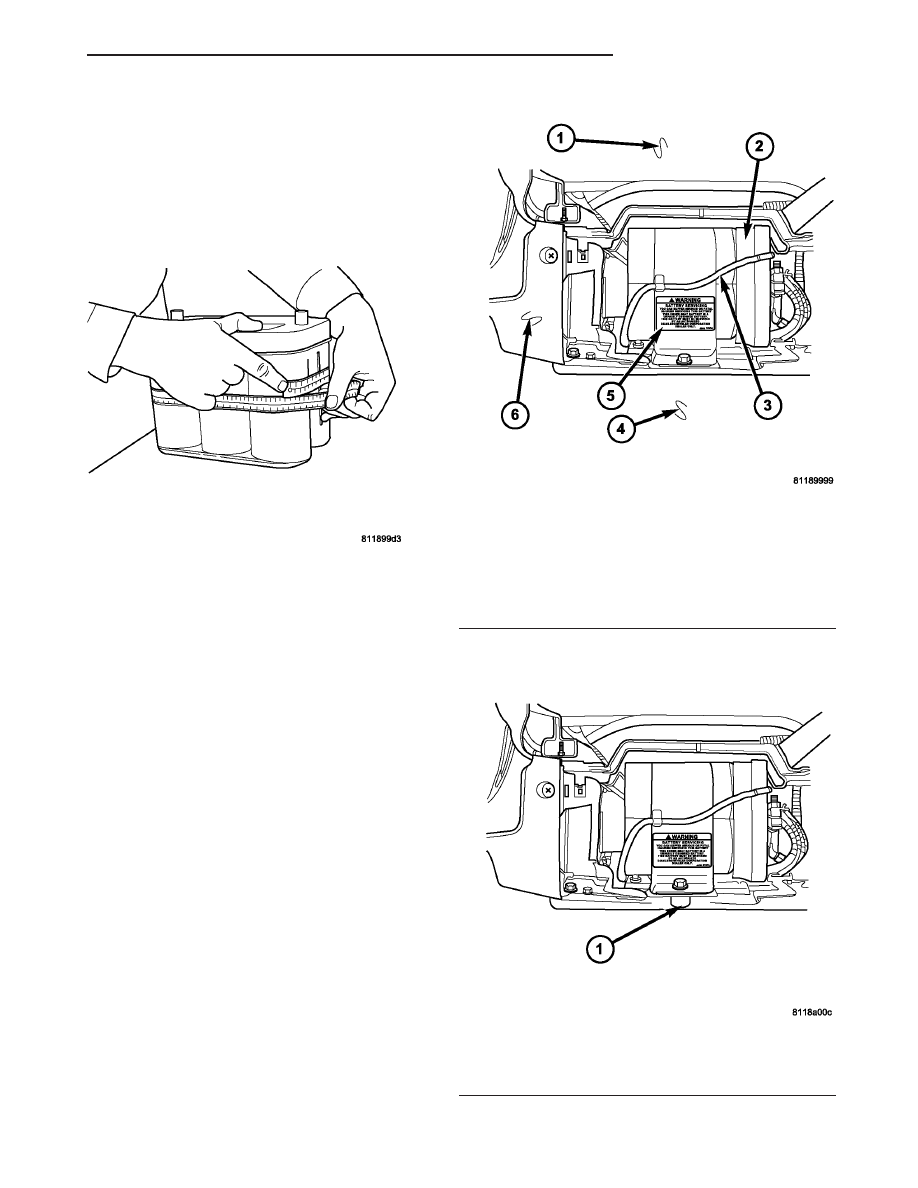

Fig. 16 Measuring Circumference of Replacement

Battery

Fig. 17 Diesel Battery with 73 cm Circumference

Installed

1 - Passenger Front Seat Cushion
2 - Spiral-Plate Battery
3 - Battery Vent Hose
4 - Front Floor Carpet
5 - Battery Hold Down Strap
6 - Seat Side Shield

Fig. 18 Diesel Battery with 75 cm Circumference

Installed

1 - Spacer

PT

BATTERY SYSTEM

8F - 17

BATTERY (Continued)
