Chrysler Pacifica. Manual - part 880

Fig. 139 ROOF RAIL - B-PILLAR REINFORCEMENT

CS

BODY STRUCTURE

23 - 315

WELD LOCATIONS (Continued)

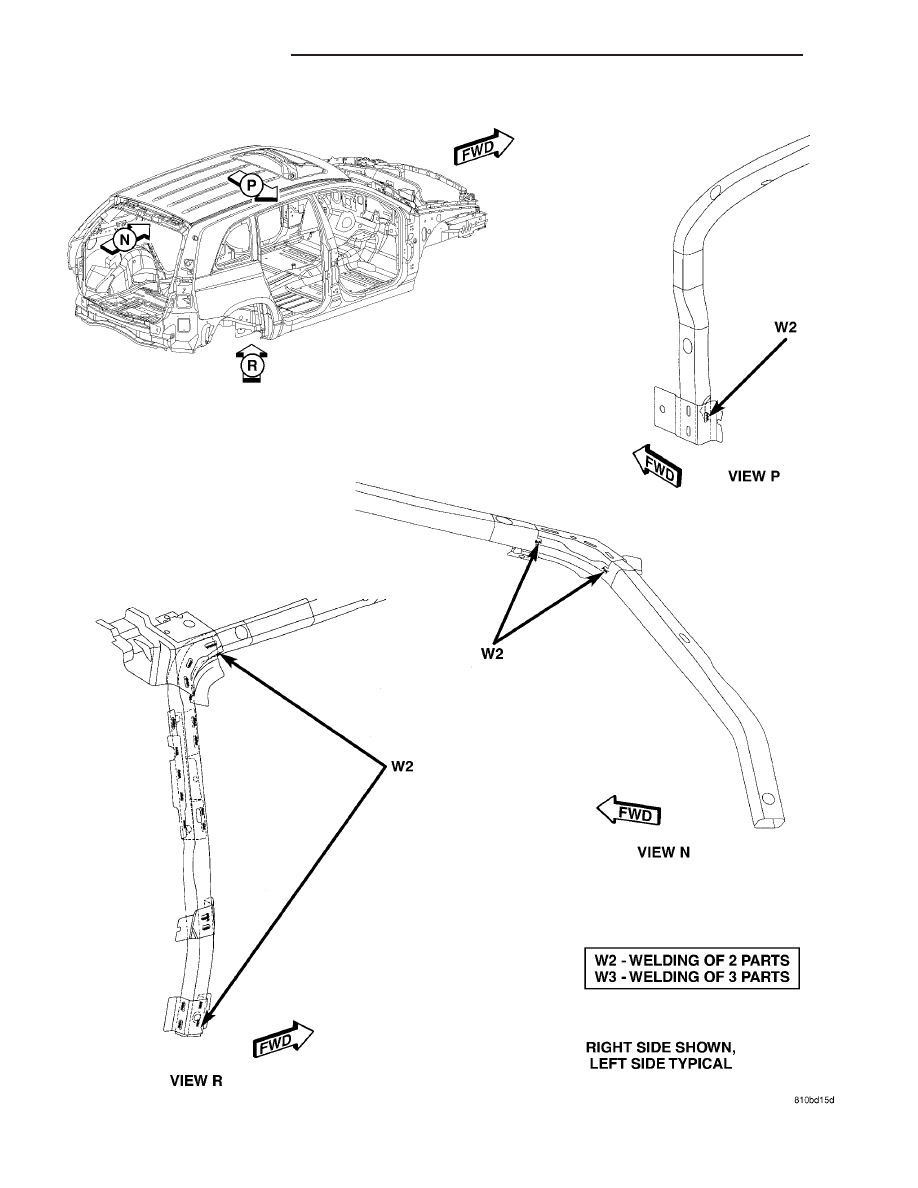

Fig. 140 C-PILLAR REINFORCEMENT & BRACKETS

23 - 316

BODY STRUCTURE

CS

WELD LOCATIONS (Continued)

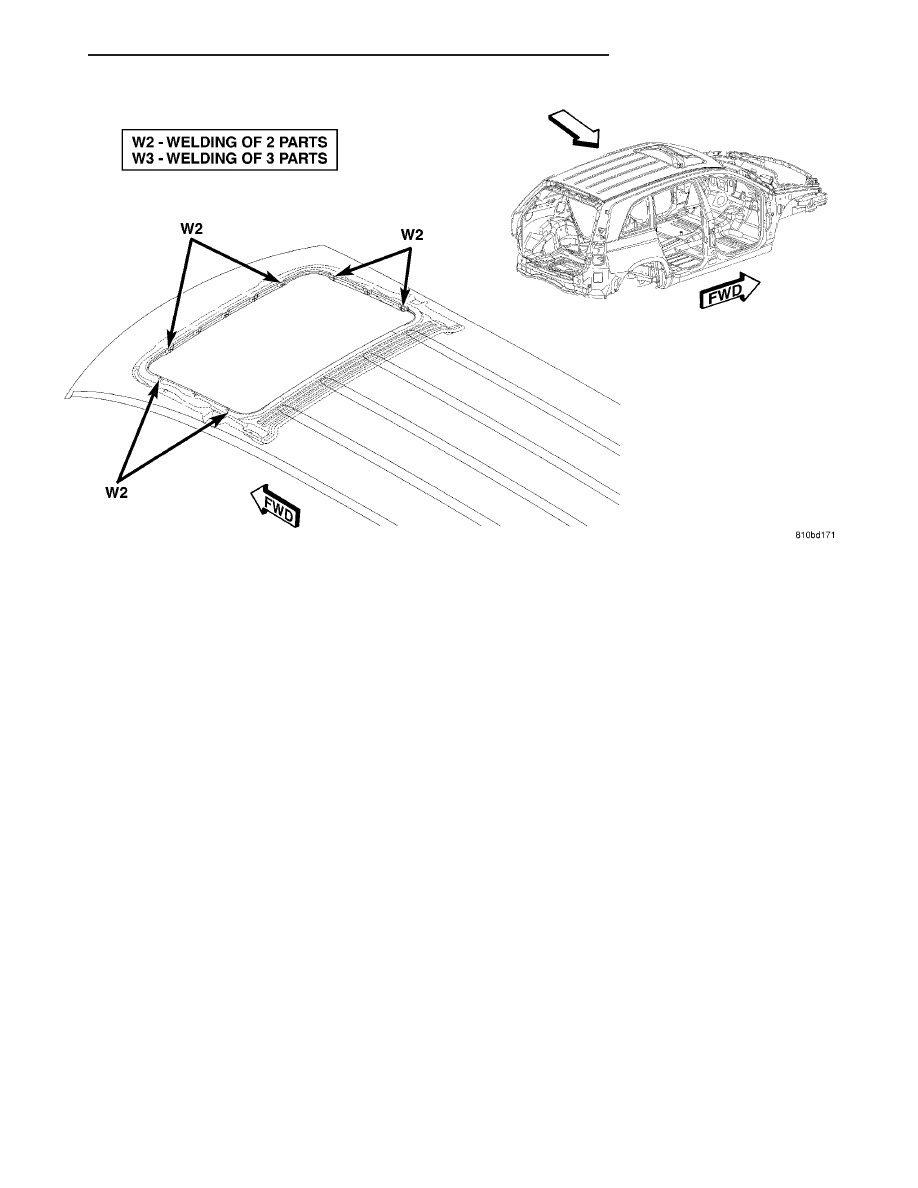

Fig. 141 SUN ROOF OPENING REINFORCEMENT

CS

BODY STRUCTURE

23 - 317

WELD LOCATIONS (Continued)
