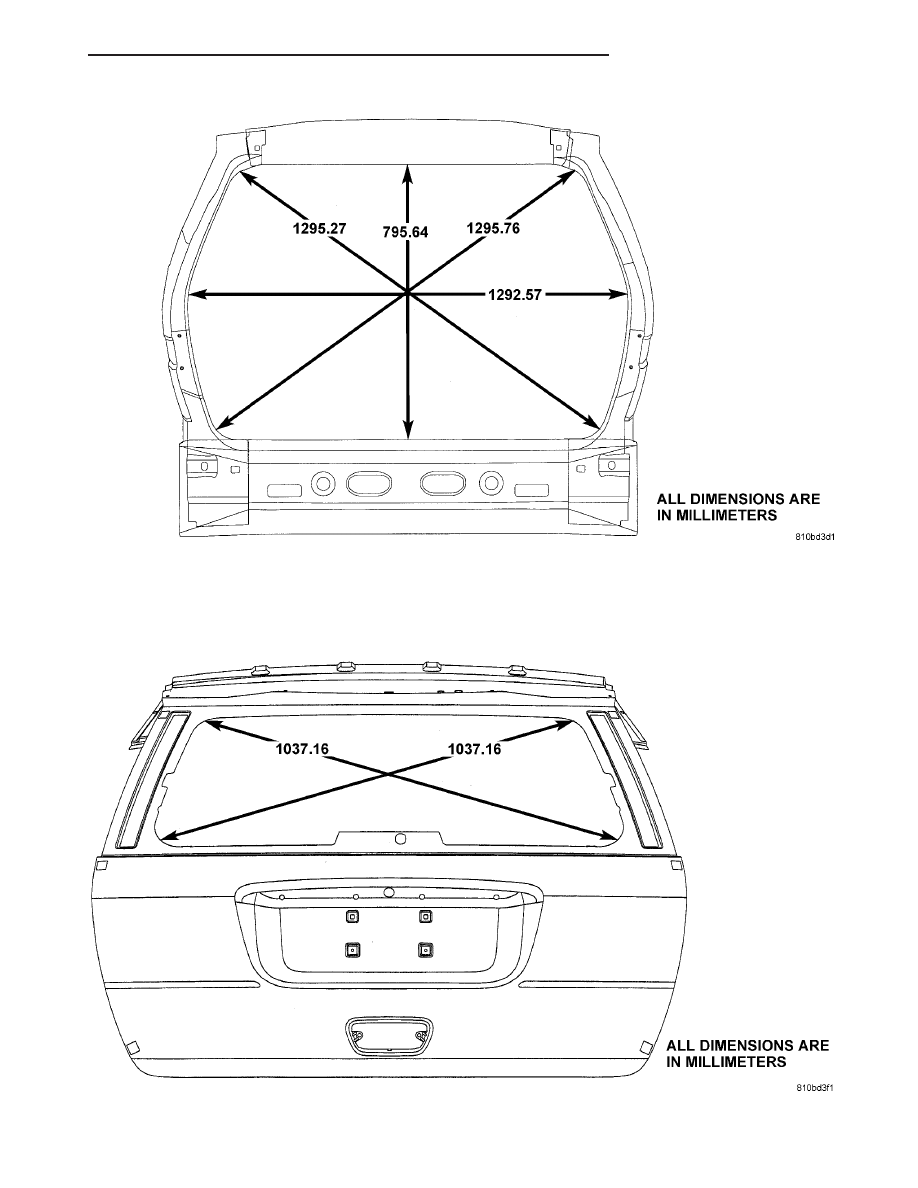

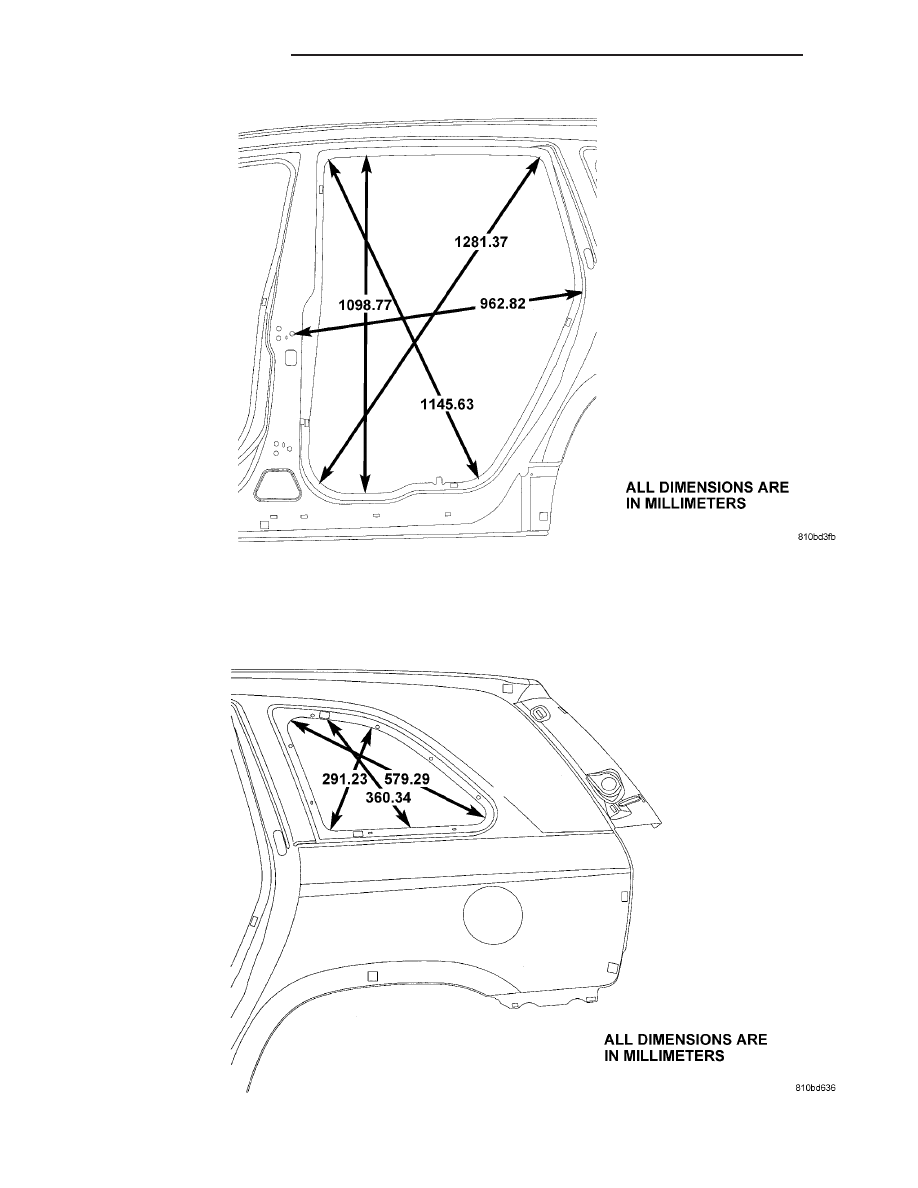

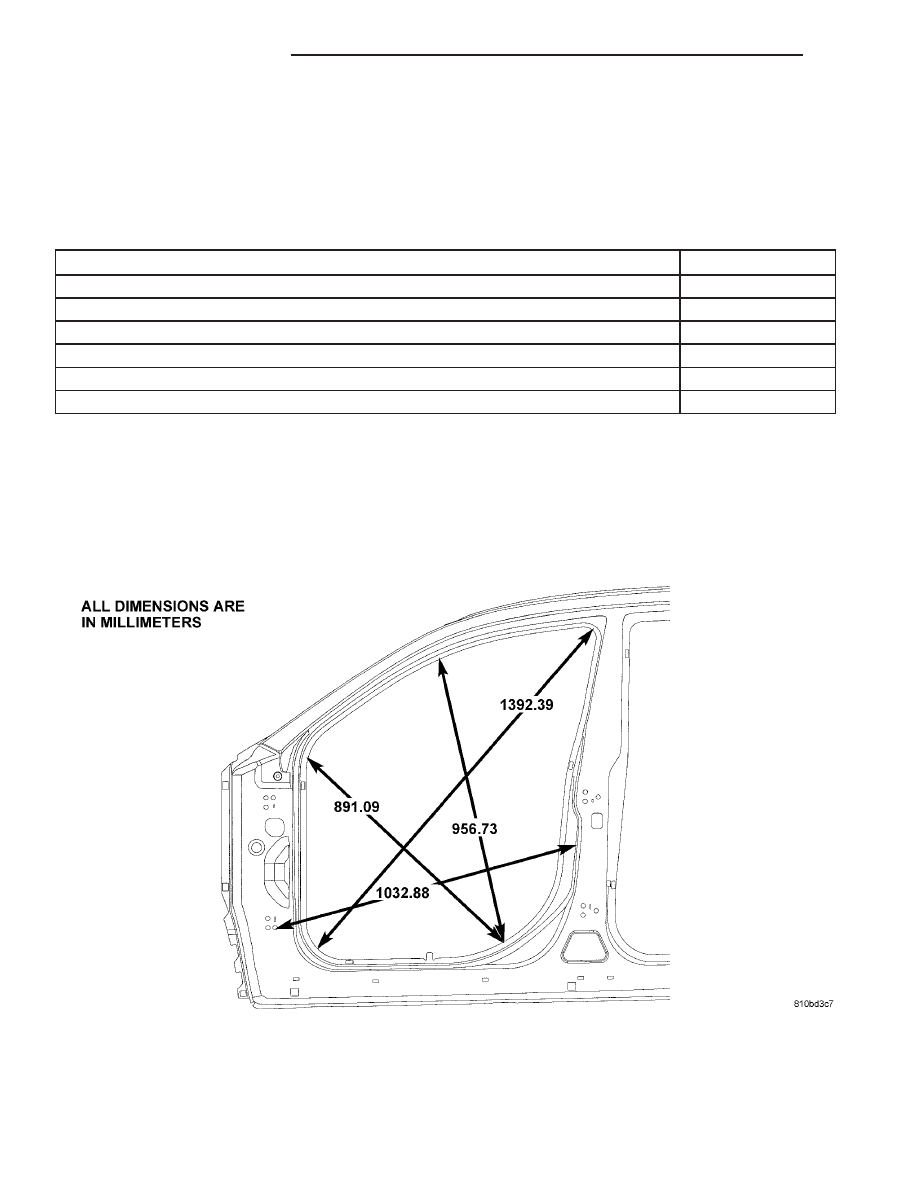

SPECIFICATIONS
ITEM
LOCATION
GAP
FLUSH
1
HOOD TO FASCIA
6.5 ± 2.0
PARALLEL WITHIN 2.0 RIGHT TO
LEFT
2
HEADLAMP MODULE TO HOOD
6.5 ± 2.0
PARALLEL WITHIN 2.0 RIGHT TO
LEFT
3
HOOD TO FENDER
4.0 ± 1.5
PARALLEL WITHIN 2.0 RIGHT TO
LEFT
FENDER 0.5 OVER FLUSH TO
HOOD ± 2.0 CONSISTENT
WITHIN 1.5
4
FENDER TO DOOR
4.5 ± 1.5
PARALLEL WITHIN 2.0
FENDER 0.5 OVER FLUSH TO
HOOD ± 1.5 CONSISTENT
WITHIN 2.0
5
FRONT DOOR TO A-PILLAR
FLUSH ± 2.0
6
FRONT DOOR APPLIQUE TO
REAR DOOR APPLIQUE (ABOVE
BELT LINE)
5.5 ± 2.0 PARALLEL WITHIN 1.5
FRONT DOOR APPLIQUE 0.5
OVER FLUSH TO REAR DOOR
APPLIQUE ± 2.5 CONSISTENT
WITHIN 2.0
7
REAR DOOR TO APERTURE (AT
ROOF)
FLUSH ± 2.0
8
FUEL FILLER DOOR TO BODY
SIDE APERTURE
3.0 ± 1.0
UNIFORM WITHIN 1.5
FUEL DOOR 0.5 UNDER FLUSH
TO BODY SIDE APERTURE ± 1.0
CONSISTENT WITHIN 1.0
9
FRONT DOOR TO REAR DOOR
(BELOW BELT LINE)
4.5 ± 1.5
PARALLEL WITHIN 1.5
FRONT DOOR 0.5 OVER FLUSH
TO REAR DOOR ± 1.5
CONSISTENT WITHIN 1.5
10
REAR DOOR APPLIQUE TO
QUARTER GLASS (ABOVE BELT
LINE)
4.5 ± 1.5
PARALLEL WITHIN 1.5
REAR DOOR APPLIQUE 6.5
OVER FLUSH TO QUARTER
GLASS ± 2.5 CONSISTENT
WITHIN 1.5
11
REAR DOOR TO REAR
QUARTER (BELOW BELT LINE)
4.5 ± 1.5
PARALLEL WITHIN 1.5
REAR DOOR 0.5 OVER FLUSH
TO REAR QUARTER
CONSISTENT WITHIN 1.5
12
FRONT DOOR CLADDING TO
REAR DOOR CLADDING
6.75 ± 2.0
PARALLEL WITHIN 2.0
FLUSH ± 2.0
13
D-PILLAR APPLIQUE TO
LIFTGATE GLASS
5.0 ± 2.0
PARALLEL WITHIN 2.0
14
TAIL LAMP LENS TO LIFTGATE
5.0 ± 2.0
PARALLEL WITHIN 2.0 LEFT TO
RIGHT
TAIL LAMP 2.8 OVER FLASH TO
LIFTGATE CONSISTENT WITHIN
3.0 LEFT TO RIGHT
15
LIFTGATE TO FASCIA (UP/DOWN)
8.0 ± 2.5
PARALLEL WITHIN 3.0
16
LIFTGATE TO FASCIA (CROSS
CAR)
5.0 ± 2.0
PARALLEL WITHIN 2.0 LEFT TO
RIGHT
17
LIFTGATE TO ROOF
8.0 ± 2.5
LIFTGATE 1.0 UNDER FLUSH TO
ROOF +1.0/-2.0
NOTE: All measurements are in mm.
CS
BODY STRUCTURE
23 - 183
GAP AND FLUSH (Continued)
