FLOOR CONSOLE BASE
ASSEMBLY

REMOVAL

(1) Remove front and rear floor consoles. (Refer to

BODY/INTERIOR/FLOOR

CONSOLE

REMOVAL) and (Refer to 23 - BODY/INTERIOR/
FLOOR CONSOLE - REMOVAL).

(2) Remove

shift

mechanism.

(Refer

TRANSMISSION/TRANSAXLE/AUTOMATIC

41TE/SHIFT MECHANISM - REMOVAL).

(3) Remove nine attaching nuts and washers to

weld studs (Fig. 15).

(4) Remove two screws attaching L-brackets to

instrument panel.

(5) Disconnect wire connectors that are still con-

nected.

(6) Raise floor console base assembly to allow wire

harness exit through console base.

(7) Remove floor console base assembly from vehi-

cle.

INSTALLATION

(1) Place floor console base assembly into position

(Fig. 15).

(2) Install wire harnesses through console base

into position.

(3) Connect wire connectors.
(4) Install two screws attaching L-brackets to

instrument panel.

(5) Install nine attaching nuts and washers to

weld studs.

(6) Install shift mechanism. (Refer to 21 - TRANS-

MISSION/TRANSAXLE/AUTOMATIC - 41TE/SHIFT
MECHANISM - INSTALLATION).

(7) Install front and rear floor consoles. (Refer to

23 - BODY/INTERIOR/FLOOR CONSOLE - INSTAL-
LATION) and (Refer to 23 - BODY/INTERIOR/
FLOOR CONSOLE - INSTALLATION).

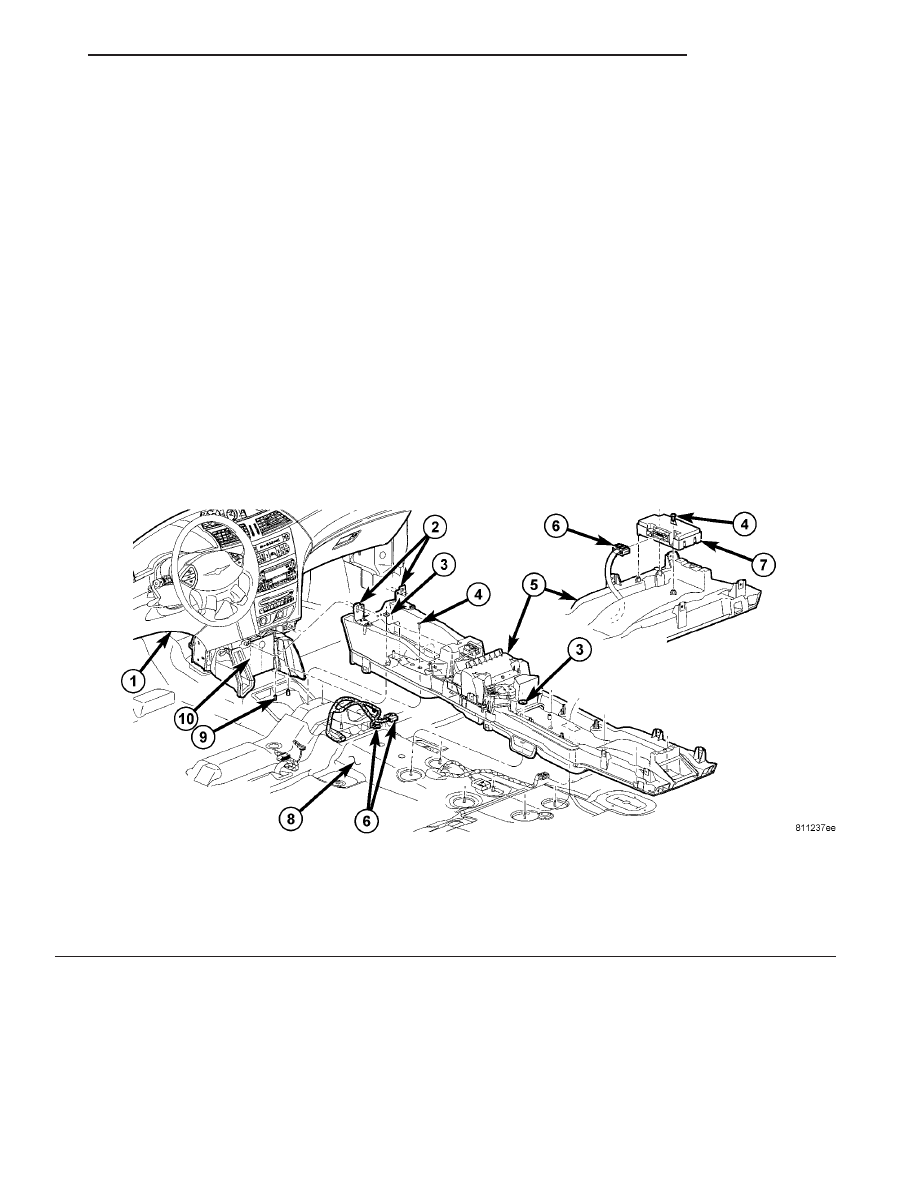

Fig. 15 FRONT FLOOR CONSOLE BASE ASSEMBLY (BLOWER HOUSING)

1 - INSTRUMENT PANEL
2 - ATTACHING L-BRACKETS
3 - ATTACHING NUTS
4 - ATTACHING SCREWS
5 - FRONT FLOOR CONSOLE BASE ASSEMBLY AND BLOWER
HOUSING

6 - WIRE CONNECTOR
7 - TELEMATICS COMMUNICATION UNIT
8 - FLOOR PAN
9 - FLOOR PAN STUDS
10 - FLOOR CONSOLE STUFFER

INTERIOR

23 - 95

FRONT DOOR SILL SCUFF
PLATE

REMOVAL

(1) Using trim stick (C-4755), disengage push pins

attaching door sill plate to door sill.

(2) Remove door sill scuff plate from vehicle (Fig.

16).

INSTALLATION

(1) Place sill scuff plate in position on vehicle (Fig.

16).

(2) Press sill scuff plate down to engage push pins

to door sill.

HEADLINER

REMOVAL

(1) Disconnect and isolate the negative battery

cable.

(2) Remove sun visors and vanity mirrors.
(3) Remove sun visor center supports.
(4) Remove assist handles attaching screws and

remove, if equipped.

(5) Remove second row dome lamp and coat hook

attaching screw and remove, if equipped.

(6) Remove A-pillar trim. (Refer to 23 - BODY/IN-

TERIOR/A-PILLAR TRIM - REMOVAL).

(7) Remove B-pillar upper trim. (Refer to 23 -

BODY/INTERIOR/B-PILLAR

UPPER

TRIM

REMOVAL).

(8) Remove liftgate header trim. (Refer to 23 -

BODY/INTERIOR/REAR

HEADER

TRIM

REMOVAL).

(9) Remove D-pillar trim. (Refer to 23 - BODY/IN-

TERIOR/D-PILLAR TRIM - REMOVAL).

(10) Remove C-pillar upper trim, as necessary.

(Refer to 23 - BODY/INTERIOR/C-PILLAR TRIM -
REMOVAL)

(11) Remove overhead console, if equipped. (Refer

ELECTRICAL/OVERHEAD

CONSOLE

REMOVAL).

(12) Remove

overhead

DVD

video

screen,

equipped. (Refer to 8 - ELECTRICAL/AUDIO/VIDEO
SCREEN - REMOVAL).

(13) Disconnect wire harness connectors at the left

A-pillar (Fig. 17).

(14) Disconnect wire harness connector and wire

clips at the right A-pillar (Fig. 18).

(15) Disconnect rear view mirror wire connector

from mirror.

(16) Disengage push in fasteners attaching head-

lining to roof panel (Fig. 19) and (Fig. 20).

(17) Remove headlining from roof.
(18) Remove headlining through liftgate opening.

INSTALLATION

(1) If installing DVD video screen bracket (Fig.

21).

(a) Install u-nuts into roof bows.
(b) Place bracket into position.
(c) Install attaching screws and washers and

push pins.

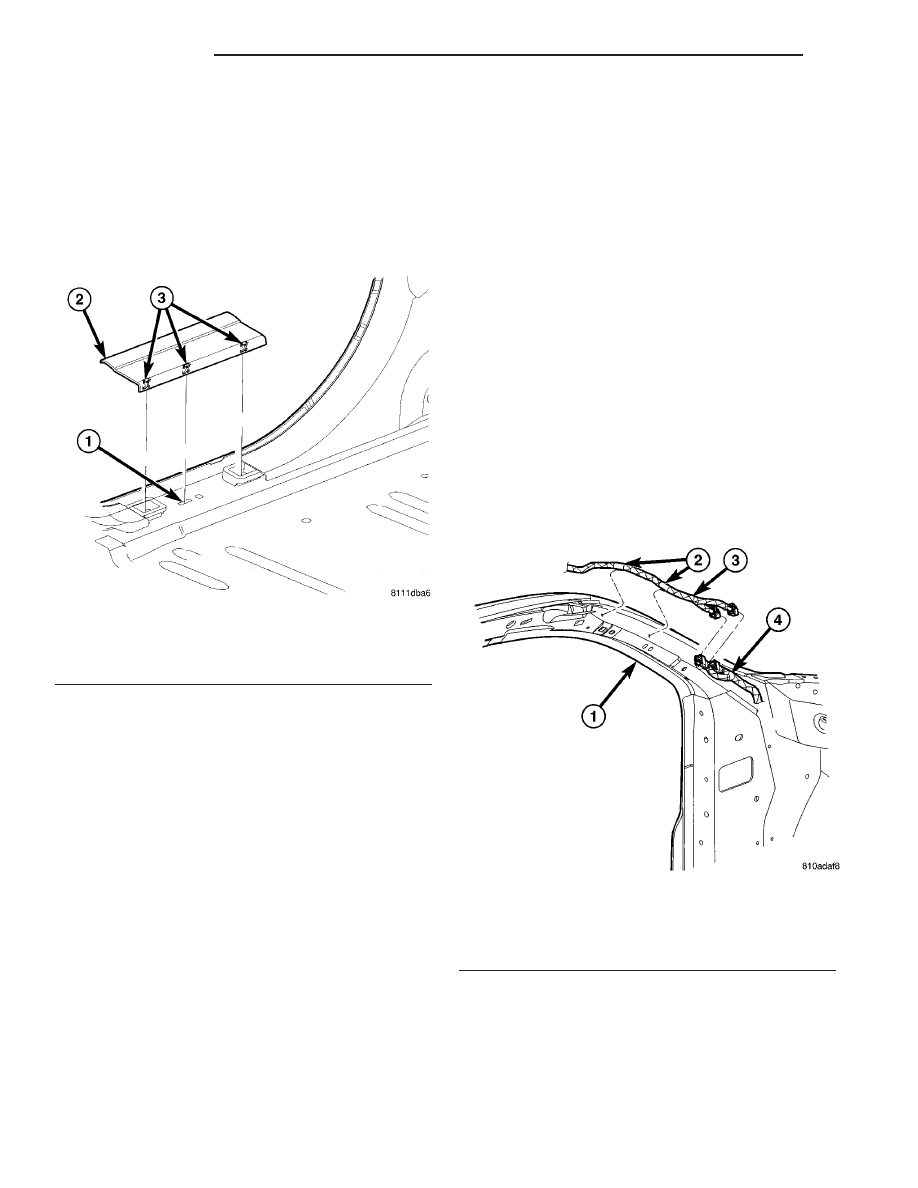

Fig. 16 FRONT DOOR SILL SCUFF PLATE

1 - FRONT DOOR SILL
2 - FRONT DOOR SILL SCUFF PLATE
3 - PUSH PIN

Fig. 17 DOME WIRE HARNESS

1 - A-PILLAR
2 - WIRING HARNESS - DOME LAMPS
3 - DOME WIRE HARNESS
4 - BODY WIRE HARNESS

23 - 96

INTERIOR

(2) Place headlining into vehicle through liftgate

opening.

(3) Raise headlining into position.
(4) Engage push in fasteners attaching headlining

to roof panel (Fig. 19) and (Fig. 20).

(5) Disconnect rear view mirror wire connector

from mirror.

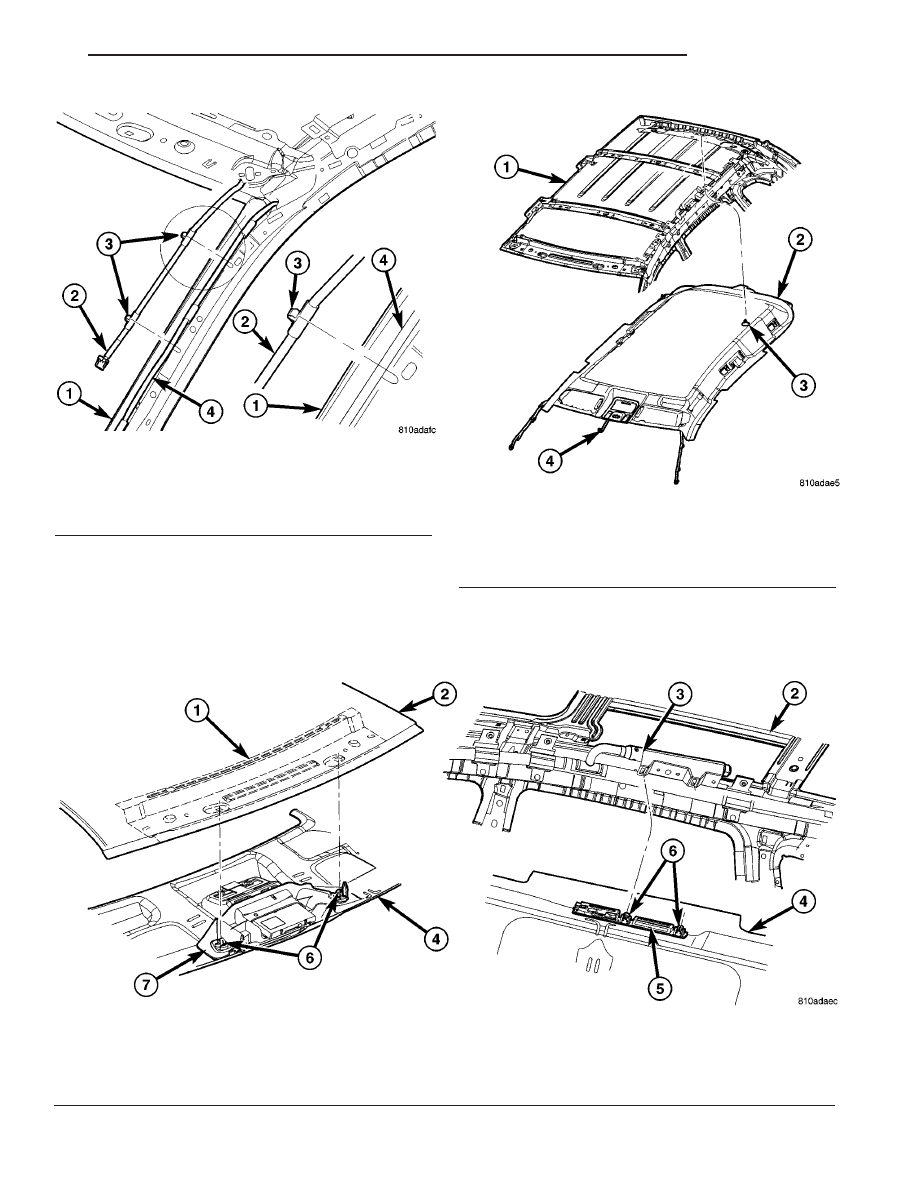

Fig. 19 HEADLINER RETAINER BRACKET

1 - WINDSHIELD OPENING UPPER FRAME
2 - ROOF PANEL
3 - GAS GUIDE (SIDE AIRBAG)
4 - HEADLINER ASSEMBLY

5 - ASSIST HANDLE ANCHOR
6 - PUSH PIN(S)
7 - HEADLINER RETAINER BRACKET

Fig. 18 DVD WIRE HARNESS

1 - A-PILLAR
2 - WIRE HARNESS - DVD
3 - WIRING CLIP(S)
4 - ANTENNA CABLE

Fig. 20 HEADLINER ASSEMBLY

1 - ROOF PANEL
2 - HEADLINER ASSEMBLY
3 - PUSH PIN FASTENER
4 - REAR VIEW MIRROR CONNECTOR

INTERIOR

23 - 97

HEADLINER (Continued)

(6) Connect wire harness connector and wire clips

at the right A-pillar (Fig. 18).

(7) Connect wire harness connectors at the left

A-pillar (Fig. 17).

(8) Install overhead DVD video screen, if equipped.

(Refer to 8 - ELECTRICAL/AUDIO/CD CHANGER -
INSTALLATION).

(9) Install overhead console, if equipped. (Refer to

8 - ELECTRICAL/OVERHEAD CONSOLE - INSTAL-
LATION).

(10) Install C-pillar upper trim. (Refer to 23 -

BODY/INTERIOR/C-PILLAR TRIM - REMOVAL)

(11) Install D-pillar trim. (Refer to 23 - BODY/IN-

TERIOR/D-PILLAR TRIM - INSTALLATION).

(12) Install liftgate header trim. (Refer to 23 -

BODY/INTERIOR/REAR HEADER TRIM - INSTAL-
LATION).

(13) Install B-pillar upper trim. (Refer to 23 -

BODY/INTERIOR/B-PILLAR

UPPER

TRIM

INSTALLATION).

(14) Install A-pillar trim. (Refer to 23 - BODY/IN-

TERIOR/A-PILLAR TRIM - INSTALLATION).

(15) Install second row dome lamp and coat hook

attaching screws, if equipped.

(16) Install assist handles attaching screws, if

equipped.

(17) Install sun visor center supports.
(18) Install sun visors and vanity mirrors.
(19) Connect negative battery cable.

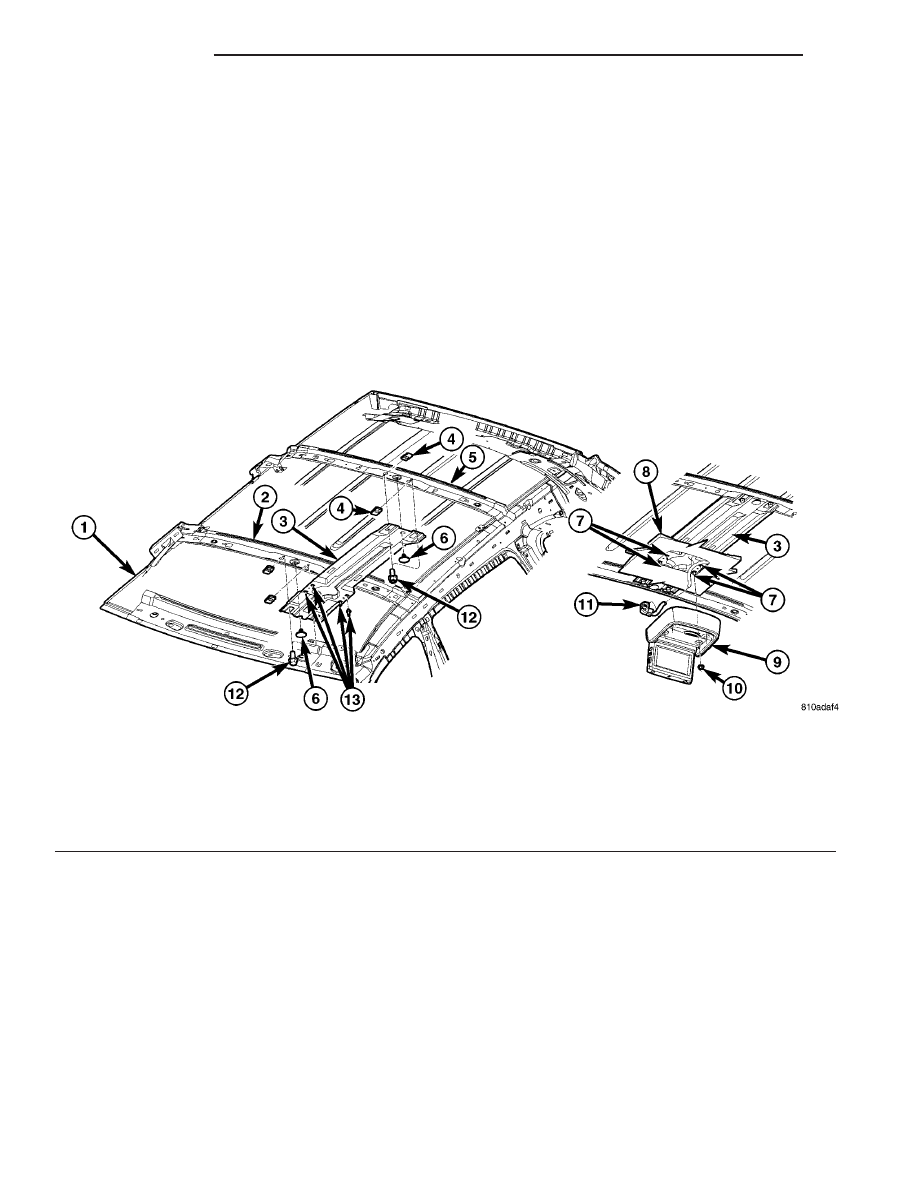

Fig. 21 VIDEO SCREEN MOUNTING BRACKET

1 - ROOF PANEL
2 - ROOF BOW NUMBER ONE
3 - VIDEO SCREEN BRACKET
4 - U-NUT(S)
5 - ROOF BOW NUMBER TWO
6 - PUSH PIN FASTENER
7 - FOAM TAPE

8 - HEADLINE ASSEMBLY
9 - VIDEO SCREEN
10 - WASHER AND NUT(S)
11 - VIDEO DISPLAY CABLE
12 - WASHER AND SCREW(S)
13 - STUD COLLAR FOR VIDEO DISPLAY

23 - 98

INTERIOR

HEADLINER (Continued)
