SPECIFICATIONS
2.5L ENGINE
DESCRIPTION
SPECIFICATION
General Specification
Type
60° V-6 SOHC
(Per Bank)
Number of Cylinders
6
Displacement
2.5 Liters
(152 cu. in.)
Bore
83.5 mm
(3.29 in.)
Stroke
76.0 mm
(2.99 in.)
Compression Ratio
9.4:1 (Federal Emissions)
9.0:1 (California
Emissions)
Firing Order
1-2-3-4-5-6
Compression Pressure
(at 250–400 rpm)
1451 kPa
(211 psi)
—(California Emission)
1393 kPa
(202 psi)
Compression Pressure
(Minimum)
1109 kPa
(192 psi)
—(California Emission)
1059 kPa
(154 psi)
Variation Between
Cylinders (Maximum)
98 kPa
(14 psi)
Cylinder Block
Cylinder Bore Diameter
83.5–83.53 mm
(3.2874–3.2886 in.)
Out-of-Round (Max.)
0.01 mm
(0.0004 in.)
Taper (Max.)
0.01 mm
(0.0004 in.)
Flatness of Top Surface
0.05 mm
(0.002 in.)
Service Limit
0.1 mm
(0.004 in.)
Grinding Limit*
0.2 mm
(0.008 in.)
*Includes the combined surface grinding of cylinder
head and block.
DESCRIPTION
SPECIFICATION
Pistons
Piston Diameter
83.5 mm
(3.29 in.)
Clearance in Cylinder
0.02–0.04 mm
(0.0008–0.0016 in.)
Piston Pins
Press-in Load (at room
temperature)
7350–17200 N
(1652–3858 lbs.)
Diameter
22.0 mm
(0.87 in.)
Piston Rings
Ring Gap—Top
Compression Ring
0.25–0.40 mm
(0.0098–0.0157 in.)
Wear Limit
0.8 mm
(0.031 in.)
Ring Gap—2nd
Compression Ring
0.40–0.55 mm
(0.0157–0.0217 in.)
Wear Limit
0.8 mm
(0.031 in.)
Ring Gap—Oil Control
Steel Rails
0.15–0.50 mm
(0.0059–0.0197 in.)
Wear Limit
1.0 mm
(0.039 in.)
Ring Side Clearance—
Top Compression Ring
0.03–0.07 mm
(0.0012–0.0028 in.)
Wear Limit
0.10 mm
(0.004 in.)
Ring Side Clearance—
2nd Compression Ring
0.02–0.06 mm
(0.0008–0.0024 in.)
Wear Limit
0.10 mm
(0.004 in.)
Connecting Rod
Bearing Diametrical
Clearance
0.02–0.05 mm
(0.0008–0.0020 in.)
Wear Limit
0.10 mm
(0.004 in.)
Side Clearance (big end)
0.10–0.25 mm
(0.0039–0.0098 in.)
Wear Limit
0.40 mm
(0.016 in.)

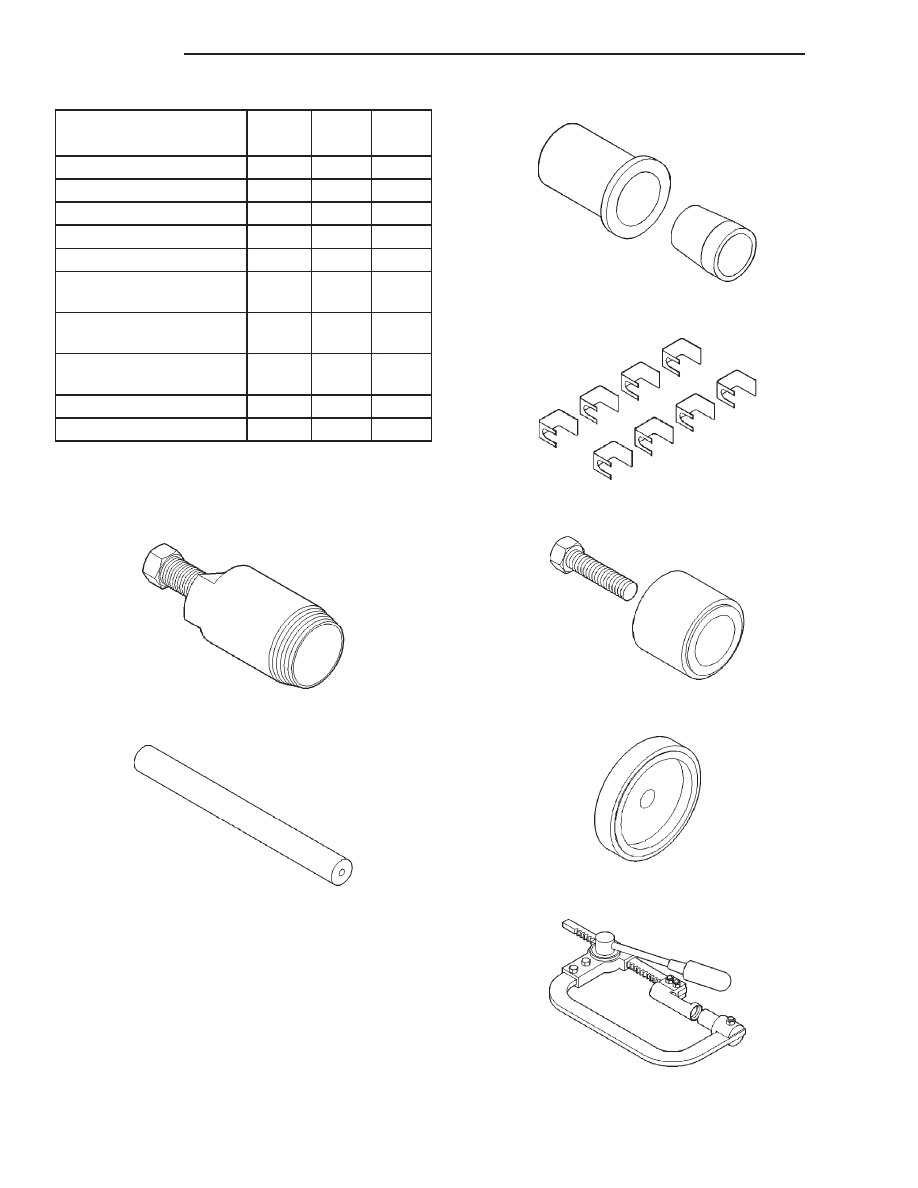

JX
ENGINE
9 - 61
