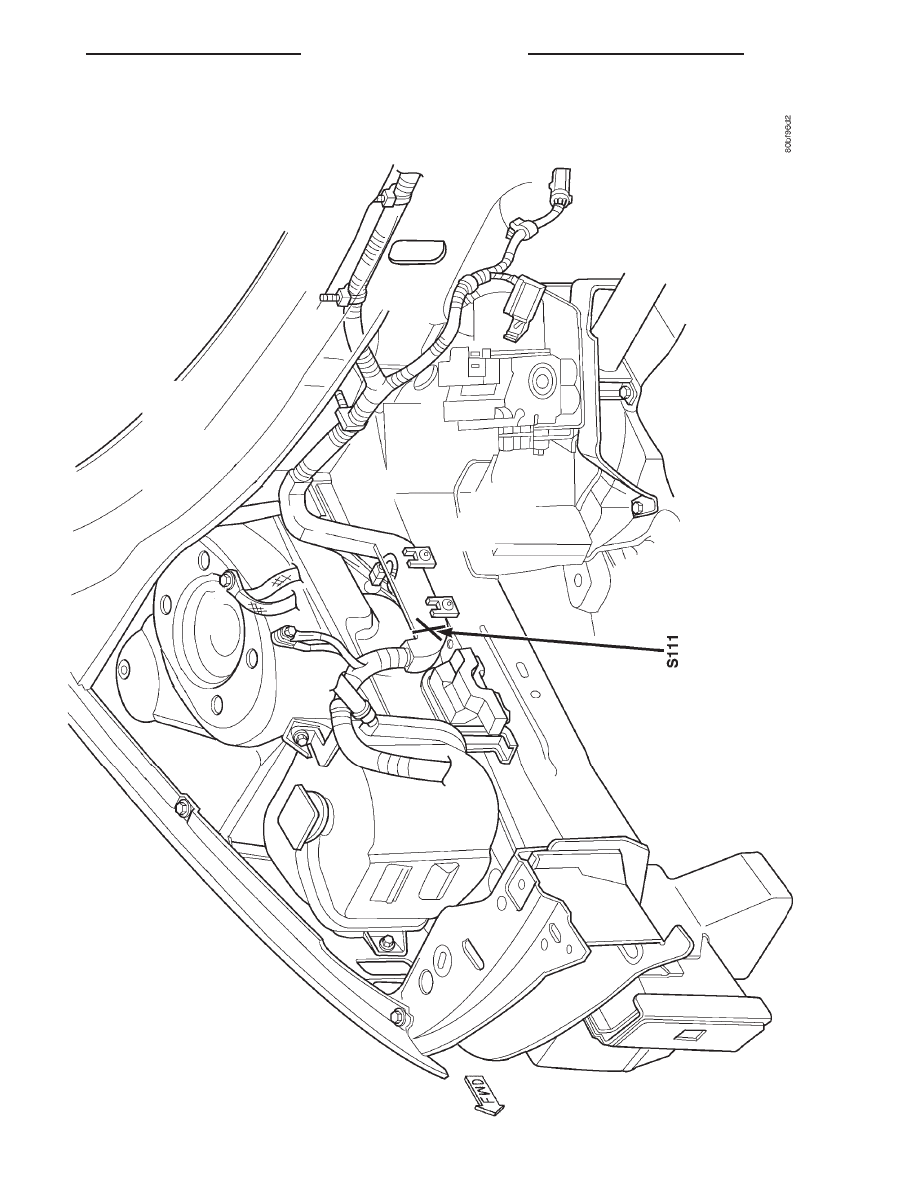

Fig.

2

Engine

Compartment

Splices

Right

Side

JX

8W - 95 SPLICE LOCATIONS

8W - 95 - 3

DESCRIPTION AND OPERATION (Continued)

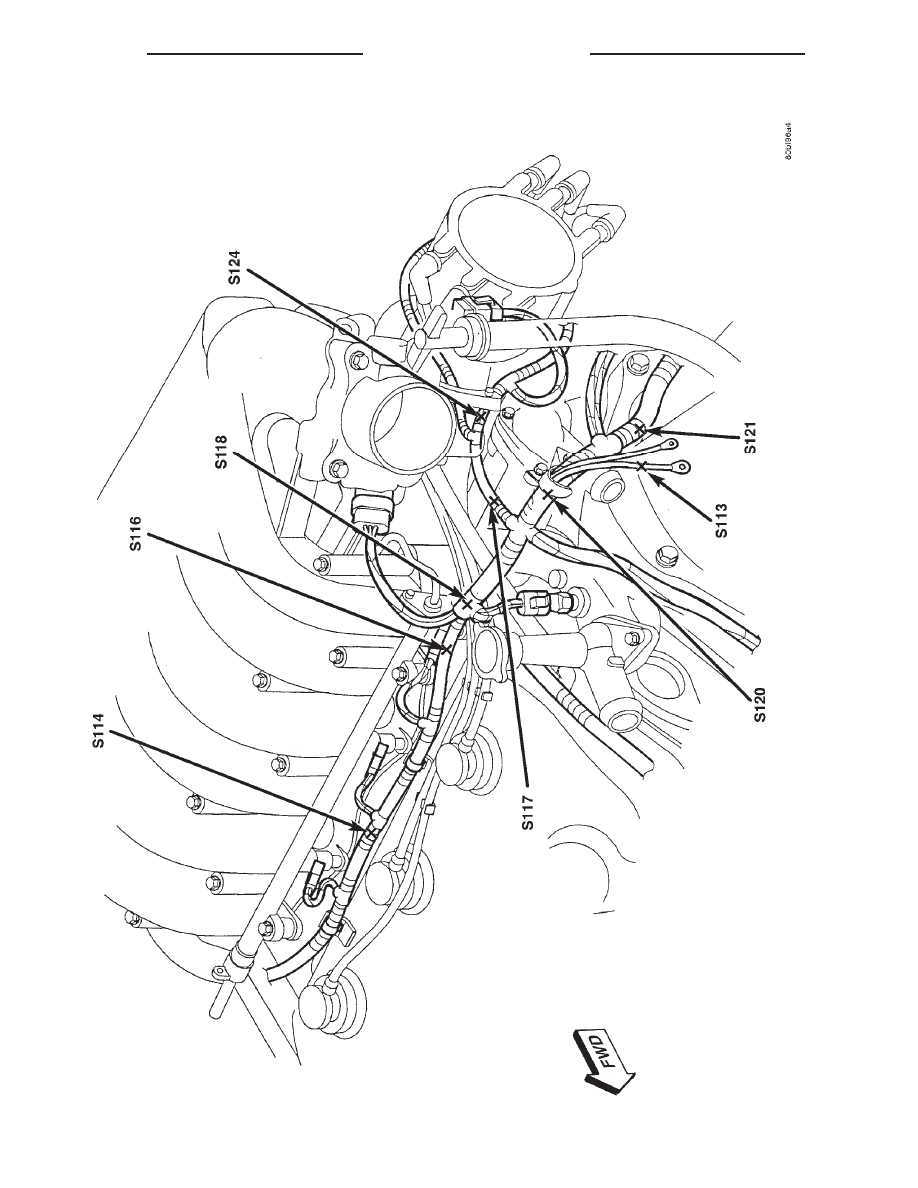

Fig.

3

Engine

Harness

Splices

2.5L

Engine

8W - 95 - 4

8W - 95 SPLICE LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)

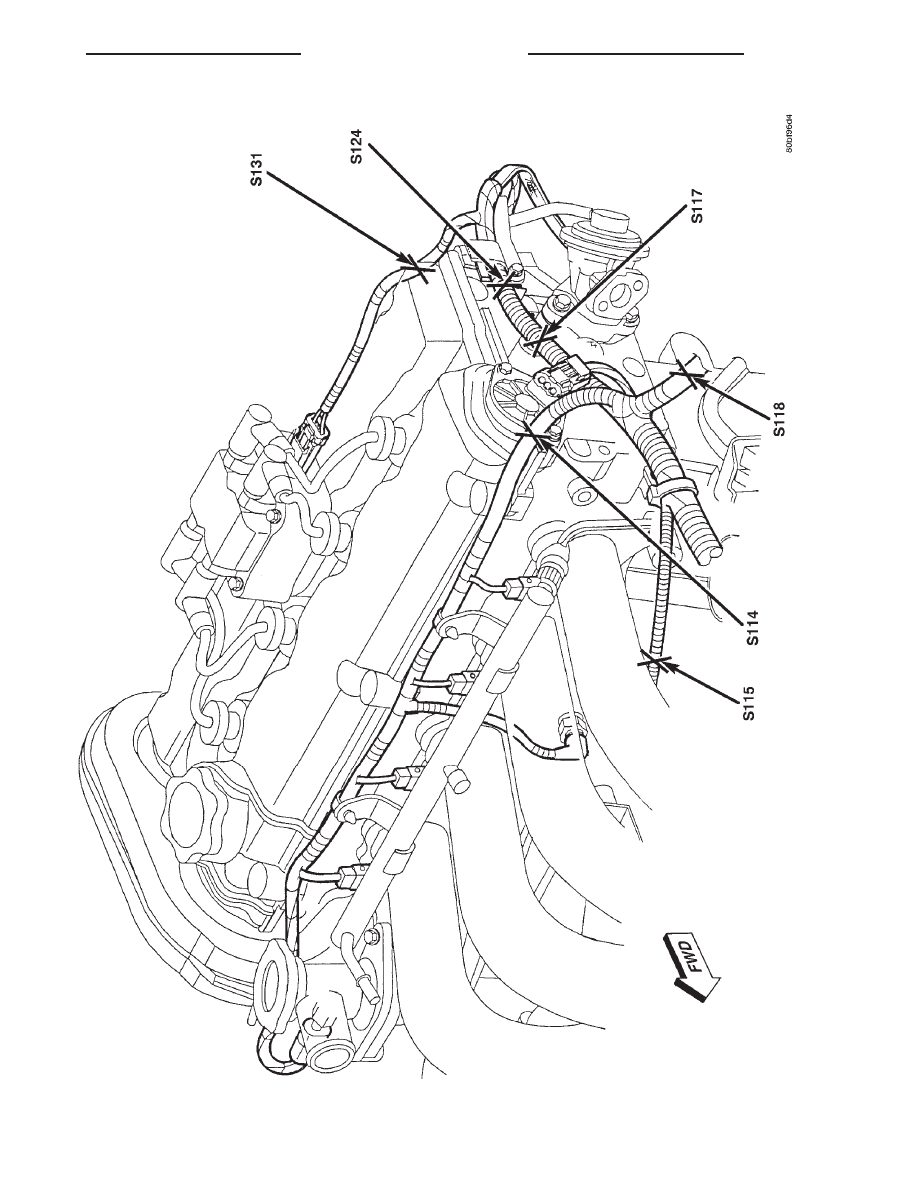

Fig.

4

Engine

Harness

Splices

2.0L–2.4L

Engine

JX

8W - 95 SPLICE LOCATIONS

8W - 95 - 5

DESCRIPTION AND OPERATION (Continued)

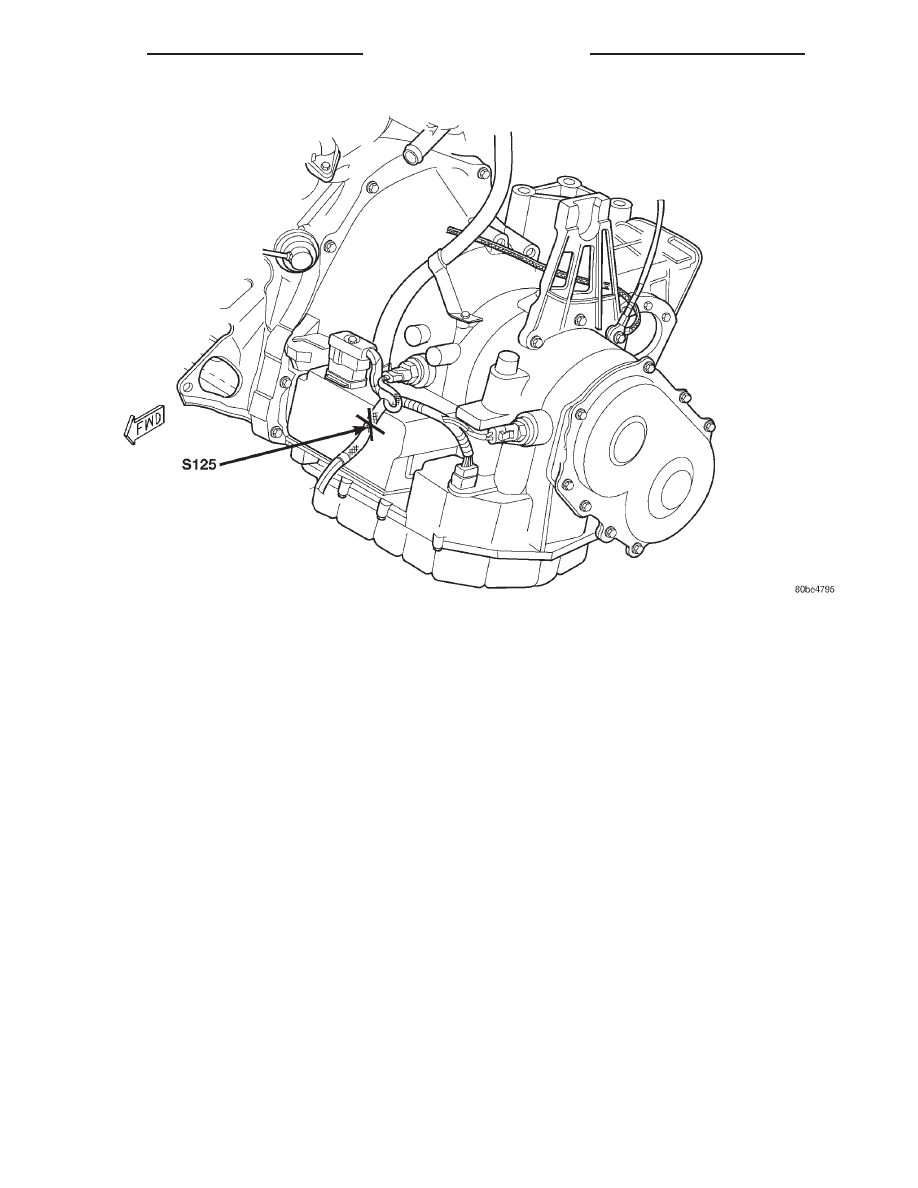

Fig. 5 Transmission Harness Splices

8W - 95 - 6

8W - 95 SPLICE LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)
