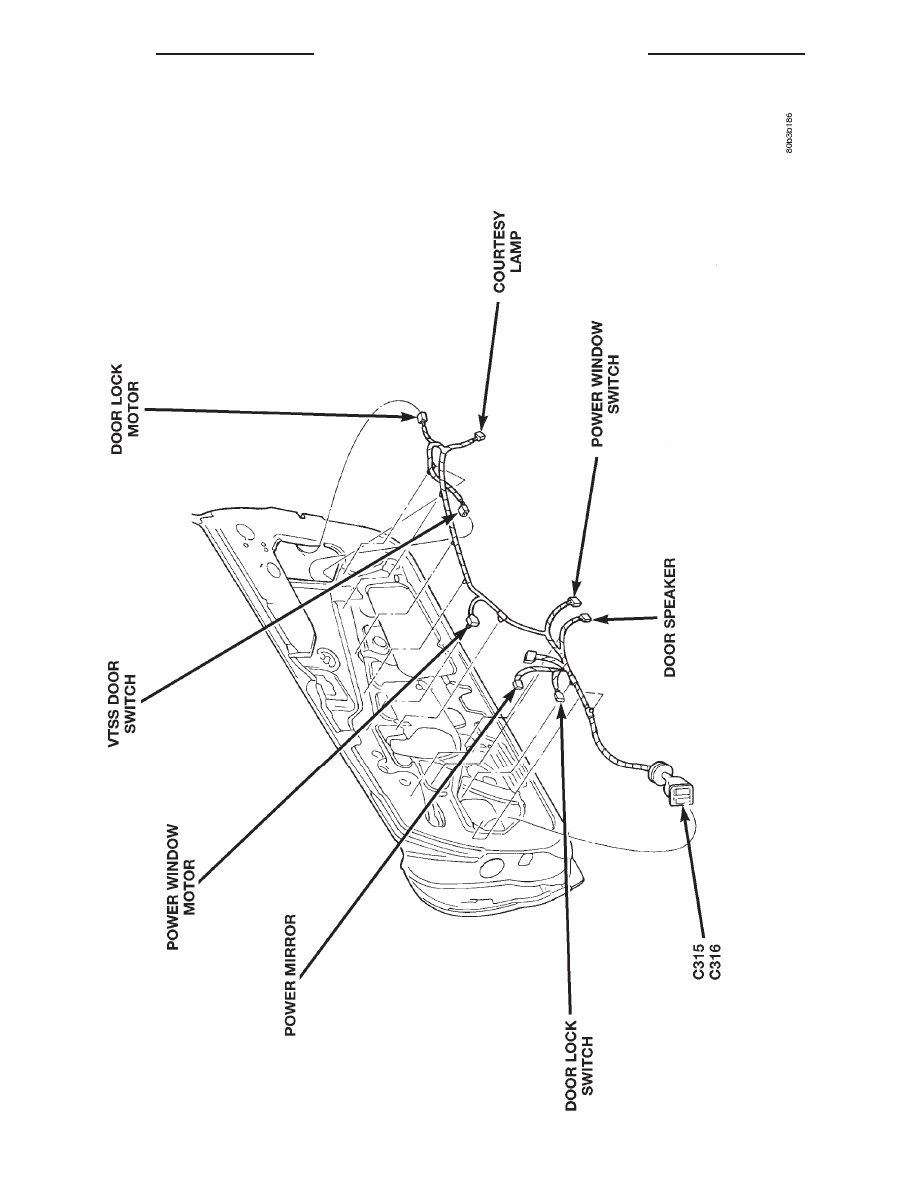

Fig.

23

Door

Connections

(Left)

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 27

DESCRIPTION AND OPERATION (Continued)

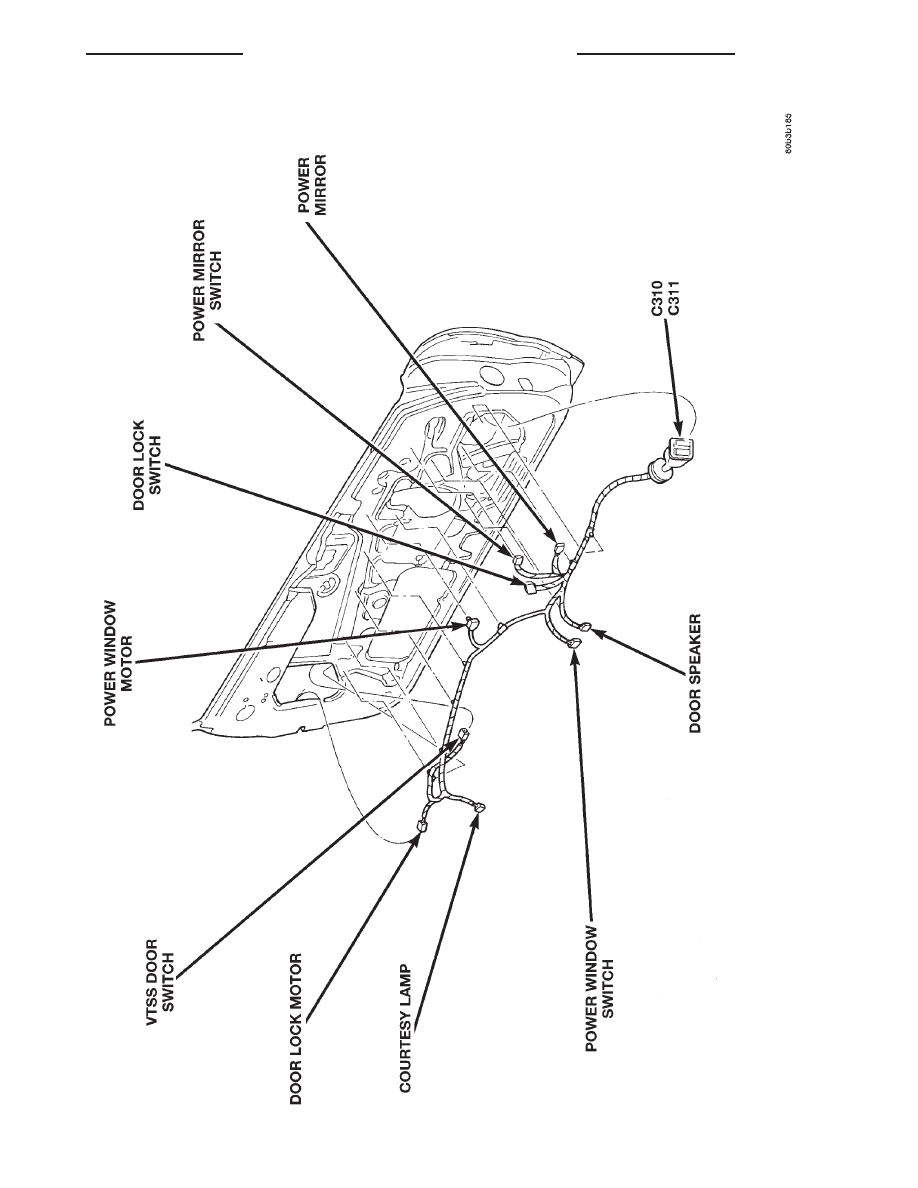

Fig.

24

Door

Connections

(Right)

8W - 90 - 28

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)

8W-95 SPLICE LOCATIONS

DESCRIPTION AND OPERATION

INTRODUCTION

This section provides illustrations identifying the

general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each

section for splice number identification. Refer to the
index for proper splice number.

SPLICE LOCATIONS

For splices not shown in this section a N/S is

placed in the Fig. column.

Splice Number

Location

Fig.

S100

In T/O for Transmission
Control Module

1

S101

Left Strut Tower

1

S102

Internal to the PDC

1

S103

Internal to the PDC

1

S104

Internal to the PDC

1

S105

Internal to the PDC

1

S106

Internal to the PDC

1

S109

Left Strut Tower

1

S110

Internal to the PDC

1

S111

Right Strut Tower

2

S113

In Generator T/O

3

S114 (2.4L)

In Injector T/O

4

S114 (2.5L)

Between Inj #2 and #4

3

S115

Near EGR T/O

4

S116

Near Inj #6 T/O

3

S117

Near T/O for Cam Sensor

3, 4

S118

Near Engine Starter Motor T/O

3, 4

S120

Near T/O for PCM

3

S121

In T/O for PCM

3

S123

In No. 1,3,5 Fuel Injector
Harness

N/S

S124 (2.4L)

Near T/O for Noise
Suppressor

4

S124 (2.5L)

Near Distributor T/O

3

S125

Near T/O for Input Speed
Sensor

5

S127

Near Powertrain Control
Module C2 Connector

1

S130

Near Powertrain Control
Module C2 Connector

1

S131 (2.4L)

In Ignition Coil T/O

4

S135

Left Repeater Lamp T/O

N/S

S136

Right Repeater Lamp T/O

N/S

S140

Near Brake Lamp Switch T/O

N/S

S141

Near Brake Lamp Switch T/O

N/S

Splice Number

Location

Fig.

S142

Internal to the PDC

1

S143

Left Repeater Lamp T/O

N/S

S144

Right Repeater Lamp T/O

N/S

S200

In T/O for Cigar Lighter

6

S201

Near T/O for Cluster
Connectors

6

S202

Near T/O for Cluster
Connectors

6

S203

Near T/O for Steering Column
Connectors

6

S204

Near Steering Column T/O

6

S301

Near Near Decklid Ground

N/S

S302

Near Map/Reading Lamp T/O

7

S303

Near LT Visor Lamp T/O

7

S305

In T/O for BCM

7

S306

In T/O for BCM

7

S307

In T/O for BCM

7

S308

Driver Side Sill

N/S

S310

Near T/O for Courtesy Lamp
Relay

7

S311

Near T/O for Courtesy Lamp
Relay

7

S312

Left Kick Panel

7

S313

Near Center High Mounted
Stop Lamp

N/S

S400

Near Right Door Connector

8

S401

Near Right Door Speaker T/O

8

S402

Near Left Door Connector

8

S403

Near Right Door Connector

8

S404

Near Back Up Lamp T/O

N/S

S405

Near Right Tail Lamps

N/S

S406

In Tail Lamp

N/S

S407

In Tail Lamp

N/S

S410

Near Left Door Speaker T/O

8

JX

8W - 95 SPLICE LOCATIONS

8W - 95 - 1

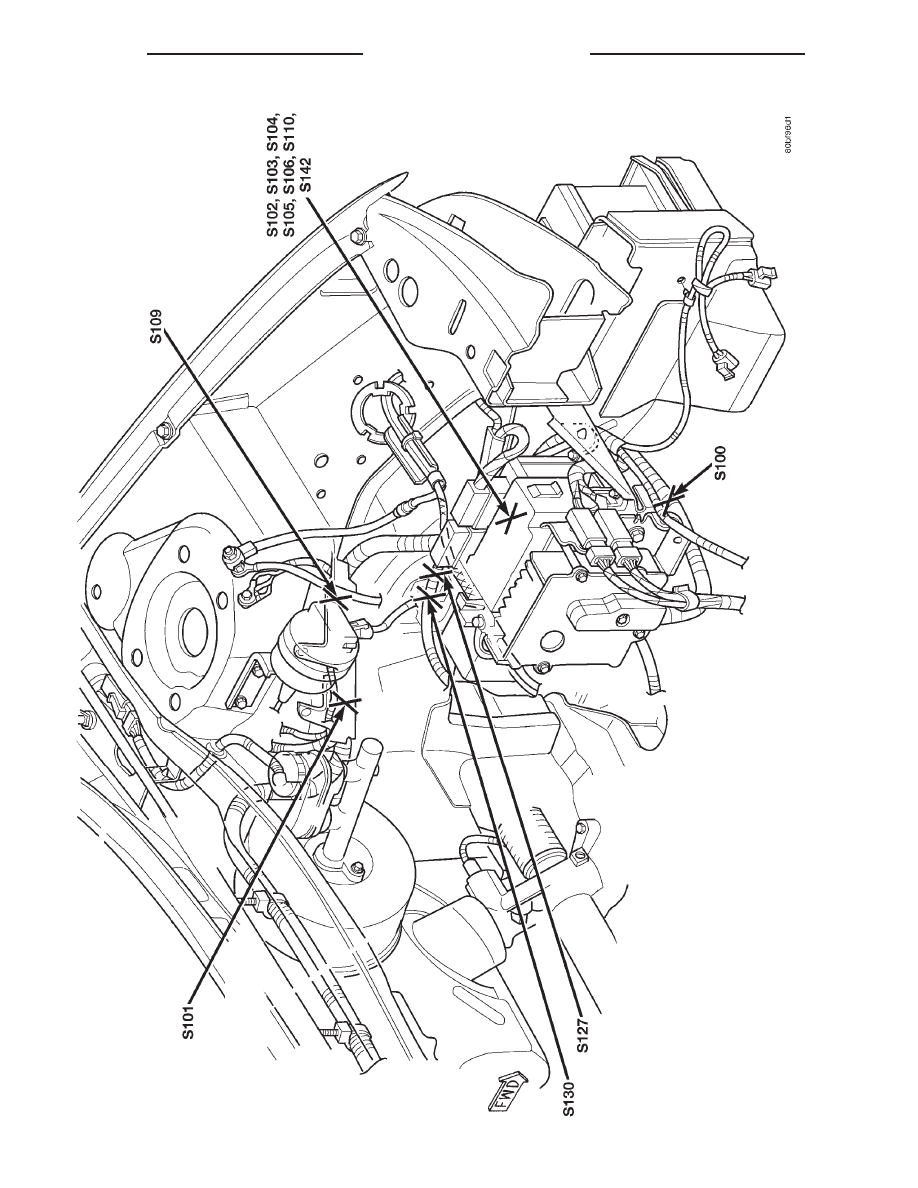

Fig.

1

Engine

Compartment

Splices

Left

Side

8W - 95 - 2

8W - 95 SPLICE LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)
