Fig.

10

2.5L

Engine

Distributor

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 15

DESCRIPTION AND OPERATION (Continued)

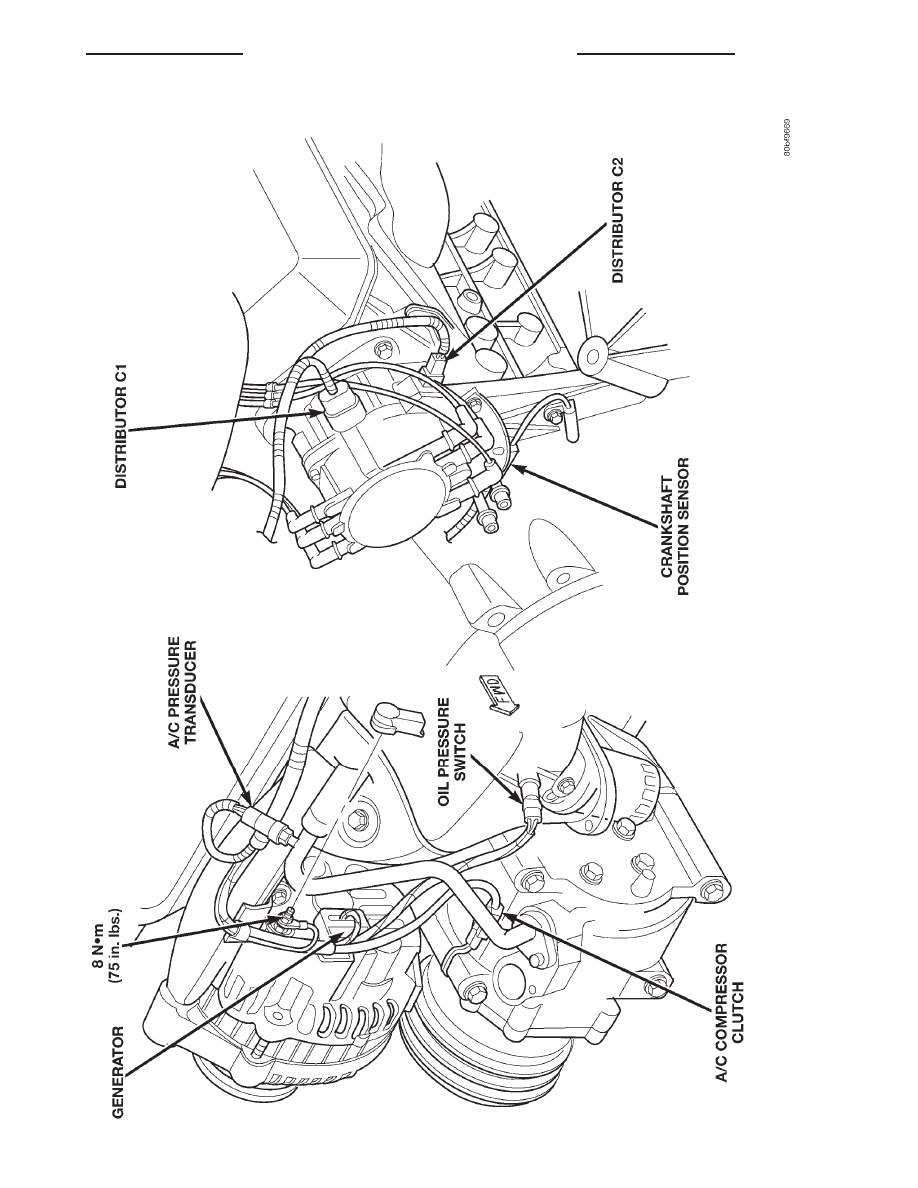

Fig.

1

1

2.5L

Engine

Right

Side

8W - 90 - 16

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)

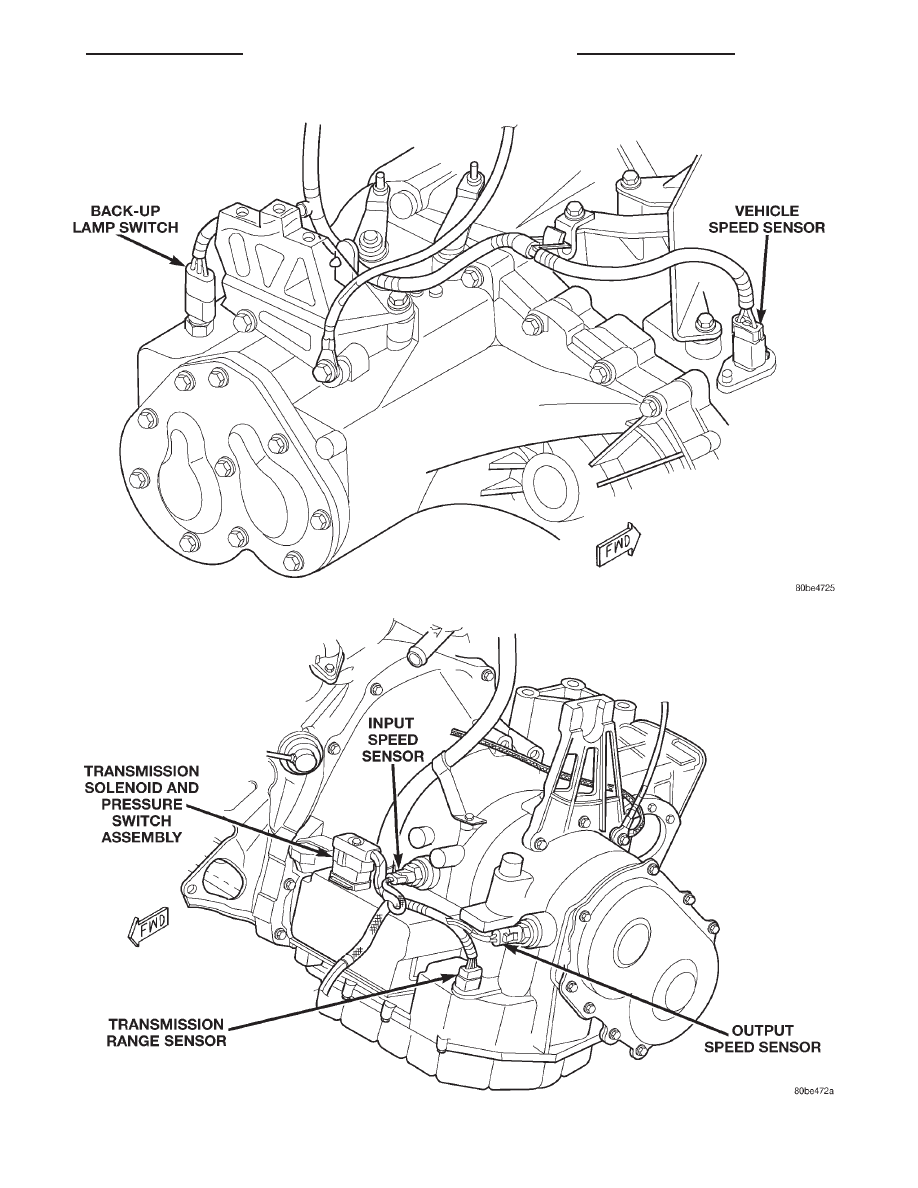

Fig. 12 Manual Transmission Connectors

Fig. 13 Automatic Transmission Connectors

JX

8W - 90 CONNECTOR/GROUND LOCATIONS

8W - 90 - 17

DESCRIPTION AND OPERATION (Continued)

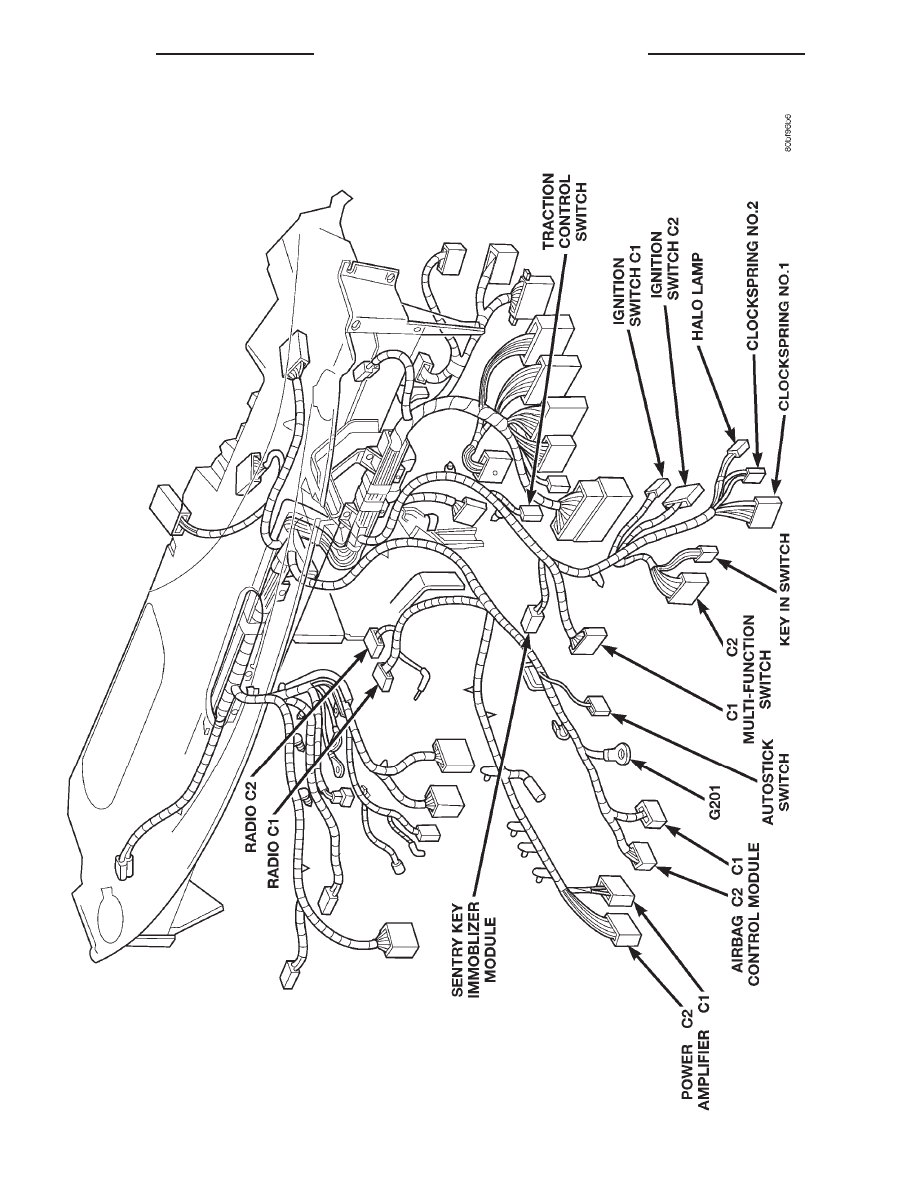

Fig.

14

Steering

Column

and

Console

8W - 90 - 18

8W - 90 CONNECTOR/GROUND LOCATIONS

JX

DESCRIPTION AND OPERATION (Continued)
