(2) Connect charger leads to the remote cables.

Some chargers feature polarity protection circuitry
that prevents operation unless charger is connected
to battery posts correctly. A completely discharged
battery may not have enough voltage to activate this
circuitry. This may happen even though the leads are
connected properly.

(3) Battery chargers vary in the amount of voltage

and current they provide. For the time required for
the battery to accept measurable charger current at
various voltages, refer to Battery Charging Rate
table. If charge current is still not measurable after
charging times, the battery should be replaced. If
charge current is measurable during charging time,
the battery may be good, and charging should be
completed in the normal manner.

VISUAL INSPECTION AND SERVICE

CAUTION: Do not allow baking soda solution to
enter vent holes, as damage to battery can result.

(1) Clean battery with a solution of warm water

and baking soda. Apply solution with a bristle brush
and allow to soak until acid deposits loosen (Fig. 11).
Rinse with clear water and blot dry with paper tow-
eling. Dispose of toweling in a safe manner. Refer to
the WARNINGS on top of battery.

(2) Inspect battery case and cover for cracks or

leakage. If leakage is present battery must be
replaced.

(3) Inspect battery tray for damage caused by acid

from battery. If acid damage is present, it will be nec-
essary to clean area with:

• Baking soda solution

• Wire brush

• Scraper
(4) Clean battery terminals with baking soda and

suitable cleaning tool.

(5) Inspect cables for damage and broken termi-

nals. Replace damaged, frayed cables and broken ter-
minal.

(6) Inspect battery for proper or damaged hold

down ledge.

REMOVAL AND INSTALLATION

SAFETY PRECAUTIONS AND WARNINGS

WARNING: WEAR SAFETY GLASSES.

DO NOT ALLOW JUMPER CABLE CLAMPS TO

TOUCH EACH OTHER WHEN CONNECTED TO A
BOOSTER SOURCE.

DO NOT USE OPEN FLAME NEAR BATTERY.
REMOVE METALLIC JEWELRY WORN ON HANDS

OR WRISTS TO AVOID INJURY BY ACCIDENTAL
ARCING OF BATTERY CURRENT.

WHEN

USING

A

HIGH

OUTPUT

BOOSTING

DEVICE, DO NOT ALLOW THE DISABLED VEHI-
CLE’S BATTERY TO EXCEED 16 VOLTS. PER-
SONAL INJURY OR DAMAGE TO ELECTRICAL
SYSTEM CAN RESULT.

TO PROTECT THE HANDS FROM BATTERY ACID,

A SUITABLE

PAIR

OF

HEAVY DUTY RUBBER

GLOVES, NOT THE HOUSEHOLD TYPE, SHOULD
BE WORN WHEN REMOVING OR SERVICING A
BATTERY. SAFETY GLASSES ALSO SHOULD BE
WORN.

BATTERY

REMOVAL

The Battery is accessible without removing

the Wheel and Tire assembly.

(1) Make

sure

ignition

switch

is

in

OFF

UNLOCKED position and all accessories are OFF.

WARNING: NEVER GET UNDER A LIFTED VEHICLE
IF

NOT

SUPPORTED

PROPERLY

ON

SAFETY

STANDS.

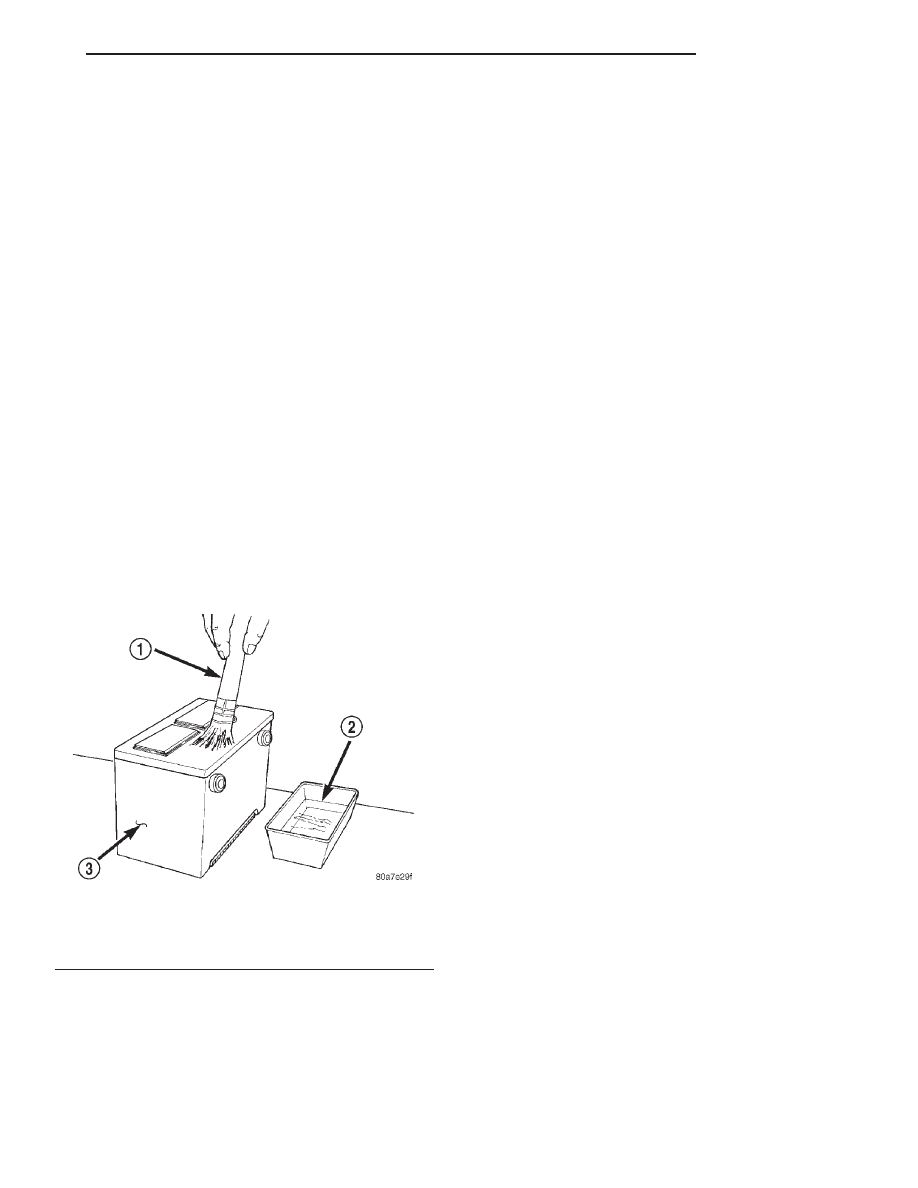

Fig. 11 Cleaning Battery

1 – CLEANING BRUSH
2 – WARM WATER AND BAKING SODA SOLUTION
3 – BATTERY

JX

BATTERY

8A - 9

SERVICE PROCEDURES (Continued)

(2) Disconnect battery negative cable from remote

negative terminal on left shock tower.

(3) Turn steering wheel to the FULL LEFT posi-

tion.

(4) Twist the four plastic screws one quarter turn

to release shield.

(5) Remove shield.
(6) Disconnect battery blanket heater cord, if

equipped (Fig. 12).

(7) Remove battery negative cable followed by the

battery positive cable.

(8) Remove bolt attaching the battery strap to the

battery hold down bracket. Remove hold down
bracket bolt.

(9) Slide battery to rear of tray and lift over lip.

Use care not to tip battery so that the acid will not
spill out.

(10) Remove battery.
(11) Remove battery blanket heater if equipped

(Fig. 12).

INSTALLATION

For installation, reverse the above procedures.

Tighten battery cables to 16 N·m (150 in. lbs.)
torque.

BATTERY TRAY

REMOVAL

(1) Remove battery, refer to Battery Removal pro-

cedures above.

(2) Remove the battery tray attaching bolts (Fig.

13).

(3) Remove battery tray.
(4) Remove battery strap.

INSTALLATION

For installation, reverse the above procedures.

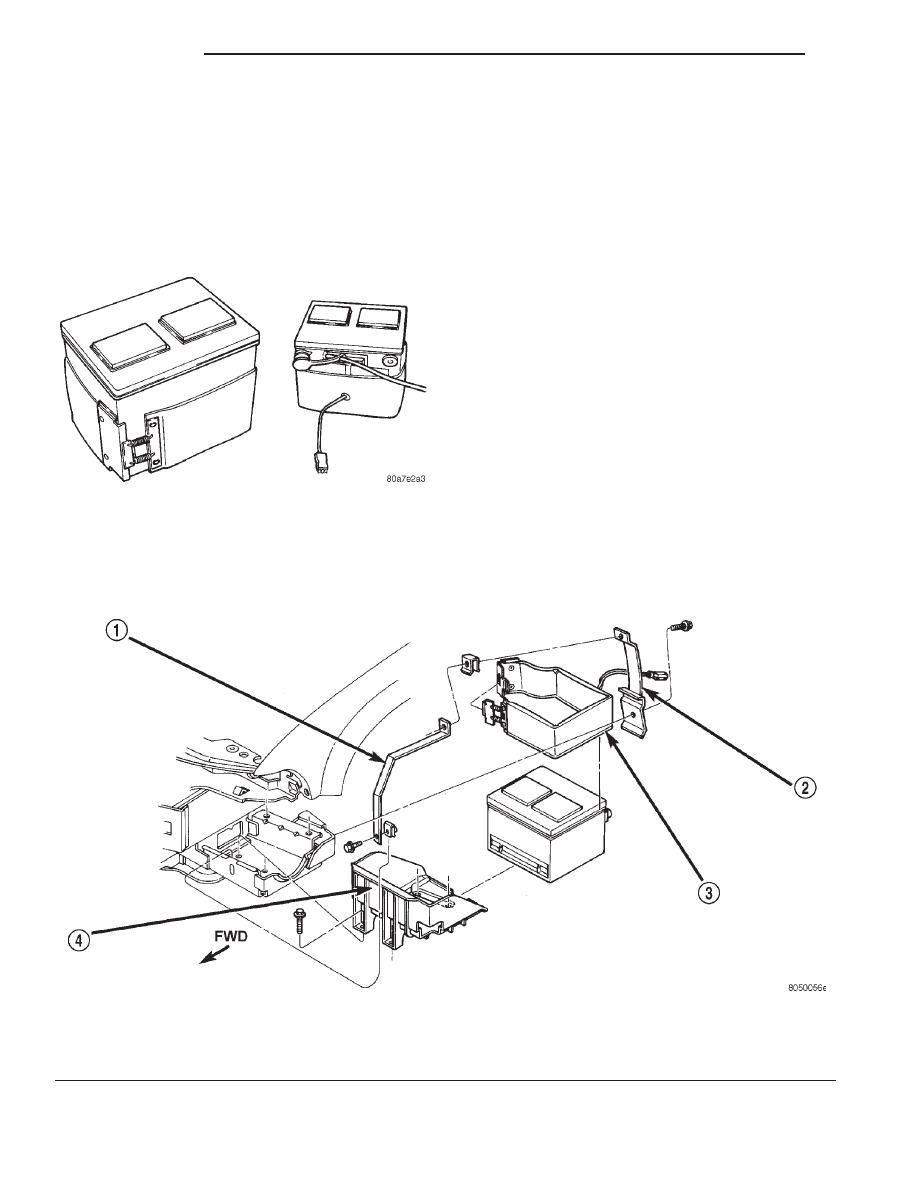

Fig. 13 Battery Tray Removal

1 – BATTERY STRAP
2 – RETAINER STRAP
3 – BATTERY BLANKET HEATER

4 – FWD
5 – BATTERY TRAY

Fig. 12 Battery with Blanket Heater

8A - 10

BATTERY

JX

REMOVAL AND INSTALLATION (Continued)

SPECIFICATIONS

BATTERY SPECIFICATIONS

COLD CRANK RATING

The current battery can deliver for 30 seconds and

maintain a terminal voltage of 7.2 volts or greater at
–18° C (0° F).

RESERVE CAPACITY RATING

The length of time a battery can deliver 25 amps

and maintain a minimum terminal voltage of 10.5
volts at 27°C (80°F).

TORQUE

DESCRIPTION

TORQUE

Battery Hold Down Bolt Clamp Bolt . . . . . . 14 N·m

(160 in. lbs.)

Load Test

Cold
Cranking

Reserve

(Amps)

Rating @
-18°C (0°F)

Capacity

260 Amp

510 Amp

110 Minutes

JX

BATTERY

8A - 11
