Chrysler Stratus Convertible. Manual - part 42





(3) Remove

tie

rod

end

stud,

from

steering

knuckle, using Remover, Special Tool MB-991113
(Fig. 28).

(4) Remove outer tie rod end from inner tie rod by

un-threading it from the inner tie rod.

ASSEMBLE

(1) Install outer tie rod onto inner tie rod. Make

sure jam nut is on inner tie rod.

(2) Do not tighten jam nut.
(3) Install tie rod end seal boot heat shield

(Fig. 27) on the tie rod end.

(4) Install tie rod end into the steering knuckle.

Start tie rod end to steering knuckle attaching nut
onto stud of tie rod end. While holding stud of tie rod
end stationary, tighten tie rod end to steering
knuckle attaching nut (Fig. 27). Then using a crow-
foot and 11/32 socket, (Fig. 29) torque tie rod end
attaching nut to 61 N·m (45 ft. lbs.).

CAUTION: During this procedure do not allow the
steering gear boot to become twisted. (See Wheel
Alignment in the suspension section of this service
manual).

(5) Adjust the front Toe setting on the vehicle.

Refer to the Toe Setting Procedure in Front Suspen-
sion Service Procedures in this group of the service
manual. Refer to the Specifications Section at the
end of this group for the desired front Toe specifica-
tion.

(6) Tighten tie rod jam nut (Fig. 26) to 75 N·m

(55 ft. lbs.) torque.

(7) Adjust the steering gear to inner tie rod boots

at inner tie rod if they became twisted during Toe
adjustment.

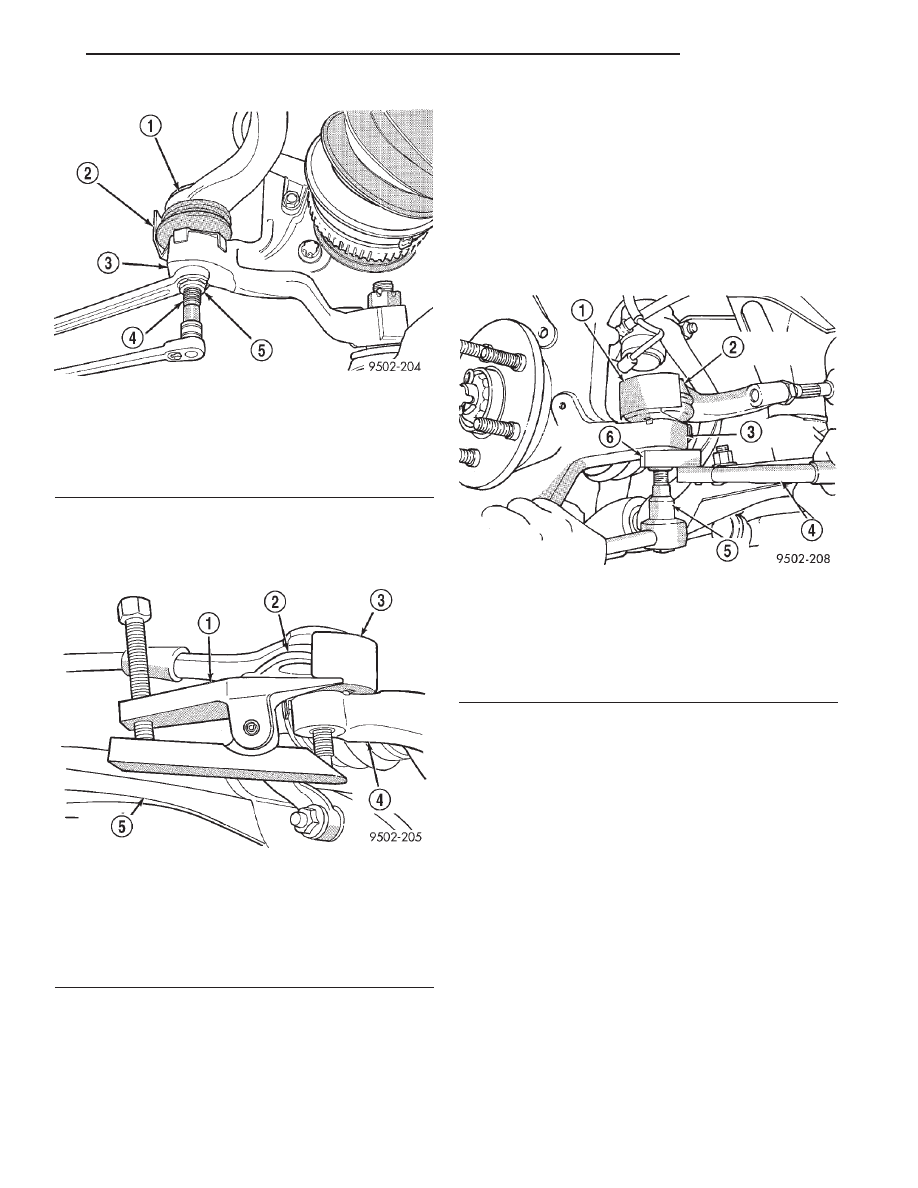

Fig. 27 Removing Tie Rod End Nut

1 – TIE ROD END
2 – HEAT SHIELD
3 – STEERING KNUCKLE
4 – TIE ROD END STUD
5 – NUT

Fig. 28 Tie Rod End Removal From Steering

Knuckle

1 – SPECIAL TOOL MB-991113
2 – TIE ROD END
3 – HEAT SHIELD
4 – STEERING KNUCKLE
5 – LOWER CONTROL ARM

Fig. 29 Torquing Tie Rod End Attaching Nut

1 – HEAT SHIELD
2 – TIE ROD END
3 – STEERING KNUCKLE
4 – TORQUE WRENCH
5 – 11/32 SOCKET
6 – CROWFOOT

JX

STEERING

19 - 45

REMOVAL AND INSTALLATION (Continued)

DISASSEMBLY AND ASSEMBLY

POWER STEERING GEAR MOUNTING BOLT
ISOLATOR

The removal and installation of the mounting bolt

isolator must be performed with the steering gear
assembly removed from the vehicle.

The steering gear mounting bolt isolators (Fig. 30)

are a serviceable component of the steering gear
assembly. Both isolator bushing are serviced using
the same procedure listed below but only the rear
mounting bushing is shown.

DISASSEMBLY

(1) Using a screwdriver, pry the sleeve out of the

mounting bolt isolator (Fig. 30).

(2) Pry the mounting bolt isolator bushing from

the steering gear mounting bracket.

ASSEMBLY

(1) Lubricate replacement mounting bolt isolator

bushing using Mopar, Silicone Spray Lube or an
equivalent.

(2) Install the mounting bolt isolator bushing into

the steering gear mounting bracket from the bottom
side of the bracket (Fig. 31).

(3) Install mounting bolt isolator bushing sleeve

into isolator bushing by pressing the sleeve into the
bushing by hand (Fig. 32).

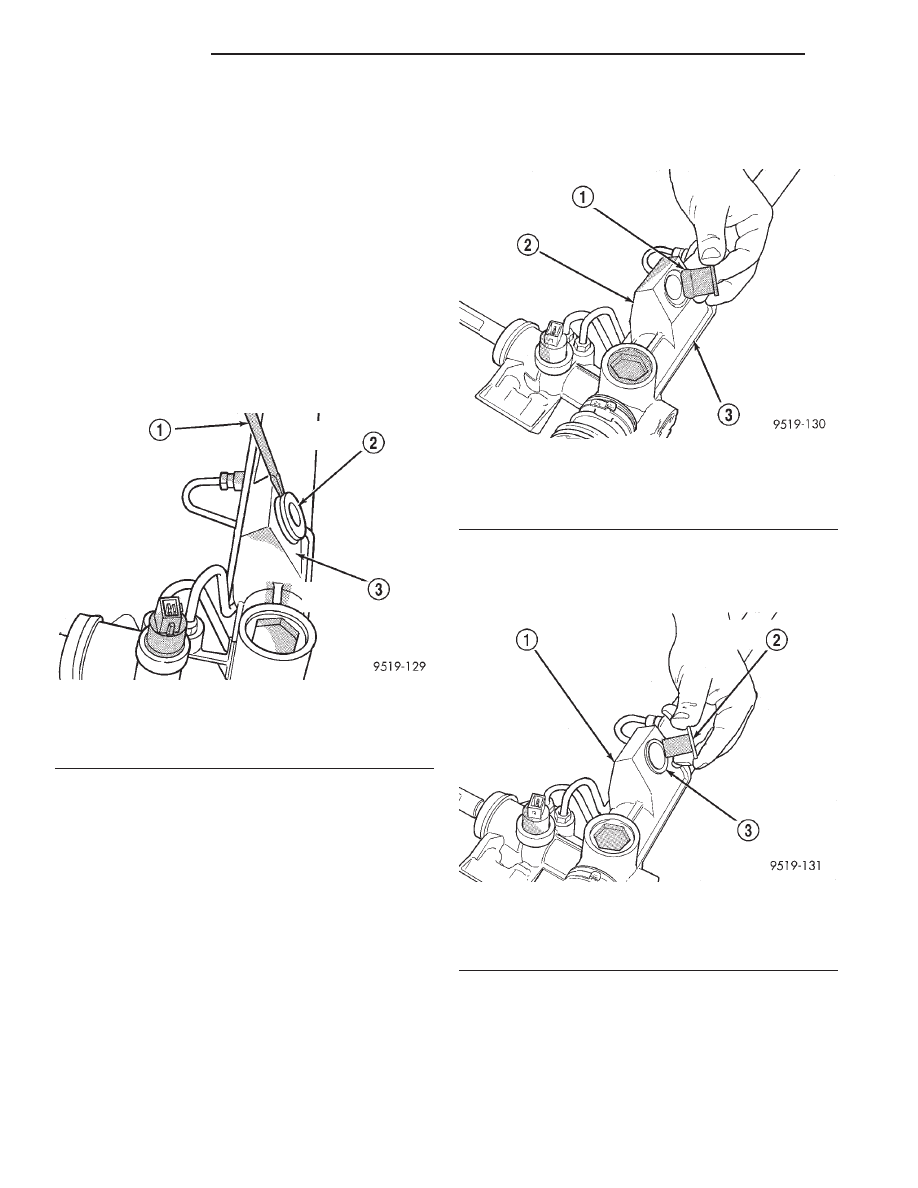

Fig. 30 Mounting Bolt Isolator Sleeve Removal

1 – SCREWDRIVER
2 – ISOLATOR BUSHING SLEEVE
3 – STEERING GEAR MOUNTING BRACKET

Fig. 31 Installing Mounting Bolt Isolator Bushing

1 – STEERING GEAR MOUNTING BOLT ISOLATOR BUSHING
2 – STEERING GEAR MOUNTING BRACKET
3 – STEERING GEAR

Fig. 32 Mounting Bolt Isolator Sleeve Installation

1 – STEERING GEAR MOUNTING BRACKET
2 – ISOLATOR BUSHING SLEEVE
3 – STEERING GEAR MOUNTING BOLT ISOLATOR BUSHING

19 - 46

STEERING

JX

SPECIFICATIONS

STEERING GEAR FASTENER TORQUE
SPECIFICATIONS

DESCRIPTION

TORQUE

STEERING GEAR:
To Crossmember Bolts . . . . . . . . 68 N·m (50 ft. lbs.)
Tie Rod To Steering Knuckle Nut . . . . . . . . 61 N·m

(45 ft. lbs.)

Outer To Inner Tie Rod Jam Nut . . . . . . . . 75 N·m

(55 ft. lbs.)

Power Steering Hose Tube Nuts . . . . . . . . . 31 N·m

(275 in. lbs.)

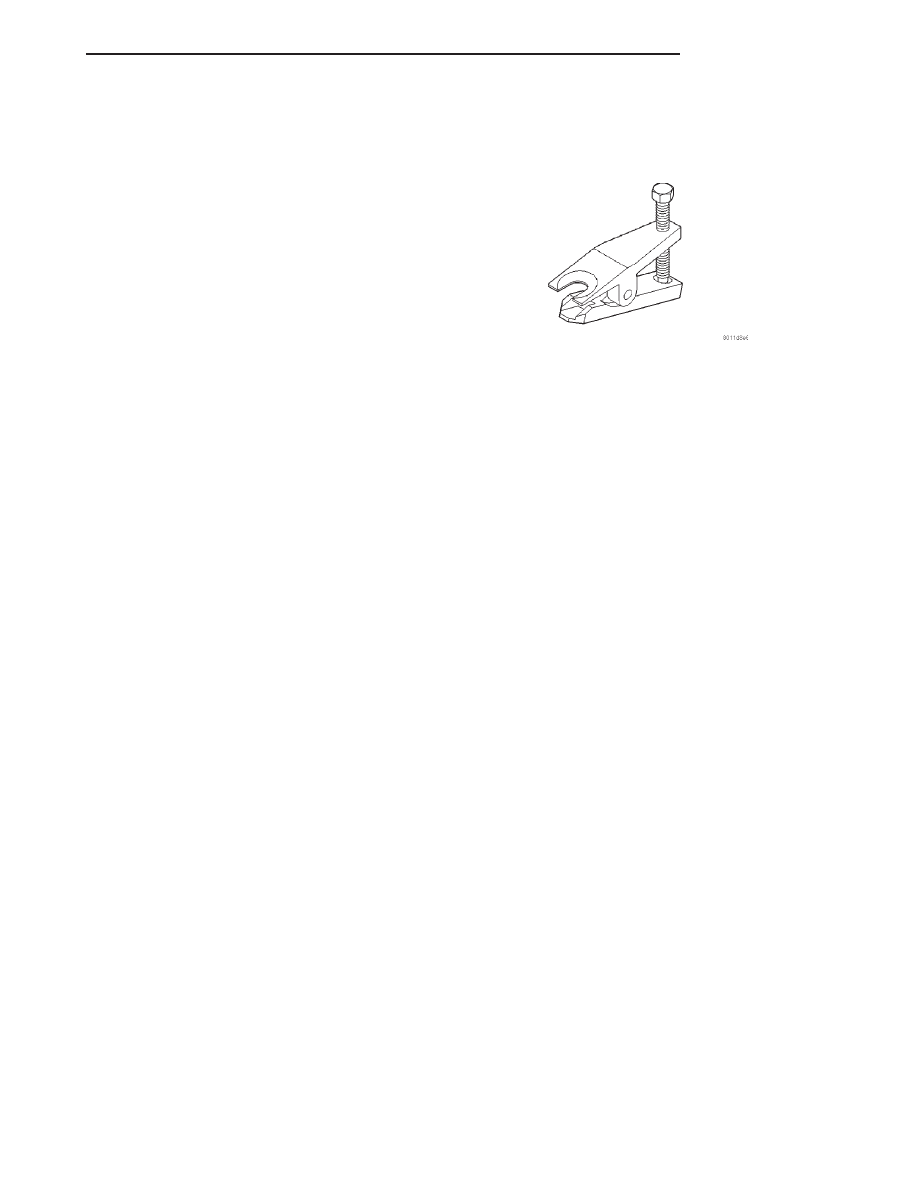

SPECIAL TOOLS

POWER STEERING GEAR

Remover Tie Rod End MB–991113

JX

STEERING

19 - 47

STEERING COLUMN

TABLE OF CONTENTS

page

page

DESCRIPTION AND OPERATION

STEERING COLUMN . . . . . . . . . . . . . . . . . . . . . . 48
STEERING COLUMN INTERMEDIATE SHAFT . . . 48

DIAGNOSIS AND TESTING

STEERING COLUMN . . . . . . . . . . . . . . . . . . . . . . 50
STEERING COLUMN INTERMEDIATE SHAFT . . . 50

REMOVAL AND INSTALLATION

SERVICE WARNINGS AND CAUTIONS . . . . . . . . 50

STEERING COLUMN . . . . . . . . . . . . . . . . . . . . . . 50
STEERING COLUMN INTERMEDIATE SHAFT . . . 59

SPECIFICATIONS

STEERING COLUMN FASTENER TORQUE

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . 60

SPECIAL TOOLS

STEERING COLUMN . . . . . . . . . . . . . . . . . . . . . . 60

DESCRIPTION AND OPERATION

STEERING COLUMN

DESCRIPTION

The steering column used in this vehicle is a tilt

type (Fig. 1). It has been designed to be serviced only
as an assembly if it is determined to be defective.
The replaceable components mounted on the steering
column assembly are the key cylinder, ignition
switch, multi-function switch, clockspring, speed con-
trol switches, lock cylinder trim ring, SKIM module,
trim shrouds, driver airbag and steering wheel.
These replaceable components of the steering column
can be serviced without requiring removal of the
steering column from the vehicle. The steering col-
umn intermediate shaft can also be serviced sepa-
rately from the steering column.

OPERATION

Turning of the steering wheel is transferred through

the steering column and intermediate shaft, to the
power steering gear pinion shaft. The gear then moves
the steering knuckles, steering the vehicle.

STEERING COLUMN INTERMEDIATE SHAFT

DESCRIPTION

The steering column intermediate shaft is located

between the steering column and the power steering
gear. It has a flexible joint at each end. Later models
have a slider stage in the center portion of the shaft.

The steering column intermediate shaft fastens to

the steering column’s splined shaft using a roll pin.
Depending on whether it is an early or later produc-
tion model vehicle, the connection to the power steer-
ing gear differs. Early models use a intermediate
shaft with a slap coupler connection at the steering
gear pinion shaft (Fig. 2). Later models use a slider-
stage style intermediate shaft (Fig. 3). The two inter-
mediate shafts are not interchangeable because of
the steering gear’s pinion shaft shape. Both early and
later shafts use a pinch bolt to secure the shafts to
one another at the steering gear.

OPERATION

The steering column intermediate shaft connects

the steering column shaft to the power steering
gear’s pinion shaft. It’s flexible joints allow the shaft
to flex when rotating.
