SYSTEM COMPONENT LOCATIONS
4.1

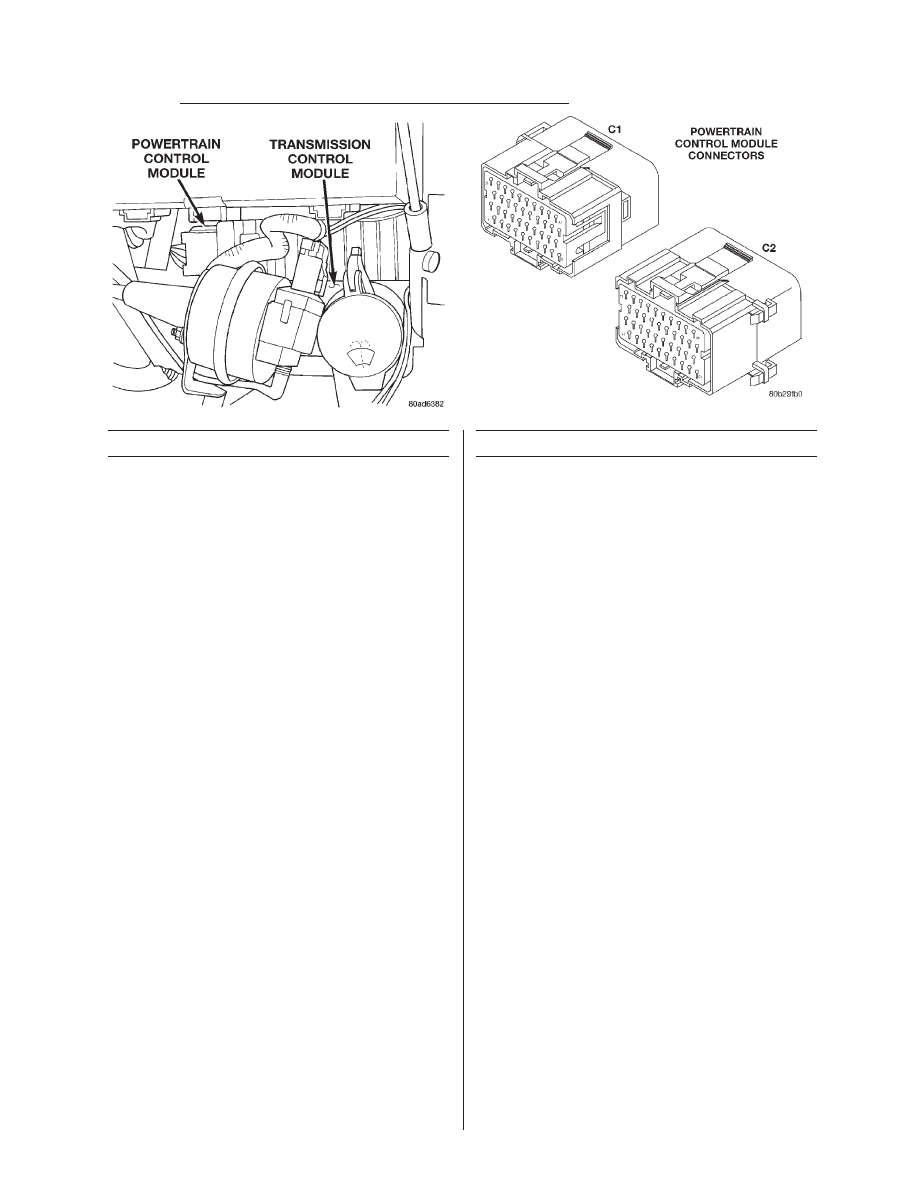

Powertrain, Body and Trans Control Modules
CAV
COLOR
FUNCTION
1
K94 TN/LG

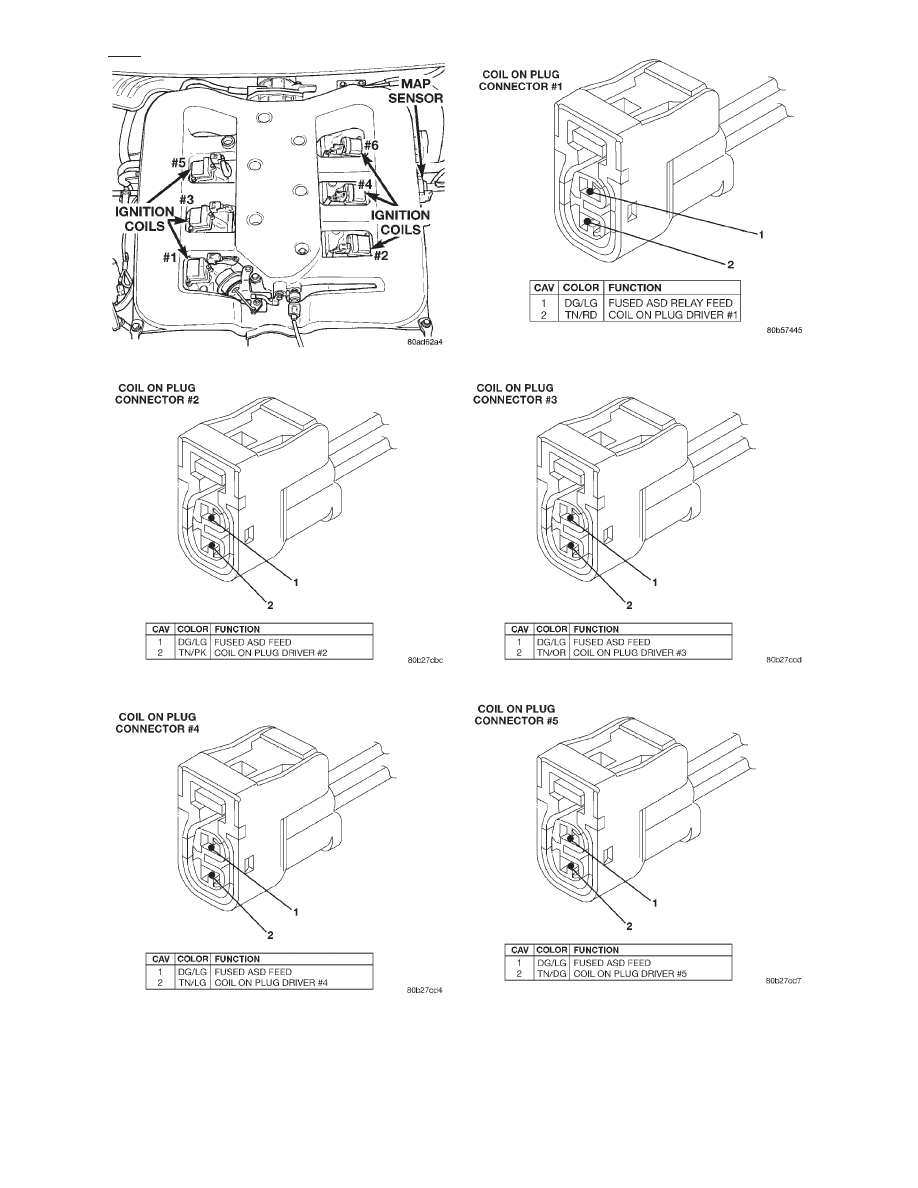

Ignition Coil #4 Driver
2
K93 TN/OR
Ignition Coil #3 Driver
3
K92 TN/PK
Ignition Coil #2 Driver
4
K96 TN/LB
Ignition Coil #6 Driver
5
V32 YL/RD
Speed Control Power Supply
6
A142 DG/OR
Auto Shutdown Relay Output
7
K13 YL/WT
Injector #3 Driver
8
K20 DG

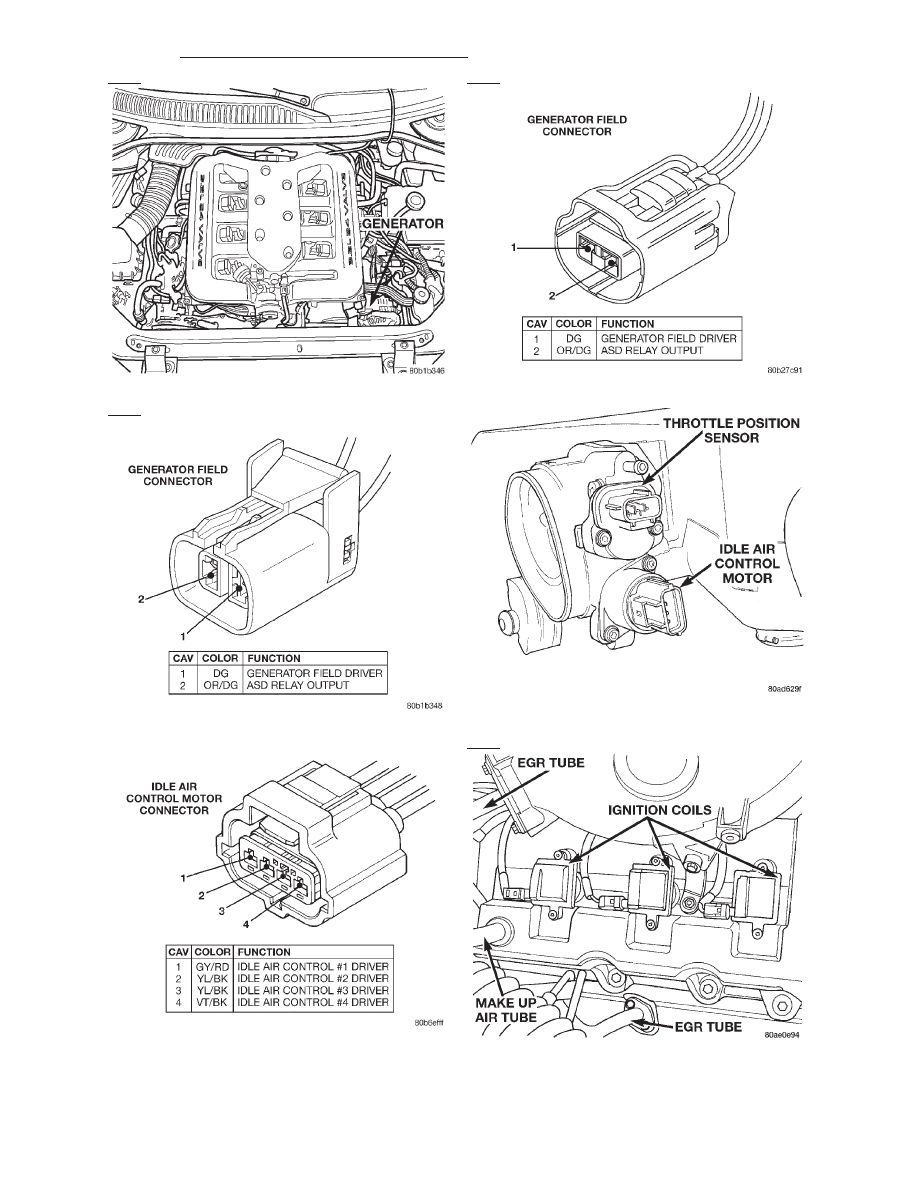

Generator Field Driver
10
Z12 BK/TN
Power Ground
11
K91 TN/RD
Ignition Coil #1 Driver
13
K11 WT/DB
Injector #1 Driver
14
K58 BR/DB
Injector #6 Driver
15
K38 GY
Injector #5 Driver
16
K14 LB/BR
Injector #4 Driver
17
K12 TN/WT
Injector #2 Driver (2.7L)
17
K12 TN
Injector #2 Drive (3.5L)
18
K236 GY/PK
Short Runner Valve Solenoid Control
(3.5L)
20
F15 DB/WT
Fused Ignition Switch Output
21
K95 TN/DG
Ignition Coil #5 Driver
24
K42 DB/LG
Knock Sensor Return (3.5L)
25
K45 BK/VT
Knock Sensor Signal
26
K2 TN/BK
Engine Coolant Temp Sensor Signal
27
K127 BK/OR
Oxygen Sensor Ground
29
K241 LG/RD
Heated O2 Sensor 2/1 Signal
30
K41 BK/DG
Heated O2 Sensor 1/1 Signal
31
K90 TN/WT
Start Relay Control
32
K24 GY/BK
Crank Position Sensor Signal
33
K44 TN/YL
Camshaft Position Sensor Signal
34
K235 LG/PK
EGR Position Sensor Signal
35
K22 OR/DB
Throttle Position Sensor Signal
36
K1 DG/RD
MAP Sensor Signal
37
K21 BK/RD
Intake Air Temperature Signal
39
K36 VT/RD
Manifold Tuning Valve Solenoid Ctrl
(3.5L)
CAV
COLOR
FUNCTION
40
K35 GY/YL

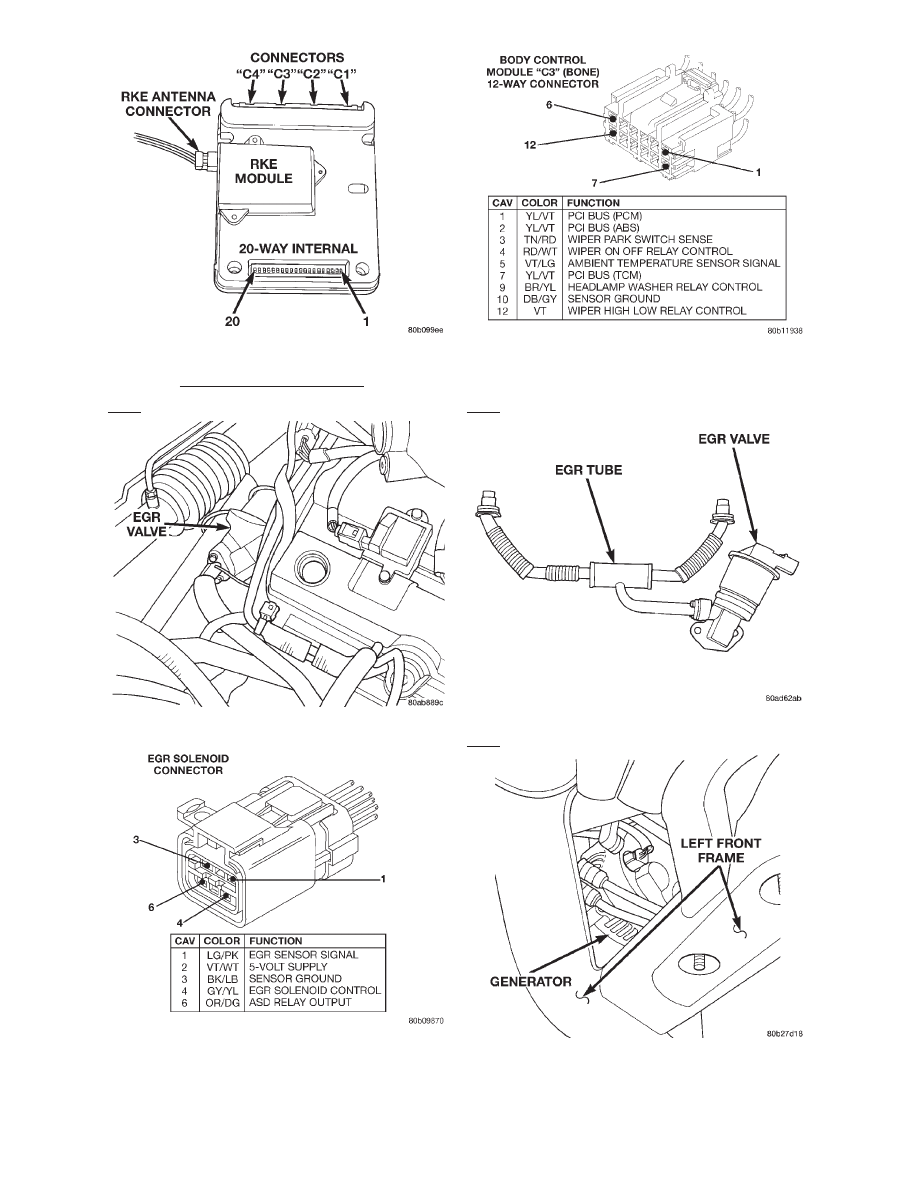

EGR Solenoid Control
41
V37 RD/LG
Speed Control Switch Signal
42
C18 DB
A/C Pressure Signal
43
K4 BK/LB
Sensor Ground
44
K7 OR
8-Volt Supply
45
K10 DB/LG
Power Steering Press Sw Sense
46
A14 RD/WT
Fused B (+)
47
Z11 BK/WT
Signal Ground
48
K40 YL/BK
Idle Air Control #3 Driver
49
K60 YL/BK
Idle Air Control #2 Driver
50
Z12 BK/TN
Power Ground
51
K141 TN/WT
Heated 02 Sensor 1/2 Signal
53
K341 PK/WT
Heated 02 Sensor 2/2 Signal
55
C24 DB/PK
Low Speed Rad Fan Rly Ctrl
56
V36 TN/RD
Speed Control Vacuum Solenoid Ctrl
57
K39 GY/RD
Idle Air Control #1 Driver
58
K59 VT/BK
Idle Air Control #4 Driver
59
D25 YL/VT
(J1850) PCI Bus
61
K6 VT/WT
5-Volt Supply
62
K29 WT/PK
Brake Switch Sense
63
T10 YL/DG
Torque Management Request Sense
64
C28 DB/OR
A/C Comp Clutch Rly Control
65
D21 PK
SCI Transmit
66
G7 WT/OR
Vehicle Speed Sensor Signal
67
K51 DB/YL
Auto Shutdown Relay Control
68
K52 PK/BK
Proportional Purge Solenoid Control
69
C27 DB/LG
Hi Speed Rad Fan Relay Control
70
K108 DG/LG
PWM Purge Sense
71
K71 WT/RD
EATX RPM Signal
74
K31 BR
Fuel Pump Relay Control
75
D20 LG
SCI Receive
76
T41 BK/PK
Park Neutral Position Switch Sense
80
V35 LG/RD
Speed Control Vent Solenoid Ctrl
