DESCRIPTION AND OPERATION

AIRBAG CONTROL MODULE

The Airbag Control Module (ACM) contains the

accelerometer and energy reserve capacitor. The
ACM is mounted on the tunnel floor pan, forward of
the center console. The accelerometer is located
inside the ACM. The accelerometer provides confir-
mation of a crash, discriminating severity. The ACM
monitors the system to determine the system readi-
ness. The ACM ma store sufficient energy to deploy
the airbags for only two minutes after the battery is
disconnected. The ACM contains on-board diagnos-
tics, and will illuminate the AIRBAG warning lamp
on the cluster when a fault occurs. The warning
equipment is tested for a few seconds every time the
vehicle is started.

CLOCKSPRING

The clockspring is mounted to the steering column

behind the steering wheel. The clockspring is used to
maintain a continuous electrical circuit between the
wiring harness and the:

• Driver’s airbag module

• Speed control switches

• Horn switch
The clockspring consists of a flat, ribbon like, elec-

trically conductive tape which winds and unwinds
with the steering wheel rotation.

DRIVER AND PASSENGER AIRBAG MODULES

WARNING:

NEVER DISASSEMBLE THE DRIVER/

PASSENGER AIRBAG MODULES, THERE ARE NO
SERVICEABLE PARTS WITHIN THE MODULES.

DRIVER AIRBAG MODULE

The Driver Airbag Module is packaged in the steer-

ing wheel (Fig. 1). It contains the airbag cushion and
its supporting components. The drivers airbag mod-
ule contains a housing to which the cushion and
inflator are attached and sealed. A membrane horn
switch is integral to the airbag module cover.

The driver side inflator assembly is mounted from

the back of the module housing. When supplied with
the proper electrical signal the inflator assembly will
produce a gas and discharge it directly into the cush-
ion. A protective cover is fitted to the front of the
Driver Airbag Module and forms a decorative cover
in the center of the steering wheel. This cover incor-
porates the integral horn switch. The driver airbag
module is mounted directly to the steering wheel.

PASSENGER

The Passenger Airbag Module is located beneath

the instrument panel and pad assembly (Fig. 1).

The passenger inflator assembly is within the mod-

ule housing. The module is mounted to the upper and
lower instrument panel. When supplied with the
proper electrical signal the inflator will produce a gas
and discharge it directly into the cushion. Upon
deployment, the instrument panel upper cover will
tear open and allow the passenger airbag to fully
inflate.

FRONT IMPACT SENSOR

The Driver and Passenger Airbag System is a sup-

plemental safety device designed to help protect the
driver and passenger from serious injury, caused by a
frontal impact of the vehicle.

The Airbag

Control

Module’s

(ACM)

internal

impact sensor provides verification of the direction
and severity of an impact. The sensor is mounted
within the ACM.

The Airbag Control Module (ACM) uses data col-

lected from it’s internal accelerometers to discrimi-
nate the direction and severity of an impact. The
ACM will activate power stages internal to the mod-
ule in order to deploy the driver and passenger side
airbags once a predetermined threshold has been
exceeded. The ACM is calibrated for a particular
vehicle family and uses an advanced software algo-
rithm to discriminate the severity and direction of
any vehicle event.

DIAGNOSIS AND TESTING

AIRBAG SYSTEM TEST

(1) Open hood and disconnect the negative battery

cable remote terminal from the remote battery post
(Fig. 2).

(2) Connect scan tool (DRB) to Data Link connec-

tor, located on the left side of the steering column
and at the lower edge of the instrument panel.

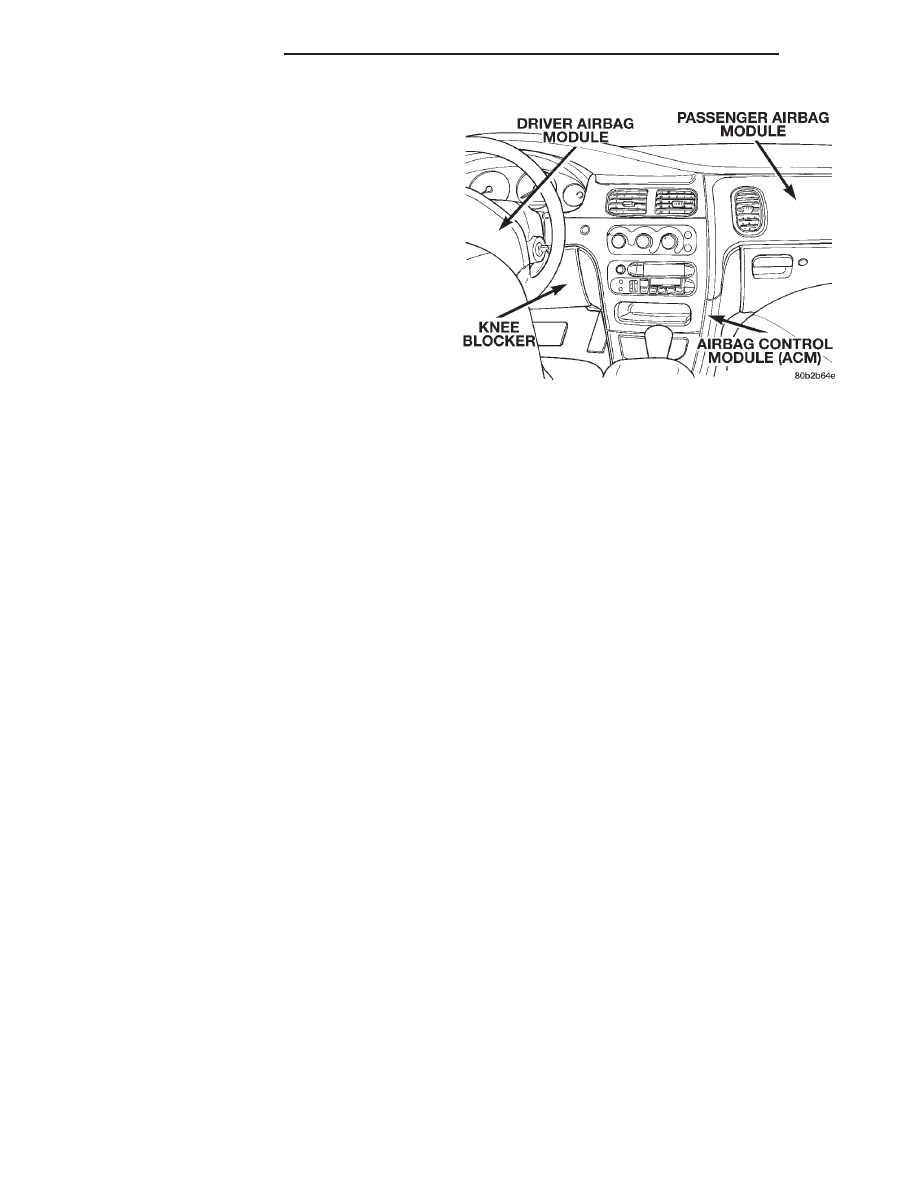

Fig. 1 Airbag System Component Location

8M - 2

RESTRAINT SYSTEM

300M

(3) Turn the ignition key to ON position. Exit vehi-

cle with scan tool. Use the latest version of the
proper cartridge.

(4) After checking that no one is inside the vehicle,

connect the battery negative remote terminal.

(5) Using the scan tool, read and record active

diagnostic code data.

(6) Read and record any stored diagnostic codes.
(7) Refer to the Passive Restraint Diagnostic Pro-

cedures Manual if any diagnostic codes are found in
Step 6 or Step 7.

(8) Erase stored diagnostic codes if there are no

active diagnostic codes. If problems remain, diagnos-
tic codes will not erase. Refer to the Passive
Restraint Diagnostic Test Manual to diagnose the
problem. If airbag warning lamp either fails to
light, or goes on and stays on, there is a system
malfunction. Refer to the Passive Restraint
Diagnostic Procedures Manual to diagnose the
problem.

SERVICE PROCEDURES

CLEANUP PROCEDURE

Roll or fold the passenger airbag towards the

instrument panel surface and tuck into instrument
panel into module area. Then tape the ripped instru-
ment panel pad over the deployed airbag.

Use a vacuum cleaner to remove any residual pow-

der from the vehicle interior. Work from the outside
in to avoid kneeling or sitting in a contaminated
area. Vacuum the heater and A/C outlets as well (Fig.
3). If the heater or air conditioner was in RECIRC
mode at time of airbag deployment, operate blower
motor on low speed and vacuum powder residue

expelled from the heater and A/C outlets. Multiple
vacuum cleaning may to necessary to decontaminate
the interior of the vehicle.

Place the deployed driver and passenger airbag

modules along with the instrument panel and center
duct in your automotive scrap.

SERVICE OF DEPLOYED AIRBAG MODULE

DRIVER AIRBAG

After a Driver Airbag Module has been deployed

due to a collision, the following must be replaced:

• Driver Airbag Module

• Clockspring Assembly

• Steering Wheel

• Complete Steering Column Assembly with

shrouds and Lower Steering Column Coupler

The component above must be replaced because

they cannot be reused. Other driver airbag system
components are replaced if damaged.

PASSENGER AIRBAG

After

a

Passenger

Airbag

Module

has

been

deployed due to a collision. the following must be
replaced:

• Passenger Airbag Module

• Instrument Panel and Pad Assembly
The components above must be replaced because of

visible or non visible structural damage.

Any other components should be replaced if dam-

aged.

HANDLING AIRBAG MODULE

DEPLOYED MODULE

The vehicle interior may contain a very small

amount of potassium hydroxide powder, a by-product
of airbag deployment. Sodium hydroxide powder can
irritate the skin, eyes, nose and throat. Wear safety
glasses, rubber gloves, and long sleeved clothing
when cleaning any of the powder residue from the
vehicle.

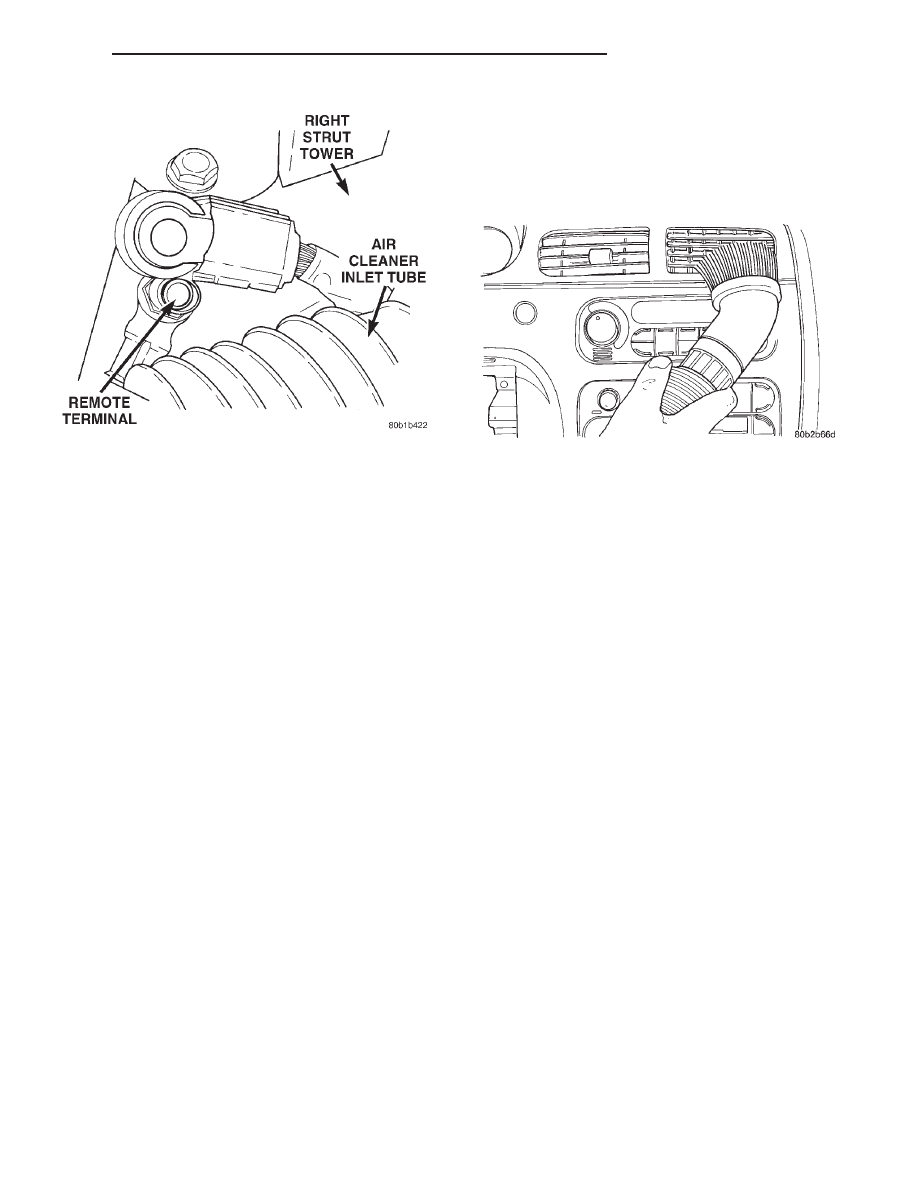

Fig. 2 Negative Battery Cable Remote Terminal

Fig. 3 Vacuum Heater and A/C Outlets

300M

RESTRAINT SYSTEM

8M - 3

DIAGNOSIS AND TESTING (Continued)

If you find that the cleanup is irritating your skin,

run cool water over the affected area. Also, if you
experience nasal or throat irritation, exit the vehicle
for fresh air until the irritation ceases. If irritation
continues, see a physician.

UNDEPLOYED

The airbag modules must be stored in its original

special container until used for service. At no time
should a source of electricity be permitted near the
inflator on the back of an airbag module. When car-
rying or handling an undeployed airbag module, the
trim side of the airbag should be pointing away from
the body to minimize possibility of injury if acciden-
tal deployment occurs. Do not place undeployed air-
bag face down on a solid surface, the airbag will
propel into the air if accidental deployment occurs.

MAINTENANCE INSPECTION

Check the airbag warning lamp for proper opera-

tion as follows:

(1) Turn the ignition switch to the ON position.

The airbag warning lamp should illuminate. If does
not, test the system using a scan tool and Passive
Restraint System Diagnostic Procedures Manual.
Repair as required.

(2) The airbag warning lamp lights, but fails to go

out after ten seconds. Test the system using a scan
tool and Passive Restraint Diagnostic Procedures
Manual. Repair as required.

REMOVAL AND INSTALLATION

AIRBAG CONTROL MODULE (ACM)

WARNING:

THE ACM CONTAINS AN ACCELEROM-

ETER WHICH ENABLES THE SYSTEM TO DEPLOY
THE AIRBAGS. TO AVOID ACCIDENTAL DEPLOY-
MENT, NEVER CONNECT ACM ELECTRICALLY TO
THE SYSTEM WHILE VEHICLE BATTERY IS CON-
NECTED. BEFORE BEGINNING ANY AIRBAG SYS-
TEM REMOVAL OR INSTALLATION PROCEDURES,
DISCONNECT AND ISOLATE THE BATTERY NEGA-
TIVE REMOTE (GROUND) CABLE. THIS WILL DIS-
ABLE THE AIRBAG SYSTEM. FAILURE TO DO THIS
COULD RESULT IN ACCIDENTAL AIRBAG DEPLOY-
MENT, AND POSSIBLE PERSONAL INJURY.

FIVE PASSENGER VEHICLE

REMOVAL

(1) Open hood and disconnect the negative battery

cable remote terminal from the remote battery post
(Fig. 2).

NOTE: If working on a Concorde, the Instrument
Panel must be removed. Refer to Group 8E, Instru-
ment Panel and Systems for Removal and Installa-
tion procedures. Then go to Step 11.

(2) Remove one screw to shift knob.
(3) Remove two screws to shifter bezel.
(4) Disconnect power outlet connector and remove

bezel from vehicle.

(5) Remove left instrument panel endcap covering

junction block.

(6) Remove two screws to steering column cover

then pull toward rear of vehicle to disengage clips.

(7) Open glove box door. Continue to pull down on

the door until the glove box drops and you see the
screws in the upper and lower left corner or the glove
box bin.

(8) Pull the right console side panel off.
(9) Remove two screws to left console side panel

and pull off.

(10) With the Airbag Control Module (ACM) now

exposed, slide the red Correct Position Assurance
(CPA) tab out. Press down on the locking latch and
disconnect the ACM 23-way connector.

(11) Remove the two side module mounting screws

on the drivers side.

(12) Loosen the top screw on the drivers side.
(13) Lift up the module and slide out the ACM.

NOTE:

If the module cannot be lifted out, the pas-

senger side screw needs some additional loosen-
ing.

(14) Remove the ACM from vehicle.

INSTALLATION

WARNING: THE ACM IS A SAFETY MODULE AND
FAILURE TO INSTALL AND SECURE IT PROPERLY,
COULD CAUSE THE MODULE TO POSSIBLY MAL-
FUNCTION.

(1) Position the ACM (arrow pointing forward in

vehicle) on the ACM mounting bracket. The mount-
ing bosses on the module will correctly position the
ACM on the bracket. Attach the ACM to the bracket
with the three screws supplied and torque to 50 to 70
in.lbs. (5.7 to 7.9 N·m).

CAUTION: USE SUPPLIED SCREWS ONLY.

(2) Reverse the above procedures for continued

installation.

CAUTION: Do not connect negative battery cable
remote terminal. Refer to Airbag System Check in
this section for proper procedure.

8M - 4

RESTRAINT SYSTEM

300M

SERVICE PROCEDURES (Continued)

SIX PASSENGER VEHICLE

REMOVAL

(1) Open hood and disconnect the negative battery

cable remote terminal from the remote battery post
(Fig. 2).

(2) Open glove box door and release side tabs and

swing down.

NOTE: If working on a Concorde, the Instrument
Panel must be removed. Refer to Group 8E, Instru-
ment Panel and Systems for Removal and Installa-
tion procedures. Then go to Step 11.

(3) Remove the left endcap at the junction block.
(4) Remove two screws to steering column cover

then pull toward rear of vehicle to disengage clips.

(5) Open glove box door. Continue to pull down on

the door until the glove box drops and you see the
screws in the upper and lower left corner or the glove
box bin.

(6) Remove the instrument panel center bezel. The

temperature control module, power outlet and trac-
tion control switch will pop out with the center bezel.

(7) Disconnect the connectors at center bezel.
(8) Remove four screws to Chin bezel. Two on the

right side and two on the left side of vehicle.

(9) Remove one screw and one push fastener

retaining floor bin.

(10) With the Airbag Control Module (ACM) now

exposed, slide the red Correct Position Assurance
(CPA) tab out. Press down on the locking latch and
disconnect the ACM 23-way connector.

(11) Remove the two side module mounting screws

on the drivers side.

(12) Loosen the top screw on the drivers side.
(13) Lift up the module and slide out the ACM.

NOTE:

If the module cannot be lifted out, the pas-

senger side screw needs some additional loosen-
ing.

(14) Remove the ACM from vehicle.

INSTALLATION

WARNING: THE ACM IS A SAFETY MODULE AND
FAILURE TO INSTALL AND SECURE IT PROPERLY,
COULD CAUSE THE MODULE TO POSSIBLY MAL-
FUNCTION.

(1) Position the ACM (arrow pointing forward in

vehicle) on the ACM mounting bracket. The mount-
ing bosses on the module will correctly position the
ACM on the bracket. Attach the ACM to the bracket
with the three screws supplied and torque to 50 to 70
in.lbs. (5.7 to 7.9 N·m).

CAUTION: USE SUPPLIED SCREWS ONLY.

(2) Reverse the above procedures for continued

installation.

CAUTION: Do not connect negative battery cable
remote terminal. Refer to Airbag System Check in
this section for proper procedure.

CLOCKSPRING

REMOVAL

(1) Place the front road wheels in the straight

ahead position then:

• Rotate the steering wheel half turn (180

degrees) to the right (clockwise)

• Lock column with ignition lock cylinder.
(2) Open hood and disconnect the negative battery

cable remote terminal from the remote battery post
(Fig. 2).

(3) Wait two minutes for the reserve capacitor to

discharge before removing non deployed module.

(4) Remove speed control switch mounting screws,

from the back of the steering wheel, and disconnect
the wire connectors or remove covers.

(5) Remove the Driver Airbag Module attaching

bolts.

(6) Lift module and disconnect the airbag and horn

wire connectors.

(7) Remove the steering wheel. Refer to Group 19,

Steering for Removal and Installation procedures.

(8) Remove the tilt wheel release lever.
(9) Remove upper and lower steering column

shrouds to gain access to clockspring wiring.

(10) Disconnect the 2-way and 4-way connectors

between the clockspring and the instrument panel
wiring harness at the base of the clockspring.

(11) Remove two mounting screws and pull clock-

spring assembly from steering shaft. The clockspring
cannot be repaired, and must be replaced if faulty.

INSTALLATION

(1) Confirm that:
• The steering wheel position is a half turn (180

degrees) to the right (clockwise)

• The column is locked with the ignition cylinder

lock.

• Locate the clockspring on the steering shaft and

push down on the rotor until the clockspring is fully
seated on the steering column.

• Fasten clockspring to steering column using the

two mounting screws and torque screws to 24 in. lbs.
(2.7 N·m).

(2) Connect the clockspring to the instrument

panel harness, ensure wiring is properly routed.

300M

RESTRAINT SYSTEM

8M - 5

REMOVAL AND INSTALLATION (Continued)















Content   ..  95  96  97  98   ..
