16–

3

16

SQR484F CHARGING SYSTEM

GENERAL INFORMATION

Description

Alternator is a key component of the charging system. It is a device that converts mechanical energy into
electrical energy and generates DC voltage through a rectifying circuit, as one of main power sources of the
vehicle. The alternator operates as a complete assembly. If alternator fails for any reason, the entire unit must
be replaced.

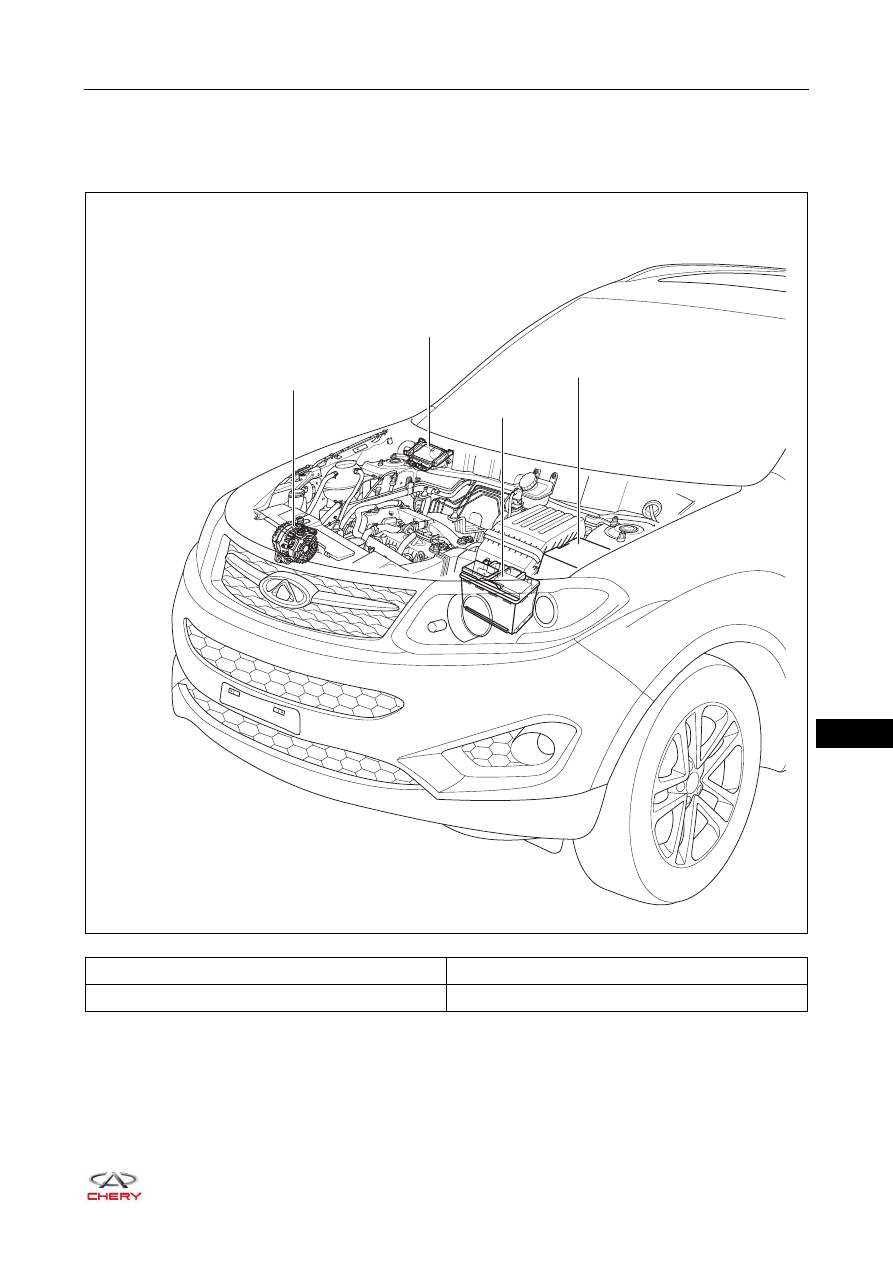

1 - Alternator

2 - ECM

3 - Battery

4 - Fuse and Relay Box

RT21160010

MAX

MIN

1

2

3

4

16–

4

16

Alternator Operation

Alternator is a silicon rectifying alternator, which mainly consists of rotor, stator and rectifier.
When direct current flows to the rotor winding, rotor claw establishes magnetic field to produce alternating
induced electromotive force. The stator is installed on the outside of the rotor, and it is secured together with
the front and rear end covers of alternator. When the alternator rotor is rotated by drive belt, magnetic pole
lines cut the stator winding, causing a change in the magnetic flux of the stator winding; thus, the stator
winding generates alternating induced electromotive force, producing alternating current. The three-phase
alternating current generated by alternator is converted to direct current from alternating current by rectifier,
and the direct current is transmitted to the vehicle electrical system and battery.

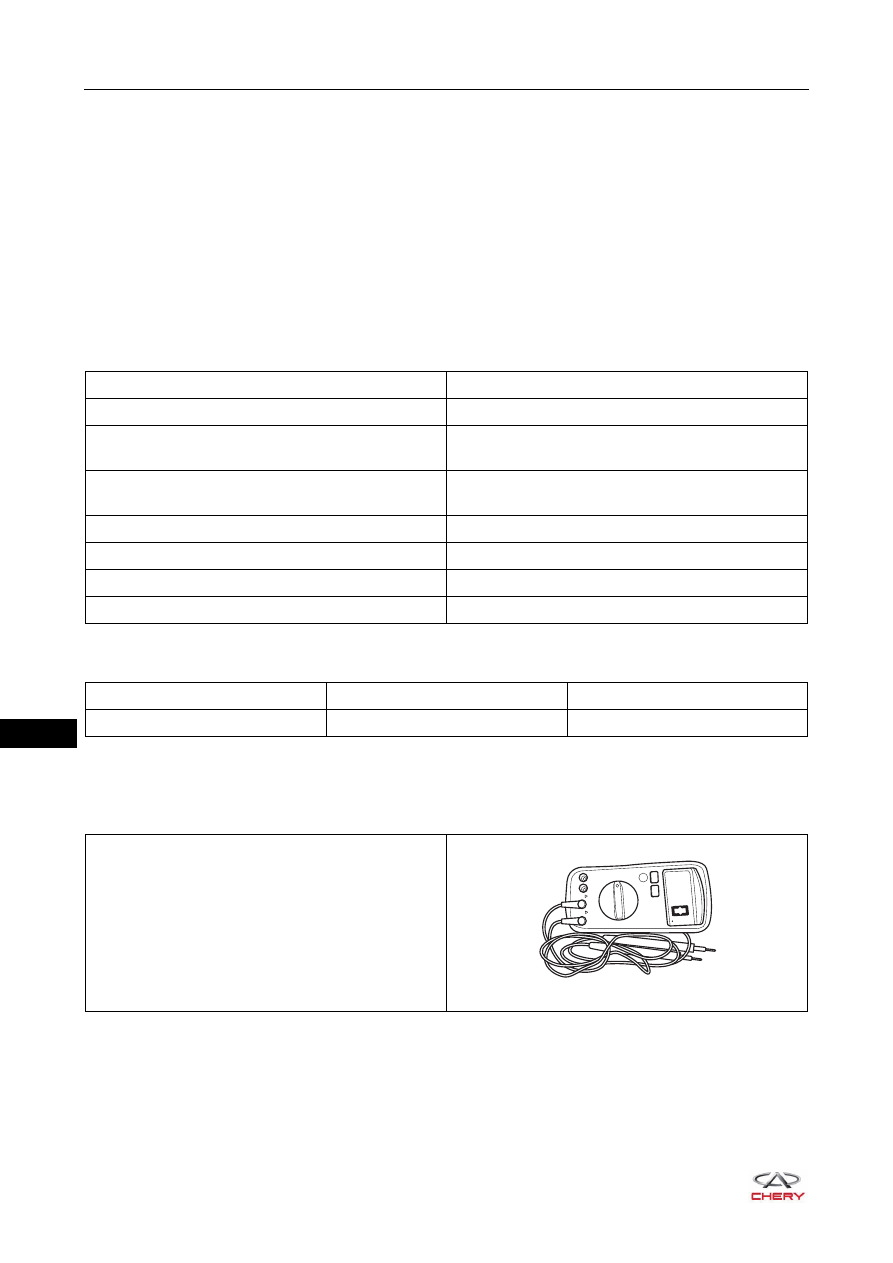

Specifications

Torque Specifications

Battery Specification

Tool

General Tool

Description

Torque (N·m)

Battery Pressure Plate Fixing Nut

7 ± 1

Coupling Bolt Between Battery Pressure Plate and
Tank Upper Crossmember

7 ± 1

Coupling Bolt Between Battery Tray and Air Filter
Bracket

7 ± 1.5

Battery Tray Fixing Bolt

20 ± 2

Battery Tray Bracket Fixing Bolt

20 ± 2

Alternator Output Cable Fixing Nut

18 - 22

Alternator Fixing Bolt

20 + 5

Engine Type

Battery Type

Specification

SQR484F

6-QW-70QR

12 V, 70 Ah, CCA (SAE) 560 A

Digital Multimeter

RCH0000002

16–

5

16

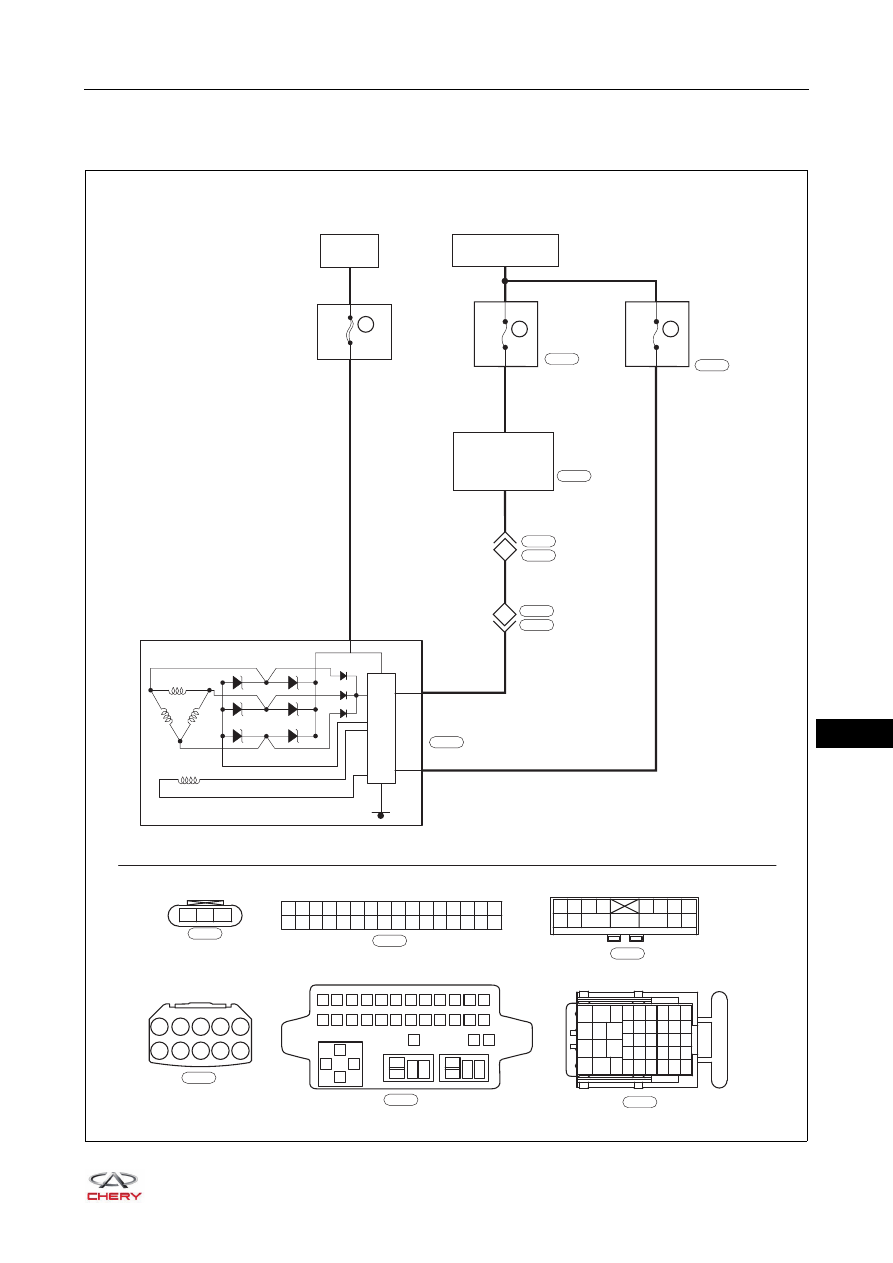

Circuit Diagram

Charging System

ET21160010

R

P

16

13

6

C7

B

1

2

BATTERY

MF07

150A

IGNITION SWITCH
    ON OR START

10A

RF06

ALTERNATOR

INSTRUMENT
CLUSTER

POWER
FUSE BOX

VV

V

BY

6

22

E-003

I-015

INSTRUMENT
PANEL
FUSE AND
RELAY BOX

10A

EF29

I-007

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

B

I-007

L

I-015

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

1

2

3

C1

C2

C3 C4

C5

C6

C7

C8 C9 C10

B

E-003

L

E-023

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

31

35

39

40

41

42

32

33

36

37

38 34

27

28

29

30

B

E-007

E-007

E-038

1

2

3

4

5

6

7

8

9 10

11

12

13

14 15

W

E-027

E-027

I-034

E-023

16–

6

16

DIAGNOSIS & TESTING

Problem Symptoms Table

Charging System Charging Voltage Inspection

1. Leave vehicle under no load test condition and idle the engine. Measure battery voltage with digital

multimeter.
Standard voltage: 14.1 - 14.7 V
If result is not as specified, replace alternator (

See page 16-10

).

2. Leave vehicle under load test condition and idle the engine. Measure battery voltage with digital

multimeter.
Load test condition:
 Set headlight to high beam;
 Turn on blower and adjust blower speed to the highest;
 Turn on "A/C" switch;
 Turn cold and hot switch to adjust temperature of outlet to the highest.
Standard voltage: 14.1 - 14.7 V
If result is not as specified, replace alternator (

See page 16-10

).

Symptom

Suspected Area

See page

Charging system warning light comes on
after engine starts

Alternator

16-10

Instrument cluster

38-42

Wire harness

-

Noises are heard from alternator after
engine starts

Fixing bolt (loose)

16-4

Accessory drive belt (misaligned, loose or
fault)

07-23

Alternator

16-10

CAUTION

 If charging system warning light comes on, the charging system may have a malfunction.
 If noises are heard from alternator or generating capacity is extremely high or low, repair or replace the

alternator.
