Chery SQR 7160 sedan. Manual - part 18

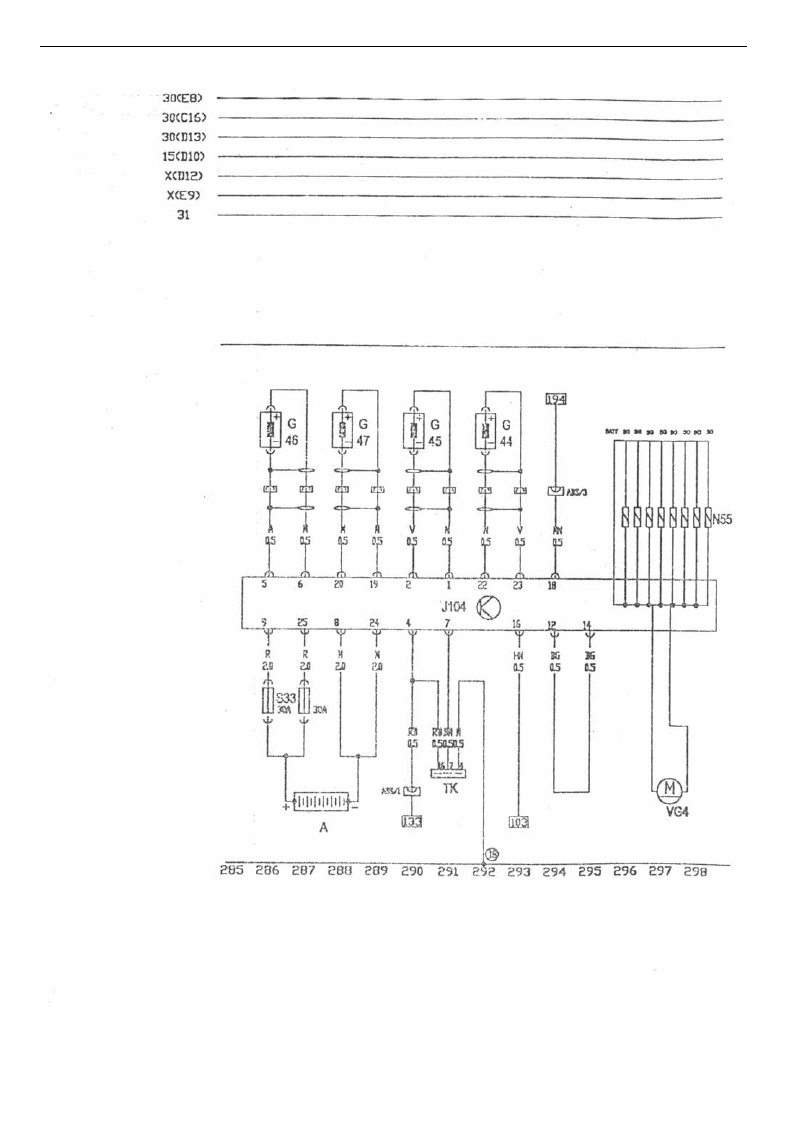

CIRCUIT

ABS



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

J104



ABS

Controller



A        Battery















N55  ABS Solenoid







○

18   Ground point, at ground carrier on central electrical box

VG4



ABS

Hydraulic

Pump

G44    Right Rear Wheel RPM Sensor
G45    Left Front Wheel RPM Sensor
G46    Left Rear Wheel RPM Sensor
G47    Right Front Wheel RPM Sensor
S33    ABS Solenoid Valve Power Fuse
S34    ABS Hydraulic Pump Power Fuse
TK    Diagnosis Connector

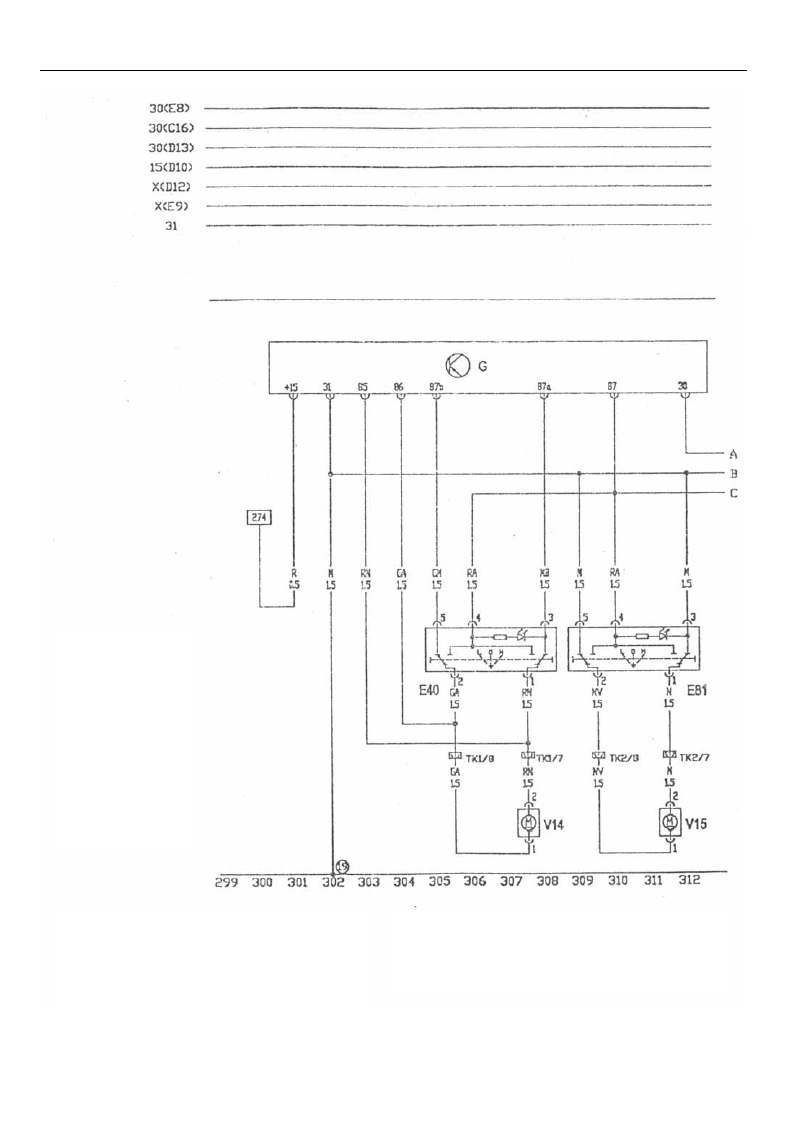

CIRCUIT



POWER GLASS LIFTER CONTROL UNIT



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

G      Window Glass Lifter Module

E40    Left Front Window Lifter Switch

E81    Right Front Window Lifter Switch

V14    Left Front Window Lifter Motor

V15

Right Front Window Lifter Motor

○

19      Beside Central Electrical Box

TK1        12 Holes Connector (Left B Pillar Side)

TK2        12 Holes Connector (Right B Pillar Side)

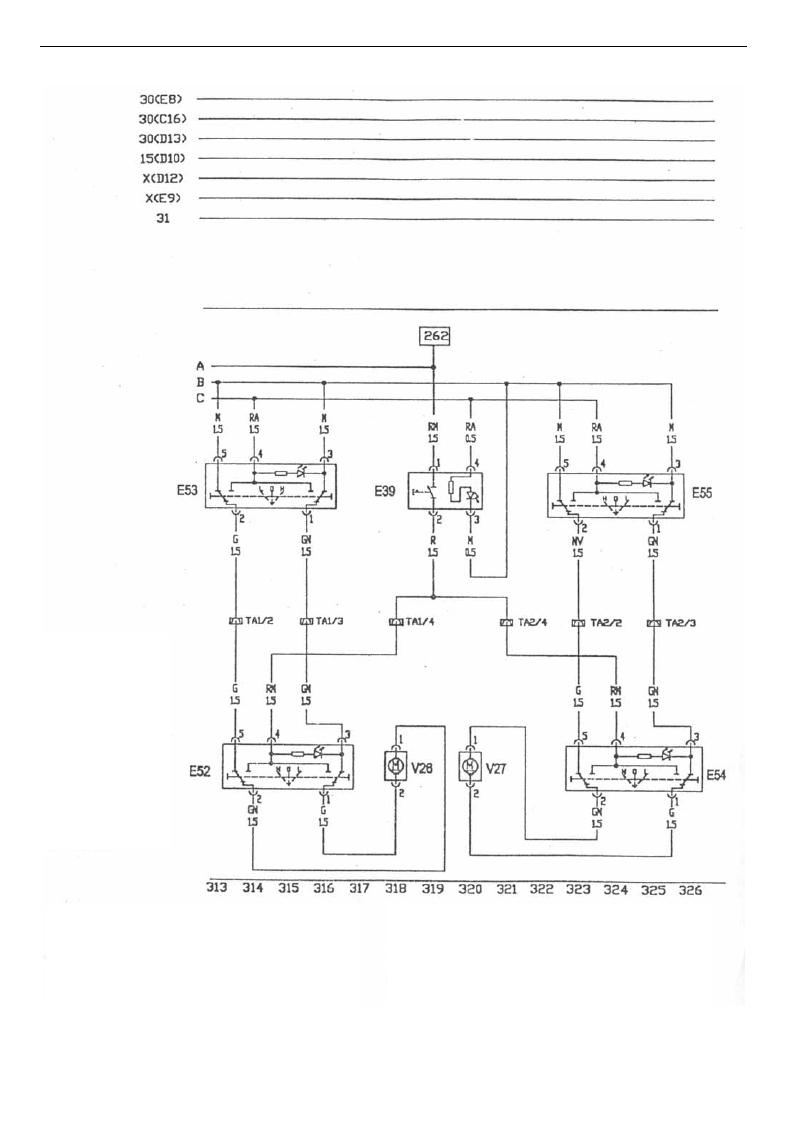

CIRCUIT

POWER GLASS LIFTER CONTROL SWITCH





V26      Left Rear Window Glass Lifter Motor

V27      Right Rear Window Glass Lifter Motor

TA1      4 Holes Connector Glass (Left B Pillar Side)

TA2      4 Holes Connector Glass (Right B Pillar Side)



E39      Rear Window Glass Lifter Lock –Out Switch

E52      Left Rear Dorr Upper Window Lifter Switch

E54      Right Rear Dorr Upper Window Lifter Switch

E53      Left Rear Window Glass Lifter Switch

E55      Right Rear Window Glass Lifter Switch



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW



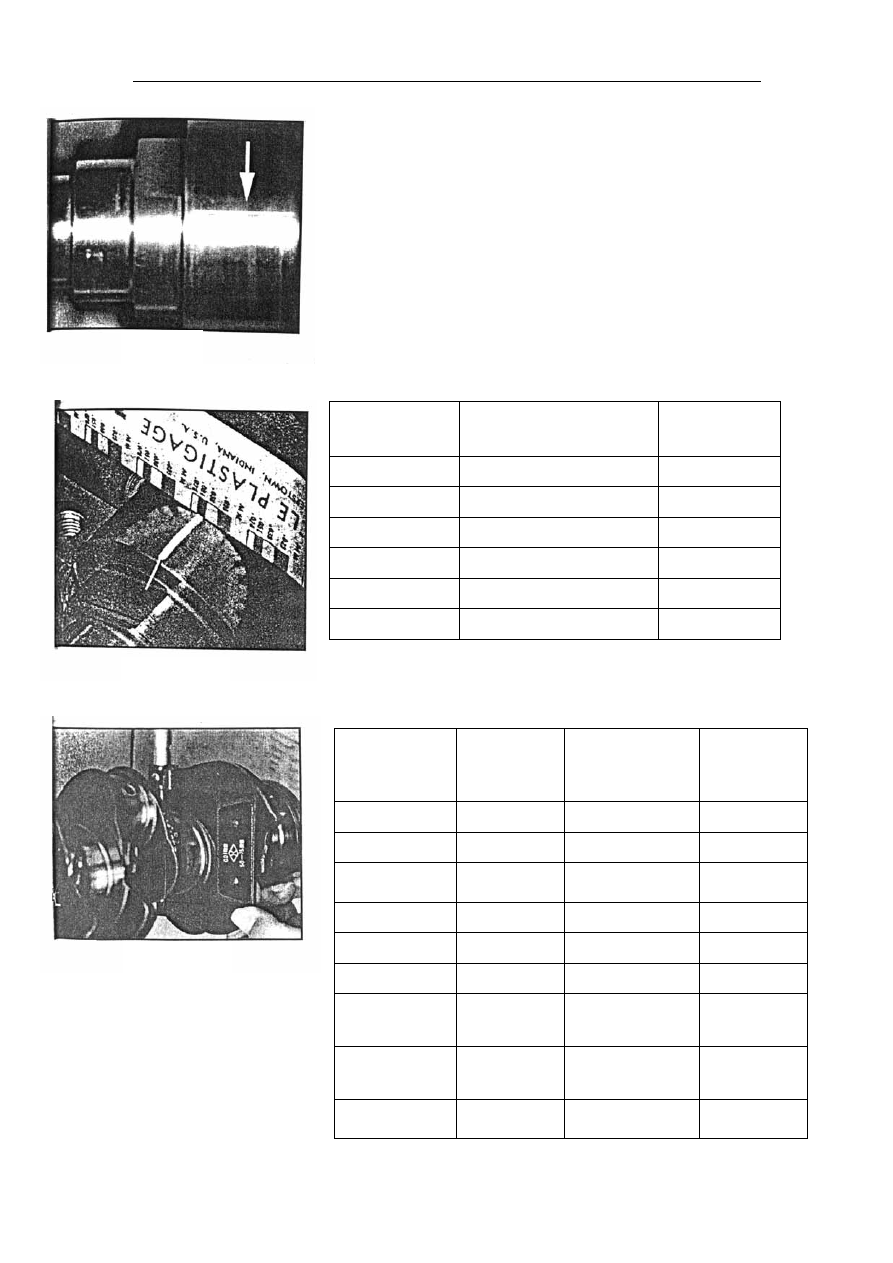

Usage, repair and maintenance specification of CAC gasoline engine

Remove main bearing bolt. Take out the main bearing cap

carefully. Arrange them according to the sequence. Read the

bearing clearance according to the proportion stated in the cover of

plastic clearance gauge. Check the bearing clearance from the third

main bearing and extending to the two sides. The clearance of

main bearing is 0.011—0.058m m.
——Check clearance of connecting rod bearing

Use the above method to check clearance of connecting rod

bearing.

Clearance of connecting rod bearing is 0.006—0.06mm.

——The size of connecting rod journal and connecting rod

bushing：                                                                        unit：mm


——The size of main journal and main bearing half：

unit：mm













Level

The diameter of connecting

rod journalφ

The thickness of

connecting rod

bushing

standard

47.89—47.91 1.480—1.487

u

ndersize 0.025

47.89—47.91 1.492—1.499

undersize 0.25

47.64—47.66 1.605—1.612

undersize 0.5

47.39—47.41 1.730—1.737

undersize 0.75

47.14—47.16 1.855—1.862

undersize 1.0

46.89—46.91 1.980—1.987

Level

The diameter.

of main

journal

The diameter of

main bearing bore

of cylinder body

The thickness

of main

bearing half

shell

Standard

57.98—58.00

62.2935±0.0065 2.131—2.138

oversize 0.4

57.98—58.00

62.6935±0.0065 2.331—2.338

undersize

0.002

57.98—58.00

62.2935±0.0065 2.141—2.148

undersize 0.25

57.73—57.75

62.2935±0.0065 2.256—2.263

undersize 0.50

57.48—57.50

62.2935±0.0065 2.381—2.388

undersize0.75

57.23—57.25

62.2935±0.0065 2.506—2.513

undersize 0.25

oversize 0.4

57.73—57.75

62.6935±0.0065 2.456—2.463

undersize 0.50

oversize 0.4

57.48—57.50

62.6935±0.0065 2.581—2.588

undersize 0.75

oversize 0.4

57.23—57.25

62.6935±0.0065 2.706—2.713

Fig. 67

Fig. 66



Fig.65



39
