Chery SQR 7160 sedan. Manual - part 15

CIRCUIT

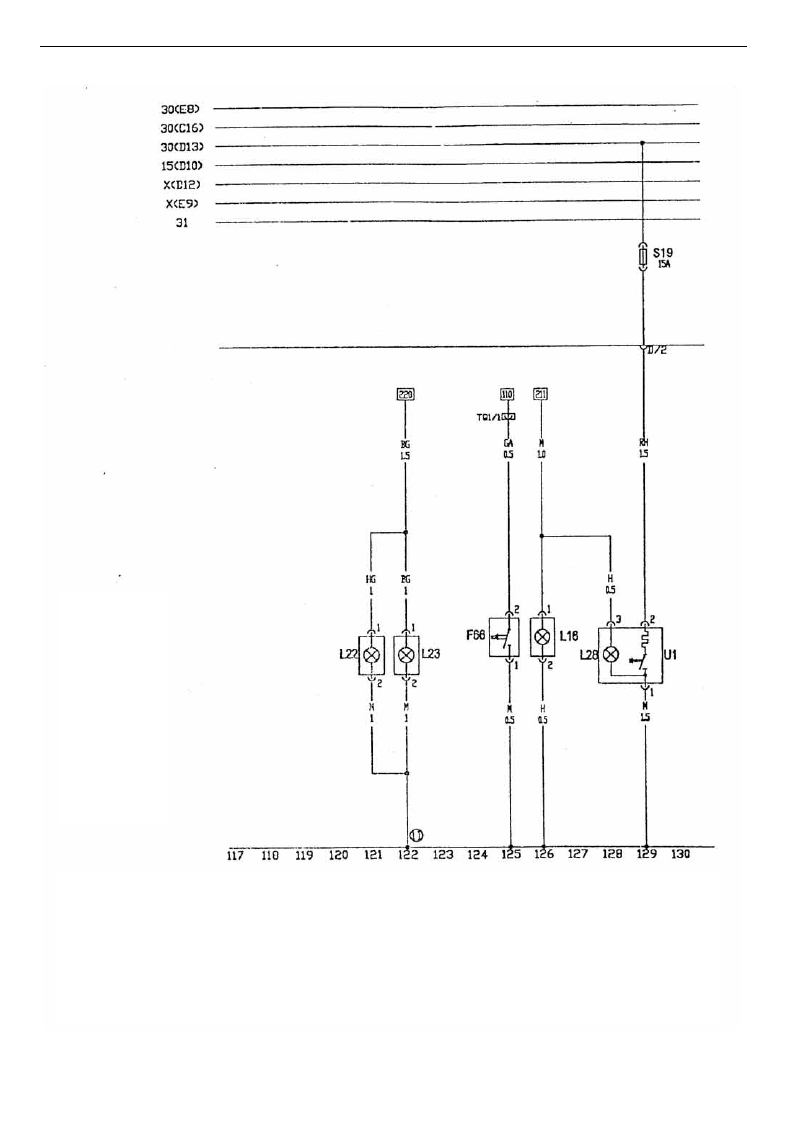

FRONT FOG LIGHT, CIGAR LIGHTER, A/C PANEL INDICATOR



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

L16    A/C Control Panel Indicator

L22    Left Front Fog Light

○

11   Ground, In headlight wiring harness

L23    Right Front Fog Light

F66  Coolant Level Switch

L28    Cigar Lighter Illumination Light

U1   Cigar Lighter



CIRCUIT

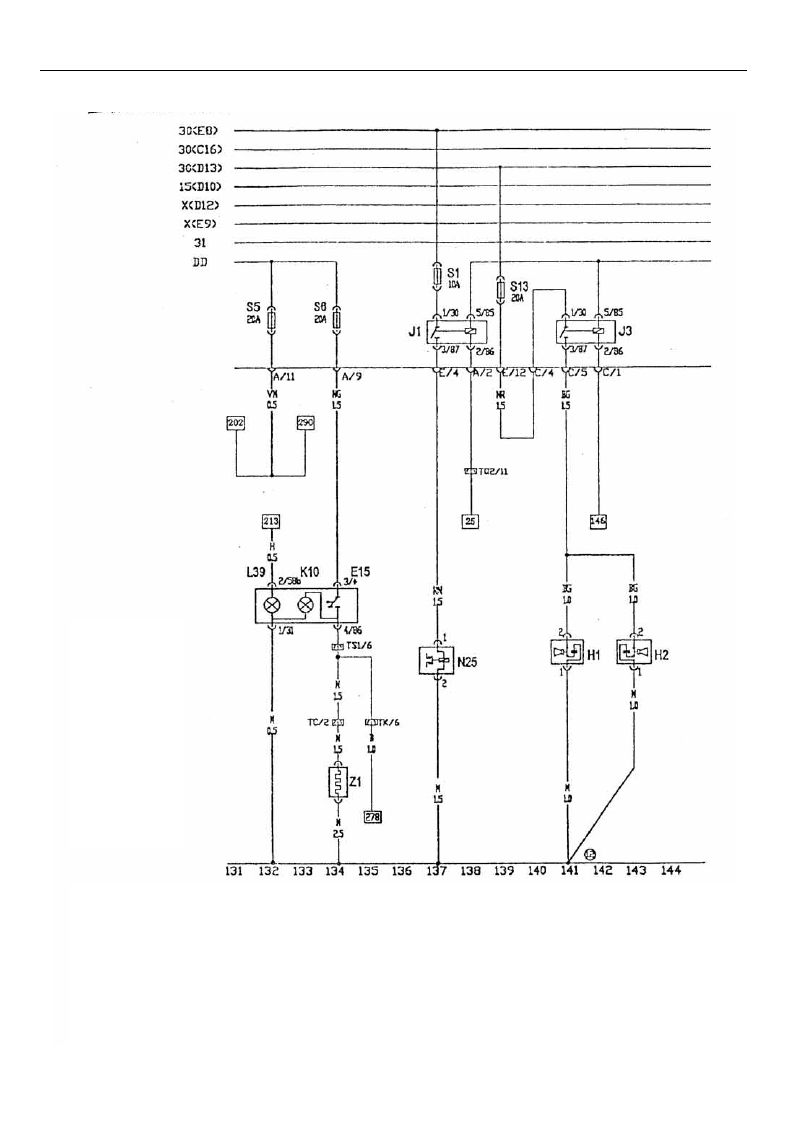

REAR WINDOW HEATING SYSTEM, DUAL PITCH HORN, A/C COMPRESSOR
MAGENETIC CLUTCH



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

J1      Idle Up Relay (in electrical box)

J3   Dual Pitch Horn

J39    Rear Window Heating Switch Illumination Light

K10  Rear Window Heating Indicator

E15  Rear Window Heater Switch

H1(2) Dual Pitch Horn

○

12     Ground point, in dual tone horn wiring harness

Z1   Rear Window Heater





CIRCUIT

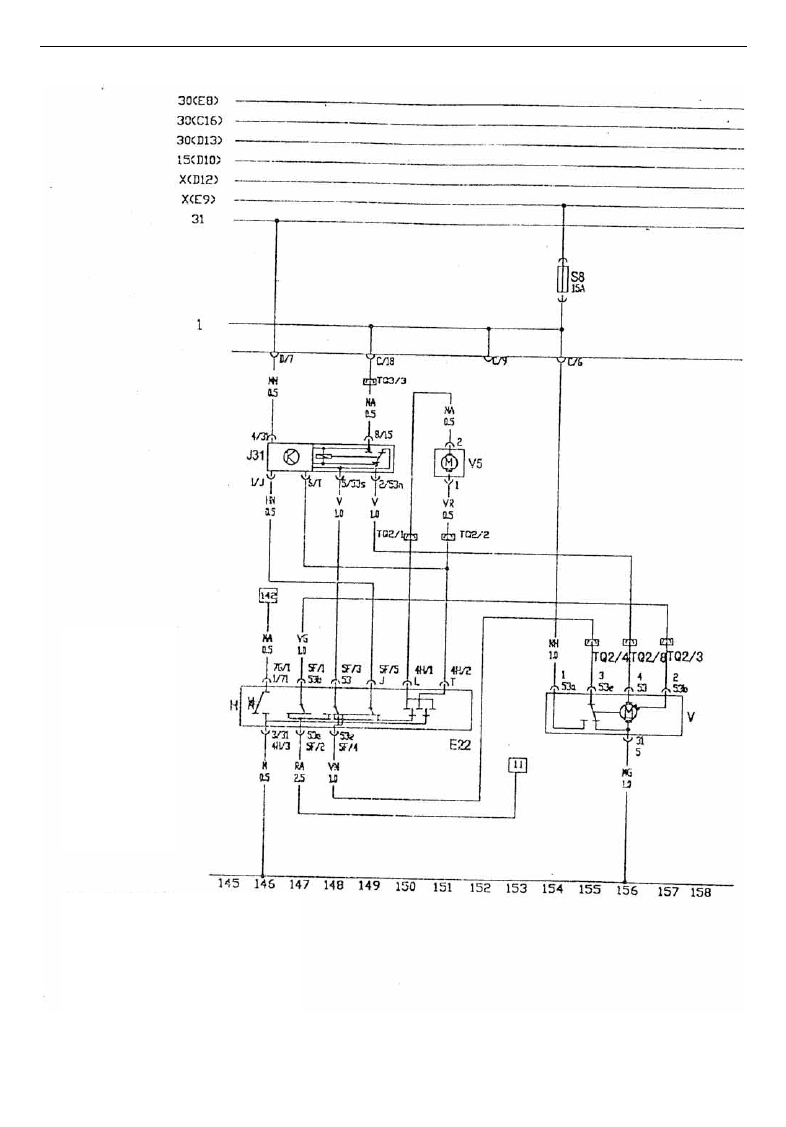

WIPER, HORN BUTTON, WASHER



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

E22  wiper switch

H    horn button

J31   intermittent wiper relay

S5        fuse 15A

V

wiper

motor

V5   washer



CIRCUIT

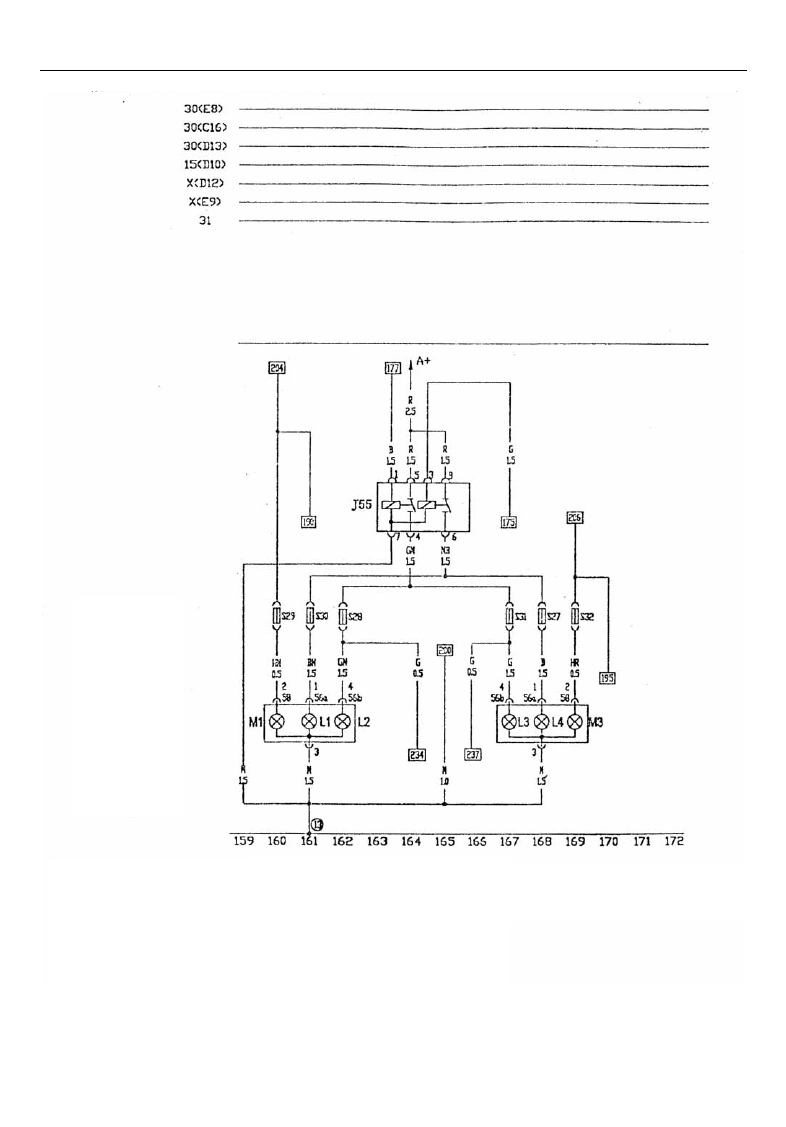

HEADLIGHT, FRONT POSITION LIGHT, LIGHT RELAY



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

○

13   Ground, In headlight wiring harness

J55  Light Relay

S27    Right High Beam Headlight Fuse 10A

S28    Left Low Beam Headlight Fuse 10A

S29    Left Position Light Fuse 10A

S30    Left High Beam Headlight Fuse 10A

S31    Right Low Beam Headlight Fuse 10A

S32    Right Position Light Fuse 10A



A+  Battery Positive

L1    Left High Beam Headlight

L2    Left Low Beam Headlight

L3    Right Low Beam Headlight

L4    Right High Beam Headlight

M1  Left Position Light

M3  Right Position Light
