Chery    QQ    Maintenance Manual                  Transmission System






-108-















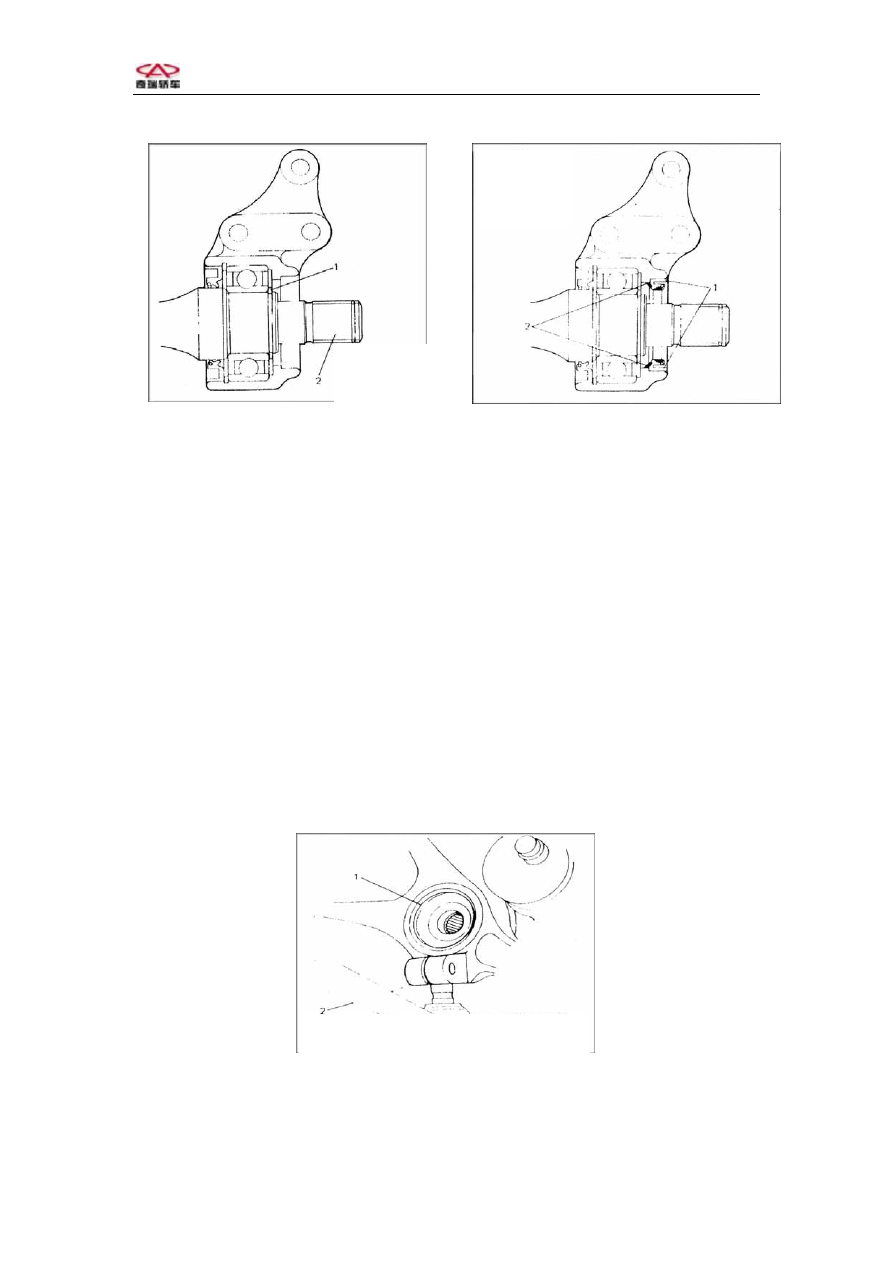

1.Snap  ring

2.Output  shaft

1、Right oil
seal
2、Lubricate




VI、Installation

Install the driven    shaft assembly according
to the reverse order, clean the front wheel
bearing oil seal and spread lubricant.

First install the end of wheel cardan joint on the steering and then install the

cardan joint on the end of    differential.

Manual transaxles drain plug seal。
Fill up the transaxles.
Caution:
Do not hurt oil seal and boot.
Do not hammer the cardan joint boot to adjust, use the hands to insert the cardan

joint  .

Be sure the differential cardan joint has been inserted to the right position and the

snap ring has been placed on the original position.




1.  Front wheel bearing    seal

2.  Suspension  arm
















Chery    QQ    Maintenance Manual                  Transmission System





V．  Recommended Value of torque



Torque

Screw down parts

N·m kg·m 1b-ft

Drain plug

Manual

transaxles

25-30 2.5-3.0

18.5-21.5

 Automatic



transaxles

18-23 1.8-2.3

13.5-16.5

Oil Height 、

Lubricate

 Manual

transaxles

36-54 3.6-5.4

26.5-39.0

  Ball joint bolt and  nut

50-70

5.0-7.0

36.5-50.5

Driven  shaft  nut

150-200

15.0-20.0

108.5-144.5

    Central bearing race bolt

40-60

4.0-6.0

29.0-43.0

Joint nut

18-28

1.8-2.8

13.5-20.0



Maintenance Materials Needed

Materials Recommended

SUZUKI

Products

Used

Parts

Lithium

lubricator

SUZUKI    lubricator A

（99000-25010）

 Oil  seal

Seal sub

SUZUKI        glue 1215

（99000-31110）

  Manual transaxles

Drain plug

Lubricator

SUZUKI    lubricator

（99000-25120）

Driven shaft cardan joint






-109-

SQR7080&7110 Maintenance & Service Manual

1

Special Instruction

I.   Carefully study Maintenance & Service Manual and Chery QQ Sedan Operation

Instruction before driving Chery sedan. Any improper handling and not completing
scheduled maintenance as specified may cause damage and invalidate your claim
right.

II.

Chery International has made technical maintenance rules at different stages for its
products, including first free maintenance after 5,000 km driving. As the rules are
critical for safe handling and keeping optimum driving status, they must be
observed.

III.  Only Chery Authorized Service Stations (CASSs) can carry out the maintenance

service during guarantee period and accept the application for warranty.

IV.   After 5,000KM driving, you can take your QQ to the nearest CASS with this manual

for first free maintenance service.

V.    Do not install unauthorized parts on Chery Sedan or refit the sedan,

otherwise claim right will invalidate.

VI.   For various configuration and optional parts reasons, it is possible

that some items listed in Service & maintenance manual do not apply
to your car.

SQR7080&7110 Maintenance & Service Manual

2

CONTENT

VEHICLE  INFORMATION----------------------------3

TO  USER-------------------------------------------------4

WHY SUPPLY MAINTENANCE & SERVICE

MANUAL  ----------------------------------------------5

VEHICLE DELIVERY CHECKING ----------------6

SCHEDULED TECHNICAL MAINTENANCE

---------11

SPECIFIED OIL BY CHERY AND ITS SUBSTITUE

---23

SAFE PROTECTION SYSTEM-------------------24

GUARANTEE  RECORD----------------------------25
CONCLUSION  ----------------------------------------33

Registered vehicle number

Vehicle Owner            CASS Responsible

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

——

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

Name

Company

        CASS Name

-------------------------       ------------------------
Address
-------------------------       -------------------------
Telephone                              Telephone
-------------------------       -------------------------
E-MAIL
