SQR7080  Maintenance Manual           372 Engine Mechanical System



27

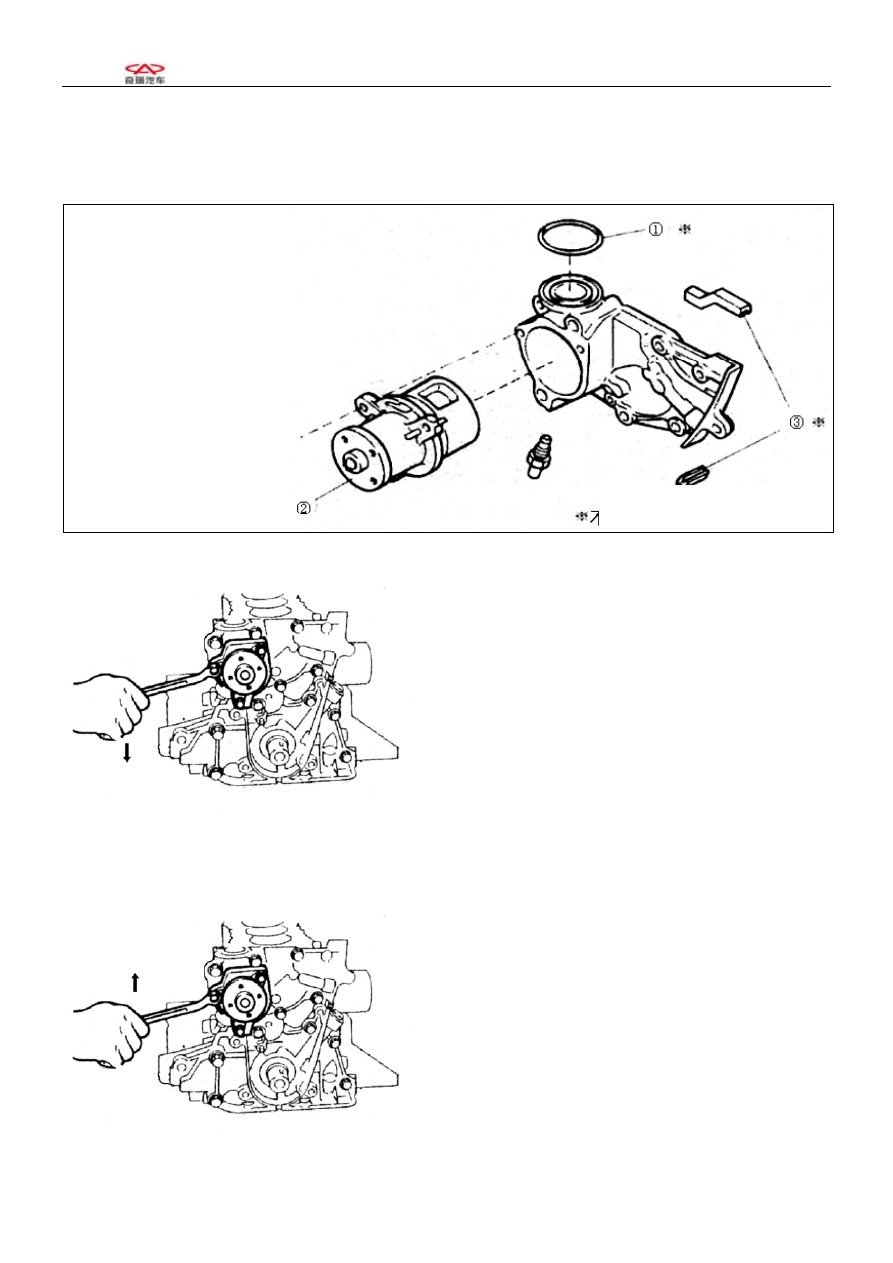

5. Water pump
5-1 Configuration diagram (the dismounting and assembling of the cylinder body should be done in the
following procedures)







1“O”ring
2  Oil pump body
3  Weather seal

Non-reusable part







5-2 Dismounting
1. Dismounting and removal of O-shaped ring
 [Attention] These rings are not reusable.
2. Removing the three bolts and dismount the water
pump principal body.
3 Removal of the dustproof sealing stripe
5-3 Clearing
1 .Clearing of the mating surface of the water pump
5-4 Routine checks
1 .Check to see if there are any deformation or
damages
2.Use a hand wrench to see if the turning is OK, and if
it is smoothly lubricated?

5-5 Installation
1    Install the dustproof sealing stripes
2    Install the water pump principal body

Tighten with a torque of 25±1.5N.m

2  Install the new O-shaped rings




SQR7080  Maintenance Manual           372 Engine Mechanical System

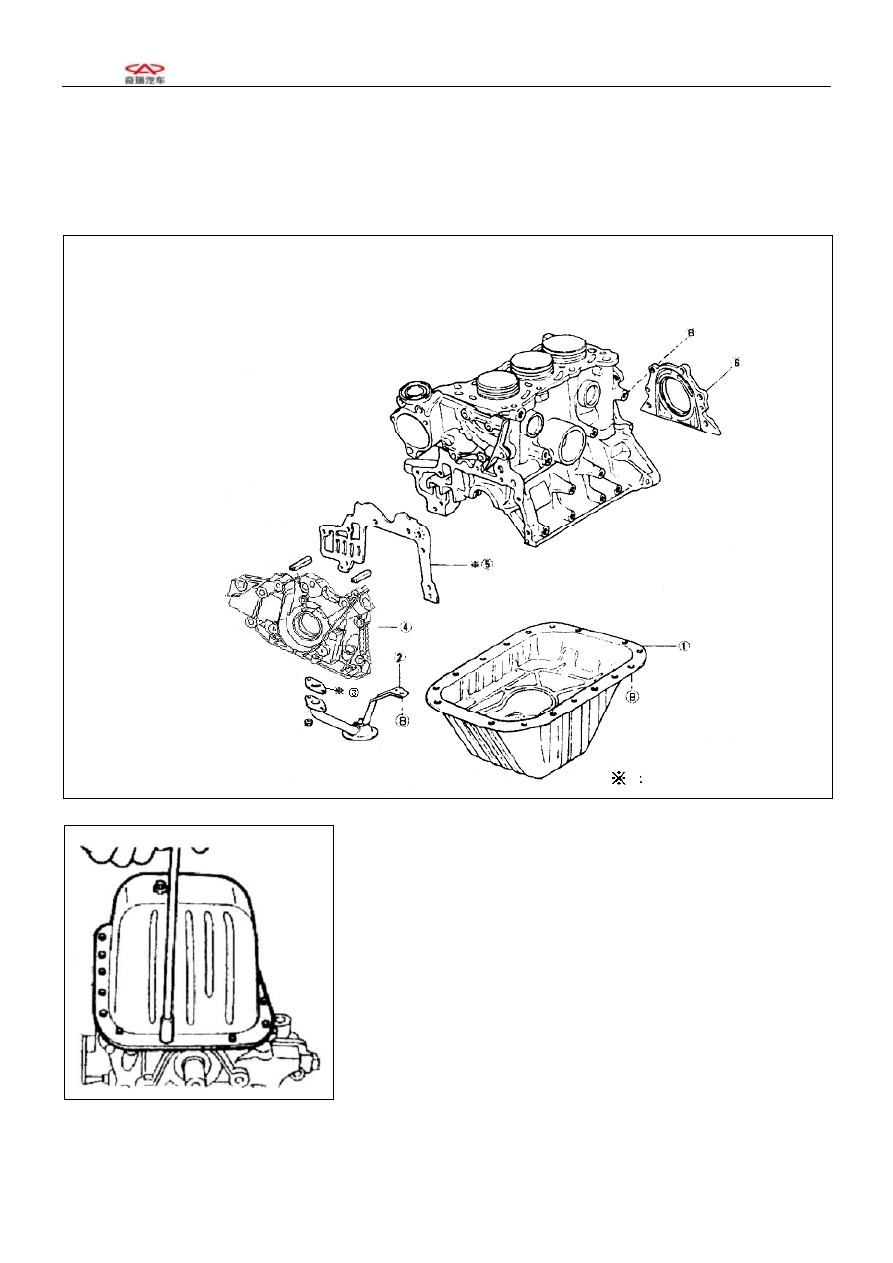

6. Oil pump
6-1 Configuration diagram (The dismounting and installation of the lubricating oil pump should be
carried out according to the following procedures).




①

Oil pan，tighten bolt：8±2 N.m

②

Oil strainer

③

Oil collector gaeket

④

Oil pump

⑤

Oil pump gasket

⑥

Rear oil seal bracket



Non-reusable part



6-2 Dismounting

1 The engine being turned upside down on the

dismounting frame,take off the bolts.




28

               SQR7080 维修手册                                                                                          372 发动机机械部分







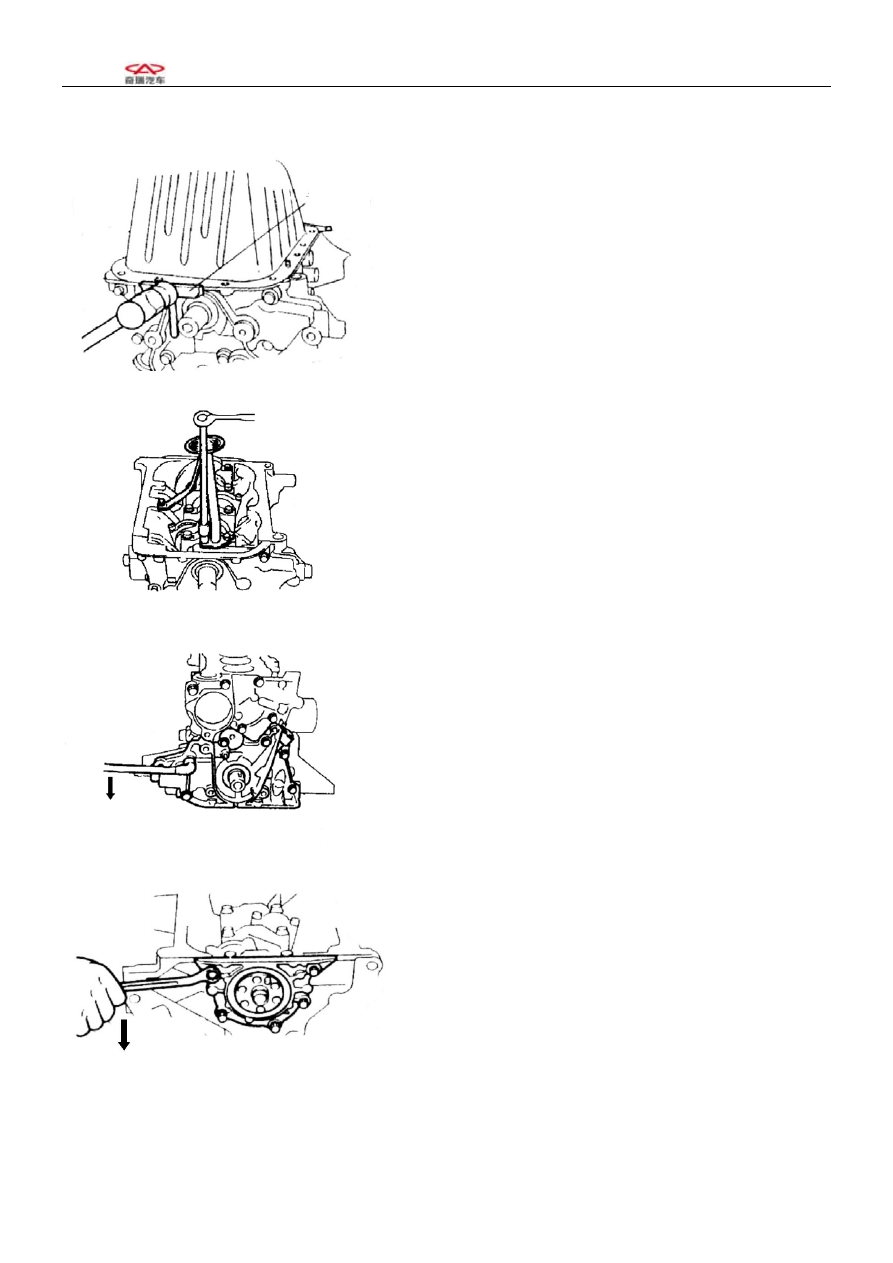

2  Use SST to remove the oil pan from the

cylinder body.

[Attention] Do not make the oil pan flange section to
be deformed.





3    Remove the oil collecting filter and its flange
    [Attention] The filter flange is not reusable.





4      Dismount the oil pump assembly and oil pump

cushion







5    Dismounting of oil seal stand


SST

29

               SQR7080 维修手册                                                                                          372 发动机机械部分






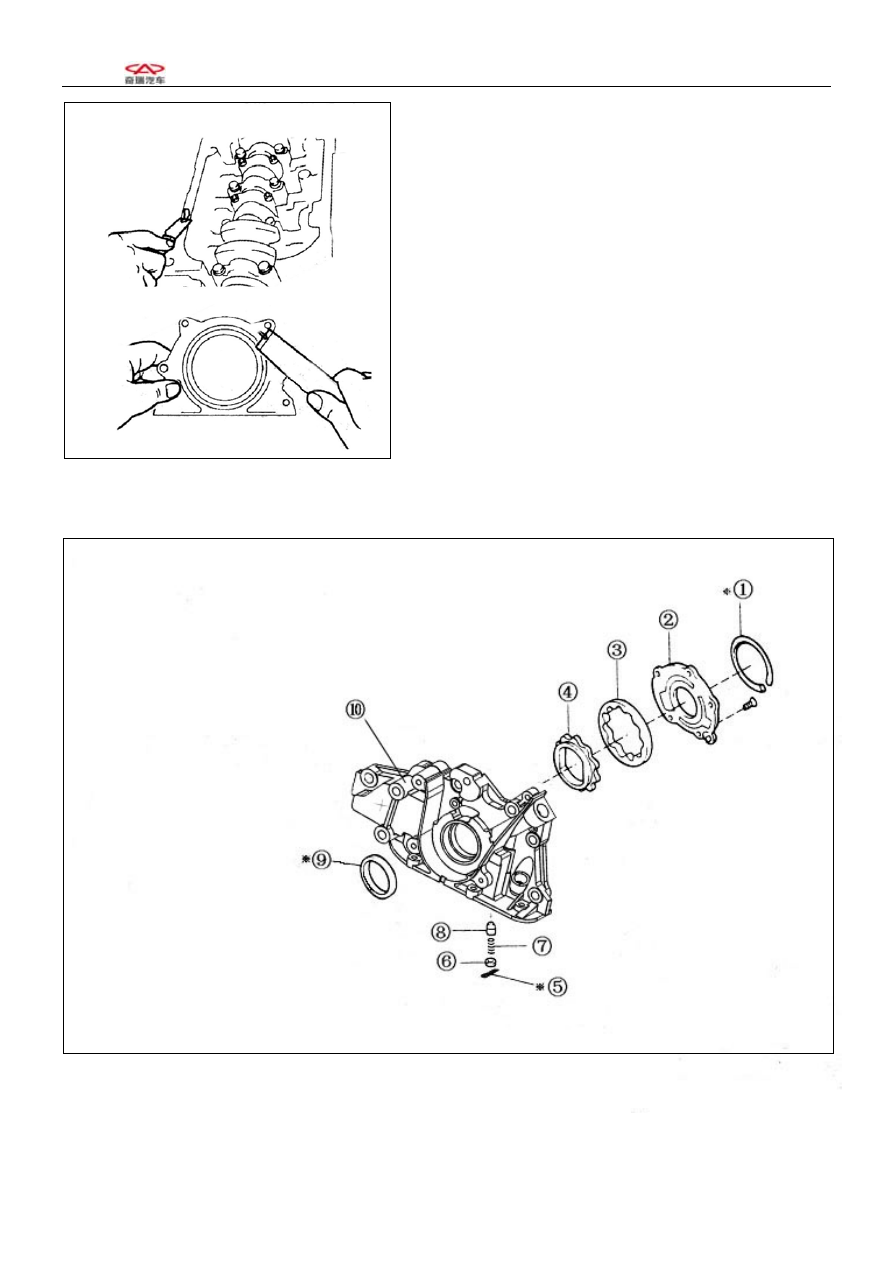

6-3 Clearing
1.For the mating surfaces of the oil bottom case, oil
pump and oil seal stands,
2. For the mating surfaces of the rear oil seal stand and
oil pump
scraper and chipping chisel or some other tools may be
used to clear the used ones.
[Attention] Do not drop the residues into the cylinder
body.

6-4    Disintegration and assembling of oil pump
6-4-1 Configuration diagram








1  Weather seal
2    Oil pump cover plate
3  Driven rotor
4  Drive  rotor
5  Split pin
6    Relief valve spring seat
7  Relief valve spring
8  Relief valve
9    Crankshaft front oil sealing

10  Oil pump body

※：

Non-reusable part



30
