Chery    QQ    Service Manual                                                                    Body System

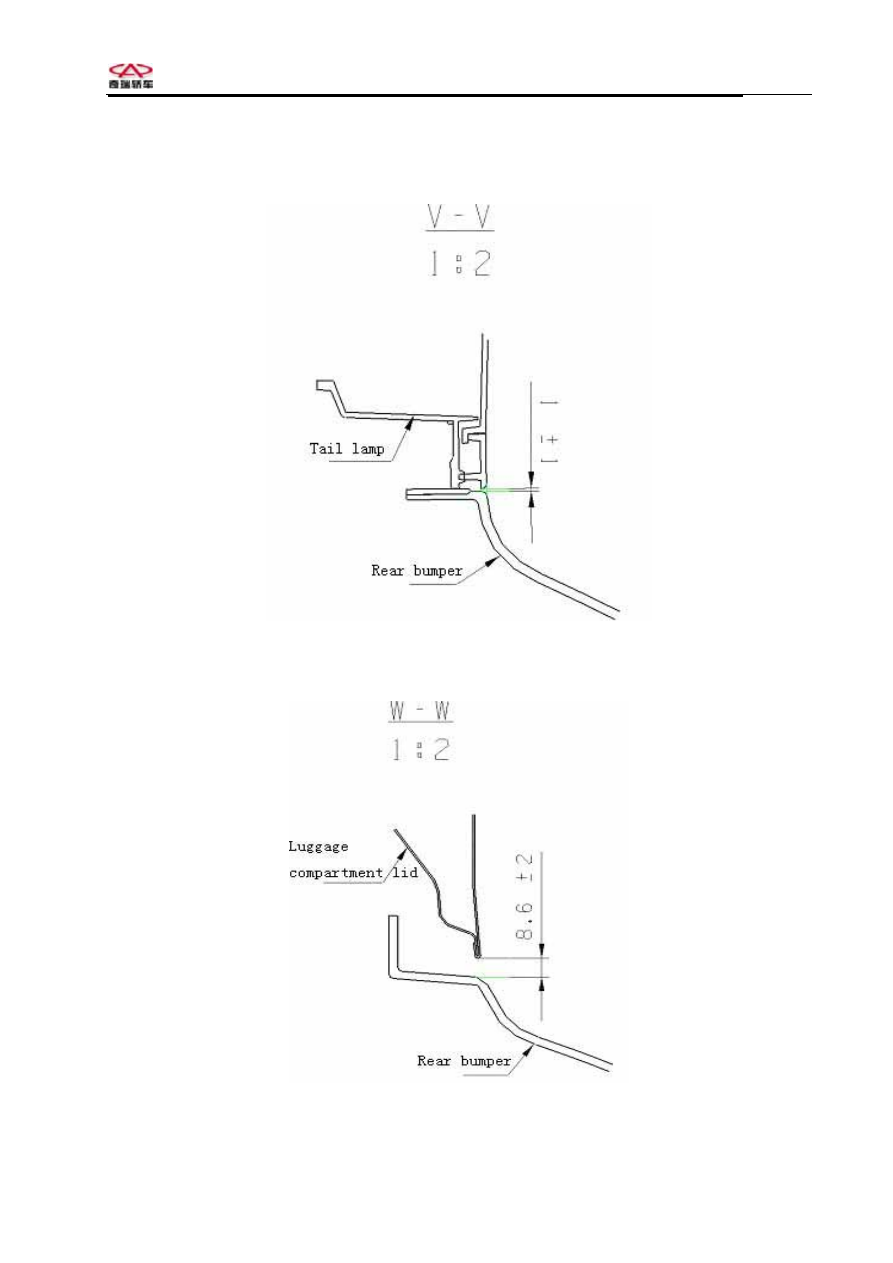

V-V The cross section, request of clearance and plane





W-W The cross section, request of clearance and plane






- 36-







Chery    QQ    Service Manual                                                                    Body System

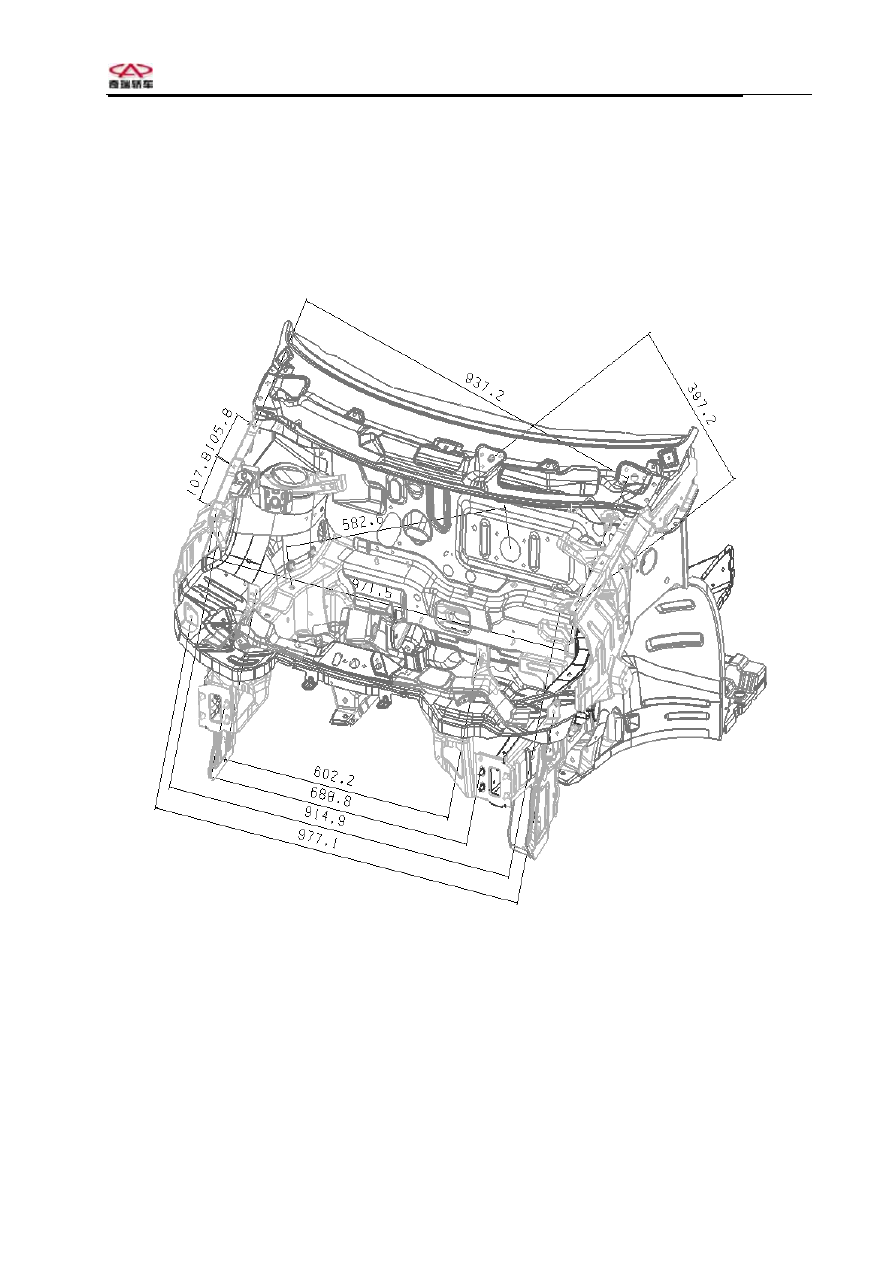

2.5.2.4 Dimension of engine room












- 37-







Chery    QQ    Service Manual                                                                    Body System




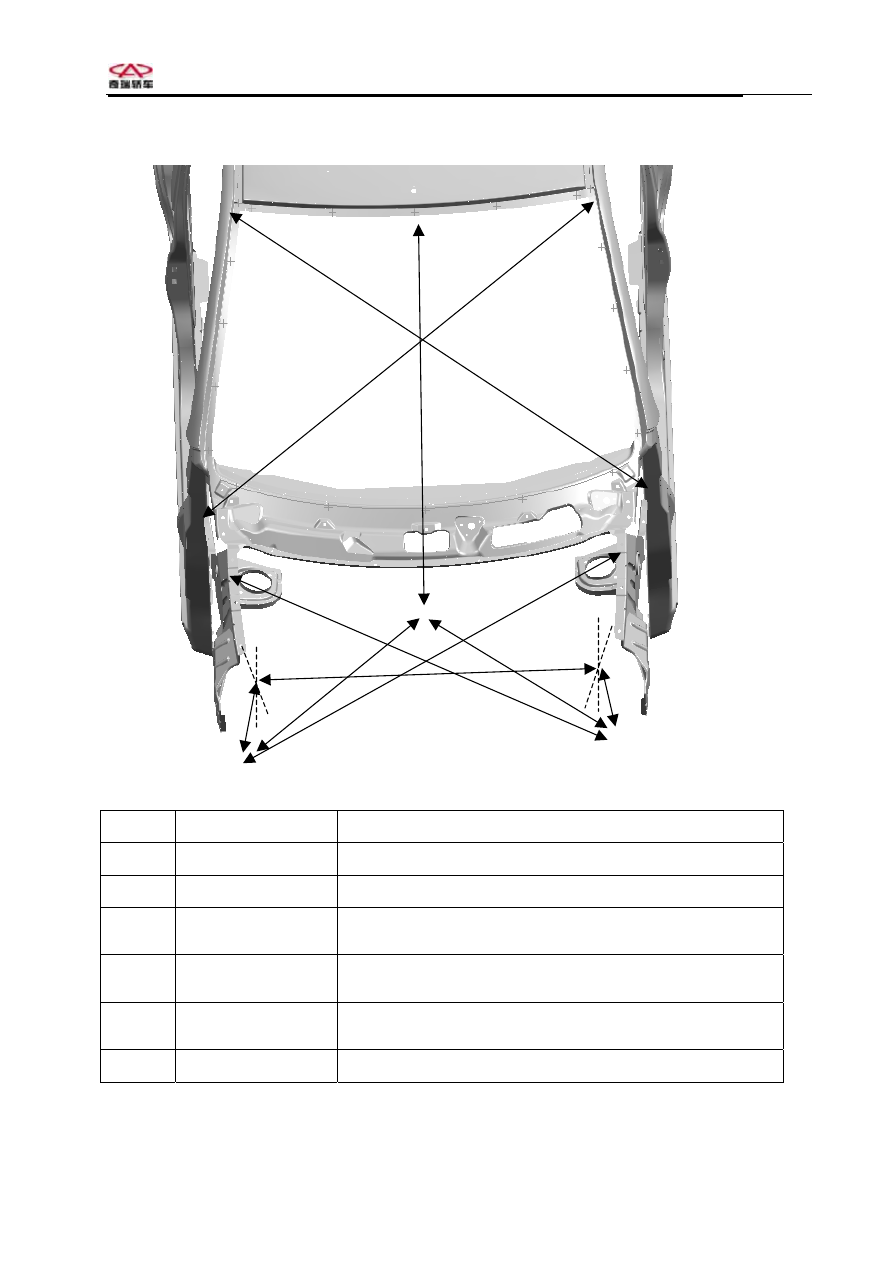

2.5.2.5 Distance dimension between two points of every part



A

J

L

F

I

H

E

D

G

B

C



K


No. Control

dimension

Remark

AC

1326.7±1.5

Front windshield diagonal

EF

908.8±1

Front windshield YO position distance

KI

345.7±1

Center distance between front shock absorber and front
wheel housing outside panel front end port

KF

622.2±1

Center distance of front cover upper member body center
pit and front wheel housing outside panel front end port

KH

1206.0±1.5

Diagonal distance from front cover upper member body
port and front wheel housing outside panel front end port

IJ

971.6±1.5

Center distance of Left/Right front shock absorber port

Note：  AC=BD            KI=LJ            KF=LF              DH=LG

- 38-







Chery    QQ    Service Manual                                                                    Body System







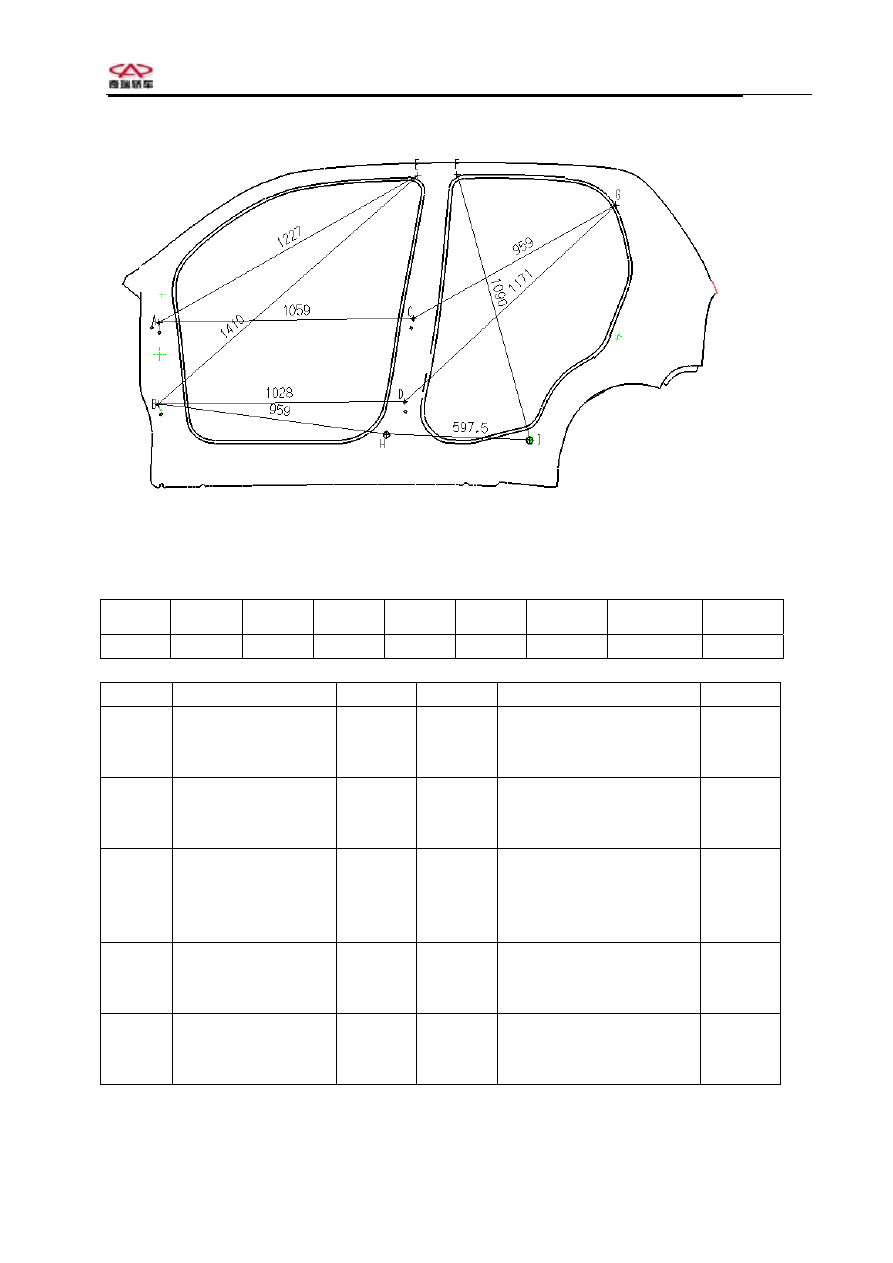

Dimension of vehicle body , Left/Right    Remark: Capital letter English alphabet symbol shows
right side of vehicle body , small letter shows left side of vehicle body (See from rear part of
vehicle)

A-a B-b C-c D-d E-e  F-f  G-g  H-h

I-i

1323 1365 1356 1356 1049 1045 1137  1368

1363


Symbol Name

Aperture Symbol  Name

Aperture

Aa

Front door upper
hinge mounting
hole

11

Ff

Sidewall rear door hinge
front upper angular point



Bb

Front door lower
hinge mounting
hole

11

Gf

Sidewall rear door hinge
rear upper angular point



Cc

Rear door upper
hinge mounting
hole

11 Hh

Front door supporting
point

23

Dd

Rear door lower
hinge mounting
hole

11

Ii

Rear door supporting
point

28

Ee

Sidewall front door
slide upper angular
point
