Chery    QQ    Service Manual                                                                    Body System

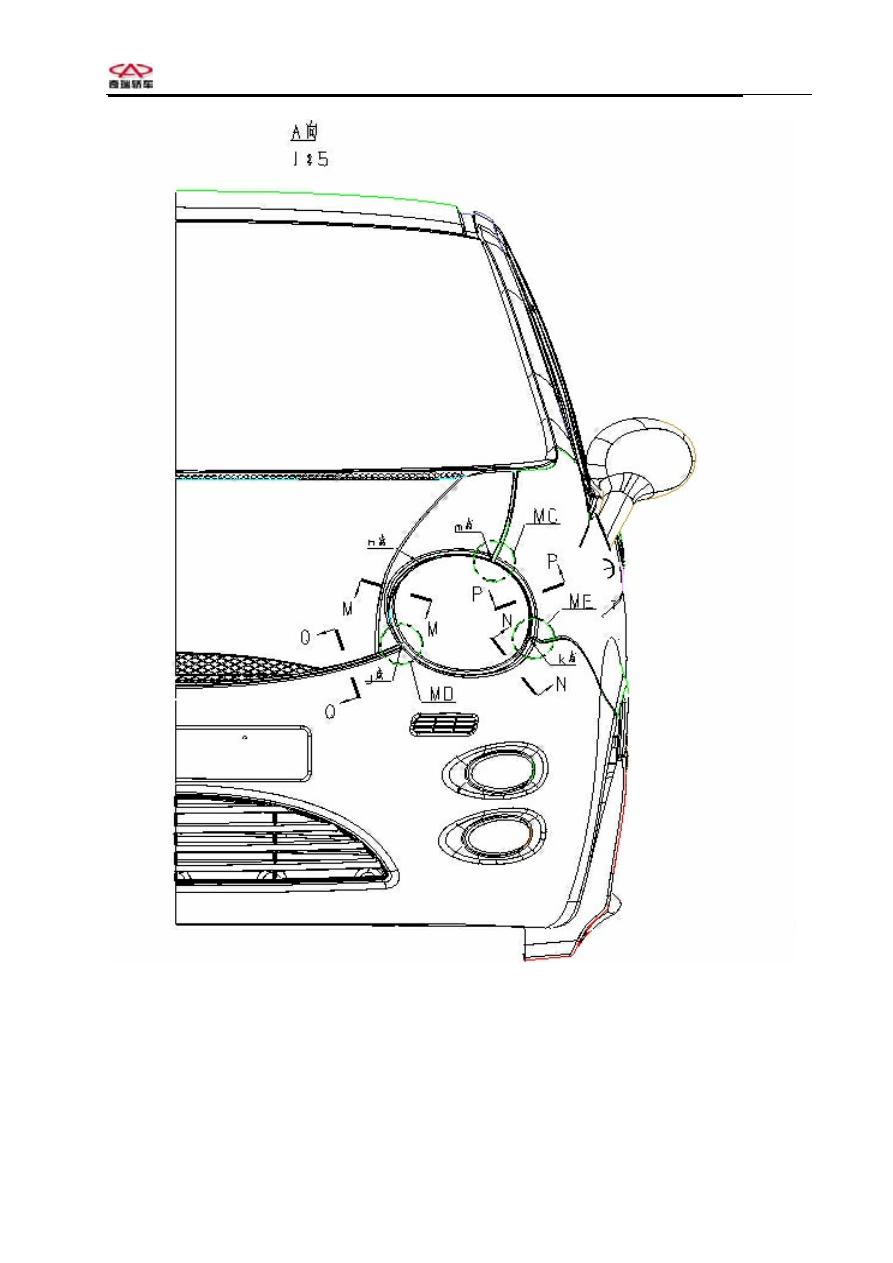

In the figure: From point m to point n, clearance is transitive evenly from 3.6 to 5.8,from point j
to point k, the clearance is transitive evenly from 5.8 to 3.6.




- 28-







Chery    QQ    Service Manual                                                                    Body System

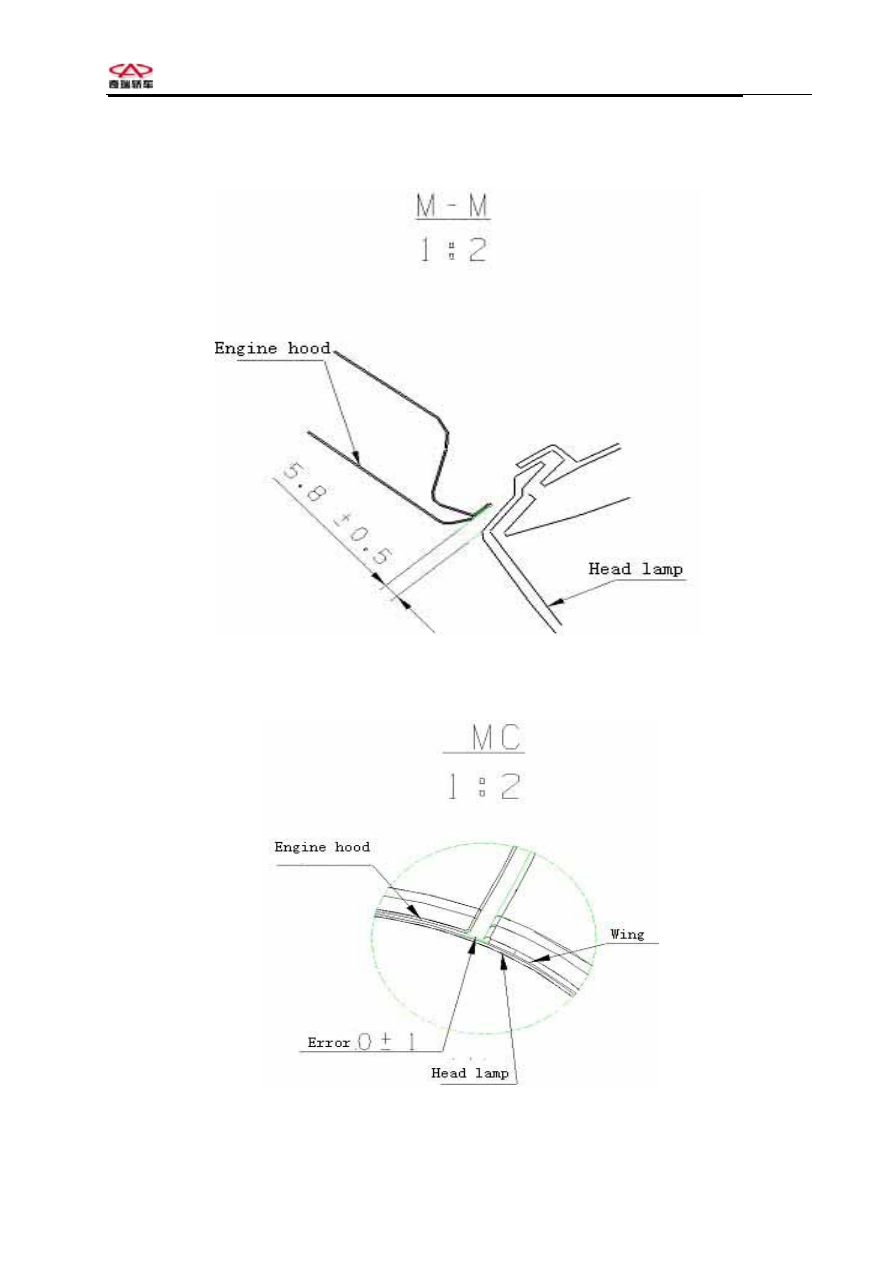

M-M The cross section, request of clearance and plane




MC The cross section enlarging figure, request of plane 0±1






- 29-







Chery    QQ    Service Manual                                                                    Body System

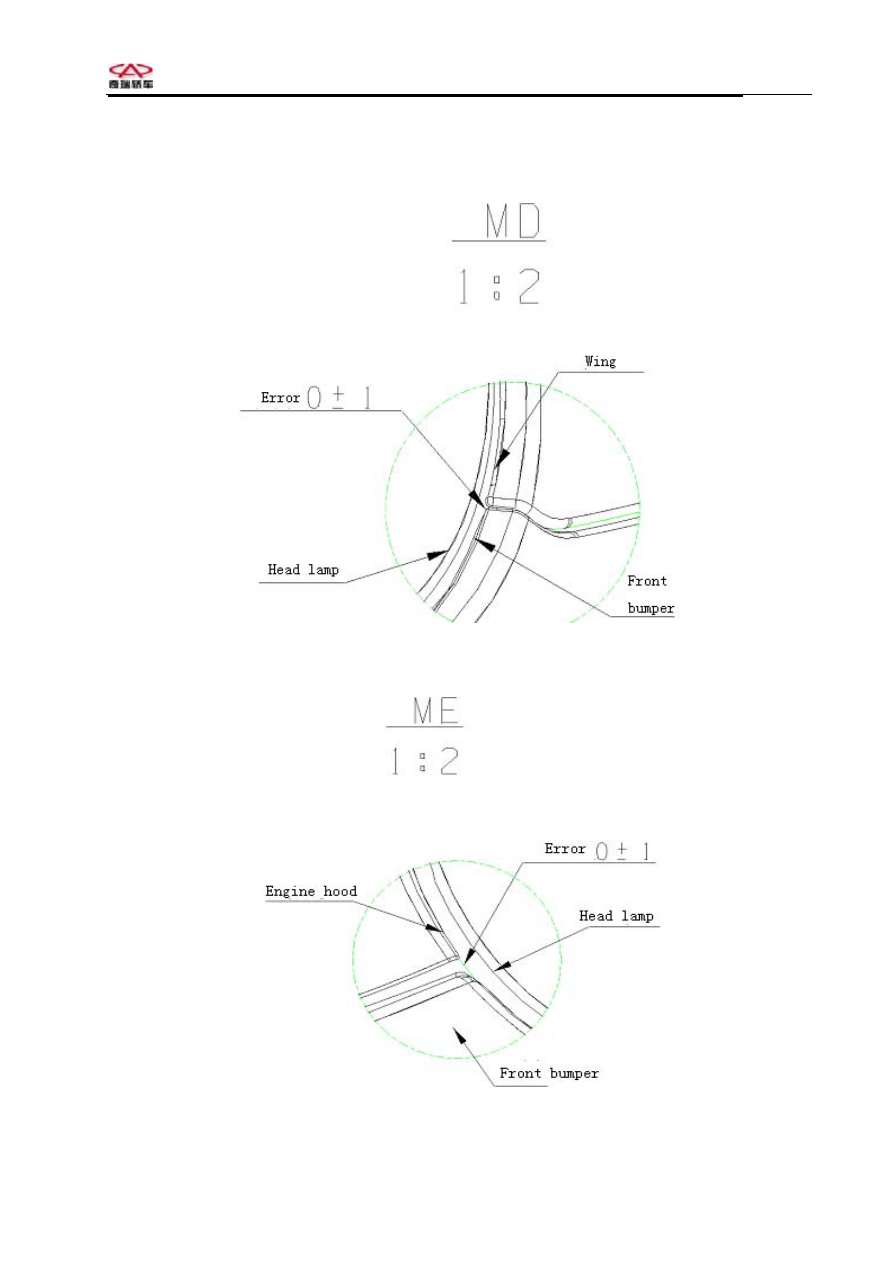

MD The cross section enlarging figure, request of plane is 0±1





ME The cross section enlarging figure, request of plane is 0±1






- 30-







Chery    QQ    Service Manual                                                                    Body System

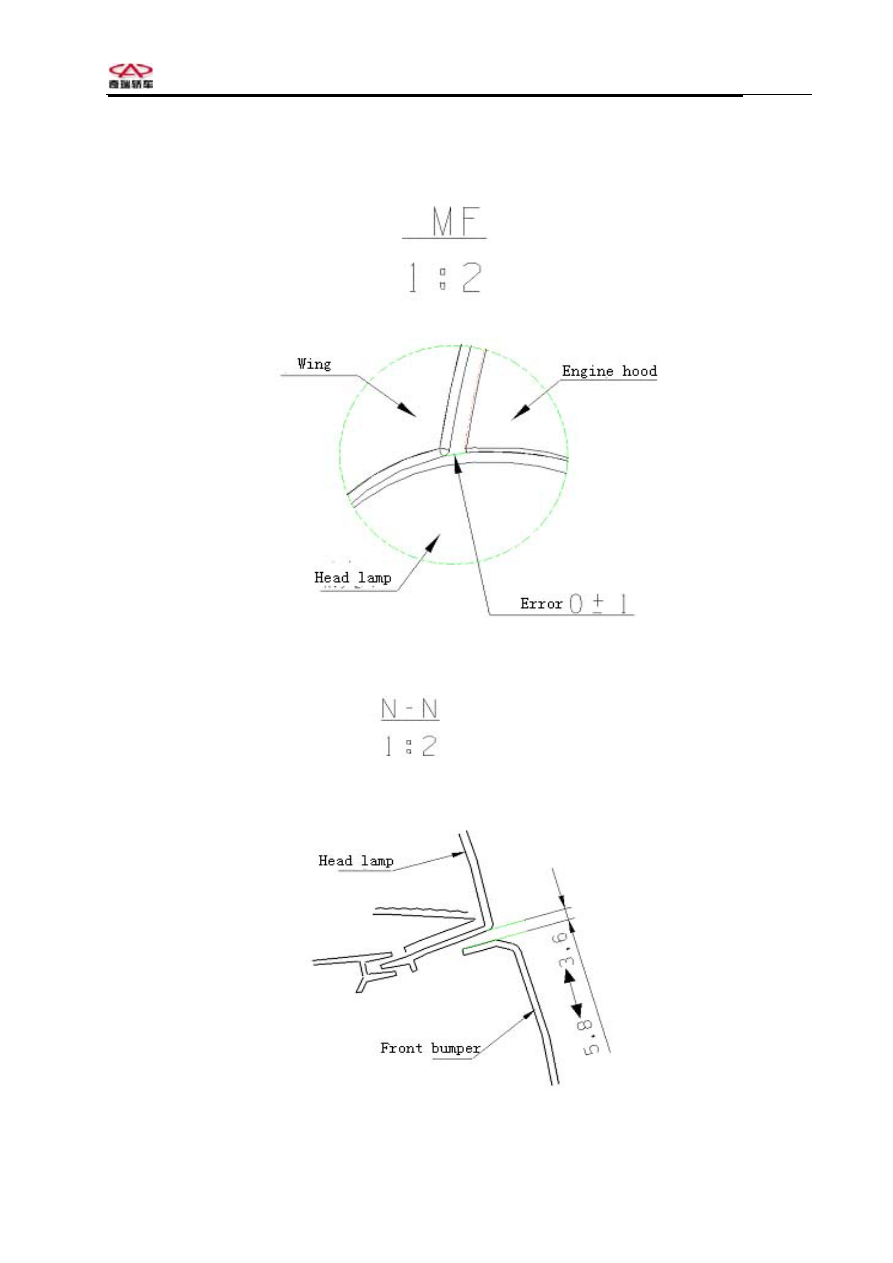

MF The cross section enlarging figure, request of plane is 0±1





N-N The cross section, request of clearance and plane






- 31-
