    Chery QQ Service Manual

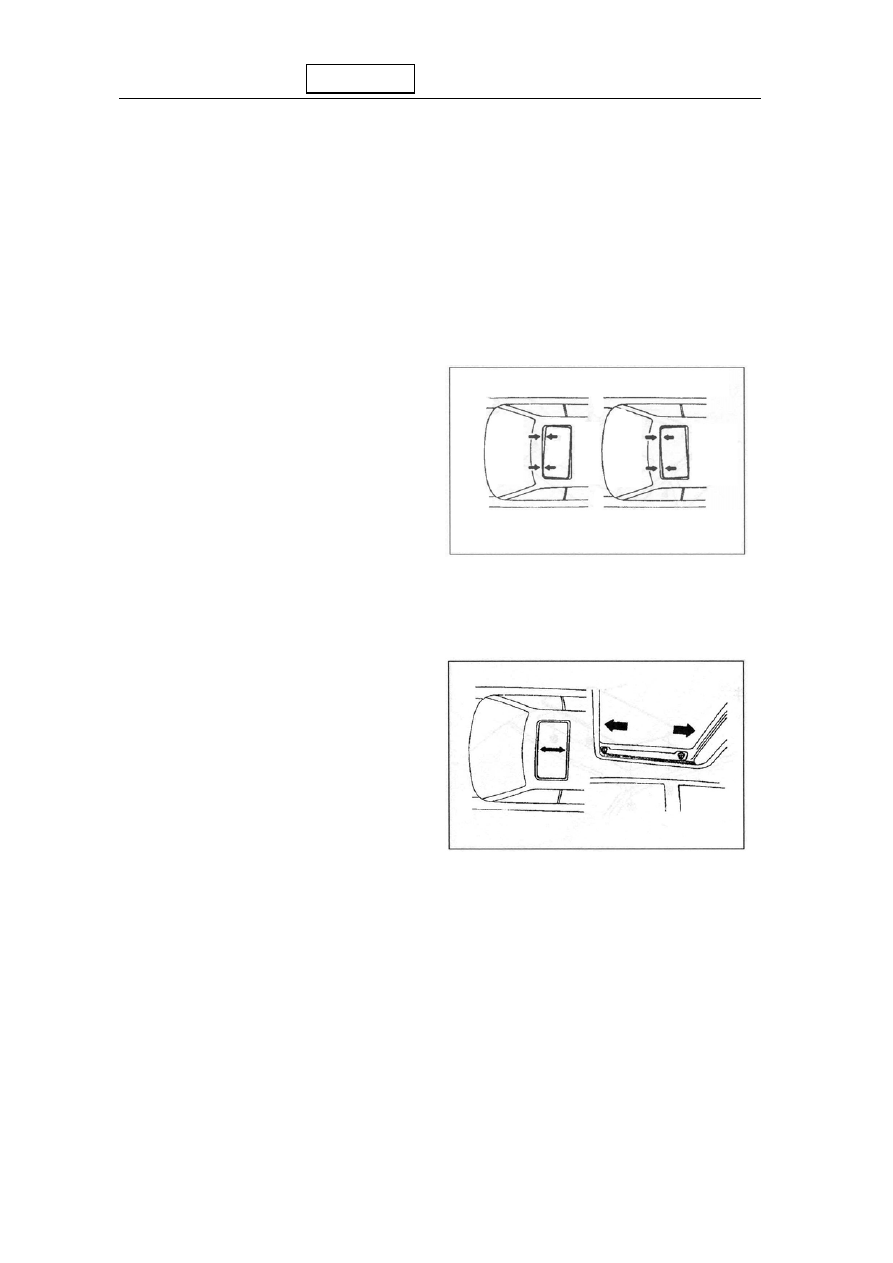

4. Left and right side adjustment

Loosen the fixing nuts at rear bearers on

sun-roof and shift sun-roof left and

right to adjust









5. Clearance adjustment

（clearance between left side and right

side）











Loosen fixing nuts to readjust sun-roof to

correct position









When assembling, the sequence is the reverse procedure of removal.





















    Chery QQ Service Manual

Chapter 17  Bumper



Remove front bumper

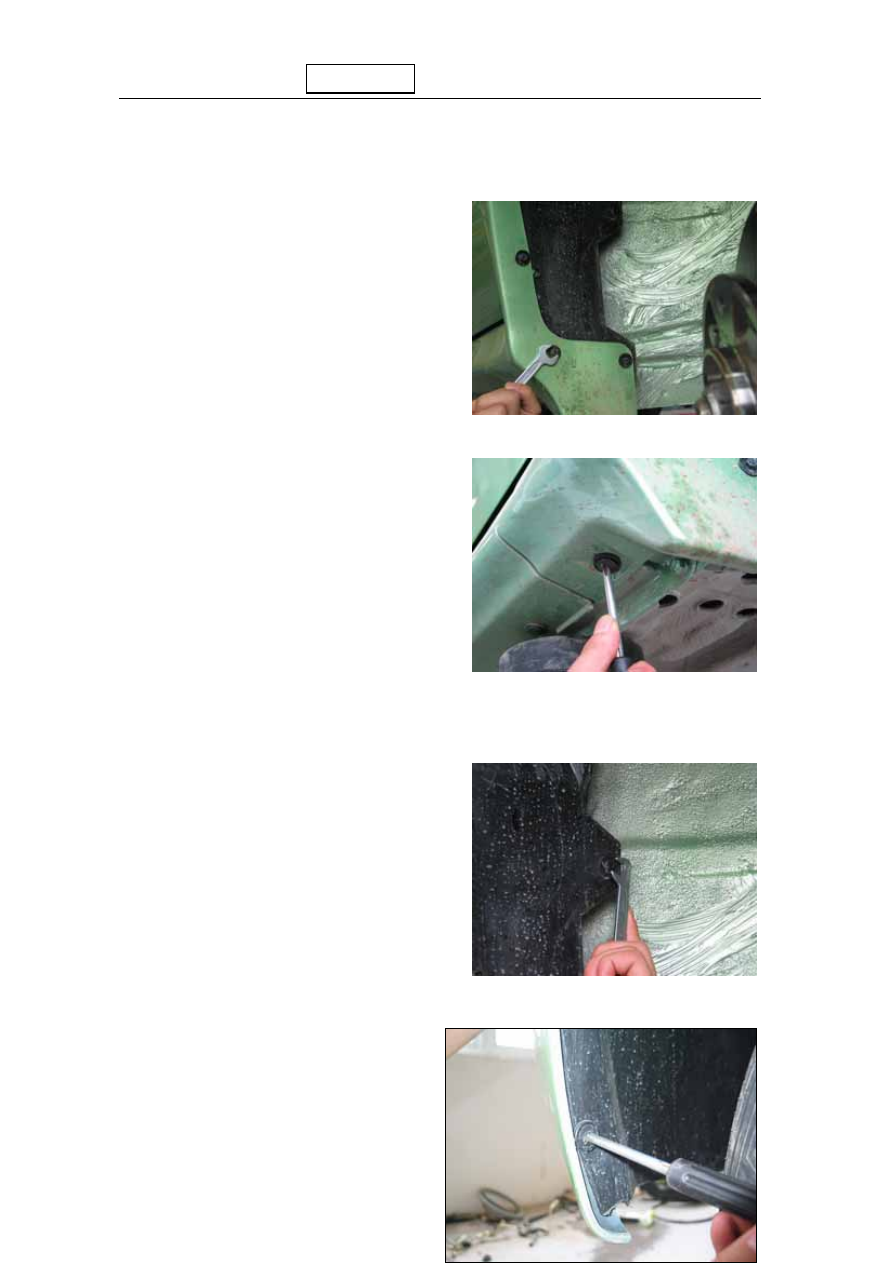

1. Remove baffle plates

（1）Loosen three fixing screws











（2）Loosen fixing screws and

remove fasteners with unfastening

tool













2. Remove splashers

  （front-left and right）

（ 1 ） Loosen three fixinging screws on

splasher











（2）Detach three fasteners with



    Chery QQ Service Manual

screw driver and unfastening

tool, and remove

cover sheet













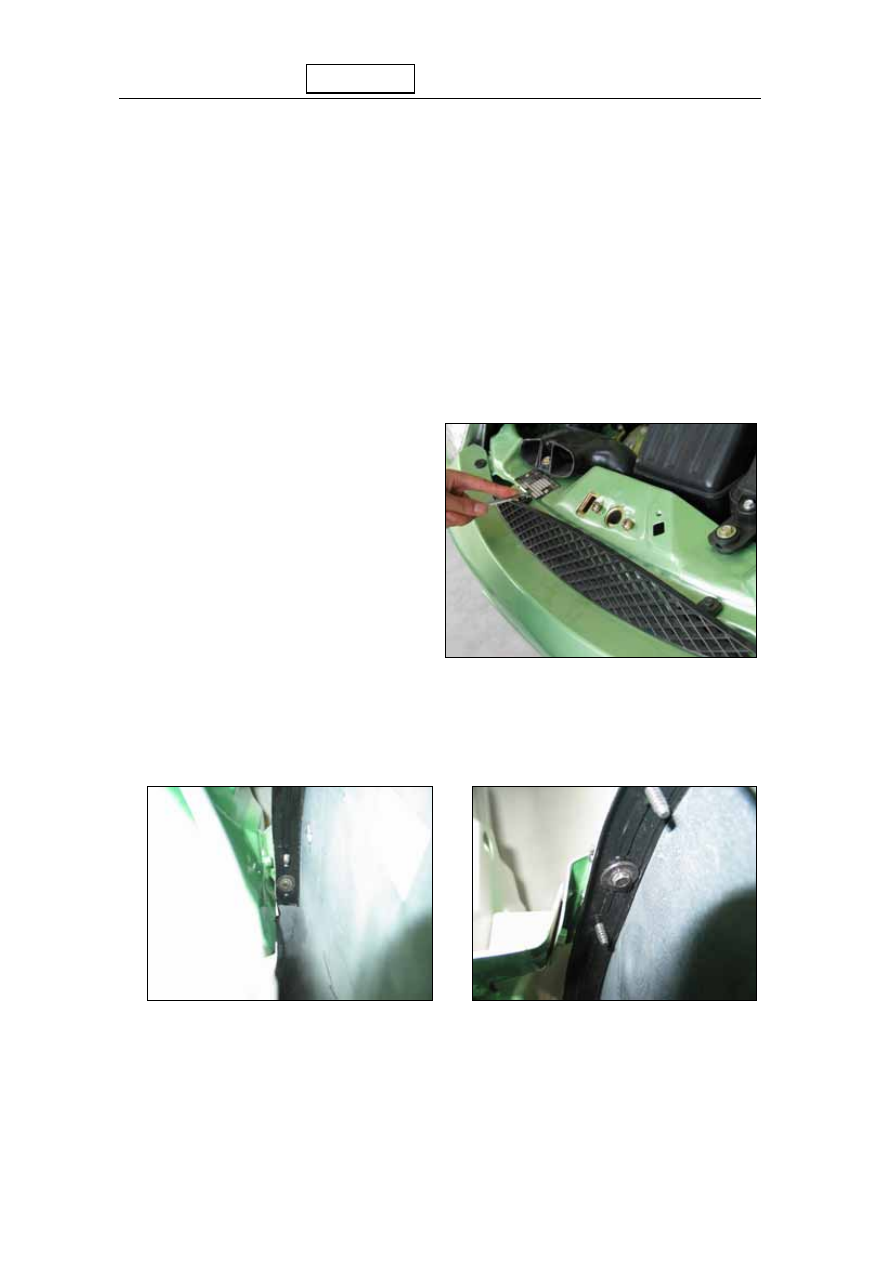

3. Remove front grid

Loosen two fixing screws and

 remove grid









4. Remove front bumper

（1）Loosen four fixing screws on

inner left and right sides











    Chery QQ Service Manual





（2）Detach seven fasteners with

    screw driver and unfastening tool











（3）Loosen the front screws beside the

          wires of fog lamp and turn signal

          light













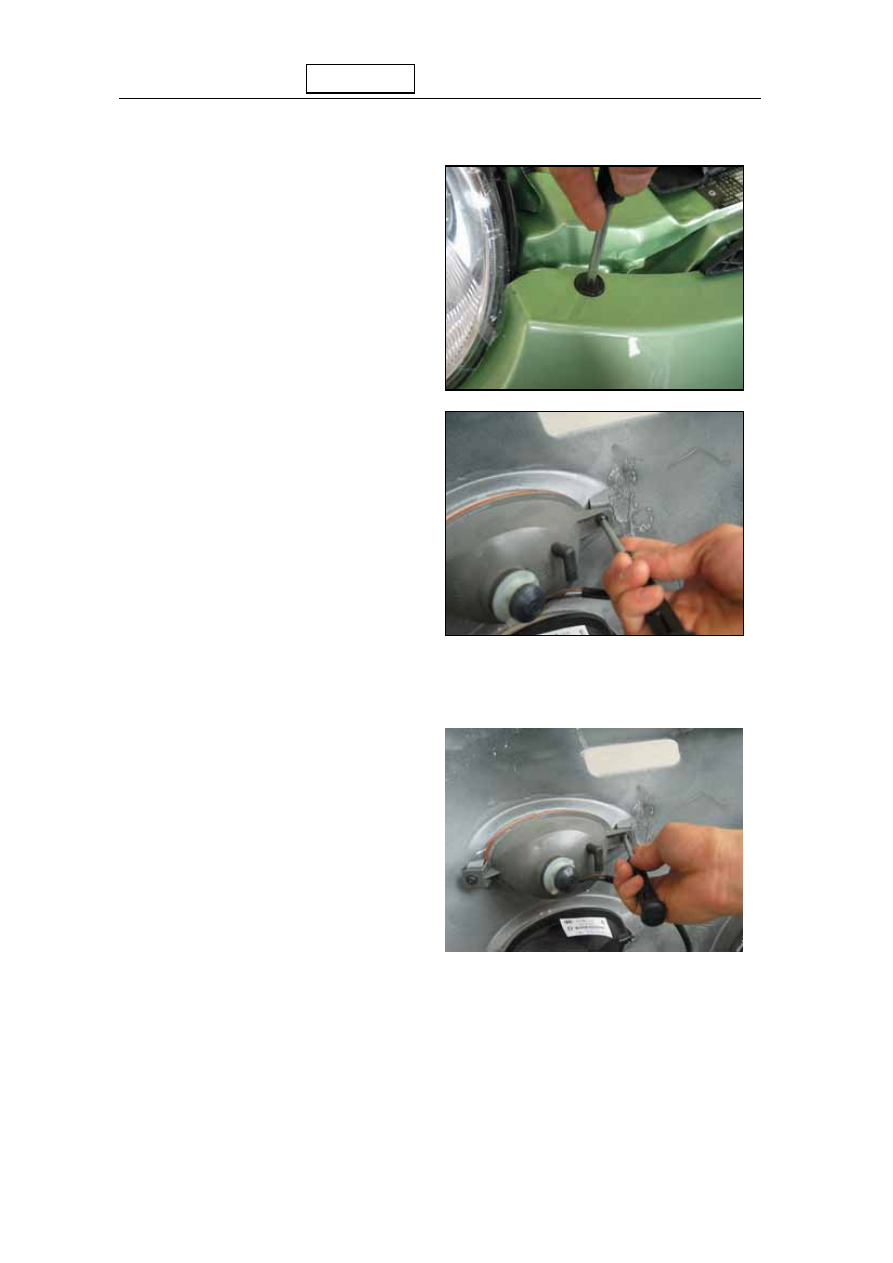

5. Remove front fog light

Loosen two screws and

remove front fog light



6. Remove front turn signal light

Loosen fixing screws and remove

front turn signal light
