Chery S11 / Chery QQ. Manual - part 89



Chery QQ Service Manual





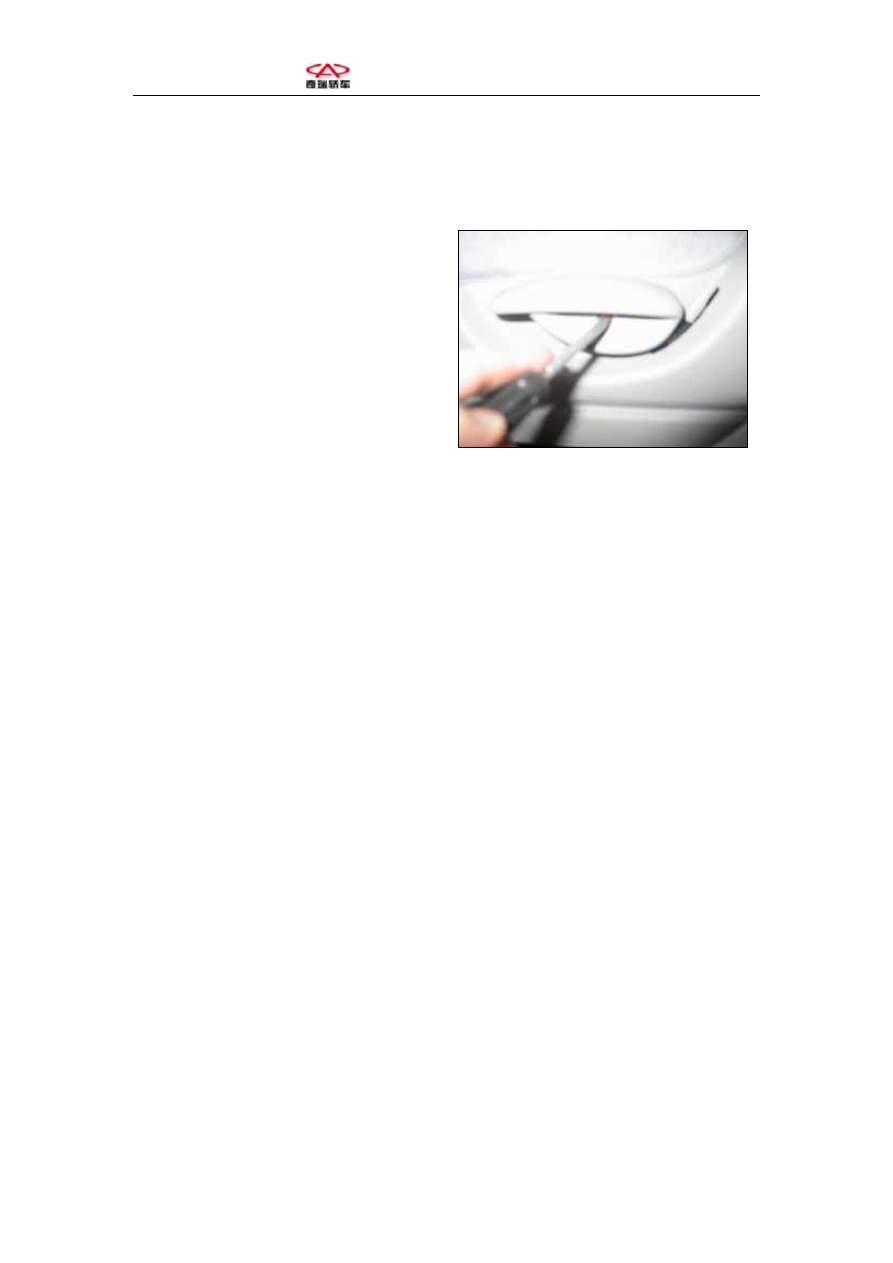

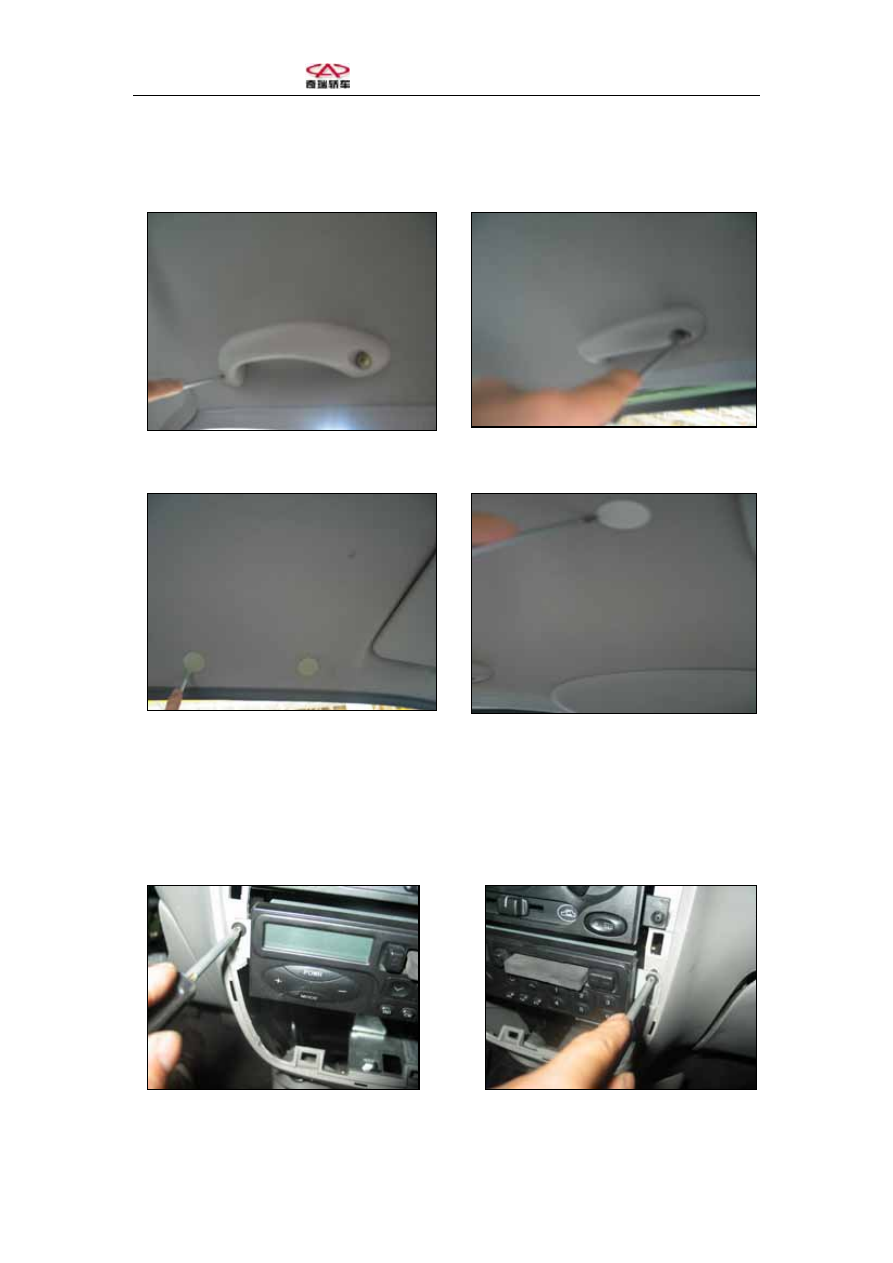

（3）Loosen 3 handles on the roof panel.



（4）Open the 8 latch hooks with flat screwdriver.



（5）From top to bottom, pull out the roof panel assembly.



Removal of radio



（1）  Loosen 2 set bolts of the radio.















（2）Take out the radio, disconnect the plug.

- 243 -





Chery QQ Service Manual





Removal of A/C panel

（1）Loosen 4 set screws.



（2）Open fixed clip    (make the mark) and loosen the cable on air outlet.

（3）Loosen plug, pull out the A/C panel





Removal of back light switch

Open the switch with a small Screwdriver.













Removal of fog lamp switch

Open the switch with a small Flat

screwdriver.











- 244 -





Chery QQ Service Manual













Removal of antenna

（1）Remove set bolts of antenna.











（2）Remove the launching wire of the antenna.



The installation sequence is in the reverse direction of the dismantle sequence.

















































- 245 -





Chery QQ Service Manual











Chapter 13 Outside Accessories





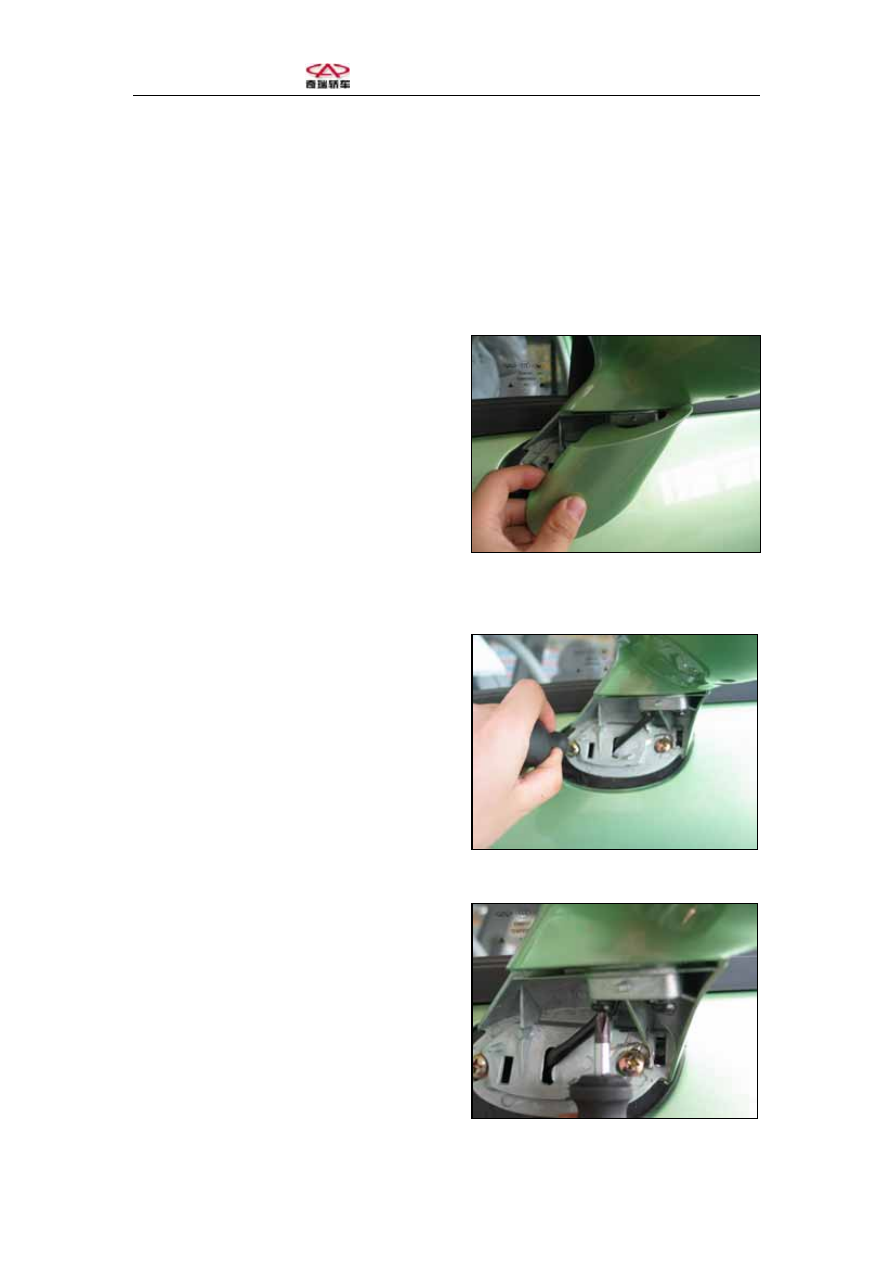

Removal of rearview mirror

（1）Remove plastic protective Cover of the

rearview mirror.













（2）Remove 2 set screws of the outside

rearview mirror.













（ 3 ） Remove 3 set screws of rearview

mirror plastic parts.









- 246 -
