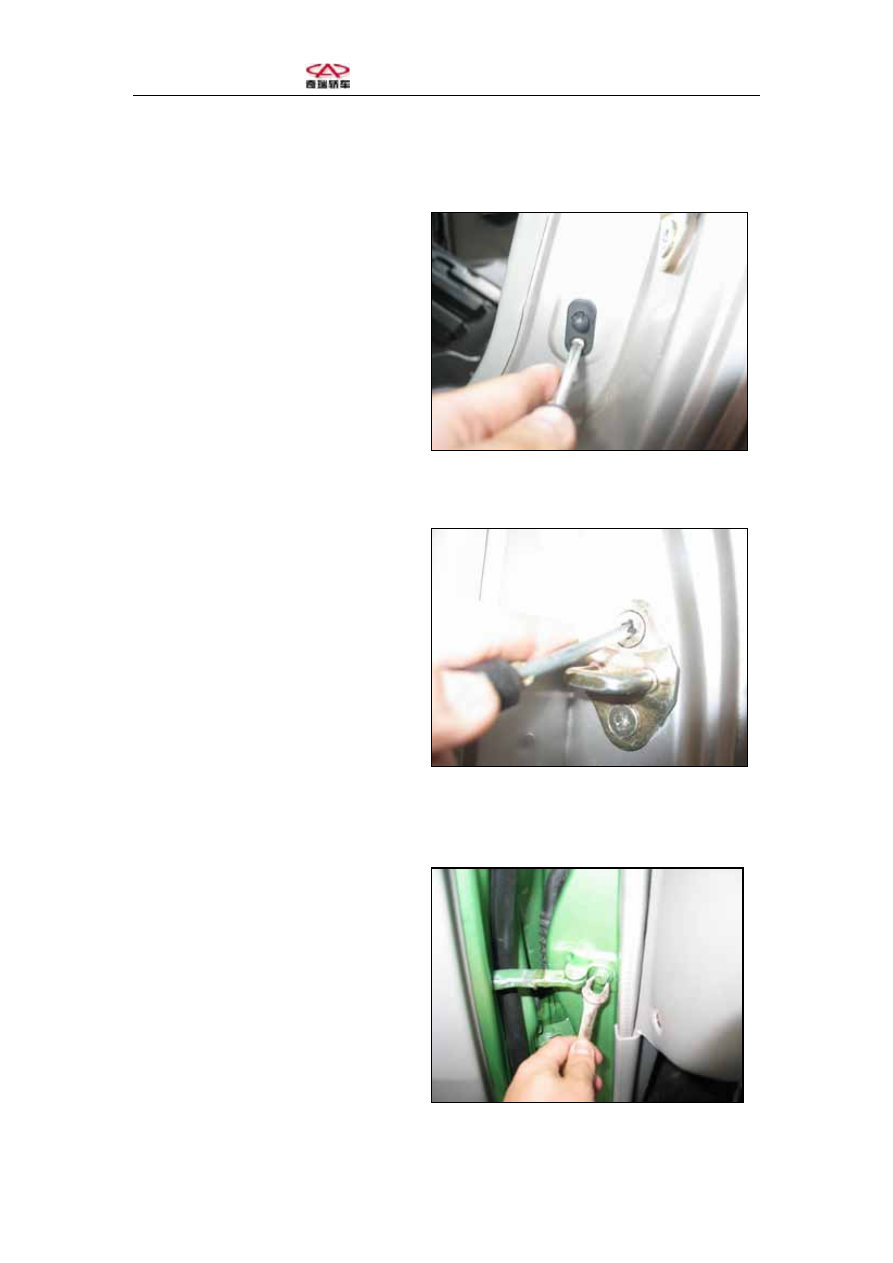

  Removal of front door switch

（1）Remove set bolts of front door

switch with Cross screwdriver.









（2）Take the door switch assembly out.



Removal of front door locks

institution

（1）Remove 2 set bolts on the lock

buckle with cross screwdriver.









（2）Take the lock buckle assembly out.



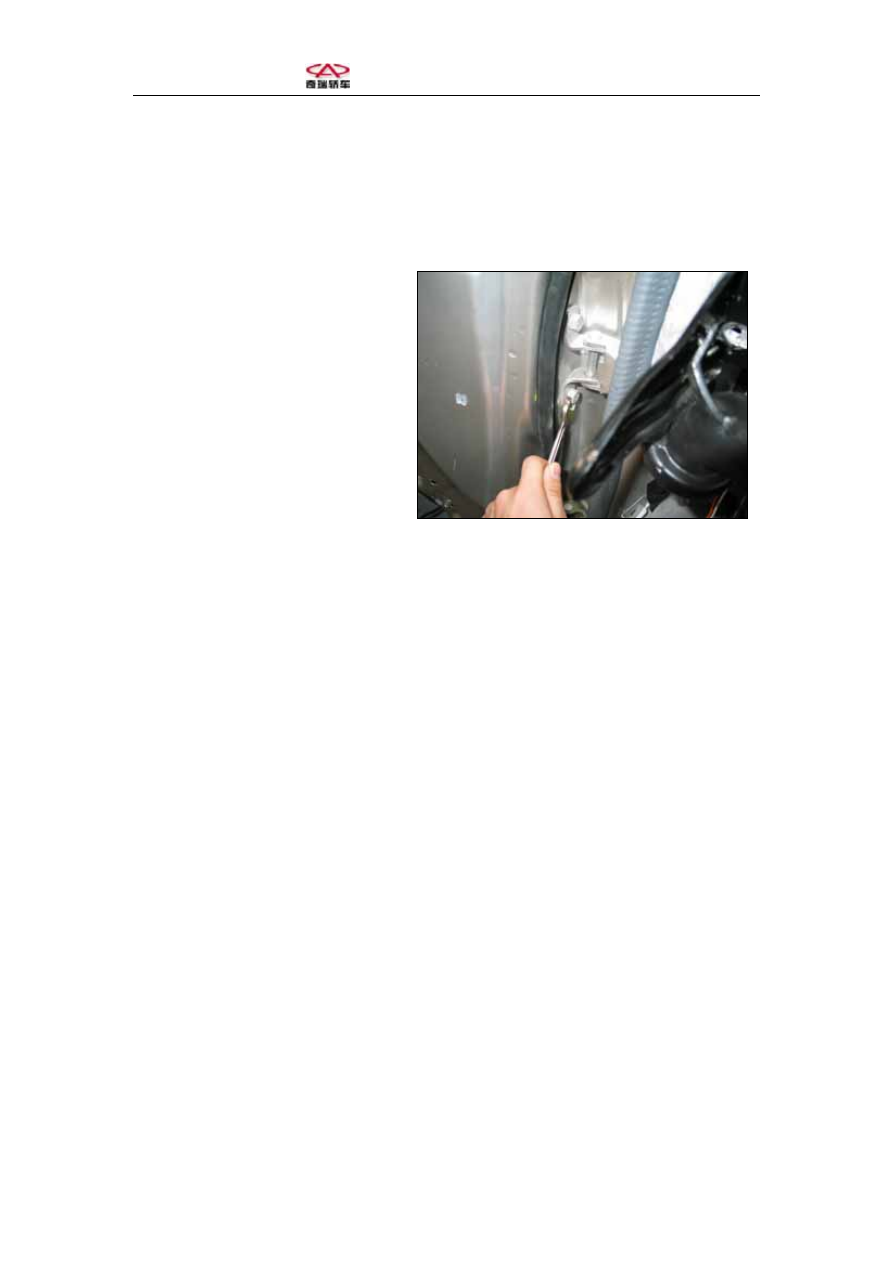

Removal of door check strap and set

bolts of front door

（1）Remove Bolts on door check

strap and vehicle body







- 235 -





Chery QQ Service Manual





（2）Take door check strap out.







（3）Remove front door set bolts















Adjustment of front door

1. Adjust front door frontward, backwards and vertically

  Loosen the hinge bolts of body side with special tools and adjust the door.

2. Adjust the front door along left/right and vertical direction.

  Loosen the hinge bolts of door side with SST and adjust the door.

3. Adjust front door lock hole

  Hint: Wrap the tip of screwdriver with adhesive tape before use.

（1）Check if the door closes tightly; Check to see if the adjustment of connecting rod

of door lock is right or not.

（2）Remove the cover of lock hole.

（3）Loosen the bolts and tap the hole with hammer to adjust the position of the hole,

and then tighten the bolts.

（4）Install the bolt cover.



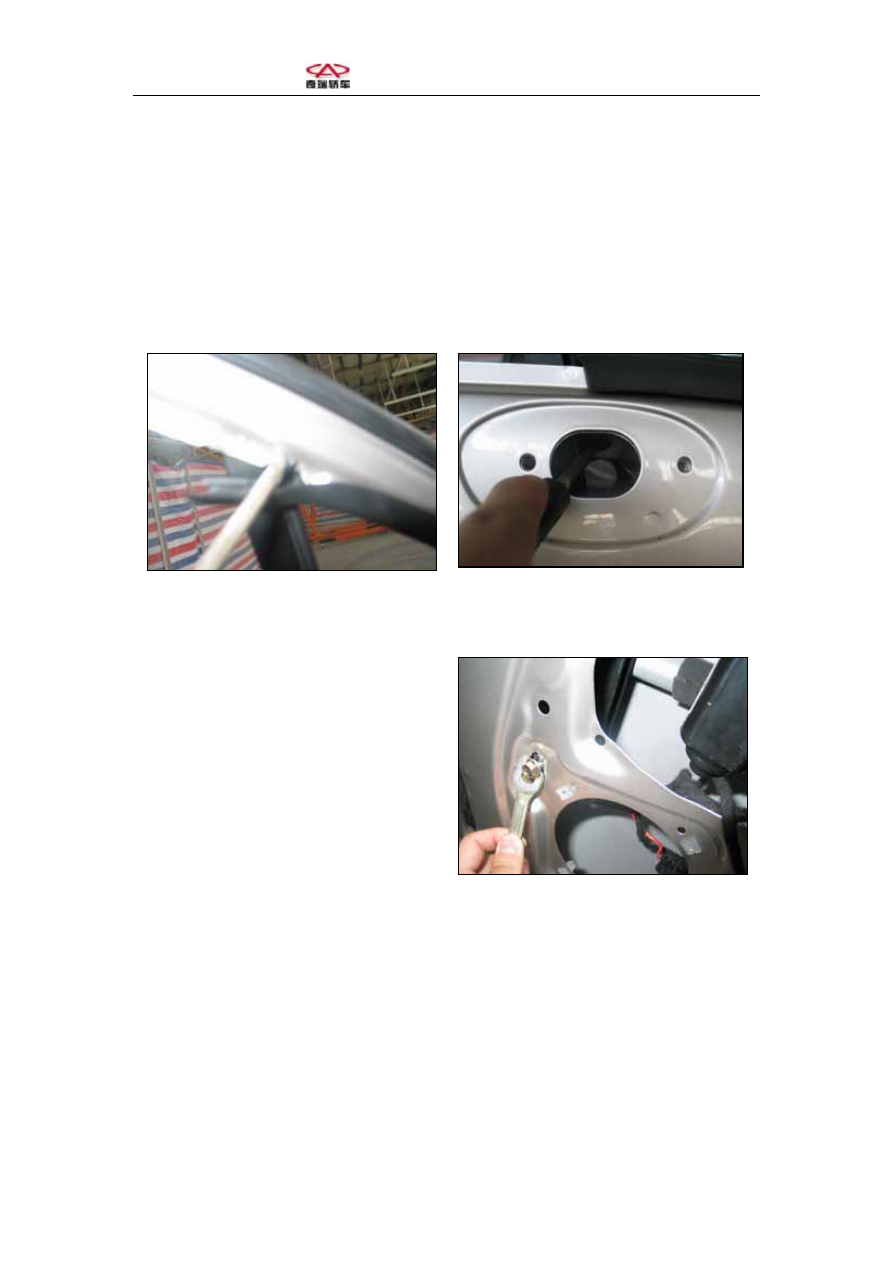

Removal of door glass

（1）Remove outside rearview mirror.

- 236 -





Chery QQ Service Manual



（2）Remove 2 set bolts of door glass guide rail.


























（3）Separate door inner panel Assembly.





（4）Remove set bolts on upper part of

door glass guide; Take out the door inner

panel and glass guide rail.









（5）Loosen 2 set bolts of window winder and glass bracket.

（6）Take the glass out upwards.



Adjustment of door glass

Hint: Check the clearance between guide and block

（1） Lift glass completely; adjust the clearance between glass and the door inner

- 237 -





Chery QQ Service Manual



panel.

（2） Fix the guide, block and 2 nuts after adjustment.



（3）Lift glass again and check to see if the installation is good or not.





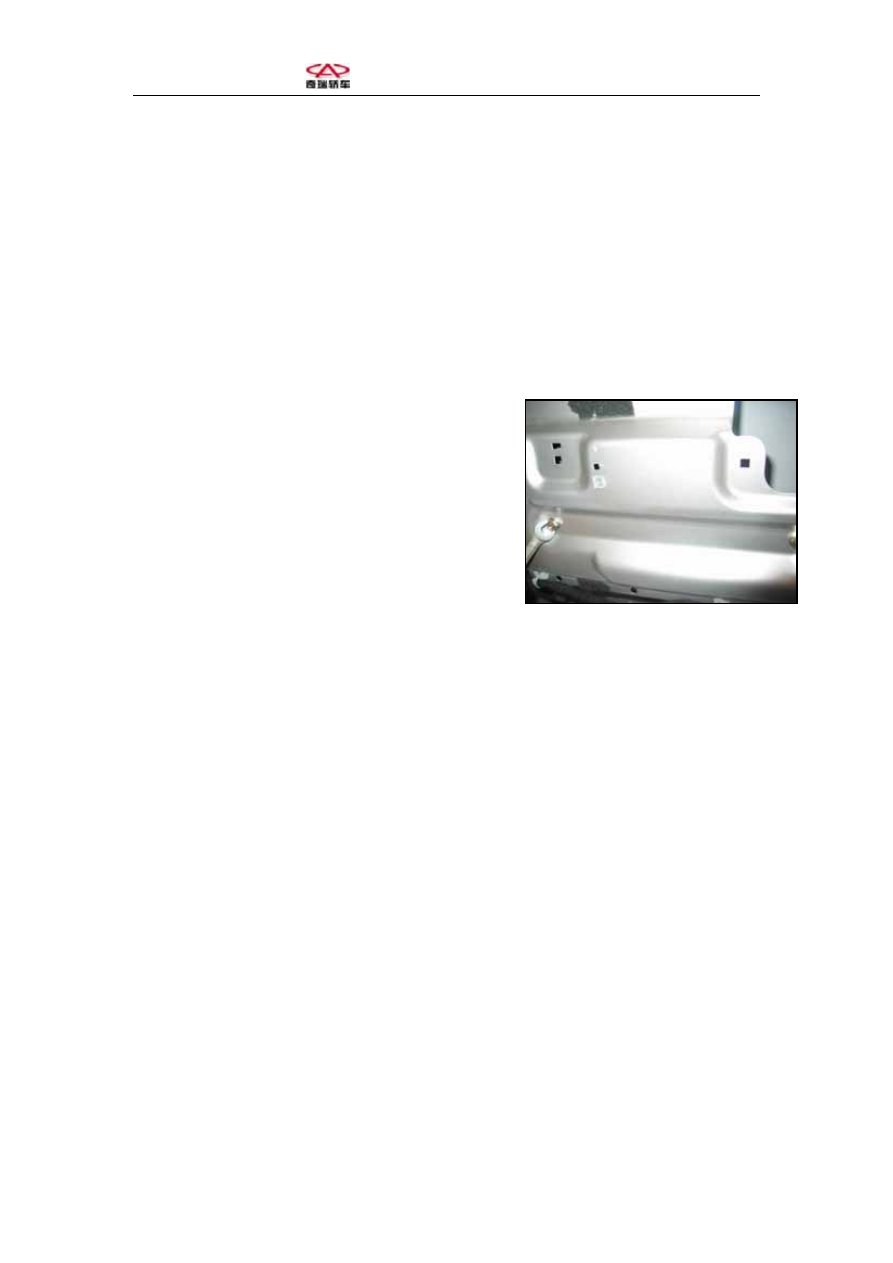

  Removal of window winder

（1）Take out the door inner panel.

（2）Loosen 2 set bolts of the window winder and

glass bracket

Hint: Stuff a piece of cloth inside the door inner

panel, so as not to cut the surface of the glass.

（3）Loosen 6 set bolts of the window winder.

The tighten torque: 5.5N·m (56kg-m, 491b-ft)





（4）Loosen the harness connector of the window winder; Take the window winder

assembly out.













Removal of front door weather strip

（1）Loosen screws and nuts.

（2）Take out the two sided adhesive tape from backward with scraper.

The installation sequence is in the reverse direction of the dismantle sequence.

As to dismantle of other door, you can see “dismantle of front door” for reference.
