Chery QQ Service Manual





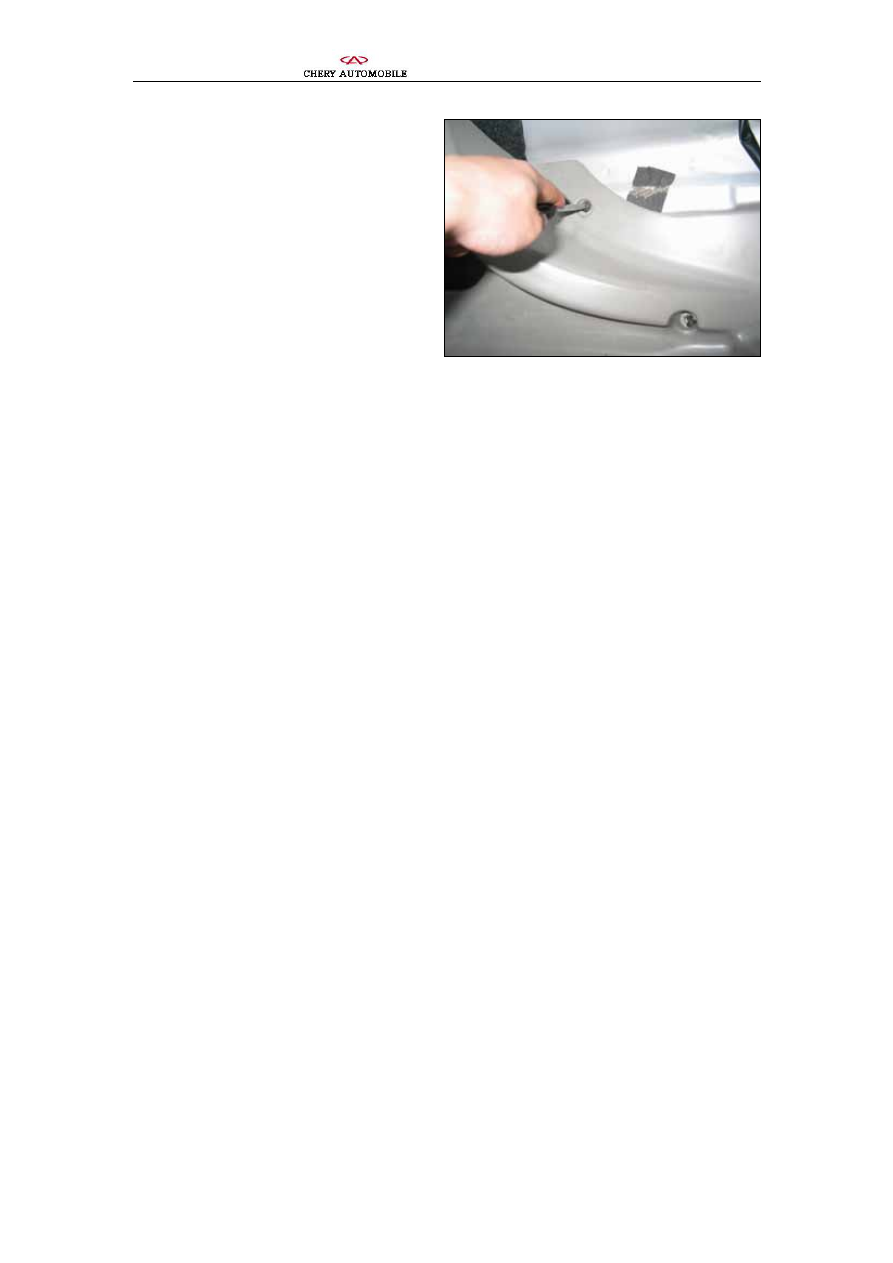

Remove the Luggage Compartment

1. Loosen 5 bolts on the left lining board

and take them out.











2. Disconnect the trunk cable set

and loosen wiper pipe.











3. Hold the trunk and unfasten 4

fixed bolts on the hinge.























Chery QQ Service Manual

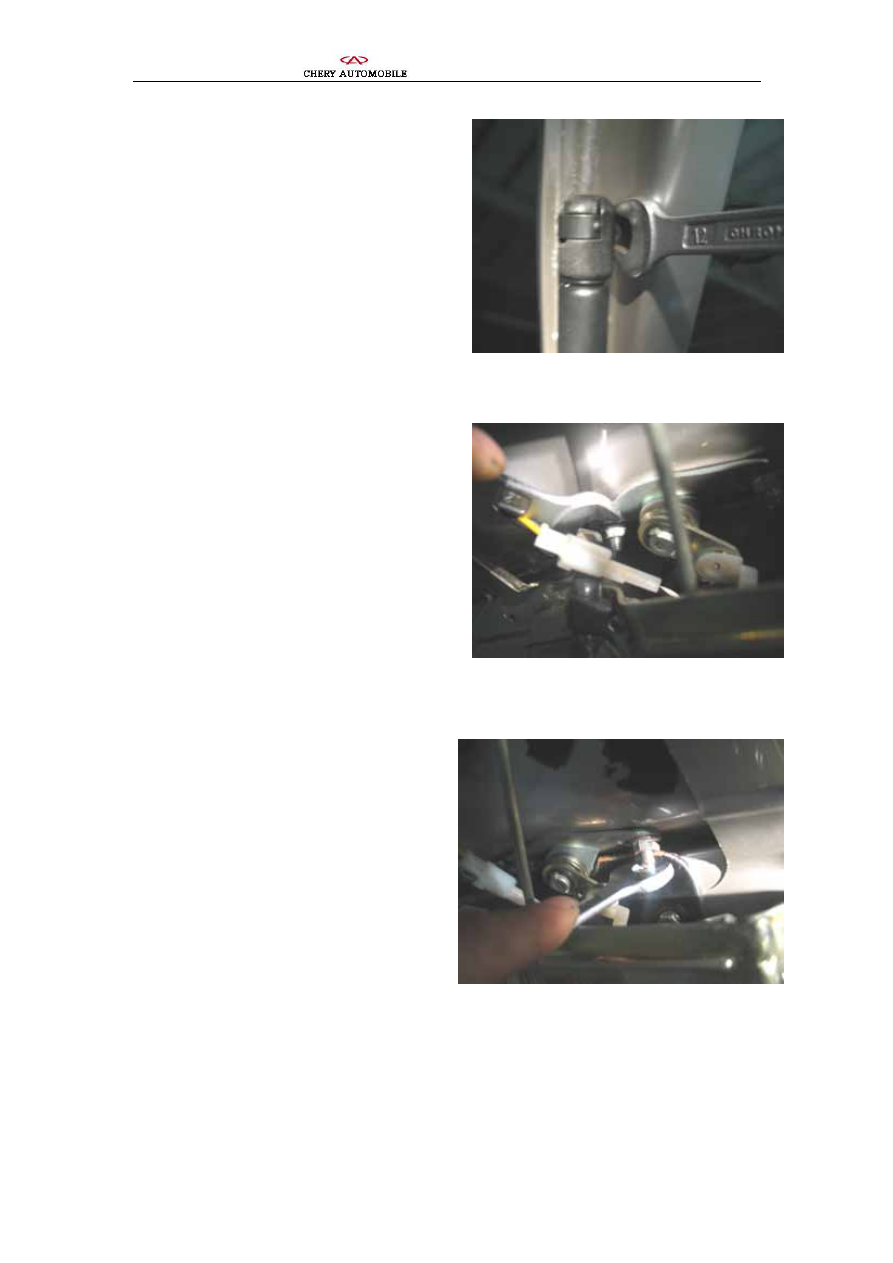

4. Remove hydraulic rod and take

out luggage compartment assembly.

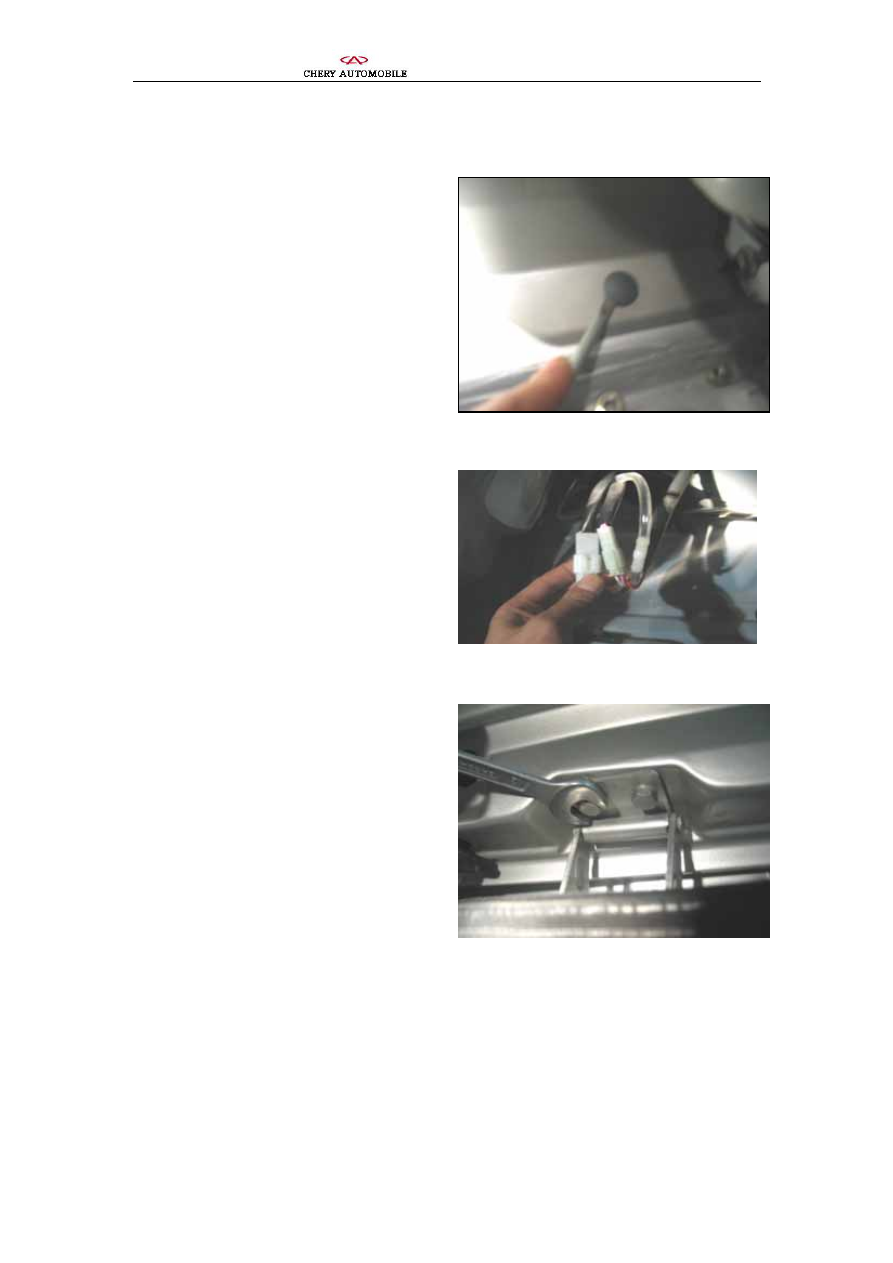

Remove the lock assembly(mechanical)

1.Detach the connectors.

2.Unfasten 2 fixed bolts and take out the

lock.









Remove the lock assembly(electric)

1. Detach the connectors.























Chery QQ Service Manual

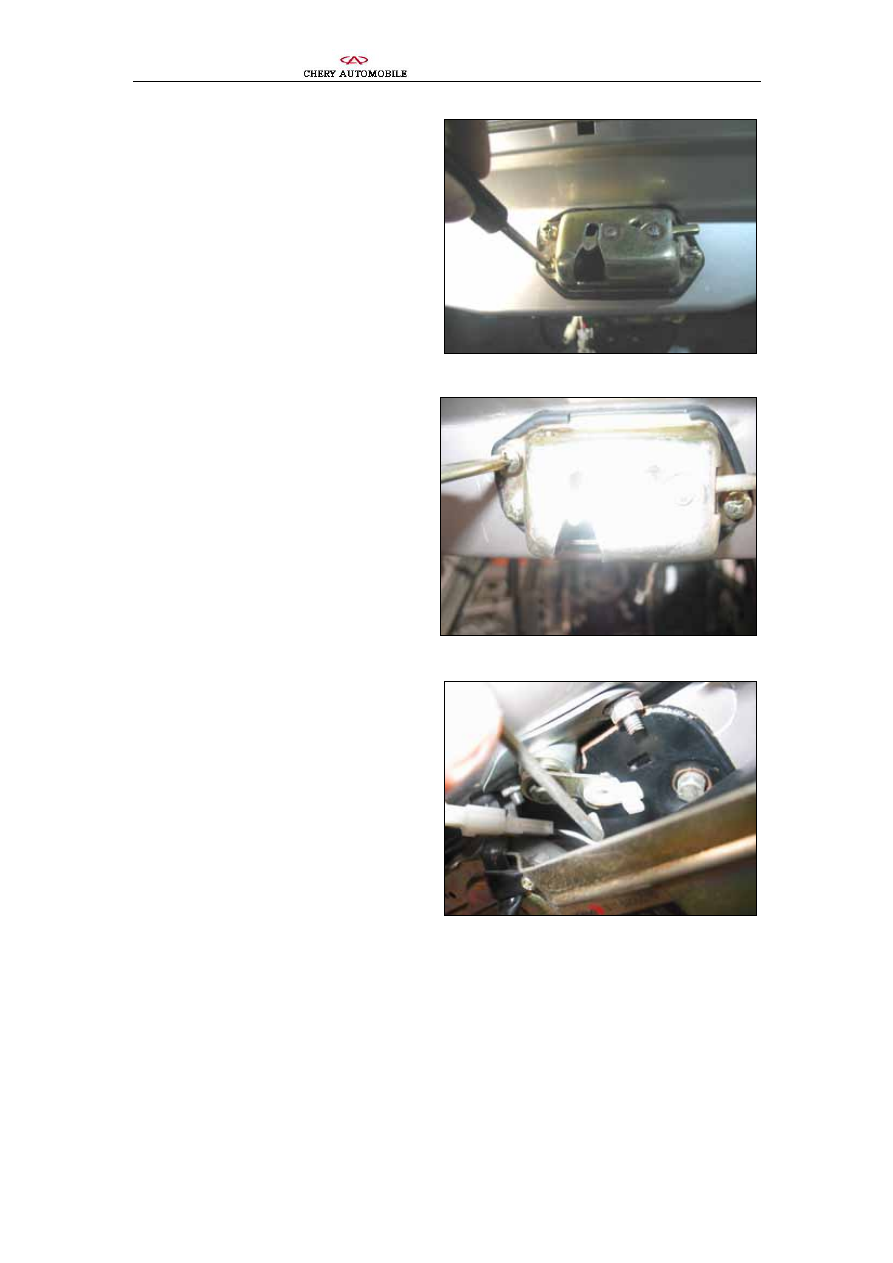

2. Unfasten 3 fixed bolts to take out the

lock, and disconnect the motor wire.











Remove the electric switch



(1) Unfasten fixed bolts of the trunk.











(2) Detach the connecting rod

on the lock switch of trunk.





























Chery QQ Service Manual



(3) Unfasten 2 fixed bolts on the trunk

lock.





(4) Take out the lock assembly.



Adjust the trunk door

1.  Adjust the trunk door

(1)Loosen bolts, and adjust the door in forward/backward, and left/right directions.

(2)Increase or decrease the amount of washers between hinge and trunk door to adjust

the front end in upward or downward directions.

Torque: 11.5 Newton-meter (115 kg-cm, 8.3 pound-foot)



2.Adjust the lock crossbar

Gently knock the crossbar with hammer or bronze bar for adjustment.

Torque: 5.4 N.m (55 kg-cm, 48 pound-inch)



Replace the trunk door support

1.  Remove the trunk door support



(1)Unfasten the support bolts out of trunk door hinge.

(2)Turn the back end of the support downward, and take the support out of bracket.



2.  Replace the trunk door support

Note:    Be careful of when operating the support.

(1)There is compressed air in the support cylinder. Do not disassemble the support.

(2)If the support is to be replaced, drill a small hole with diameter of 2.0-3.0 m

（0.079-0.118 inch）on the shadow area of cylinder to fully release compressure, then

abandon it.
