Chery QQ Service Manual

Chapter 9 Engine Hood and Luggage Compartment



Removal of the engine hood



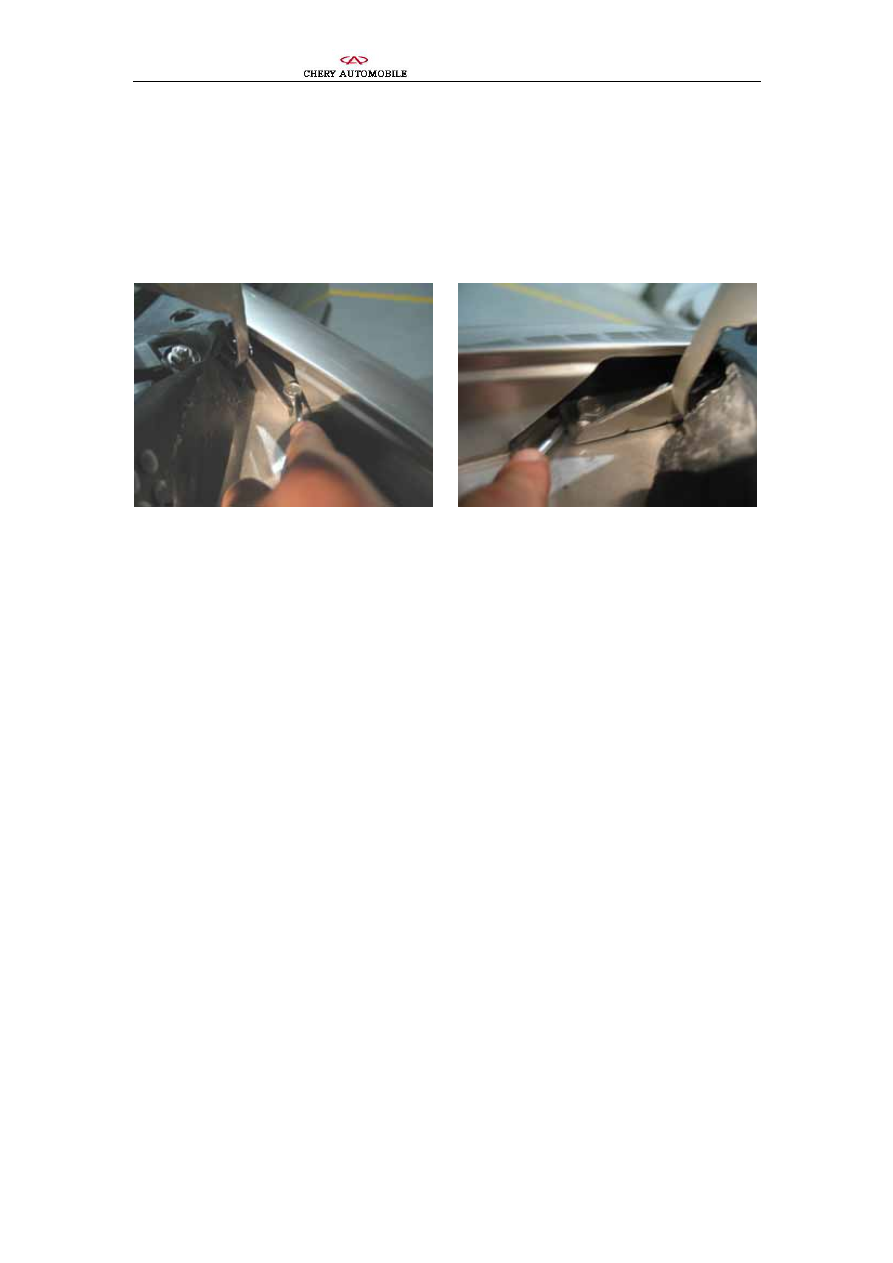

1.Loosen four fixed bolts and

lift the engine hood.















2. Unclench the engine hood rod.











3. Loosen two fixed bolts

to take out the upper lock.



















Chery QQ Service Manual

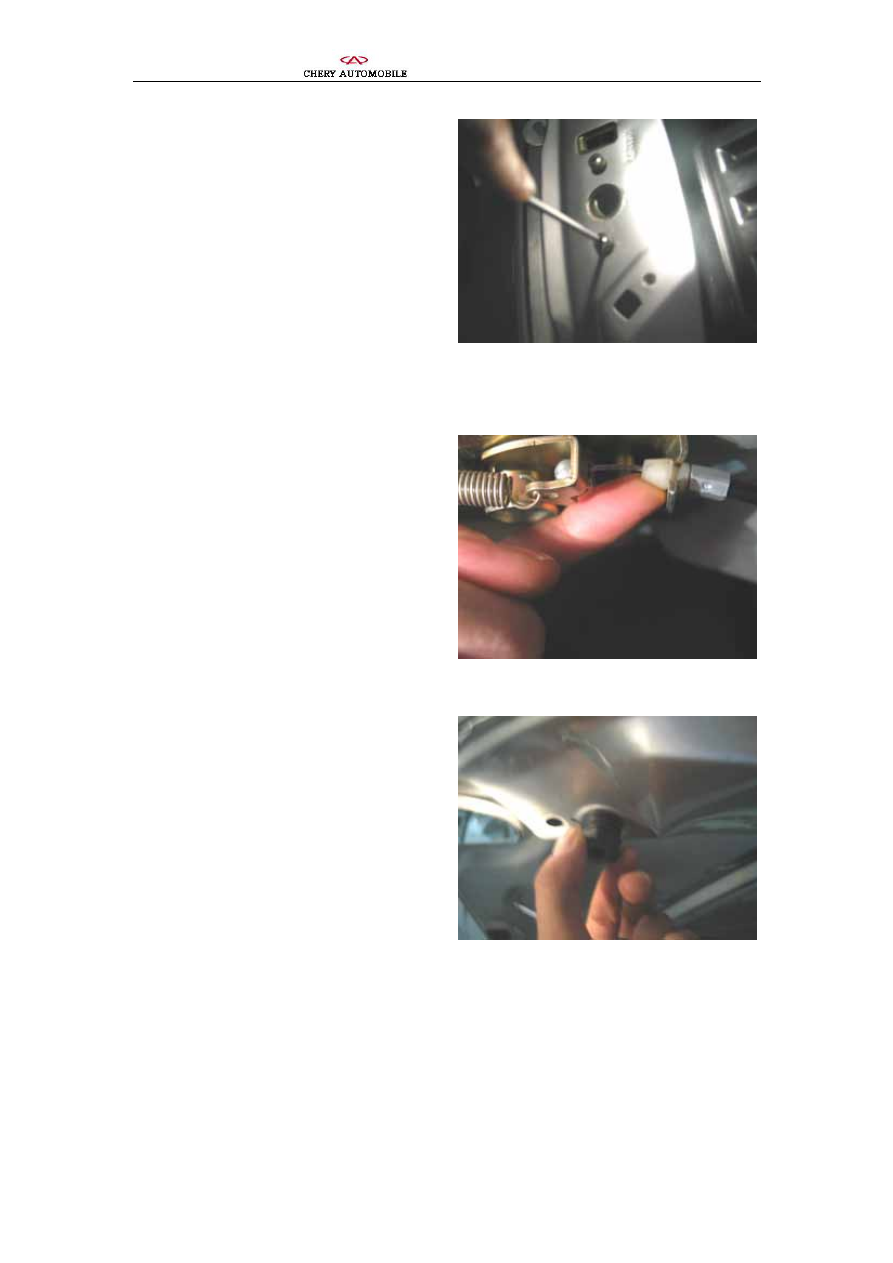

4. Loosen two fixed bolts to take out

the lower lock.















5. Loosen the engine hood cable.















6. Adjust left and right engine hood bolts

to ensure normal gap.

























Chery QQ Service Manual

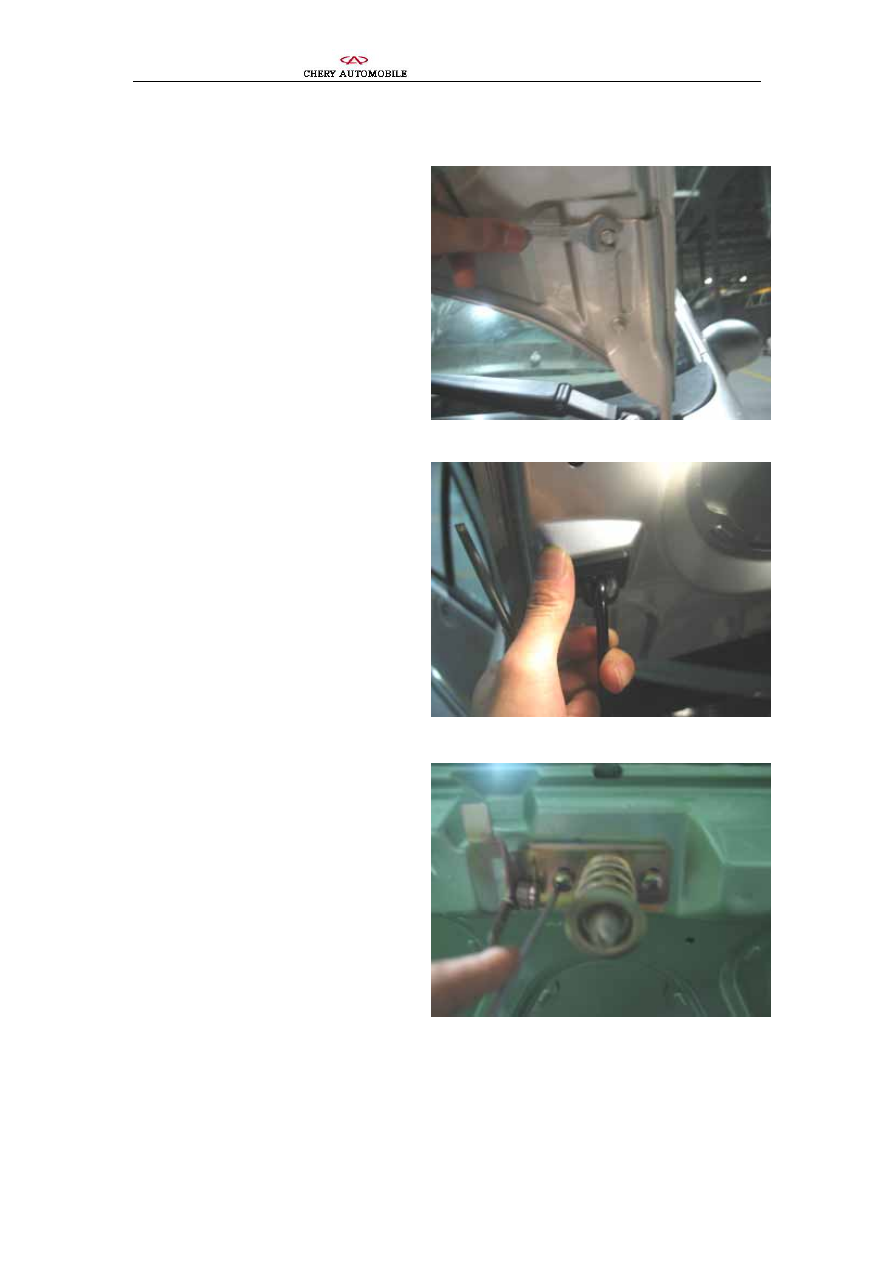

Remove the engine hood hinge

1.Remove the fender (refer to “Remove Fender”)

2.Loosen four fixed bolts both left and right to take out the engine hood hinge.







Replace the engine hood support

1.Take the support out of engine hood

Screw out bolts, and get the support out of engine hood.

Note: Push against the engine hood with hand, and take the support out.

2.Remove the engine hood support from the body

Screw out bolts to take the support out.

3.Replace the engine hood support

Note: Be carefull when operating the absorber!

(1)There is compressed air in the absorber cylinder. Do not disassemble absorber.

(2)If replace the absorber, drill a small hole with diameter of 2.0-3.0 mm（0.079-0.118

inch）on the cylinder shell to fully release compressure, then abandon it .

(3)Be careful of sputtering iron scrap when drilling the hole.

(4)Air in the cylinder is colorless, smell-less, and nontoxic.

(5)Deal with absorber carefully. Do not drop paint or oil onto the piston rod.

(6)When the absorber fully extrudes, do not turn the piston rod or cylinder.

4.Install the engine hood support

Fix the engine hood support.



Chery QQ Service Manual

Torque: 22 Newton-meter (225 kg-cm, 16 pound-foot)



Adjust the engine hood

Loosen the hinge bolts, and adjust the engine hood in forward, backward and vertical

directions.

Torque: 11.5 Newton-meter (115 kg-cm, 8.3 pound-feet)



Install the hood lock control assembly

1.Apply grease on the lock before parts installation.

Lay multifunctional grease on the sliding surface.

2.Install control cable of engine hood lock.

Note: Wrap the screwdriver end with adhesive tape before installation.

Prevent the screwdriver from damage the rubber seal.

(1)Push the back end of control wire through rubber seal.

(2)Push control cable block into rubber seal with screwdriver.

(3)Clench the front end of control cable onto connection box.

(4)Put the front end of control wire through the upper support of radiator.



3.Install the unfastening handle of engine hood lock

4.Check the performance of engine hood lock

Check the engine hood lock to ensure it works well. Then fasten nuts and bolts to fix

the lock.

5.Install the following parts:

(1)Head lamps

(2)Front light shield

(3)Front fender lining

(4)Front fender fillet

(5)Radiator support cover

(6)Lower cover board of engine
