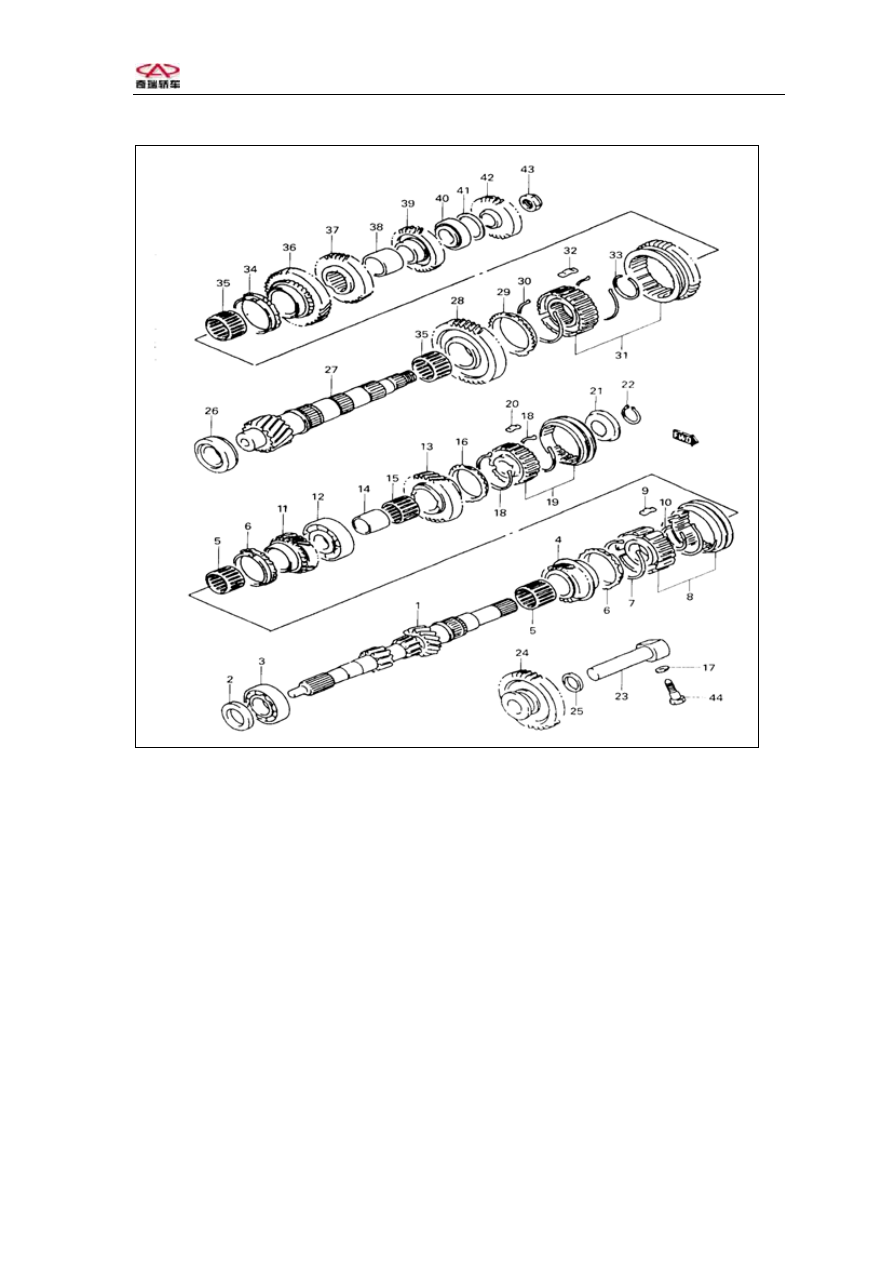

Fig.1-2 Transaxle drive system

1-Input shaft 2- Oil seal    3- Input shaft bearing   4- 3 rd gear         5-3rd, 4th
needle roller bearing   6- Synchronizer ring      7- Snap ring     8- Synchronizer
assembly                9- Synchronizer insert                10- Snap ring      11- 4th gear
12- Input shaft bearing        13- 5th gear         14- 5th Spacer    15- 5th
needle roller bearing      16- 5th synchronizer ring     17-Gasket      18- 5th
snap ring   19- 5th synchronizer assembly    20- 5th Synchronizer insert
21-Thrust washer    22-Snap ring
23- Reverse gear shaft      24- Reverse   gear      25-gasket
26-Output shaft bearing    27- Output shaft      28- 1st driven gear       29- 1st
synchronizer ring       30- Snap ring    31- Synchronizer assembly   32-
Synchronizer insert      33- Snap ring       34- 2nd Synchronizer ring   35-1st,
2nd needle roller bearing      36- 2nd   driven gear                 37- 3 rd
driven gear    38-3rd, 4th spacer       39- 4th    driven gear
40-Output shaft bearing       41-Bearing adjust gasket   42- 5th driven gear     43-
5th gear Lock nut          44- Reverse output shaft bolt





Chery QQ Service Manual                                                Transmission System

-37-

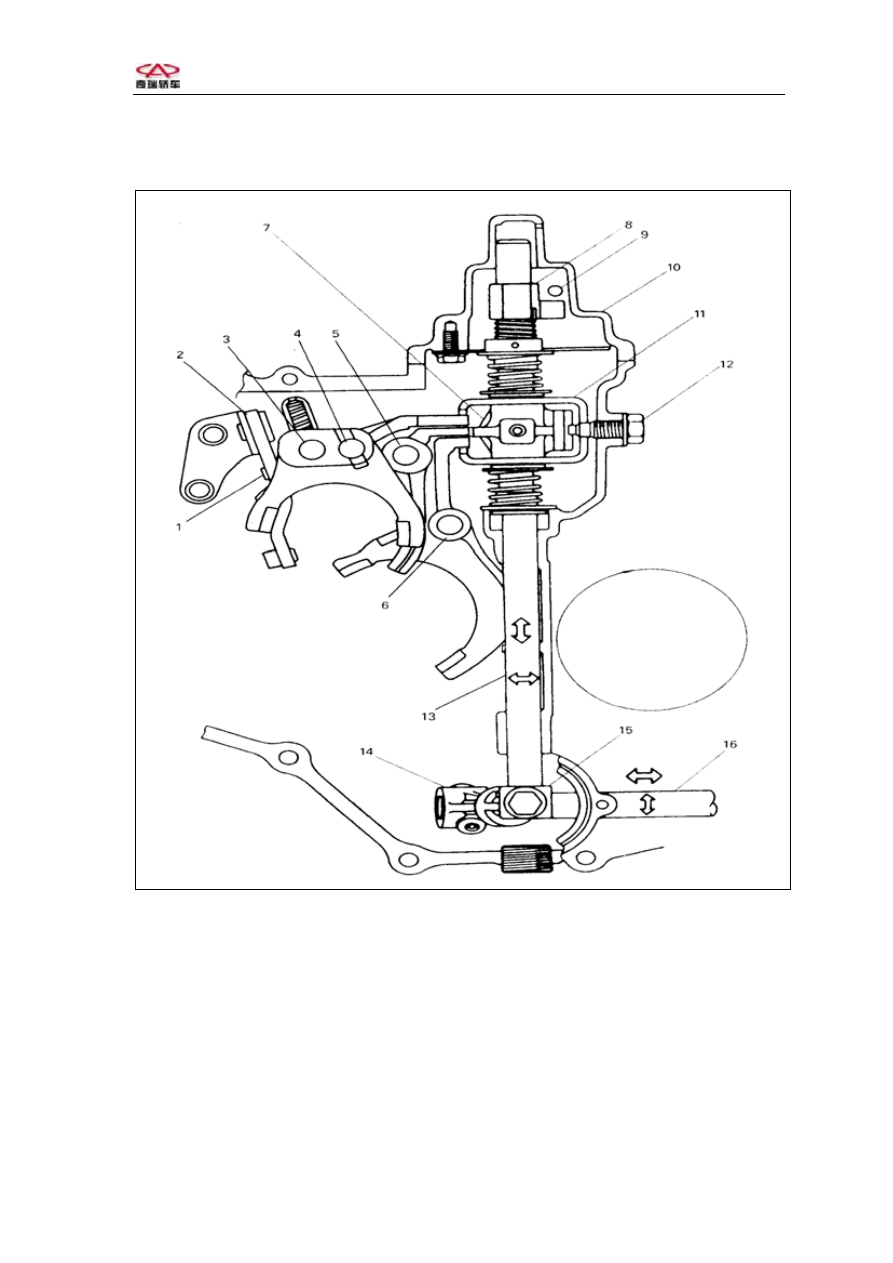

III , Shift and  select  lever  shaft  control system



Fig.1-3

1- Reverse shift fork            2- Reverse      shift fork assembly                            3-Reverse,
5th shaft         4-Reverse, 5th shift fork shaft                    5- 3rd, 4th shift fork shaft
6-1st, 2nd shift fork shaft           7- Select lever shaft        8-Reverse, 5th
shift cam                                          9- Reverse, 5th Interlock roller              10-Case
11- Interlock bolt              12- Restrict bolt                          13- Shift and select lever shaft
14- Shift lever       15- Shift head           16- Shift lever









Chery QQ Service Manual                                                Transmission System

-38-







The turning of the shift lever drives the shift and select lever shaft move up and

down, and the select lever shaft also moves up and down, this is for select shaft. The
forward and backward movement of shift lever drives the shift and select lever shaft
turning, and with the movement, the select lever shaft also turns, the select lever shaft
push on the shift and select lever shaft drives the shift head, thereby the shift fork drives
synchronizer ring and reach the expected joggled state.

Under the circumstance of the neutral, spring on the shift and select lever shaft keep

the shift and select lever shaft stay on the neutral. The interlock in the state of release
state prevents from gear when shift.

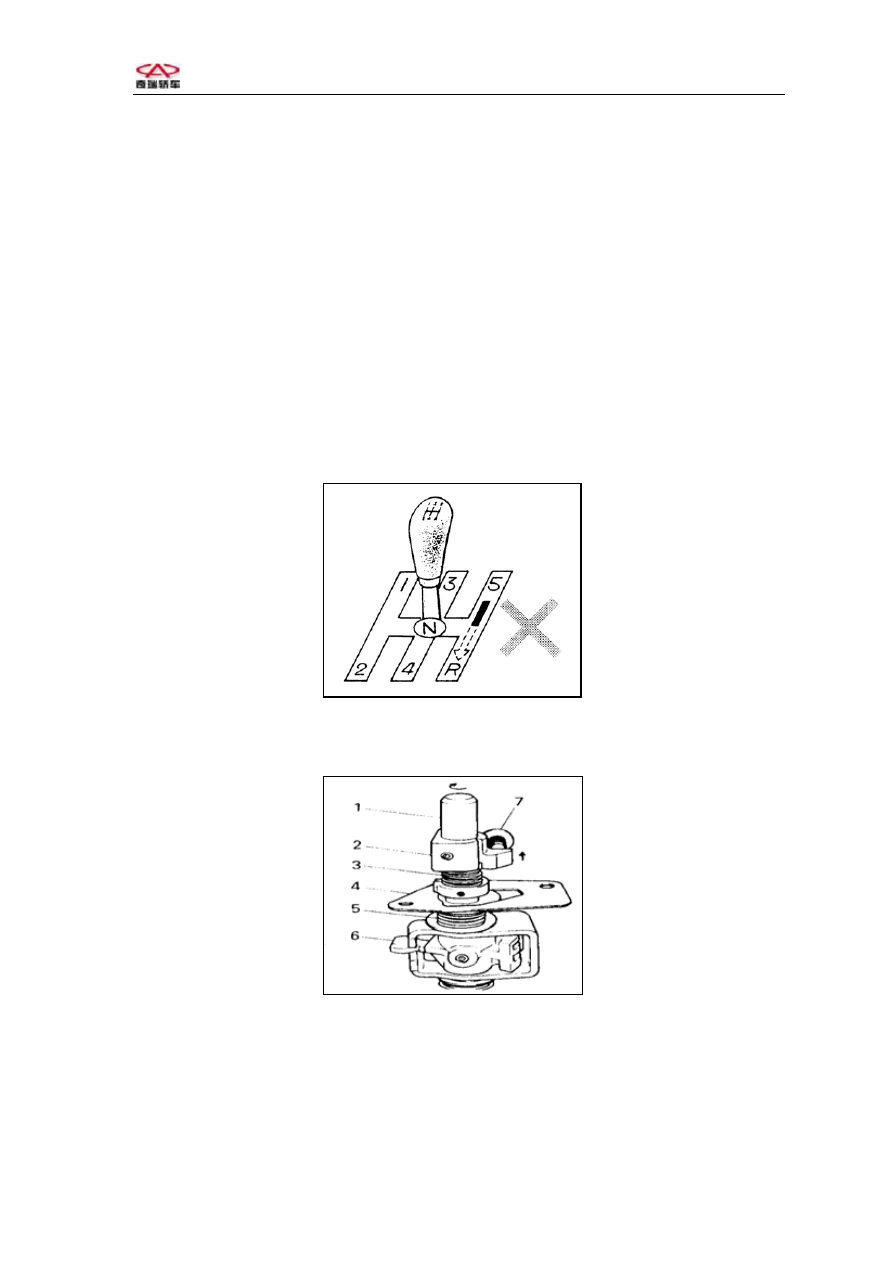

VI. Reverse 5th Shift Cam

The reverse, 5th shift cam, 5th Interlock bolt and 5th return spring are used to prevent
that shift lever shifts from 5th to reverse directly.















fig. 1-4 reverse,5th shift cam



Operation:











Fig.1-5

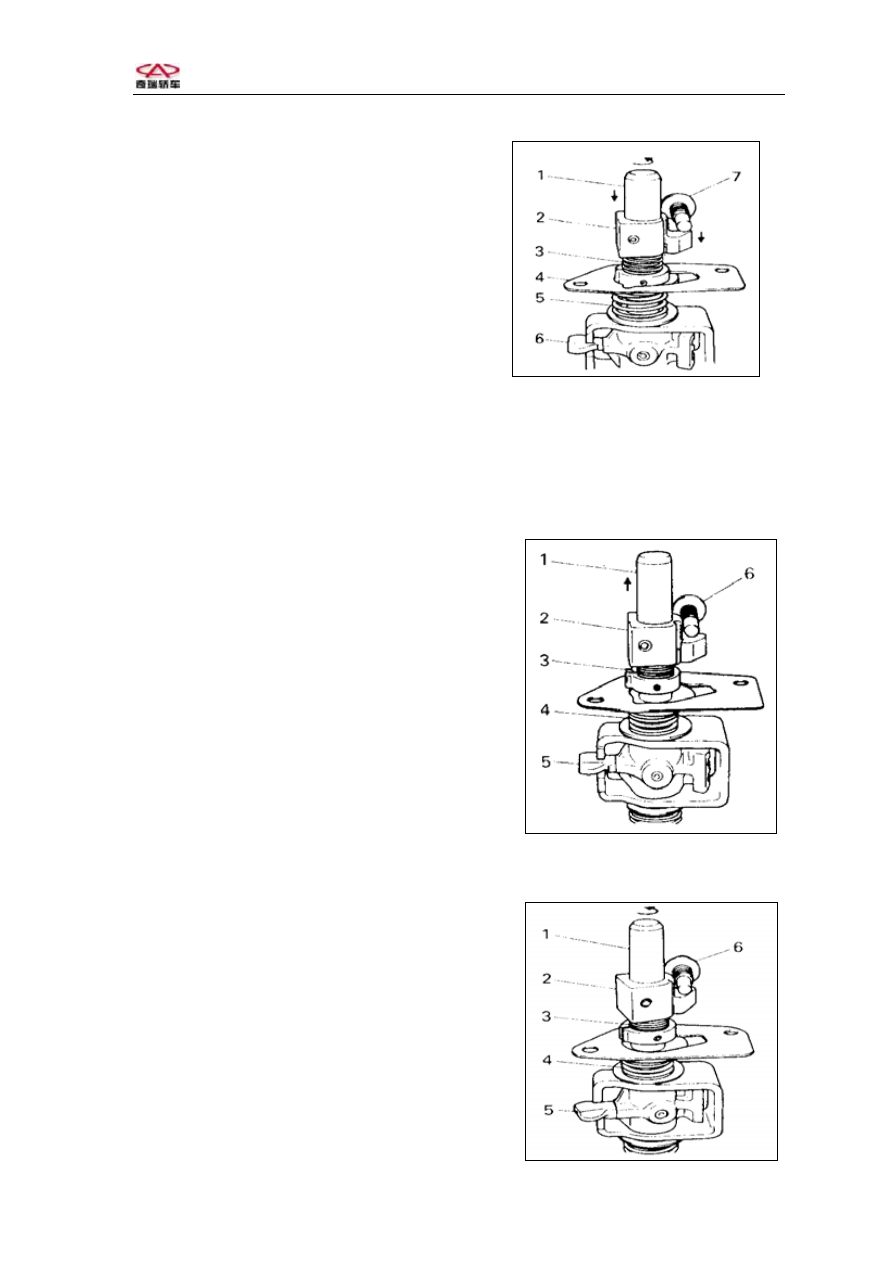

1,When gear shift 5th,the reverse, 5th shift cam turns
clockwise with the shift and select lever shaft, under the
effect of the shift cam return spring, the cam contacts reverse,5th Interlock bolt and





Chery QQ Service Manual                                                Transmission System

-39-



prevent reverse.



1- Shift and select lever shaft

2-Reverse,5th shift cam

3- Shift cam Return spring

4-Bracket

5-Reverse,5th Return spring

6-Select lever shaft（5th）

7-Reverse,5th restrict bolt
















fig.1-6



2. It is allowed to shift from 5th to the middle position, but is not allowed to shift to

reverse. However, when the shift and select lever shaft moves to neutral of 3rd, 4th, the
shift restrict bolt cam cannot effect as the Figure 16.

3.shift select  lever  shaft to  5th  or  reverse， shift  cam  and bolt fixup.














1- Shift and select lever shaft

2-Reverse 5th shift cam

3- Shift cam Return spring

4-Reverse 5th return spring

5- Select lever shaft

6-Reverse 5th restrict bolt









Fig.1-7



4.Shift to reverse do not connect shift cam.










1- Shift and select lever shaft

2-Reverse,5th  shift  cam

3-Shift cam Return spring

4-Reverse,5th Return spring

5- Select lever shaft

6-Reverse,5th  restrict  bolt
