Chery QQ Service Manual                                                Transmission System

-32-



5.Hang the return spring, spread lubricant on the side and the arm of the release fork,

install the bearing. Spread lubricant on the splined hub, install the spacer NO.2 and seal .

Fix the release fork cover.

  6. Fix the release shaft on the release fork, aim at the riveted mark and tighten the

bolt .

7.Used 2 bolts fix up cable bracket, disassembly clutch cable bracket.

Pack the clutch separation arm



Lubricate the release fork

assembly and the input shaft.

Screw the torque tightly.



N.m



Kg-m



1b-ft




Release shaft bolt



10-16 10-1.6 7.5-11.5

Cable bracket bolt



18-28 1.8-2.8 13.5-20.0






Section 5 Recommended Torque.



Screw the torque tightly


N.m Kg-m

1b-ft


1,Switch Lock nut


10-15 1.0-1.5

7.5-10.5

2,Clutch cable bolt


4-7 0.4-0.7

3.0-5.0

3,Flywheel bolt


57-65 5.7-6.5

41.5-47.0

4,The clutch cover stud
bolt


18-28 1.8-2.8

13.5-20.0

5,Release shaft bolt


10-16 1.0-1.6

7.5-11.5

6,Cable bracket bolt


18-28 1.8-2.8

13.5-20.0








Chery QQ Service Manual                                                Transmission System

-33-



Section 6 Necessary Maintenance Materials



Material


The SUZUKI
product of the
recommendation

Use the part


The SUZUKI             high
class lubricates the fat A
(99000-25010)

Pulling cable catch
connecting pin.
Release fork spacer and

seal.

Release bearing and
release shaft.



The lithium lubricates the
fat


The SUZUKI             high
class lubricates the fat I
(99000-25210)

Input shaft splined hub
and forepart

Waterproof sealant


The SUZUKI             seals
completely the 366 Es
(99000-31090)

Clutch cable and front
clap board.


































Chery QQ Service Manual                                                Transmission System

-34-





Chapter 2 Transaxle

Section 1    DABS10-4 Transaxle


I. A gearbox technique brief introduction of section 1



Main Functions

And Technical Data

DABS10-4, DABS10-8 Transaxle



A type

Machine gear type

Gearshift Compare

speed

The gear number

compare

1st 3.416

41/12

2nd 1.894

36/19

3rd 1.28

32/25

4th 0.914

32/35

5th 0.757

25/33

Reverse 3.818 42/35/11

The main ratio

4.389

79/18

Speedometer 0.944

17/18

Max input torque

72 N ·m

Contour size

409×392×342.7（mm）

Angle transaxle

5°

Lubricant

18#  hyperbolic gear oil（Q/SH006·1·27-89）


II, Driven special
This transaxle, consist of three groups of synchronizer, input shaft and output shaft,

is to realize the ahead shaft and reverse.

All the gear are gear, slip idler gear is for reverse.
The synchronizer is fixed on the output shaft, joggled with output shaft, the 1st gear

and the 2nd gear; the synchronizer is fixed on the input shaft, joggled with the 3 rd, 4th
gear.

The 5th synchronizer on the input shaft is joggled with the 5th gear fixed on the input

shaft, thereby dive the transmission shaft and the wheels.





Chery QQ Service Manual                                                Transmission System

-35-

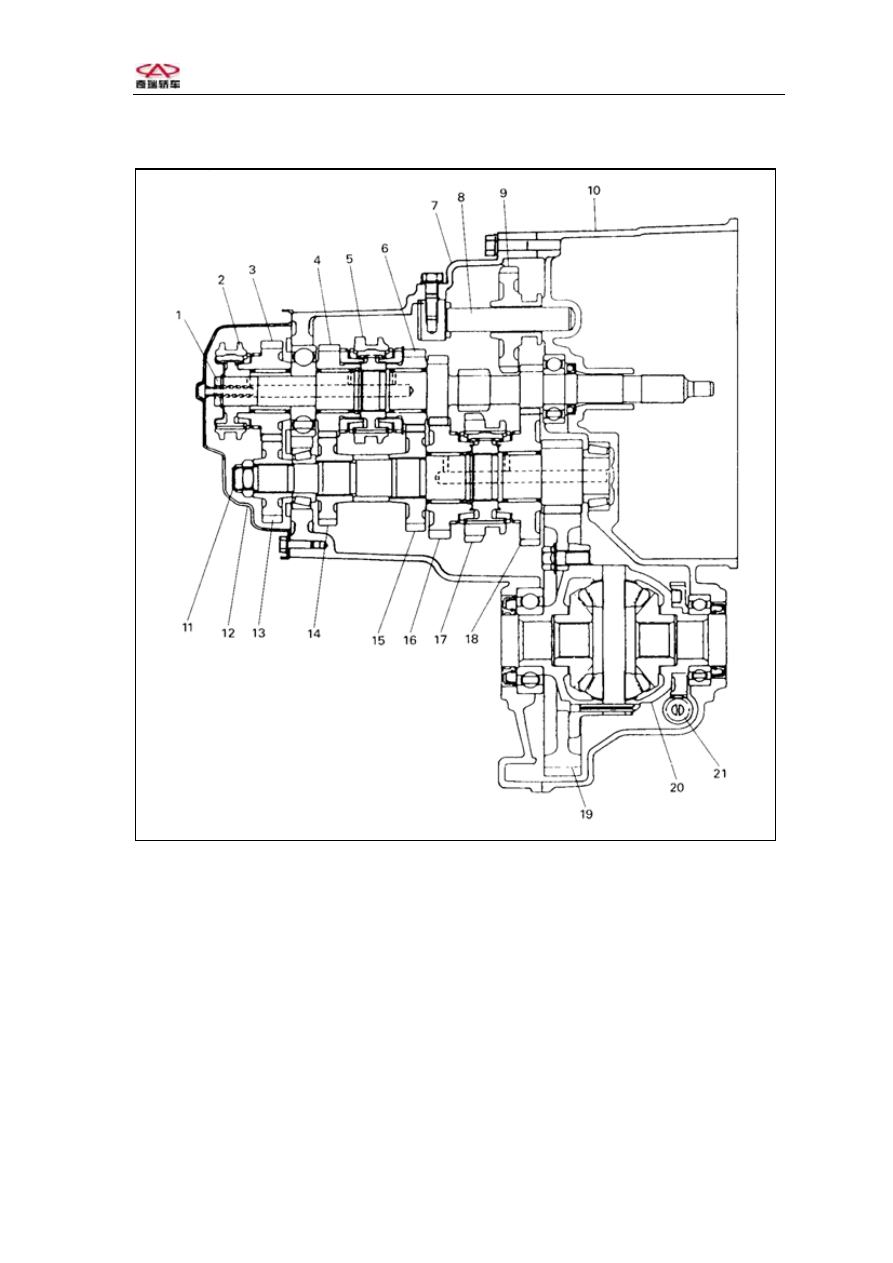

Fig.1-1 Transaxle

1- Input shaft       2- 5th Synchronizer assembly    3- 5th gear      4- 4th gear
5- Synchronizer assembly   6- 3rd gear     7- Transaxle case   8- Reverse gear shaft
9- Reverse gear    10-Clutch case   11- Output shaft   12-Transaxle behind case
13- 5th driven gear 14- 4th driven gear 15- 3rd driven gear    16- 2nd driven gear
17- Synchronizer assembly   18- 1st driven gear     19- Differential ring gear
20- Differential case      21- Speedometer driven gear
