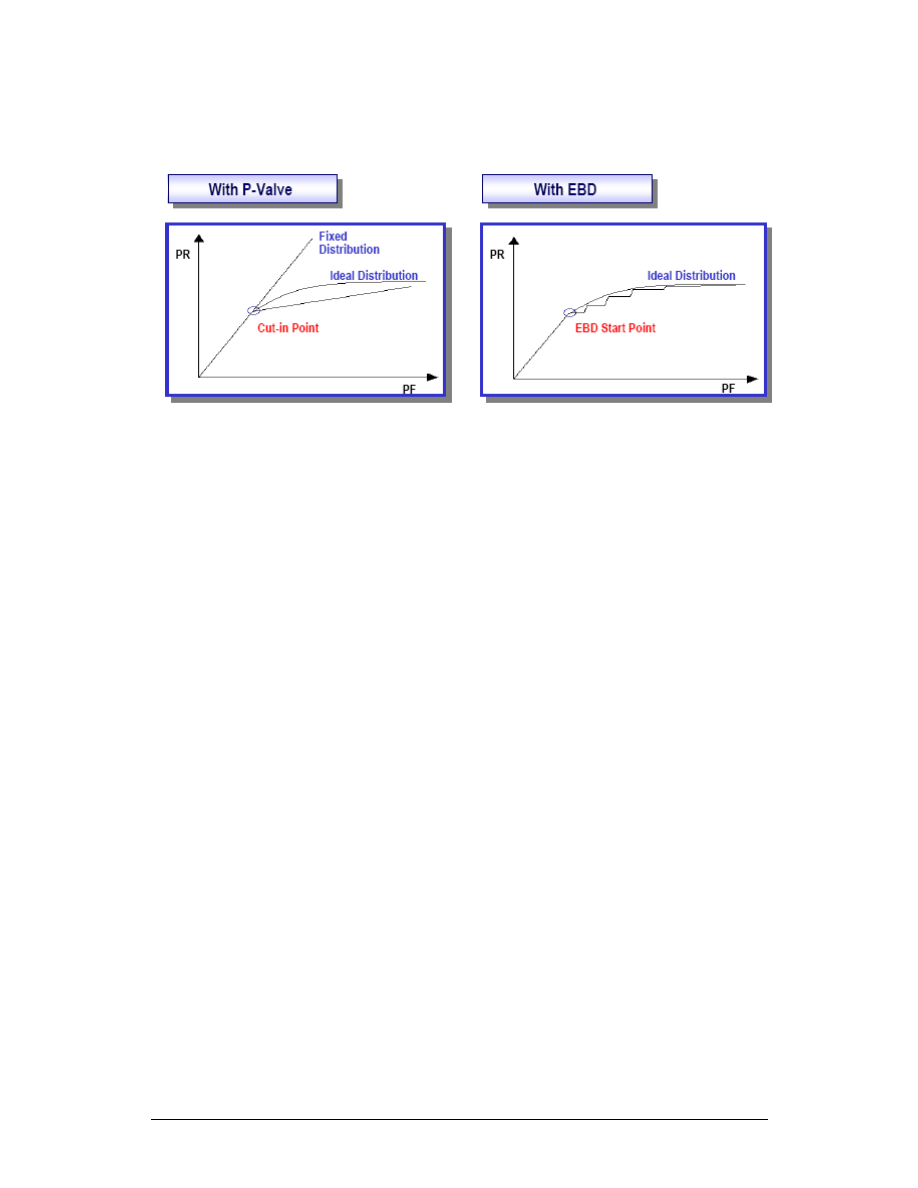

3.3    EBD Control Mode





In order to  guarantee the  operation stability, the EBD  function  is  designed in  such  manner that  front
wheels are stopped  ahead of  the rear wheels. As the  front brakes  undertake  more  works than  that  of
the rear brakes, it will cause that the rear wheels will be stopped firstly when apply with same braking
pressure. In order to preventing the occurrence of above thing, a device to reduce the braking pressure
applied on the rear wheels under certain pressure is required, of which this function is fulfilled by the
pressure reducing valve (P-Valve). The special pressure reducing valve is not required for the vehicles
equipped  with ABS as the procedure supplemented to the ABS will fulfill the  control function on the
braking pressure of the rear wheels so as to effect the improvement of vehicle operation stability.













Page 10 of 38





II.    Removal and Installation



1.

Spare Part Supply Status



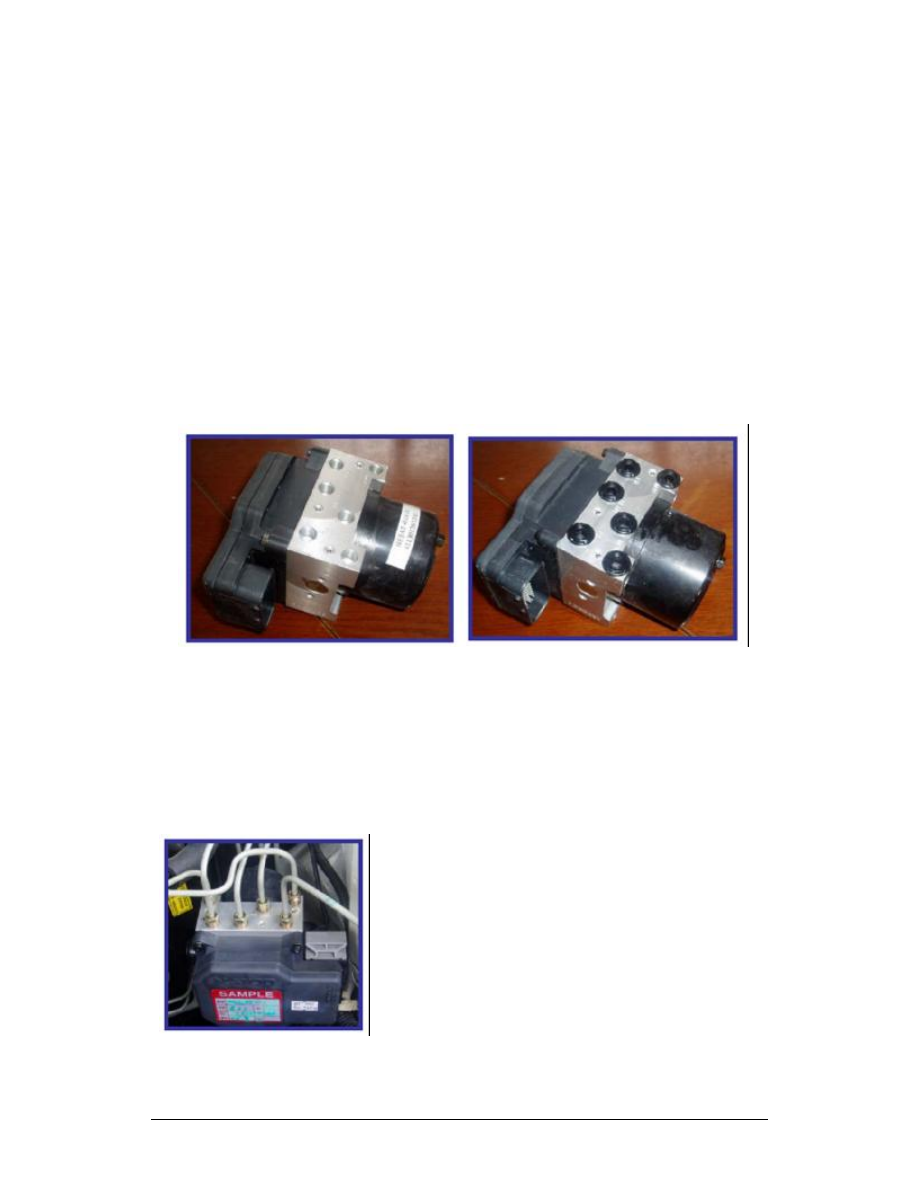

Differentiation between Dry Type HECU and Wet Type HECU

The  biggest  differentiation  between  the  dry  type  HECU  and  wet  type  HECU  is  that  the  no  air
discharge  is  conducted  in  the  2nd  circuit  (namely  the  circuit  from  the  normal  close  valve  to  the
general  pump)  of  the  dry  type  HECU.  Therefore,  when  the  spare  part  is  of  wet  type  HECU,  it’s
only  necessary  to  conduct  the  air  discharge  and  oil  refill  in  accordance  with  the  regular  brake
system  after  the  replacement.  When  the  spare  part  is  of  dry  type  HECU,  besides  that  the  air
discharge  and  oil  refill  are  required  in  accordance  with  the  regular  brake  system  after  the
replacement, it’s necessary to conduct the air discharge and oil refill to the 2nd circuit of the HECU.
In  addition,  for  the  appearance,  the  wet  type  HECU  has  the  bolts  for  sealing  purpose  and  the  dry
type HECU has the protection film. The product label located on the motor is marked with the part
number  of  the  products,  through  which  the  dry  type  HECU  and  wet  type  HECU  can  be
differentiated.
Take the S21 model for instance, the dry type Mando product number is BH601-086-00 and the wet
type Mando product number is BH602-386-00.





Dry Type

Wet Type





Notices

If the bolts on the wet type HECU are fallen off (such as during the transportation), besides that the
air discharge and oil refill must be conducted for 1st circuit, maybe it’s necessary to conduct the air
discharge and oil refill to the 2nd circuit.





2.  Notices for Removal and Installation



Notices for HECU Assembling





During the assembling of brake pipeline:



†  Remove  the  protection  film  attached  onto  the  HECU

before the operation.

†  Confirm  the pipeline  of  general pump  and wheel branch

pump before the operation.

(General  pump:  MCP,  MCS  Wheel  branch  pump:  FR,
FL, RR, RL)

†  Confirm  if  the  brake  hose  is  tightened  to  120~160

kgf·cm with special tool or torque wrench.

†  Notice  to  keep  away  the  impurity  ingress  into  the

HECU hole and brake hose during operation.



Page 11 of 38





Notices for HECU Bracket Assembling





During the assembling of HECU bracket:

†  During  the  tightening  of  the  bolt  (3

pcs),  it  may  cause  the  incorrect
assembling  due  to  the  friction
resistance  of  the  cushion  pad.  It’s
preferable  to  use  the  lubricating  oil
with  the  physical  properties  that  will
not impair the cushion pad.



†  Insert  the  bolts  (3  pcs)  onto  the

cushion pad installed onto the bracket
before  install  to  the  HECU,  which
will help the operation.



†  Confirm  if  the  bolts  (3  pcs)  are  tightened  to  80~100  kgf·cm  with  special  tool  or  torque

wrench.







Notices for Installation of HECU and Bracket Assembly





During the installation to vehicle body:

†  Attach the components  of brake hose and

bracket  to  the  HECU  and  install  to  the
vehicle body with the body fixing bolts.

†  Confirm  if  the  body  fixing  bolts  are

tightened  to  190~260  kgf·cm  with  special
tool or torque wrench.

†  Again  confirm  if  the  pipeline  installation

of  general  pump  and  wheel  branch  pump
is correct.



(General pump: MCP, MCS; Wheel branch pump: FR,
FL, RR, RL)

† Tighten  the  brake  hose  not  fully  tightened  to  the  specified  torque  (120  ~  160

kgf· cm) with special tool or torque wrench.





Other Notices



†  Find out the trouble cause with diagnosis instrument before repair.
†  The package of the spare parts should be unwrapped only before the installation.
†  Only use the parts supplied by the original manufacturer.
†  Notice the cleanliness during removal and only use the non-fuzz cloth for cleaning.
†  Use the detergent not containing the mineral oil to clean the appearance before removal.
†  Do not use the compressed air or move the vehicle when the system is opened.
†  After the removal of the ABS assembly, plug various hydraulic outlets with plugs as soon as

possible.

†  Remove other components interfering the operation.
†  Use DOT#3 brake liquid.
†  Immerse the seals with brake liquid, instead of engine oil or braking ointment.
†  Check all hydraulic connectors for leakage.








Bracket

Bumper block

Installation bolt

Page 12 of 38





3.  HECU Replacement

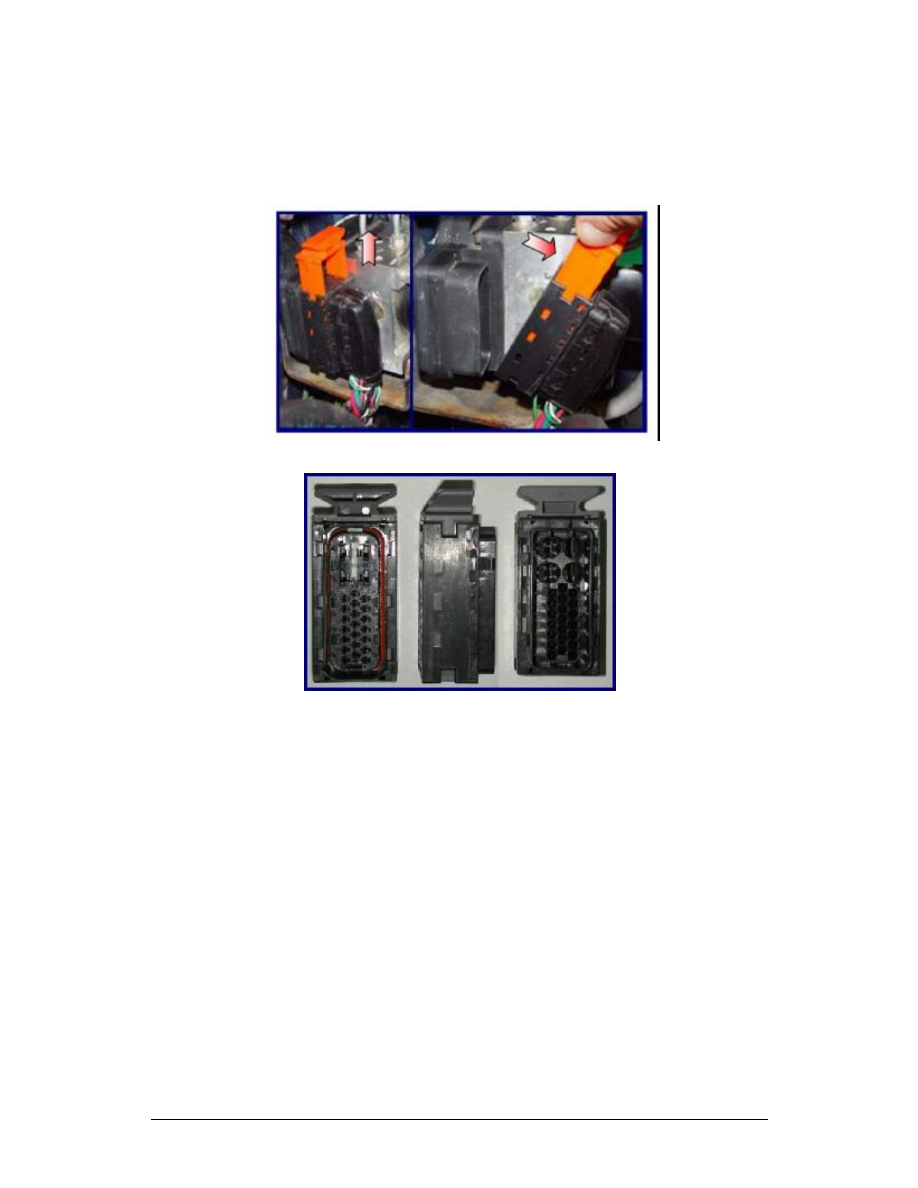

When  the  vehicle  is  stopped,  remove  the  25-pin  connector  and  harness  wiring  of  the  HECU

located within the engine compartment.












25-Pin Connector Used in MGH-25 ABS

(P/NoAMP 368482-1)








②   Screw off in counter clockwise direction the 6 bolts (M10x1.0) connected to the HECU brake
hose with 11mm tool (wrench) (rotate in clockwise direction during refit). The tightening torque for
the brake hose is 120 ~ 160 kgf·cm.






Screw  off  in  counter  clockwise  direction  the  3  bolts  or  nuts  connected  to  the  bracket  with

12mm tool (wrench) (rotate in clockwise direction during refit). The tightening torque for the fixing
bolts or nuts of the bracket is 190 ~ 260 kgf·cm.

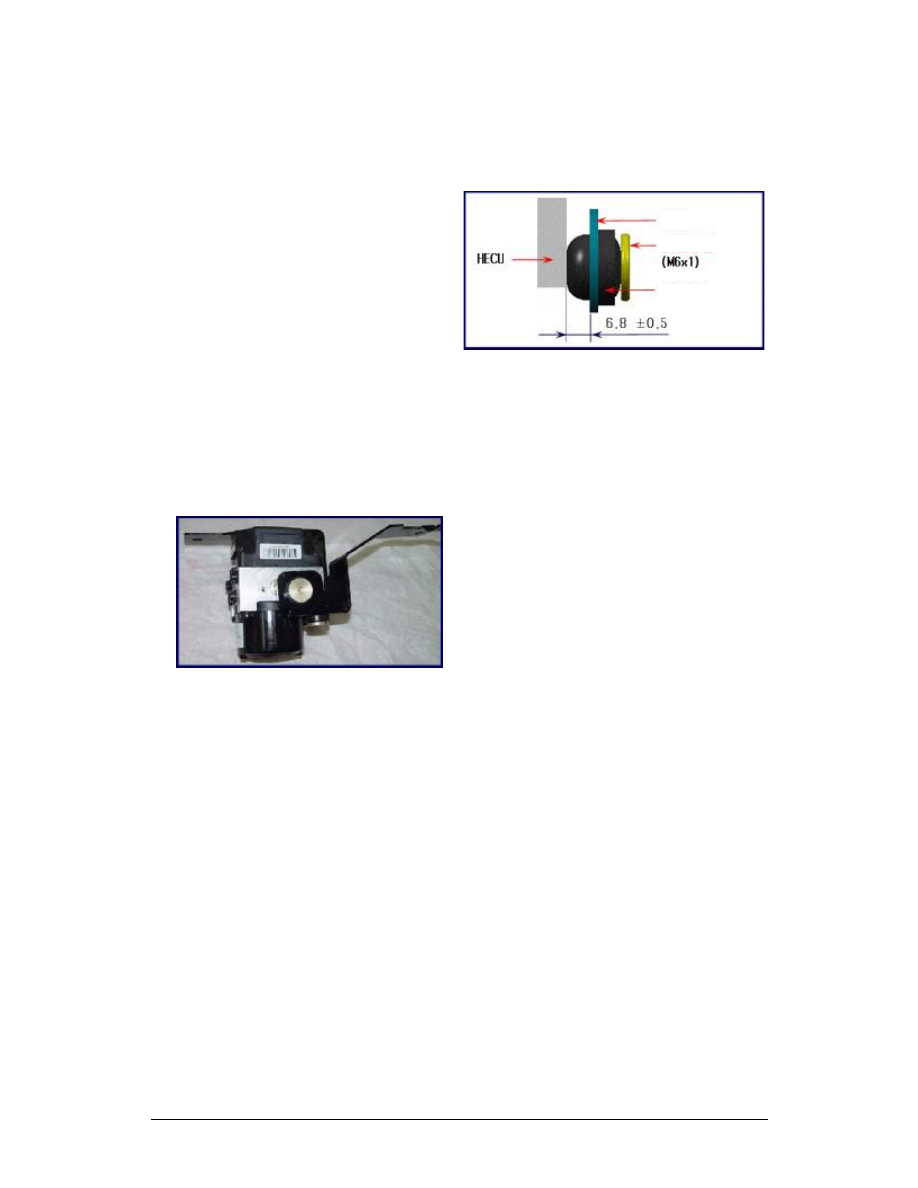

After  the  removal  of  the  product,  screw  off  in  counter  clockwise  direction  the  3  embedded

bolts (M6x1.0) attached to the HECU with 5mm tool (hex wrench) (see the figure in next page).
