Chapter 7  Disassembly/Reassembly of Instrument Panel

I. Removal of Instrument Panel Accessories

1. Preparation

Tool: socket spanner, cross head screwdriver, flat head screwdriver

Note: disconnect accumulator cathode before disassemble electrical parts

2.  Disassembly/Reassembly  of  Central  Console  Panel,  Audio  Unit,  Emergency
Switch, A/C Control Switch, Ashtray

2.1. Removal Step

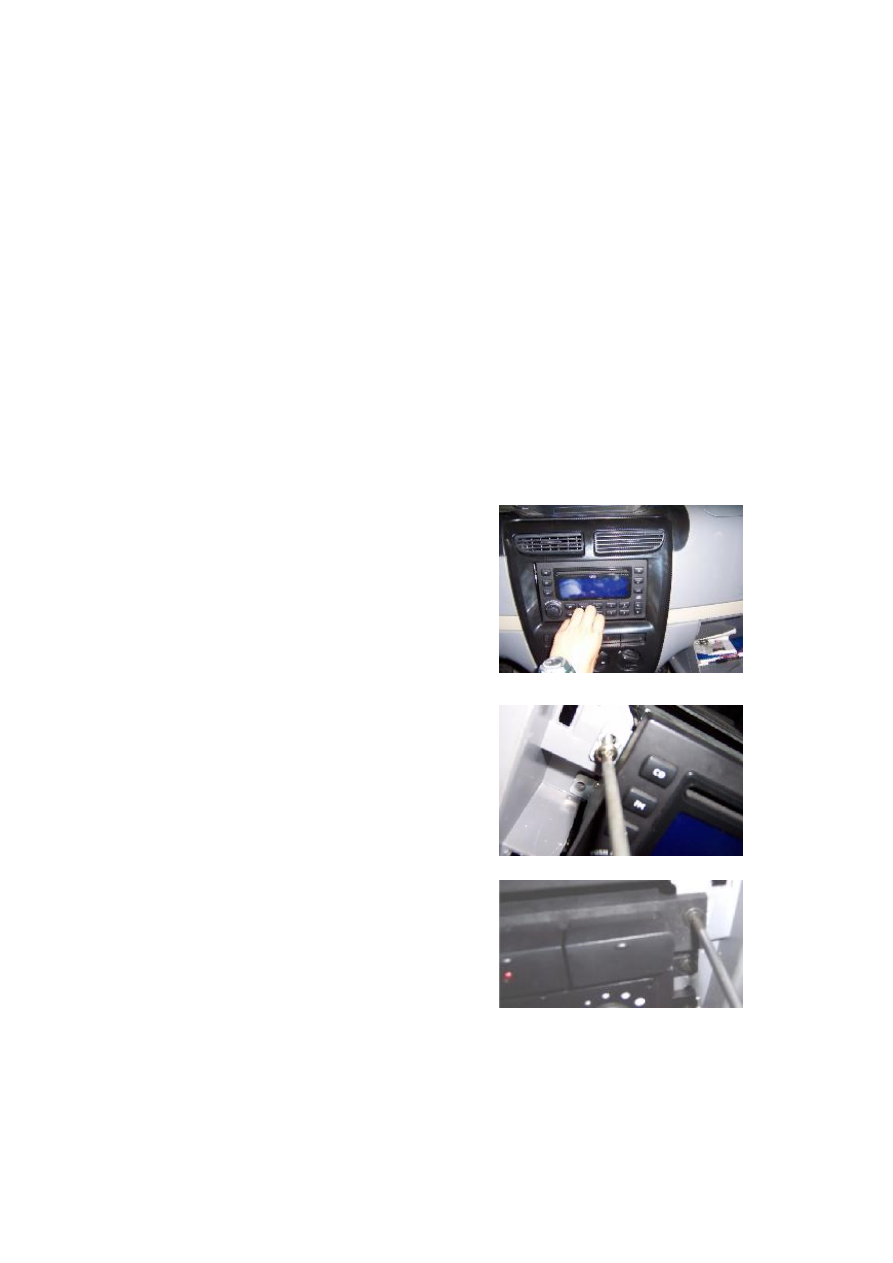

2.1.1.  Remove  the  central  console  panel  by

hand.















2.1.2. Remove four fix screws used to joint the

audio  unit  and  instrument  panel  body  with  a

cross screwdriver.

Torque: 9±3 Nm







2.1.3.  Remove  two  fix  screws  applied  to  joint

the  emergency  switch  and  instrument  panel

body with a cross screwdriver.

Torque: 1.5±0.5Nm







2.1.4.  take  off  the  emergency  switch  and  pull

out the wire harness.



2.1.5.  take  off  the  audio  and  pull  out  the  wire

harness.





62



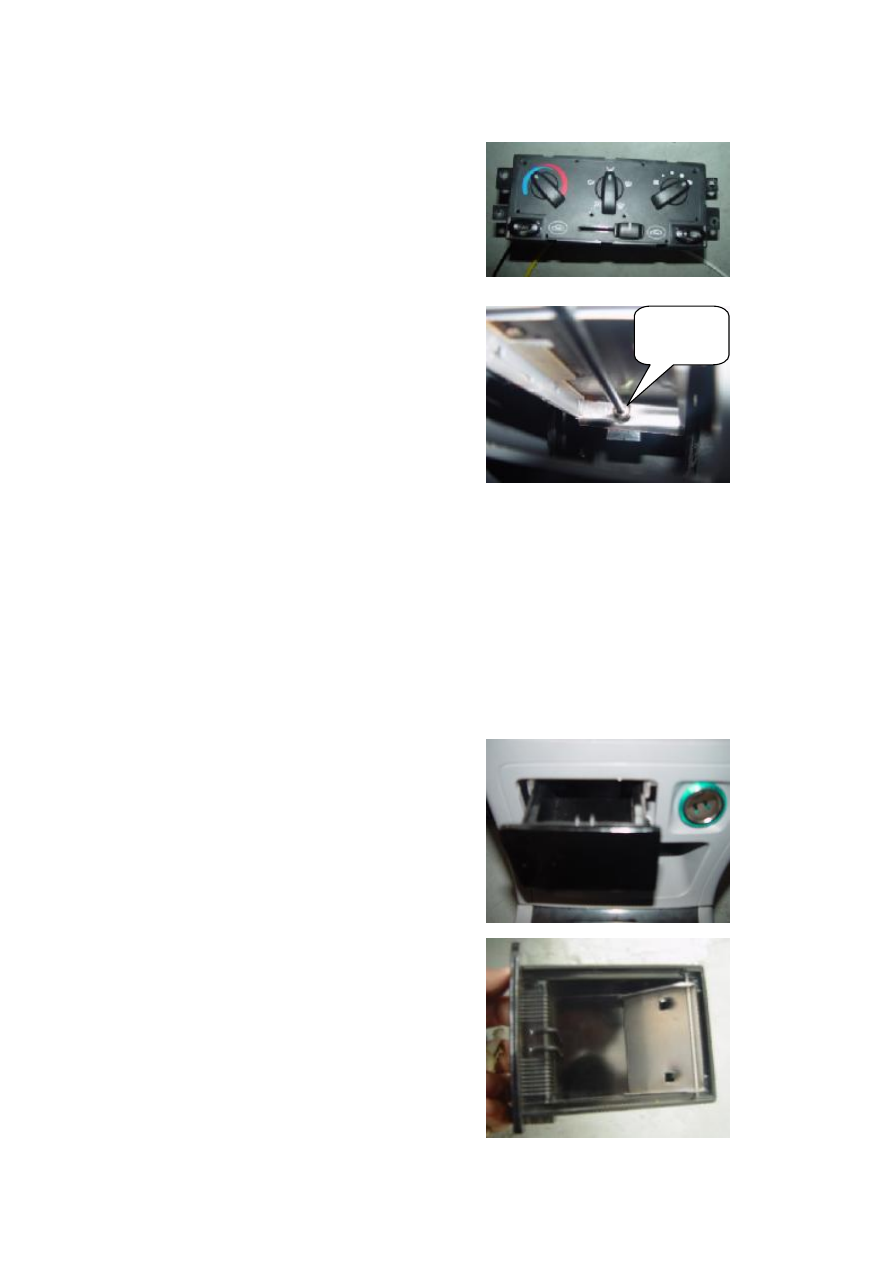

2.1.6. Remove four fix screws used to joint the

A/C  control  switch  and  instrument  panel  body

with a cross screwdriver.

Torque: 3.5±0.5 Nm







2.1.7.  Remove  the  fix  screws  (at  the  bottom  of

ashtray) from the console, take off the cigarette

lighter connecting wire, and remove the console

assy.









2.1.8. Remove the A/C control switch cable and

harness,  and  then  take  off  the  A/C  control

switch.

2.2. Installation Step

The  installing  steps  are  reverse  to  those  for

removal.



3.  Disassembly/Reassembly  of  Front
Ashtray

3.1. Removal Step

3.1.1. Draw out the front ashtray.























Bolts  under
the astray

63



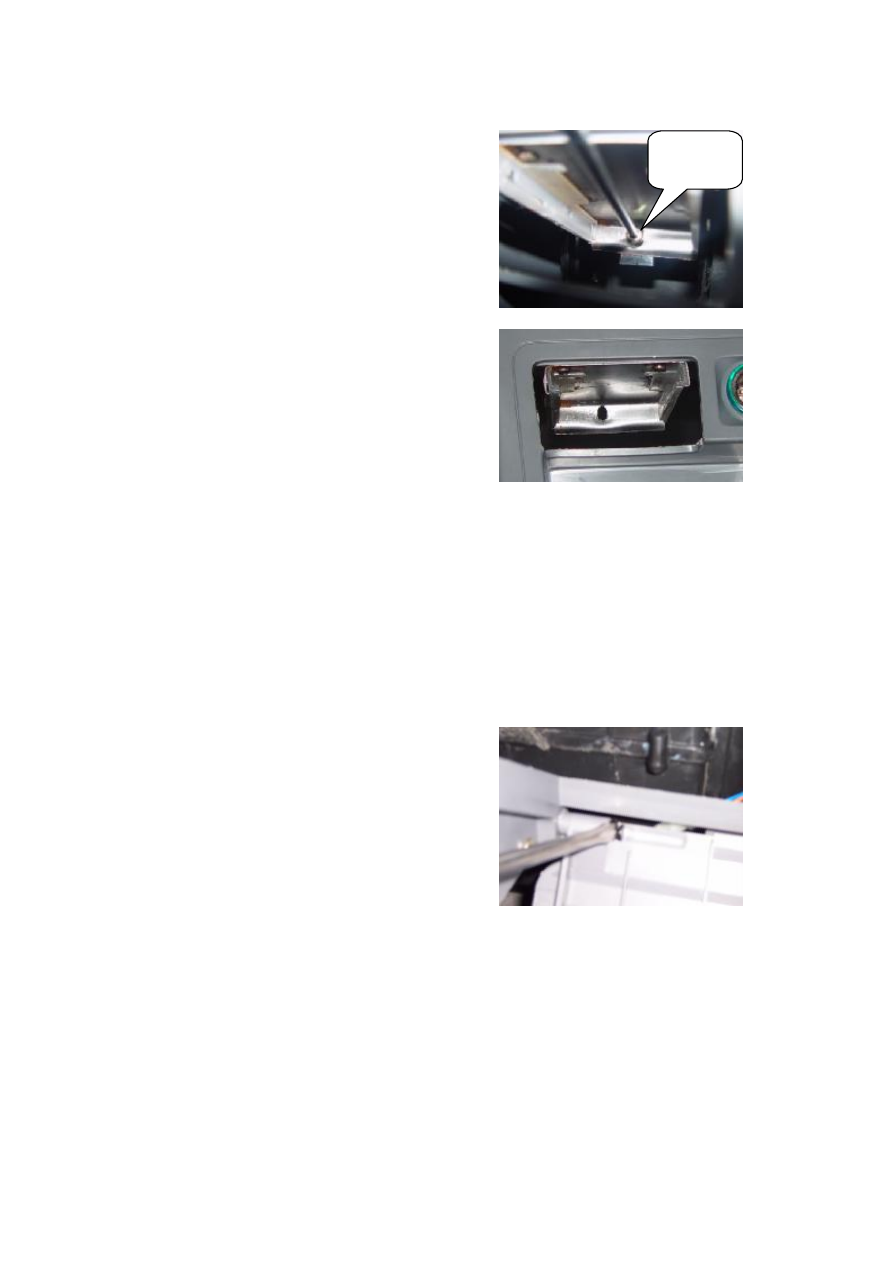

3.1.2.  Remove  one  fix  screw  from  the  bottom

of  front  ashtray  guide  run  with  a  cross

screwdriver.

Torque: 10±1 Nm









3.1.3. Remove two fix screws from the front of

front  ashtray  guide  run  with  a  cross

screwdriver.

Torque: 3±1 Nm







3.1.4. Take off the front ashtray guide run.

3.2. Installation Step

The  installing  steps  are  reverse  to  those  for

removal.

4.  Disassembly/Reassembly  of  Glove
Case

4.1. Removal Step

4.1.1.  Unclench  the  long  clip  core  at  the  right

lower part of glove case with a screwdriver, and

take off the clips.

4.1.2. Swing and take off the glove case.

4.2. Installation Step

The  installing  steps  are  reverse  to  those  for

removal.

5.

combination



instrument

Disassembly/Reassembly of

5.1. Removal Step

5.1.1.  Remove  the  central  console  panel,  and

then  remove  the  combination  instrument

ornament frame.



Bolts  under
the astray



64



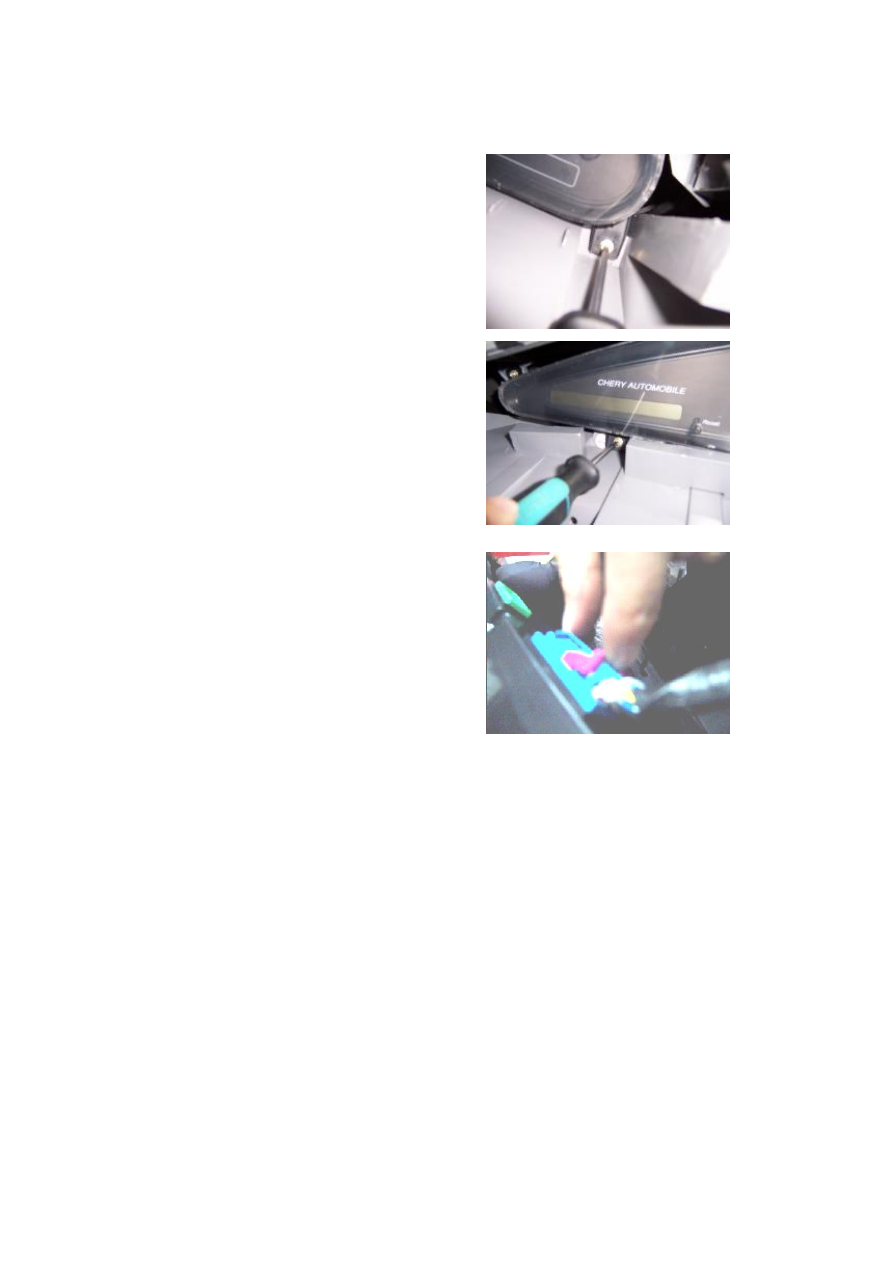

5.1.2.  Remove  four  fix  screws  from  the

combination

instrument

with

cross

screwdriver.

Torque: 2±0.3Nm



























5.1.3. Disconnec to the combination instrument

harness  connector,  and  then  take  off  the

combination instrument.













5.2. Installation Step

The  installing  steps  are  reverse  to  those  for

removal.





6.

Disassembly/Reassembly

of

Combination  Switch,  Wiper  Switch,
Ignition Switch, Heliax Cable

Please  refer  to  Disassembly/Reassembly  of

Steering  Column  in  the  Service  Manual  of

Chassis.
