Fixing steps:
1. Fix with reference to the unfixing
steps.
2. Note:

Released set bolts which are subject to


yielding limit in terms of torque + angle
fixing during bolting must be replaced.

Fasten the bolts with the required


torque



Eight. Fixing of transmission shaft
assembly
- Fix the inner rzeppa spline of the
transmission shaft assembly into the
gearbox output shaft.
- Fix the outer rzeppa spline of the
transmission shaft assembly into the
spline groove of front wheel hub, fix the
washer and nut into the transmission
shaft groove.
- The fixing steps of left and right
transmission shafts are the same.









































Section Three. Fixing and Unfixing of Shock Absorber of Rear Suspension

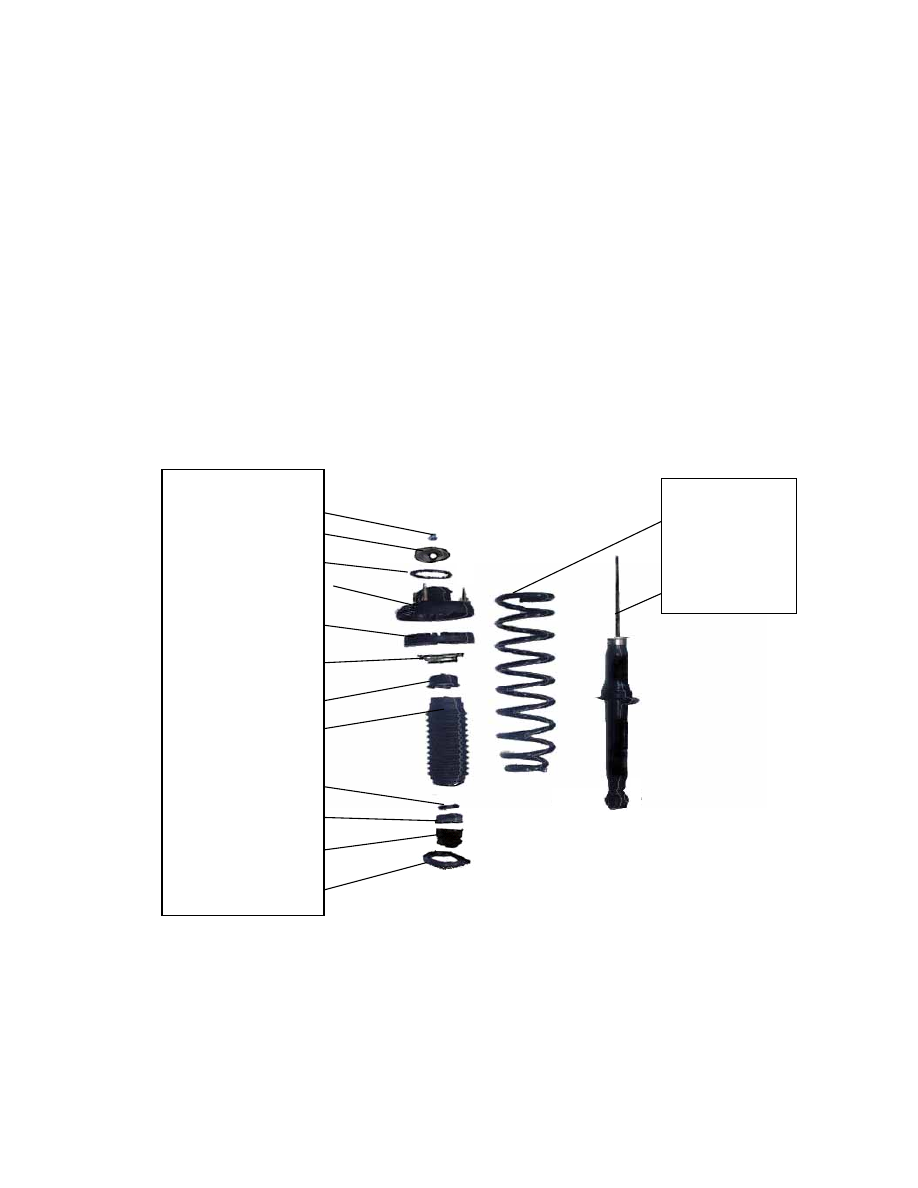

One. Appearance of Rear Shock absorber





























Two. Fixing and unfixing of rear
shock absorber
Unfixing steps:
1. Unfix the rear seat backrest (see Car
Body).



13 后螺旋弹簧

1 螺母

2 碟形垫片

11 后缓冲块

4 后滑柱连

3 缓冲环

接支架总成



5 后簧上软垫

12 后簧下软垫

10 后缓冲块垫

9 定位环

7 后防尘罩支座

8 后防尘罩

6 后减支承垫

1

器总

1. Nut
2. Disc washer
3. Buffer ring
4. Rear sliding bar
joint bracket
assembly
5. Upper washer of
rear spring



6. Rear bracket
7. Rear dust cover
bracket
8. Rear dust cover
9. Retainer ring
10. Rear buffer
washer
11. Rear buffer
pad



12. Lower washer
of rear spring

4 后减振

13. Rear
helical spring

14. Rear shock
absorber
assembly

2. Unfix the rear wheel.

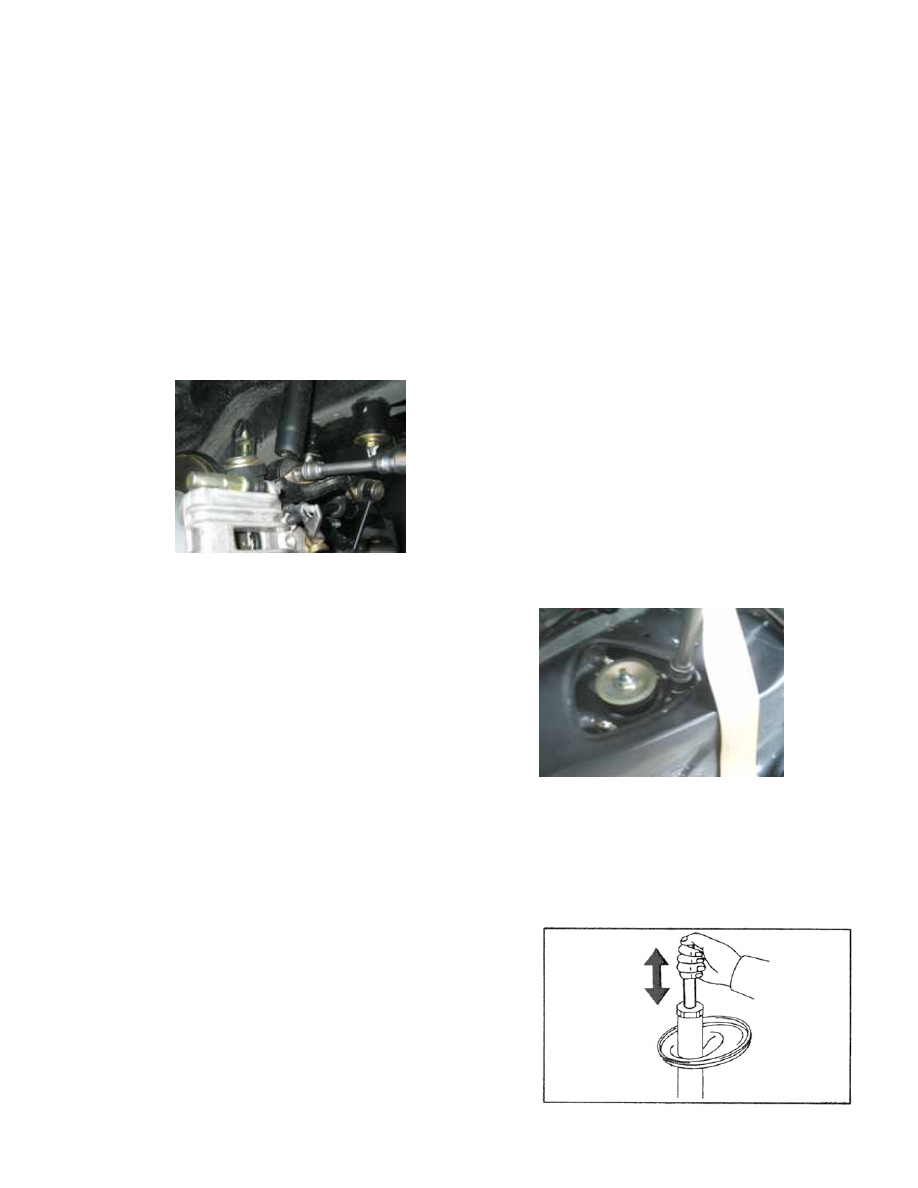

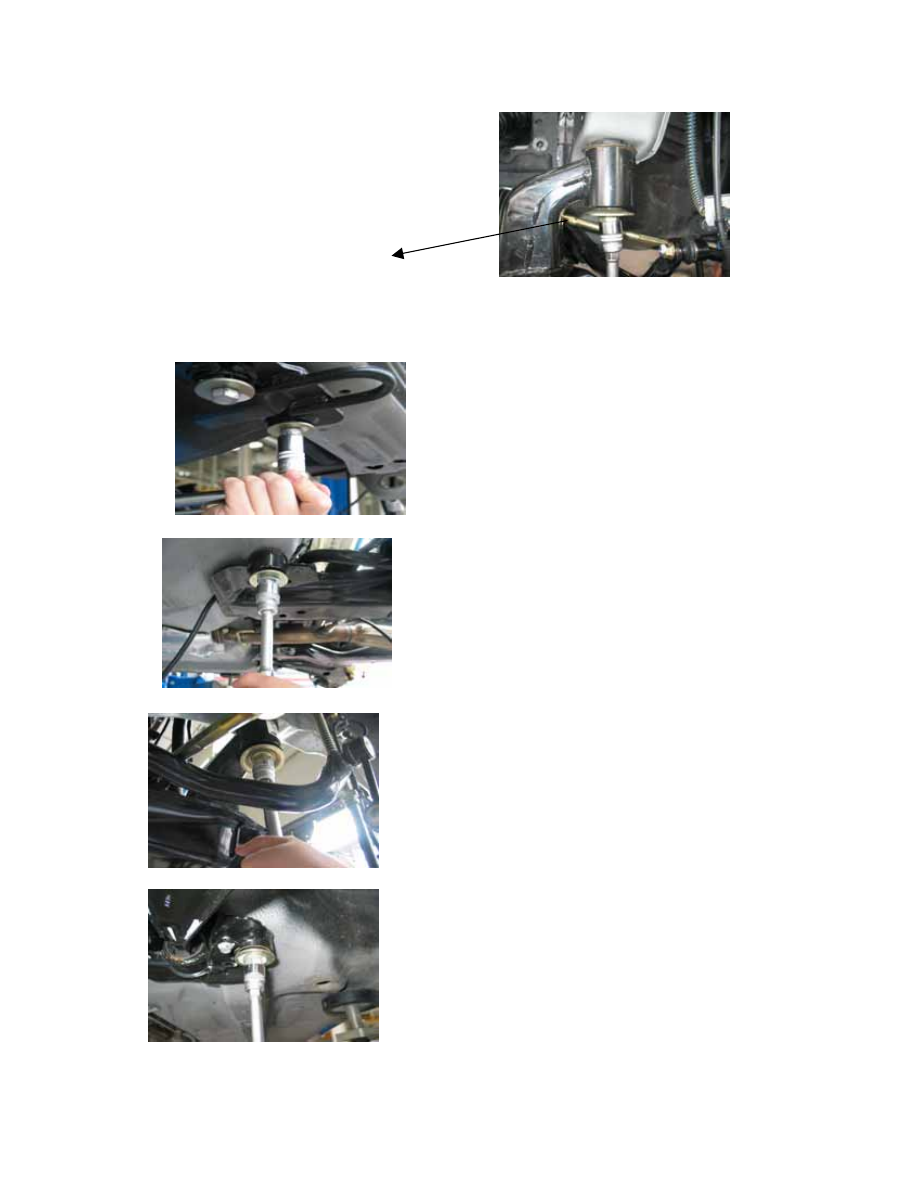

3. Unfix the brake hose and ABS speed
sensor wires from the shock absorber.
4. Unfix the shock absorber that is
incorporated with a helical spring.
(1) Release the set bolts on the lower
part of the shock absorber.
(2) Jack up the rear axle with a jack.
(3) Screw off the nut.
(4) Release the middle nut of suspension
bracket.
Note: do not unfix it.











(5) Screw off the three nuts on the
suspension bracket.
(6) Unfix the shock absorber and helical
spring.

Fixing steps:
1. Fix with reference to the fixing steps;
2. Caution:

Released set bolts which are subject to


yielding limit in terms of torque + angle
fixing during bolting must be replaced.

Fasten each bolt with the required


torque.

Check the wheel alignment after


installation.

Three. Check on shock absorber
1. Check shock absorber

Check if the shock absorber suffers oil

leakage and replace if so; check the
damp of the shock absorber and replace
if unsatisfactory.

Check if the thrust bearing is worn out,

too noisy and stuck; check if the lower
bracket of spring suffers any rupture or
deformation; check if the limit block is
damaged; check if the suspension spring
limit washer is worn out, cracked or
deformed. Replace all defected parts.
Note: follow the following instructions
if the shock absorber is to be
discarded.

2. Discarding
(1) Stretch the shock absorber pole as
much as possible.
(2) Drill to let out the gas inside the
shock absorber cylinder.
Drill one hole in the cylinder with a drill
to let out the gas inside.

Caution: the gas is not harmful; but
do watch out for any possible flying
scrap irons during drilling.

















































Four. Fixing and unfixing of shock
strut, shock strut parts and/or springs




Please refer to the fixing and unfixing
steps of the shock strut, shock strut parts
and/or springs of the front shock
absorber.































Section Four. Fixing and Unfixing of Rear Axle and Rear Suspension


One. Appearance

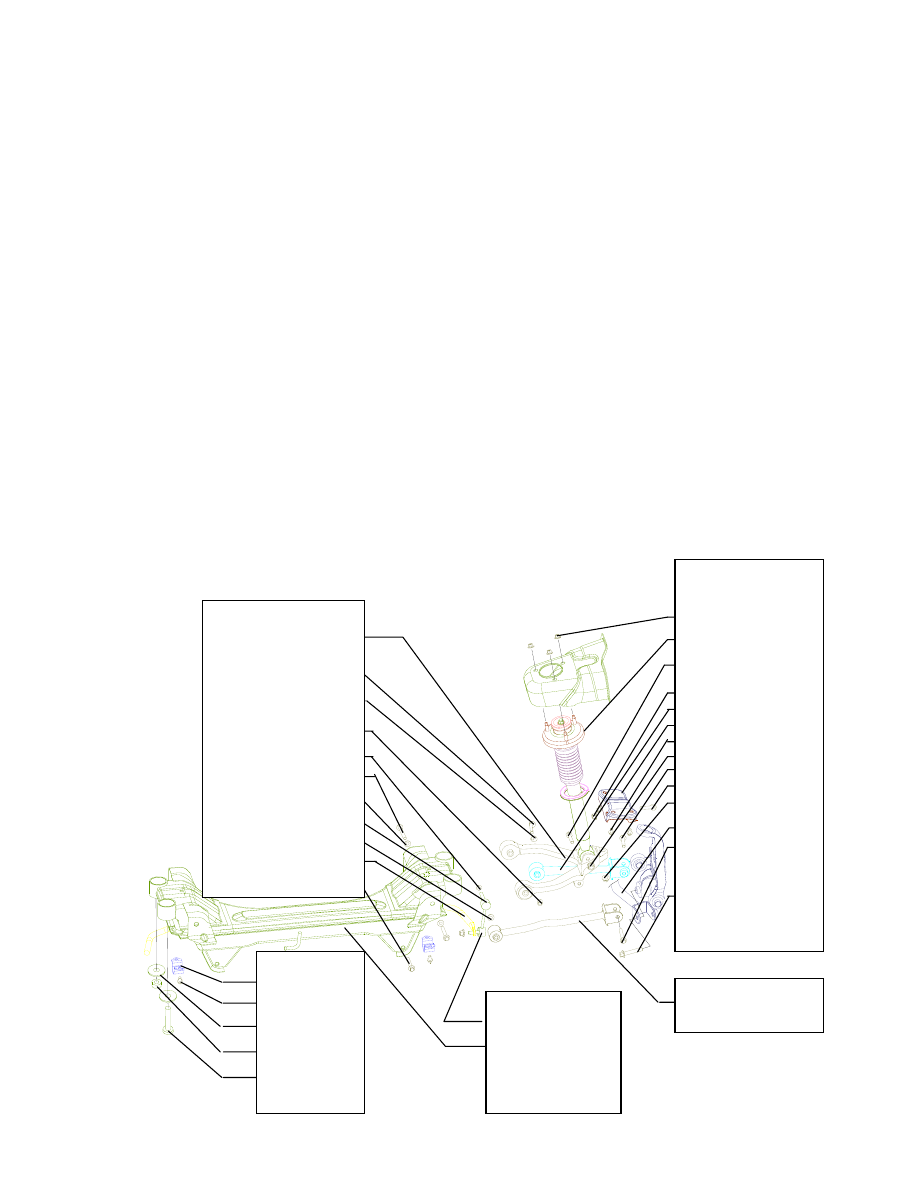

Structure drawing:

后桥及后悬架系统安装示意

1 螺母

2 后滑柱总

16 调整螺栓



17 偏心平垫片



5 前摆臂总

8 螺母

9 螺栓

11 螺母

13 螺栓

14 螺栓

18 螺母



19 螺母



20 螺栓



21 垫片



23 螺母



26 夹子



27 螺栓



28 垫片



29 螺母



30 螺栓



24 后稳定杆总

16 叉形臂

12 导向杆总

3 螺栓

22 垫片



25 螺栓



15 后摆臂总

4 螺母

10 螺栓

6 后轴支架

7 螺栓

26. Clamp
27. Bolt
28. Washer
29. Nut
30. Bolt

16. Fork arm
16. Adjusting bolt
18. Nut



19. Nut



20. Bolt



21. Washer
22. Washer



23. Nut



24. Rear stabilizer
bar assembly
25. Bolt

15. Rear rocker
arm assembly

1. Nut



2. Rear sliding
bar assembly
3. Bolt



4. Nut
5. Front rocker
arm assembly
6. Rear shaft
bracket



7. Bolt
8. Nut



9. Bolt
10. Bolt
11. Nut
12. Guide rod
assembly
13. Bolt
14. Bolt

31 后轴总成

32 后连接杆总

 32. Rear
connecting rod
assembly
31. Rear shaft
assembly
