Chery B11. Manual - part 114











Chapter Four Suspension and Axle

Section One Specifications

Specifications of fixings

Part No.

Qty

Fixing torque

(N·m)

Remarks

Method of

testing

Q32208

4

23±3

Connection between reinforcing bar

and car body





Q33010

6

50±5

Fixing between rear sliding bar and

car body





B11-2810015

2

150±15

Fixing subframe and car body





Q330B14

2

150±15

Fixing subframe and car body





B11-2911041

2

110±10

Fixing rear sliding bar





Q330B12

2

110±10

Fixing rear axle and car body





B11-3301017

2

110±10

Fixing rear axle and car body





B11-2911043

2

110±10

Fixing rear sliding bar





Q184B1260

6 90±8

Fixing rear axle bracket and car

body





Q33010

3

50±5

Fixing front suspension





Q184B1255

2

80±6

Fixing girder and car body





Q151B1245

2

80±6

Fixing girder and car body





Q184C1020

4

50±5

Fixing rear stabilizer bar





B11-2919027

2 110±10

Fixing front rocker arm of rear

suspension





Q1841280

10 110±10

Fixing rear rocker arm of rear

suspension





B11-2919030

1

110±10

Fixing left and right fork arms





Q33014

4

130±5

Fixing rear brake disc





Q18414100

2

130±10

Fixing rear axle bracket





B11-2909011

2

110±10

Fixing joint plate and control arm





Q184C1020

6

90±8

Fixing joint plate and subframe





Q1841490

2

180±15

Fixing control arm and subframe





Q184C1020

2

50±5

Fixing stabilizer bar and subframe





Q33810

4

50±5

Fixing stabilizer bar and joint bar





Q33010

2

50±5

Fixing stabilizer bar and subframe





Q184B1260

2 135±10

Fixing front sliding bar and brake

disc





Q330B12

2 135±10

Fixing front sliding bar and brake

disc





Q184B1260

2 135±10

Fixing front sliding bar and brake

disc





Q330B12

2 135±10

Fixing front sliding bar and brake

disc





Q184B1250

2

105±10

Fixing brake and control arm





Q330B12

2

105±10

Fixing brake and control arm





N0111862

2

35±3

Fixing redirector and brake disc





B11-2203205

2

180±15

Fixing drive nuts

Pretightened

B11-3100111 16

110±10

Connecting tyre and brake disc

Pretightened

B11-2203205 2

270±10

Fixing drive nuts

Retightened

B11-3100111 16

110±10

Connecting tyre and brake disc

Retightened


Released set bolts which are subject to yielding limit in terms of torque + angle fixing
during bolting must be replaced.
1. Pretighten with a torque of 100Nm, release the grooved nut, fasten with a torque of
20Nm and turn 90°. If the split pin hole does not match with the grooved nut, then release
it, go to the next hole and fix with the split pin.
2. Pretighten with a torque of 50Nm, increase the torque to 90Nm and turn 45 to 60°.
3. Pretighten with a torque of 90Nm and then turn 30 to 45°.
4. Pretighten with a torque of 50Nm and then turn 90 to 105°.



Section Two. Fixing and Unfixing of Front Shock Absorber

Chery SQR724OT/7200T features detached steering drive axle as the front axle of a
MacPherson suspension. B11’s front suspension functions as both driving and steering
devices. The suspension’s upper part is connected with the car body and its lower part is
connected with the knuckle. The camber of wheels is adjusted through the joint bolts of
suspension and knuckle. The subframe is connected to the car body with an elastic device
that increases driving stability and comfort.

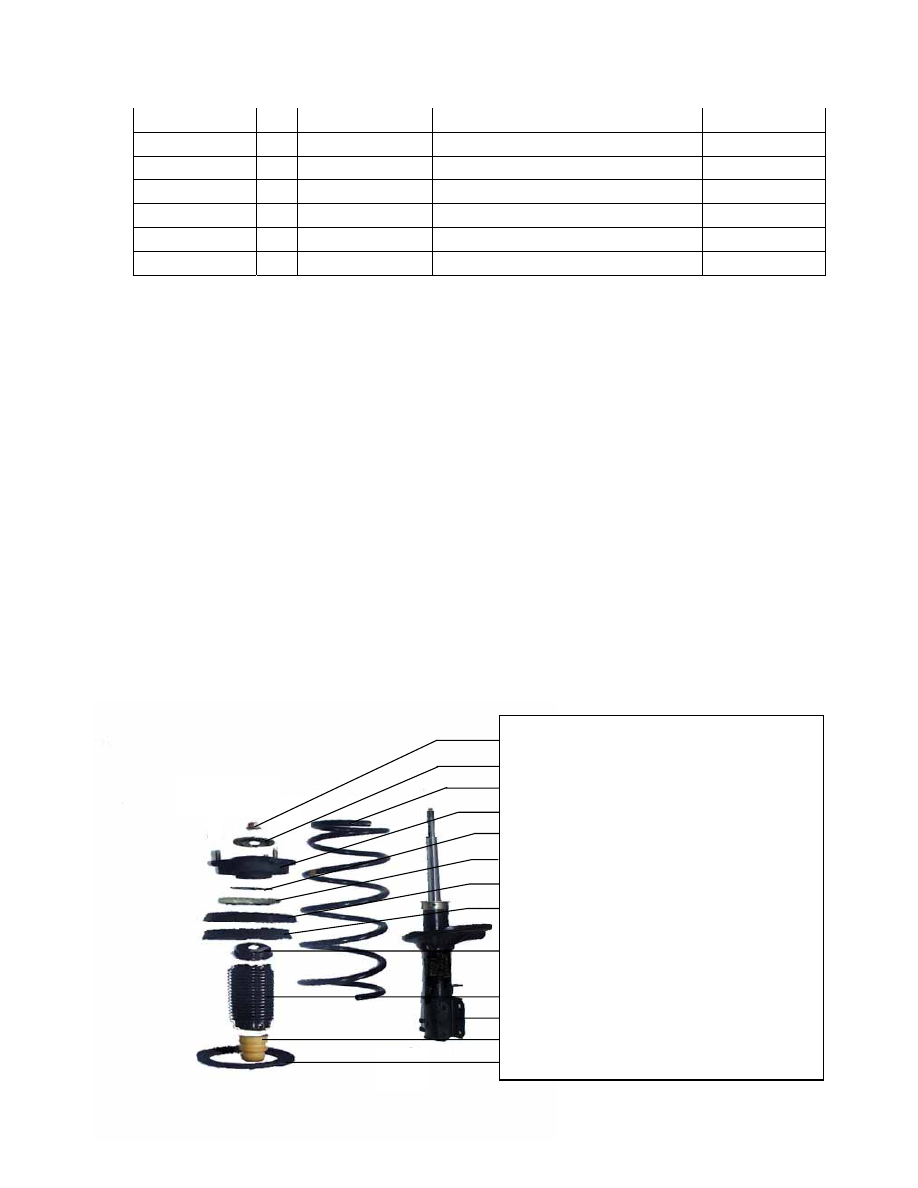

One. Appearance
Structure drawing:












3 前螺旋弹簧

1 螺母

11 前减振器总成

12 前缓冲块
13 前簧下软垫

10 前防尘罩

9 前防尘罩支座

8 前簧上软垫

7 前簧上托盘

6 轴承总成

5 平垫片

4 前连接支架总成

2 前减振器连接板



















1. Nut
2.  Joint plate of front shock absorber
3.  Front helical spring
4.  Front joint bracket assembly
5. Flat washer
6.   Bearing assembly
7.  Upper bracket of front spring
8.  Upper washer of front spring
9.  Front dust cover bracket
10. Front dust cover
11.  Front shock absorber assembly
12. Front buffer
13. Lower washer of front spring


- Place the lower washer of front spring 13 onto the bracket of shock absorber 11, hitch
the front buffer 12, front dust cover 10 and front dust cover bracket 9 onto the piston of
front shock absorber, fix front helical spring 3, compress it to below 250mm, fix upper
washer 8 of front spring, upper bracket 7 of front spring, bearing assembly 6, flat washer
5, front joint bracket assembly 4, joint plate of front shock absorber 2, fasten nut 1 with
the specified torque (70 +5Nm) and release the compressor of the helical spring.
- Make sure that both ends of the front helical spring are butted against the spring bracket
appropriately.
- Make sure that he fixing angle of the upper bracket of front spring is proper to avoid
damaging the bearing.


Two. Fixing and unfixing of front
shock absorber

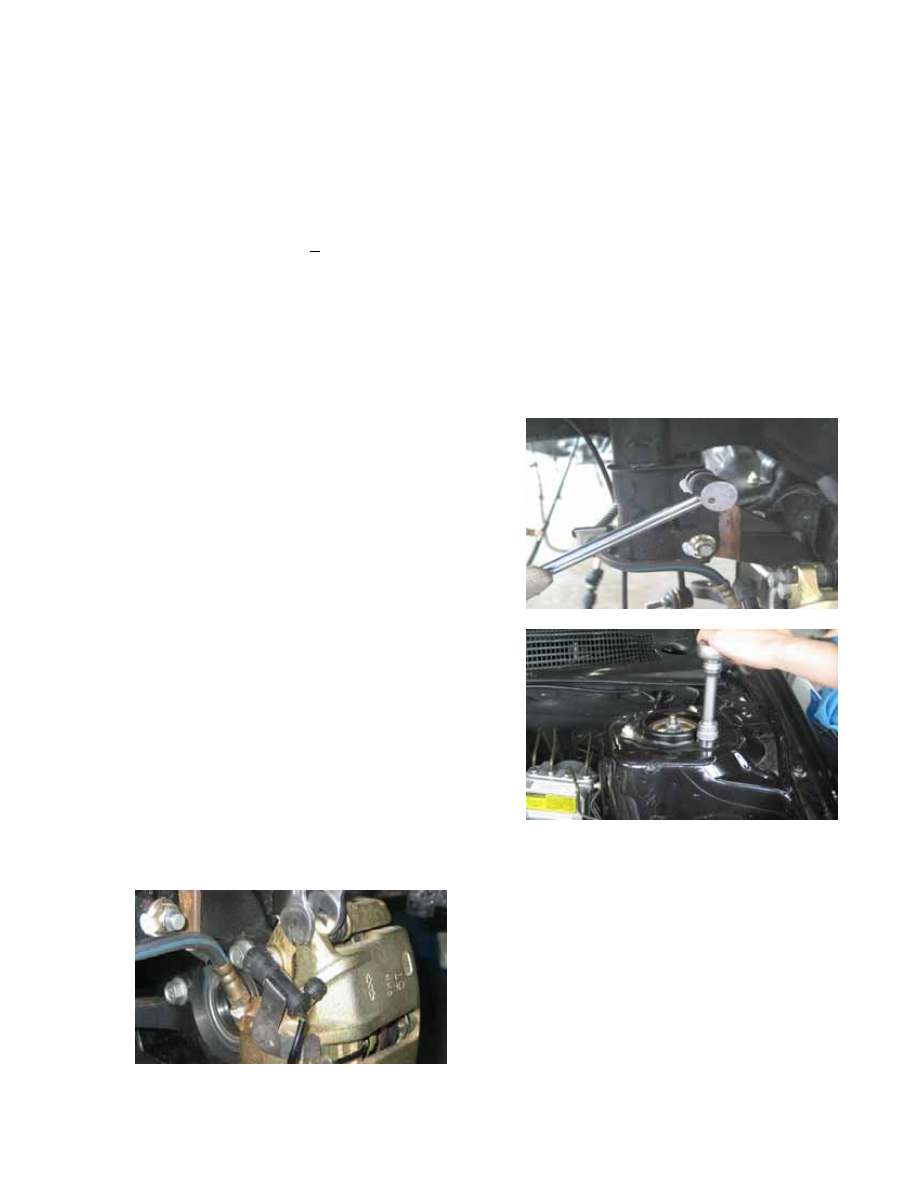

Unfixing steps:
1. Jack up the car with a jack and unfix
the front wheel.
2. Unfix the hose and ABS auto speed
sensor wire (with ABS system), hose
bracket and braking wire clamp from the
shock absorber.
3. Unfix the shock absorber from the
knuckle.
(1) Screw off the two nuts and bolts on
the lower part of the shock absorber.
(2) Take the shock absorber off the
knuckle.
Note: apply engine oil onto the nut
threads.
4. Unfix the shock absorber together
with its helical springs.
(1) Unfix three nuts on the shock
absorber.
(2) Unfix the shock absorber together
with its helical springs.


































Fixing steps:
1. Fix with reference to the unfixing
steps;
2. Caution:

Released set bolts which are subject to

①
yielding limit in terms of torque + angle
fixing during bolting must be replaced.

Fasten each bolt w

②

ith the required

torque.

Check the

③

wheel alignment after

installation.
