Chery·Maintenance Manual for Oriental Son
Chassis Section
(1) Before revising, sight check if there’s damage in running system components. Replace components damaged.
Camber of front wheels designed by the manufacturer isn’t adjustable.
(2)
If finding
camber of front wheels exceeds deviation, loosen binding bolts of front shock absorber and steering
knuckle and calibrate it by moving wheels.
3、Front Wheel Toe-in
Use special four-wheel position indicator to test and adjust toe-in.
(1) According to requirements of position
indicator, locate wheels to prepare for
alignment. Fasten steering wheel in
the
direction of straight front with limiting
device of
steering wheel which can be bought
in the market.( Steering wheel must be in the center position of ±5° and lower flange clamping bolt of steering shaft
must be level.)

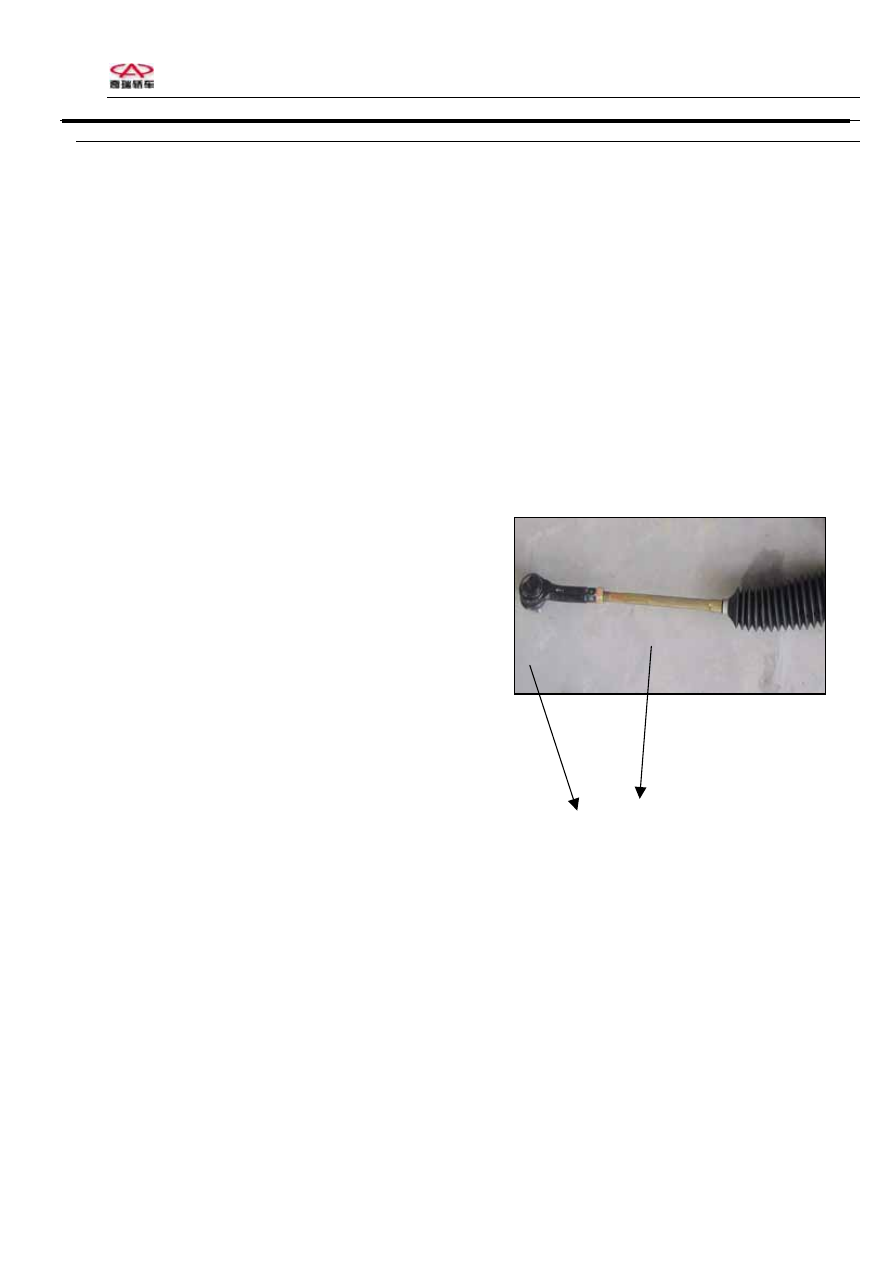

(2)Loosen the lock nut (1) of steering horizontal linkage.
(3)Dismantle
flexible sheath retaining ring
(2)
with pinchers.
Caution: If retaining ring is lack of elasticity,
It is needed to replace it.
(4)According to requirements, screw toe-in adjusting
rod to adjust the length to assigned value.
(5)Screw lock nut (1) on and install
flexible sheath retaining ring
(2) again. Check if screwing nuts on and the
sheath is in the right position.
(1) (2)
(6)After adjusting front wheel toe-in, check if steering wheel is level. .If not, loosen lock nut of steering wheel and
adjust steering wheel to level position .And screw lock nut of steering wheel on and adjust steering wheel to
requirements of the moment of a force（30±3Nm）.
4、
Check Front Wheel Steering Angle
After replacing horizontal linkage tie-in or adjusting toe-in, check steering angle. If
front wheel steering angle can’t conform to the standard, check and adjust the length of
left and right horizontal linkages.
