Chery B11. Manual - part 105

remains detached from the ABS car body wire
harness.
3. Connect an ohmmeter to the EBCM terminals
A07 and A08.
Is the resistance within the range required?

1. Replace front right wheel speed sensor
straddling wire harness.
2. Trial run the car at various speeds on various
road surfaces.
Is C0033 reset?

Step
25

Maintenance
finished

Check the diagnostic circuit.

Repair damage to the front right wheel speed
sensor, straddling wire harness and/or gear ring.

DTC C0033 is intermittent. Refer to “Assistance
to troubleshooting”.

Replace the front right wheel speed sensor.

Repair the open circuit or high resistance
between terminals A07 and A.

Repair the open circuit or high resistance
between terminals A08 and B.

Repair the short circuit between terminals A07
and A

Repair the short circuit between terminals A08
and B

Repair the ground fault between terminals A07
and A

Repair the ground fault between terminals A08
and B

Repair the short circuit between two wires.

Replace the EBCM.

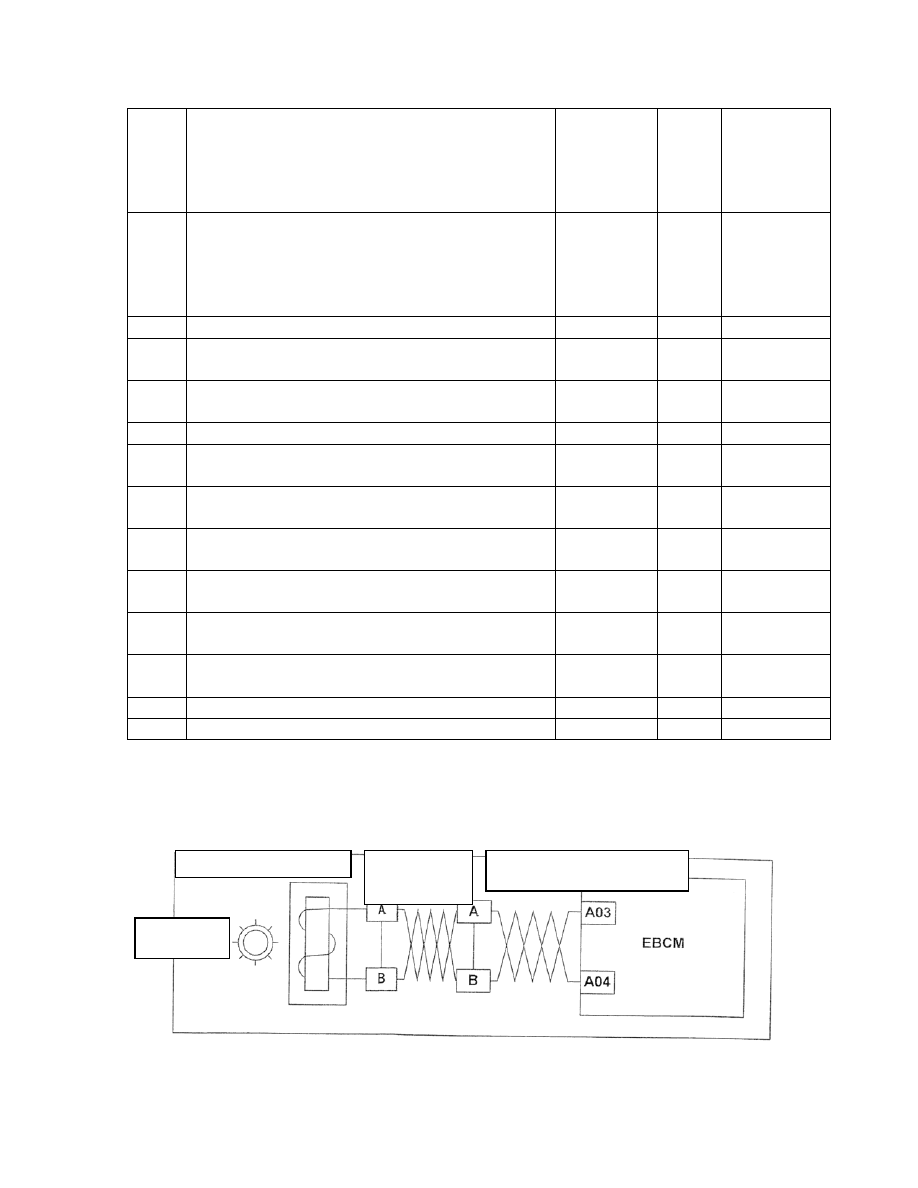

Fourteen. C0034 Open circuit or short circuit of rear left wheel speed sensor

Car body wire harness

Straddling
wire

Wheel speed sensor

Gear ring

1. Description of circuit
The wheel speed sensor will create an AC
voltage that increases with the increase of
wheel speed. EBCM then calculates the
wheel speed on the basis of the AC signal
frequency. The speed sensor is connected
to the EBCM by a twisted pair which can
reduce the noise vulnerability of
troubleshooting codes.

2. Conditions for setup of
troubleshooting codes
DTC C0034 may be modulated when the
key is on and the EBCM has detected that
there is open circuit or ground fault in the
rear left wheel speed sensor circuit or its
short circuit with the storage battery.

3. Actions to be taken for setup of
troubleshooting codes
(1) The electromagnetic relay is turned off
and pump motor and solenoid are
disconnected with the power source.
(2) Save DTC C0034.
(3) ABS is disabled and ABS alarm lamp
is on.

4. Conditions for clearing
troubleshooting codes
(1) If the conditions for setting up
troubleshooting code C0034 are gone,
corresponding scanning tools can be used
to clear the troubleshooting code.
(2) If the troubleshooting code does not
appear for 100 driving cycles running, it
can be eliminated from the database.

5. Assistance to troubleshooting

In the case of any interrupted
troubleshooting code, please thoroughly
check the wiring and connectors, which
shall include:
(1) Unfix guard pipes and check if the
wiring is damaged, short circuited and
polluted.
(2) Check if the terminals are deformed
and/or damaged.
(3) Check the contact (fastness) of
terminals by the spare male/female
terminals.
(4) Check if the wire terminals are correct
by unfixing terminals from the connector.
If the driver complains that the ABS alarm
lamp only illuminates when there is a
change in environment moisture (rain,
snow and car washing), please thoroughly
check if any wheel speed sensor is soaked.
If the troubleshooting code is not current,
then simulate the impact of water soaking.
Follow the following steps: spray 5%
brine on suspected area. Then trial run the
car at a speed of over 24km/h (15m/h) on
various road surfaces (e.g. bumpy or
curved road, etc). If any troubleshooting
code appears, then replace the suspected
wire harness and/or sensor.
Check any gear ring carefully to find if
there is any crack or tooth damage. If the
troubleshooting code is set up at the same
speed of each driving cycle, then the gear
ring is highly possible to have been
damaged.
Any failure in carefully and thoroughly
following the above steps will possibly
result in wrong diagnosis, unnecessary
component replacement and reoccurrence
of DTC C0034.

6. Diagnostic steps

Step Diagnostic

action

Expected
value

Yes No

If the checking of diagnostic circuit has been

To Step 12

finished Step

1. Shut off engine
2. Check if the rear left wheel speed sensor,
straddling wire harness and gear ring suffer any
physical damage?
Is there any physical damage?

Step
15

To Step 3

Trial run the car at various speeds on various
road surfaces.
Is C0034 reset?

Step 4

To Step 16

1. Park the car
2. Lift and properly support the car.
3. Detach the rear left straddling wire harness
from the rear left wheel speed sensor.
4. Connect the ohmmeter to the rear left wheel
speed sensor terminals A and B.
Is the resistance within the range required?

800-
1,600ohm
(resistance
will
increase
with
temperature
rise

To
Step 5

To Step 17

1. Rear left straddling wire harness still remains
detached from the speed sensor.
2. Connect the ohmmeter to terminal A of rear
left wheel speed sensor and then to the car body
for grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step 6

To Step 17

1. Detach the EBCM wire harness from the
EBCM.
2. Detach the rear left straddling wire harness
from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminal
A03 and then to the ABS car body wire harness
terminal A.
Is the resistance within the range required?

Less than
2ohm

To
Step 7

To Step 18

1. EBCM wire harness remains detached from
the EBCM.
2. Rear left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminal
A04 and then to the ABS car body wire harness
terminal B.
Is the resistance within the range required?

Less than
2ohm

To
Step 8

To Step 19

1. EBCM wire harness remains detached from
the EBCM.
2. Rear left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect one voltmeter to the EBCM wire
harness terminal A03 and then to the car body
for grounding.

Less than
1V

To
Step 9

To Step 20

Is the voltage within the range required?

Less than
1V

To
Step
10

To Step 21

1. EBCM wire harness remains detached from
the EBCM.
2. Rear left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminal
A03 and then to the ABS car body for
grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step
11

To Step 22

1. EBCM wire harness remains detached from
the EBCM.
2. Rear left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminal
A04 and then to the ABS car body for
grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step
12

To Step 23

1. EBCM wire harness remains detached from
the EBCM.
2. Rear left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminals
A03 and A04.
Is the resistance within the range required?

OL (open
circuit)

To
Step
13

To Step 24

1. Replace rear left wheel speed sensor
straddling wire harness.
2. Trial run the car at various speeds on various
road surfaces.
Is C0034 reset?

Step
25

Maintenance
finished

Check the diagnostic circuit.

Repair damage to the rear left wheel speed
sensor, straddling wire harness and/or gear ring.

DTC C0034 is intermittent. Refer to “Assistance
to troubleshooting”.

Replace the rear left wheel speed sensor.

Repair the open circuit or high resistance
between terminals A03 and A.

19 Repair the open circuit or high resistance
