Is the voltage within the range required?

1. EBCM wire harness remains detached from
the EBCM.
2. Front left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminal
A09 and then to the ABS car body for
grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step
11

To Step 22

1. EBCM wire harness remains detached from
the EBCM.
2. Front left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminal
A10 and then to the ABS car body for
grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step
12

To Step 23

1. EBCM wire harness remains detached from
the EBCM.
2. Front left straddling wire harness still remains
detached from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminals
A09 and A10.
Is the resistance within the range required?

OL (open
circuit)

To
Step
13

To Step 24

1. Replace front left wheel speed sensor
straddling wire harness.
2. Trial run the car at various speeds on various
road surfaces.
Is C0032 reset?

Step
25

Maintenance
finished

Check the diagnostic circuit.

Repair damage to the front left wheel speed
sensor, straddling wire harness and/or gear ring.

DTC C0032 is intermittent. Refer to “Assistance
to troubleshooting”.

Replace the front left wheel speed sensor.

Repair the open circuit or high resistance
between terminals A09 and A.

Repair the open circuit or high resistance
between terminals A10 and B.

Repair the short circuit between terminals A09
and A

Repair the short circuit between terminals A10
and B

Repair the short circuit between terminals A09
and A

23 Repair the ground fault between terminals A10

and B

Repair the short circuit between two wires.

Replace the EBCM.

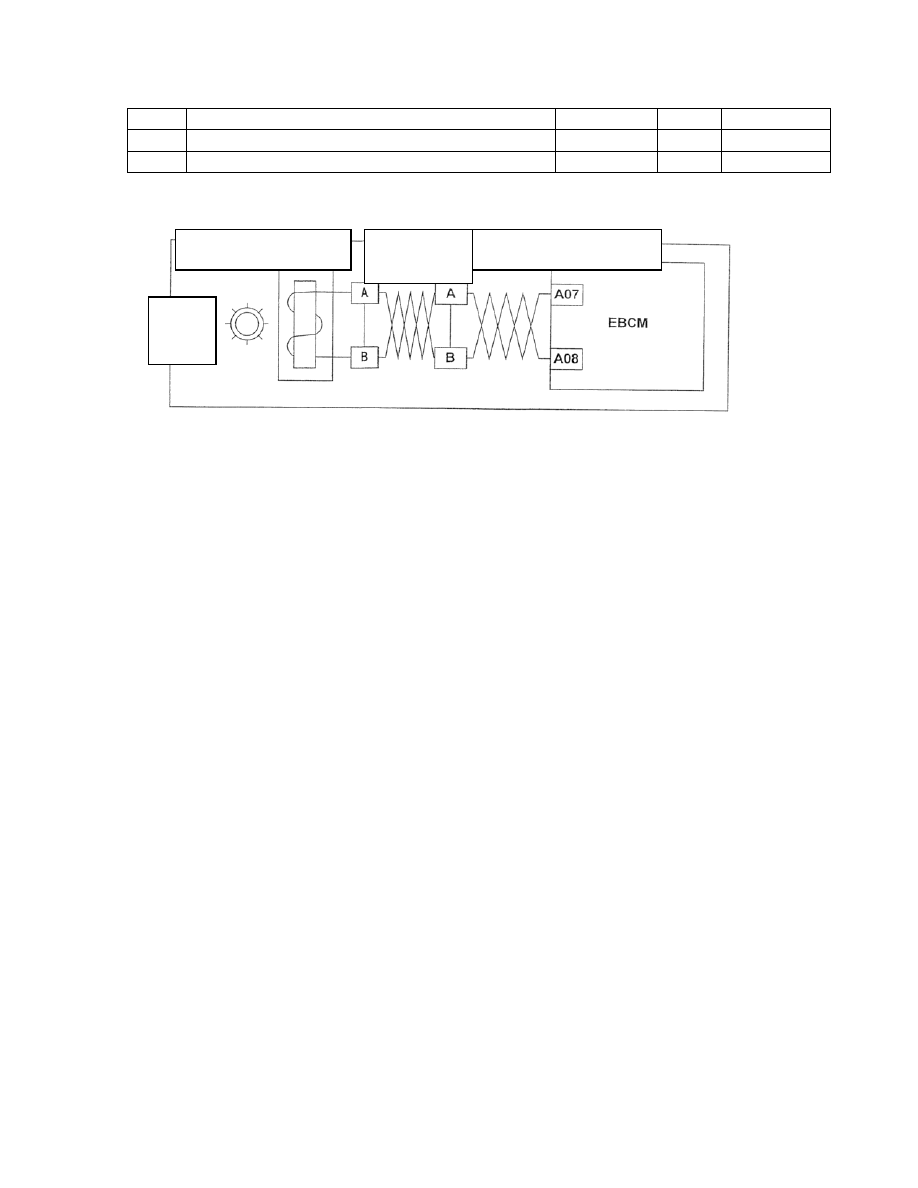

Thirteen. C0033 Open circuit or short circuit of front right wheel speed sensor

Straddling
wire

Wheel speed sensor

Car body wire harness

Gear
ring

1. Description of circuit
The wheel speed sensor will create an AC
voltage that increases with the increase of
wheel speed. EBCM then calculates the
wheel speed on the basis of the AC signal
frequency. The speed sensor is connected
to the EBCM by a twisted pair which can
reduce the noise vulnerability of
troubleshooting codes.

2. Conditions for setup of
troubleshooting codes
DTC C0033 may be modulated when the
key is on and the EBCM has detected that
there is open circuit or ground fault in the
front right wheel speed sensor circuit or its
short circuit with the storage battery.

3. Actions to be taken for setup of
troubleshooting codes
(1) The electromagnetic relay is turned off
and pump motor and solenoid are
disconnected with the power source.
(2) Save DTC C0033.
(3) ABS is disabled and ABS alarm lamp
is on.

4. Conditions for clearing
troubleshooting codes
(1) If the conditions for setting up
troubleshooting code C0033 are gone,

corresponding scanning tools can be used
to clear the troubleshooting code.
(2) If the troubleshooting code does not
appear for 100 driving cycles running, it
can be eliminated from the database.

5. Assistance to troubleshooting
In the case of any interrupted
troubleshooting code, please thoroughly
check the wiring and connectors, which
shall include:
(1) Unfix guard pipes and check if the
wiring is damaged, short circuited and
polluted.
(2) Check if the terminals are deformed
and/or damaged.
(3) Check the contact (fastness) of
terminals by the spare male/female
terminals.
(4) Check if the wire terminals are correct
by the unfixed terminals from the
connector.
If the driver complains that the ABS alarm
lamp only illuminates when there is a
change in environment moisture (rain,
snow and car washing), please thoroughly
check if any wheel speed sensor is soaked.
If the troubleshooting code is not current,
then simulate the impact of water soaking.
Follow the following steps: spray 5%
brine on suspected area. Then trial run the

car at a speed of over 24km/h (15m/h) on
various road surfaces (e.g. bumpy or
curved road, etc). If any troubleshooting
code appears, then replace the suspected
wire harness and/or sensor.
Make sure that the car is under room
temperature when measuring wheel speed

sensor resistance as the resistance will
increase with temperature rise.
Any failure in carefully and thoroughly
following the above steps will possibly
result in wrong diagnosis, unnecessary
component replacement and reoccurrence
of DTC C0033.

6. Diagnostic steps

Step Diagnostic

action

Expected
value

Yes No

If the checking of diagnostic circuit has been
finished

Step 2

To Step 12

1. Shut off engine
2. Check if the front right wheel speed sensor,
straddling wire harness and gear ring suffer any
physical damage?
Is there any physical damage?

Step
15

To Step 3

Trial run the car at various speeds on various
road surfaces.
Is C0033 reset?

Step 4

To Step 16

1. Park the car
2. Lift and properly support the car.
3. Detach the front right straddling wire harness
from the front right wheel speed sensor.
4. Connect the ohmmeter to the front right wheel
speed sensor terminals A and B.
Is the resistance within the range required?

800-
1,600ohm
(resistance
will
increase
with
temperature
rise

To
Step 5

To Step 17

1. Front right straddling wire harness still
remains detached from the speed sensor.
2. Connect the ohmmeter to terminal A of front
right wheel speed sensor and then to the car
body for grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step 6

To Step 17

1. EBCM wire harness remains detached from
the EBCM
2. Detach the front right straddling wire harness
from the ABS car body wire harness.
3. Connect an ohmmeter to the EBCM terminal
A07 and then to the ABS car body wire harness
terminal A.
Is the resistance within the range required?

Less than
2ohm

To
Step 7

To Step 18

1. EBCM wire harness remains detached from
the EBCM.

Less than
2ohm

To
Step 8

To Step 19

2. Front right straddling wire harness still
remains detached from the ABS car body wire
harness.
3. Connect an ohmmeter to the EBCM terminal
A08 and then to the ABS car body wire harness
terminal B.
Is the resistance within the range required?

1. EBCM wire harness remains detached from
the EBCM.
2. Front right straddling wire harness still
remains detached from the ABS car body wire
harness.
3. Connect one voltmeter to the EBCM wire
harness terminal A07 and then to the car body
for grounding.
Is the voltage within the range required?

Less than
1V

To
Step 9

To Step 20

1. EBCM wire harness remains detached from
the EBCM.
2. Front right straddling wire harness still
remains detached from the ABS car body wire
harness.
3. Connect one voltmeter to the EBCM wire
harness terminal A08 and then to the car body
for grounding.
Is the voltage within the range required?

Less than
1V

To
Step
10

To Step 21

1. EBCM wire harness remains detached from
the EBCM.
2. Front right straddling wire harness still
remains detached from the ABS car body wire
harness.
3. Connect an ohmmeter to the EBCM terminal
A07 and then to the ABS car body for
grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step
11

To Step 22

1. EBCM wire harness remains detached from
the EBCM.
2. Front right straddling wire harness still
remains detached from the ABS car body wire
harness.
3. Connect an ohmmeter to the EBCM terminal
A08 and then to the ABS car body for
grounding.
Is the resistance within the range required?

OL (open
circuit)

To
Step
12

To Step 23

1. EBCM wire harness remains detached from
the EBCM.
2. Front right straddling wire harness still

OL (open
circuit)

To
Step
13

To Step 24
