Chery B11. Manual - part 73

Chery Automobile Maintenance Manual

2. Diagnostic Troubleshooting

Error Code NO.14 Throttle Position (TPS)
Sensor System

Possible Reasons

Check Area

Ignition switch: ON

Ignition switch ON last 60 seconds or engine start on

Setup Condition

Engine idle speed position is ON and sensor output

voltage is above 2V for more than 4 seconds.

Output voltage of the sensor lasts 4 seconds below 0.2V.

Throttle position sensor is in failure or malfunction

Contactor contact defect of throttle position sensor circuit,

broken circuit or short circuit of sensor

Abnormal “ON” status at idle speed position switch

The signal cable of idle speed position is short.

Engine ECU failure

At MUT

I “DATA LIST” NO.26 idle speed position switch

system
Normal: when throttle is on the idle speed position: ON;
throttle is partial open:OFF

Normal

Check throttle position sensor

Abnormal

Replace

Normal

Check harness joint of throttle position sensor

Remove harness joint

Voltage between 1# terminal and ground (Ignition switch is ON)

Normal Status

4.8

5.2V

Conductivity between 4# terminal and ground

Normal Status

Conductible

Normal

Check output circuit of throttle position sensor according to check program

39.

Abnormal

Check harness D zone

connector

Normal

Abnormal

Repair

Check failure

Abnormal

Check connector between

throttle position sensor
and ECU

Normal

Replace engine ECU

Abnormal

Repair

Throttle position sensor connector

Abnormal

Check idle speed switch

system according to check

program 28.

Chery Automobile Maintenance Manual

III. Intake Air Temperature

Sensor

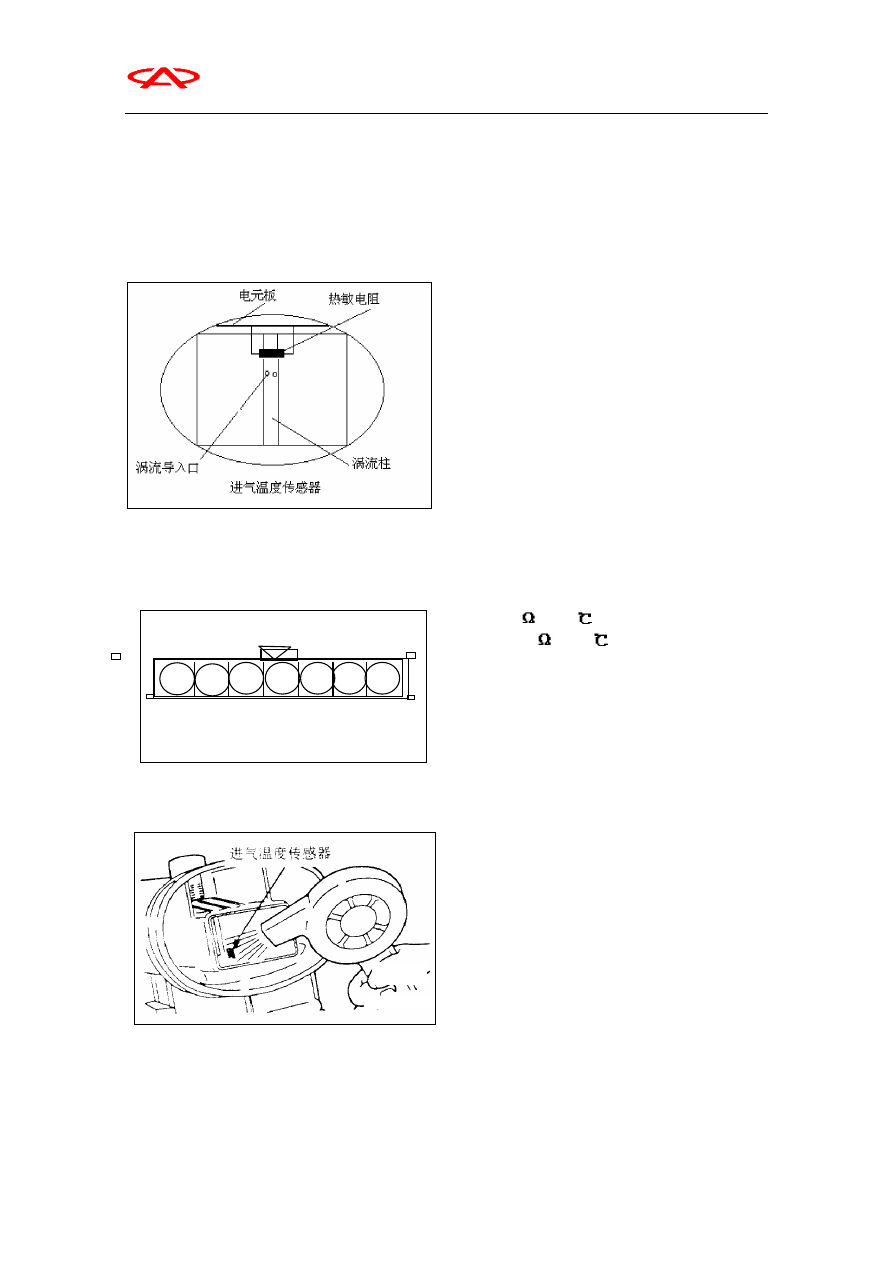

Intake air temperature sensor is integrated with
vortices airflow meter.
1.Type—Negative temperature coefficient
thermo resistance
2.Structure Feature--A thermo resistance
which is installed on the upper of AFS swirl
pole back, will turn the detected inlet
temperature into voltage and then transfer
electric signal to ECU. The input signal will be
calculated to adjust injection drive time.

Intake air temperature sensor Check

Remove harness joint on airflow sensor.

Measure resistance value between 5# and

6# terminal on airflow sensor.
Standard value:
2.3-3.0K

(at 20

)

0.30-0.42K

(at 80

)

(3)Use motor blower to heat intake air
temperature sensor and measure the resistance
value again.
Normal status: temperature increase and
resistance value decrease.
(4)If resistance value is different from standard
value or resistance value keep unchanged,
please replace airflow sensor assembly.

Sensor Plug

Chery Automobile Maintenance Manual

Diagnostic Troubleshooting

Error Code No.13 Intake Air Temperature Sensor System

Possible Reasons

Check

Ignition switch

Ignition switch ON last 60 seconds or engine start on

Setup Condition

Output voltage of the sensor lasts 4 seconds above 4.6V

(equals to inlet air temperature is below -45

Output voltage of the sensor lasts 4 seconds below 0.2V

(equals to inlet air temperature is below 125

Throttle position sensor failure

Joint contact defect of intake air temperature sensor

harness, broken circuit or short circuit of sensor

Engine ECU failure

Check intake temperature sensor

Abnorm

Replac

Check airflow sensor connector

Pull out airflow sensor connector and check wiring.

Voltage between 6# terminal and ground (Ignition switch:

ON)

Normal status

4.5-4.9V

Conductivity between 5# terminal and ground

Normal status: Conductible

Normal

Check inlet temperature sensor connector

Normal

Check failure

Abnormal

Replace engine ECU

Abnormal

Check ECU D zone
connector

Abnorma

Repair

Normal

Check failure

Abnorma

Check wiring between
engine ECU and inlet
temperature sensor

Normal

Abnorma

Repair

Replace engine ECU

Chery Automobile Maintenance Manual

IV. Barometric Pressure

Sensor

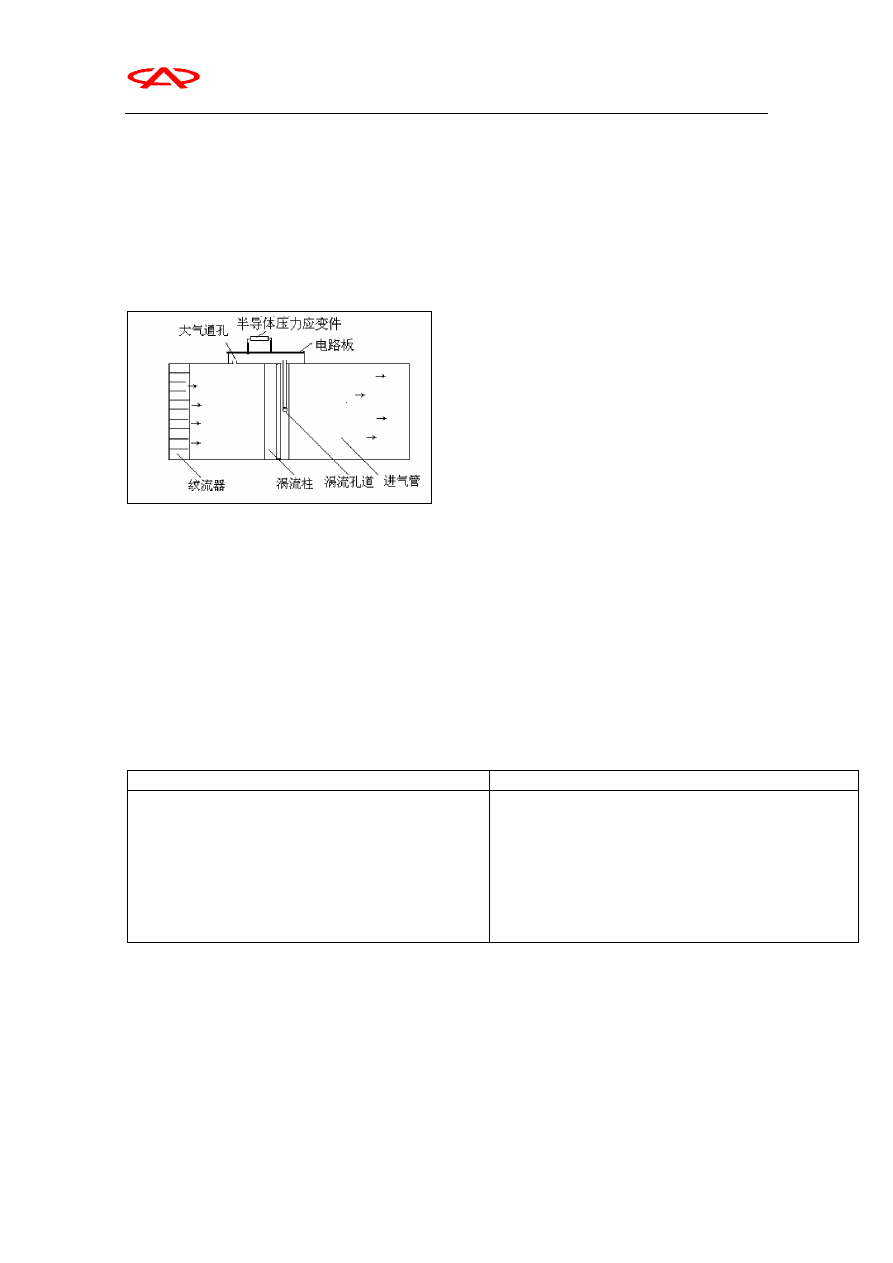

Barometric pressure sensor is integrated with

vortices airflow meter.

1.Type--Semiconductor pressure strain

2.Principle--Absolute pressure is measured

through the pressure difference between swirl

pole and then turned into voltage signal, which

is output to ECU for the drive time calculation

of fuel injection.

Diagnostic Troubleshooting

Error Code No.25

Barometric Pressure

Sensor System

Possible Reasons

Check condition

Ignition switch

Ignition switch ON last 60 seconds or engine start on

Battery voltage is below 8V

Setup Condition

Output voltage of the sensor lasts 4 seconds above 4.5V

(equals to b

arometric pressure

is below 114 KPa) or

Output voltage of the sensor lasts 4 seconds below 0.2V

(equals to b

arometric pressure

is below 5.33 KPa).

Barometric pressure s

ensor failure

Harness joint contact defect, broken circuit or short circuit

of sensor

Engine ECU failure
