Hose



Installation Notice

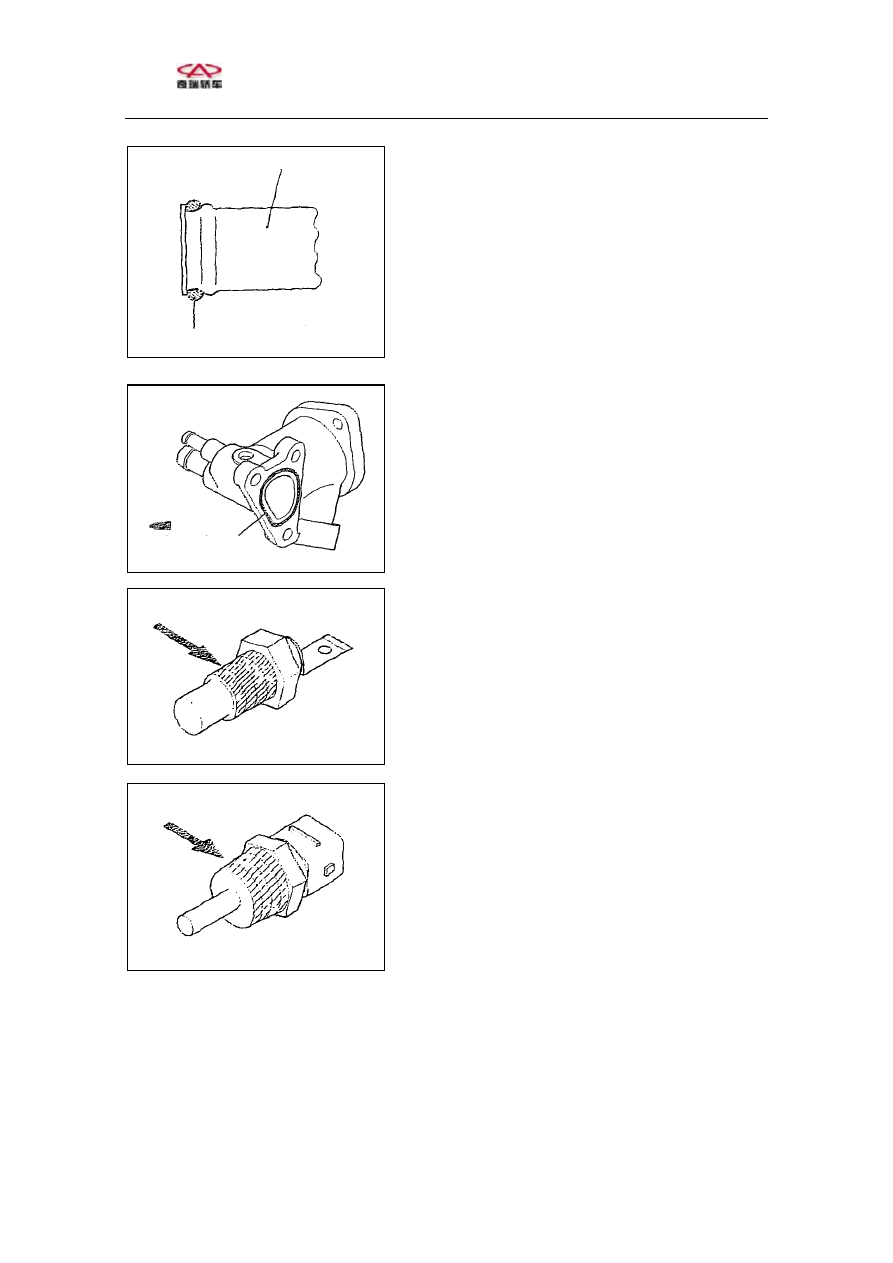

O-shape seal installation

(1)Make seal ring wet to install it easily.

Caution：

There must be no engine oil or lubricate grease

on seal ring.



O-shape seal ring




Daub thermostat shell with sealant

Specific sealant：

Component of Mitsubishi brand 3M ATD

or equivalent.

Note：

(1)

Thermostat shell should be installed

immediately when the sealant is still wet (in 15

minutes).

Sealant of diameter
3mm shall be piled out

(2) Don't daub oil on the sealed part in about 1

hour after installation.





Daub engine coolant induction plug with sealant

Specific sealant：



3M ATD or equivalent





Daub engine coolant temperature sensor with

sealant

Specific sealant：

3M

ATD nut fastening or

equivalent





Maintenance Manual for Chery·Oriental Son

Engine Section



Chapter 7 Fuel Supply System

Fuel, Exhaust Gas Control

Component

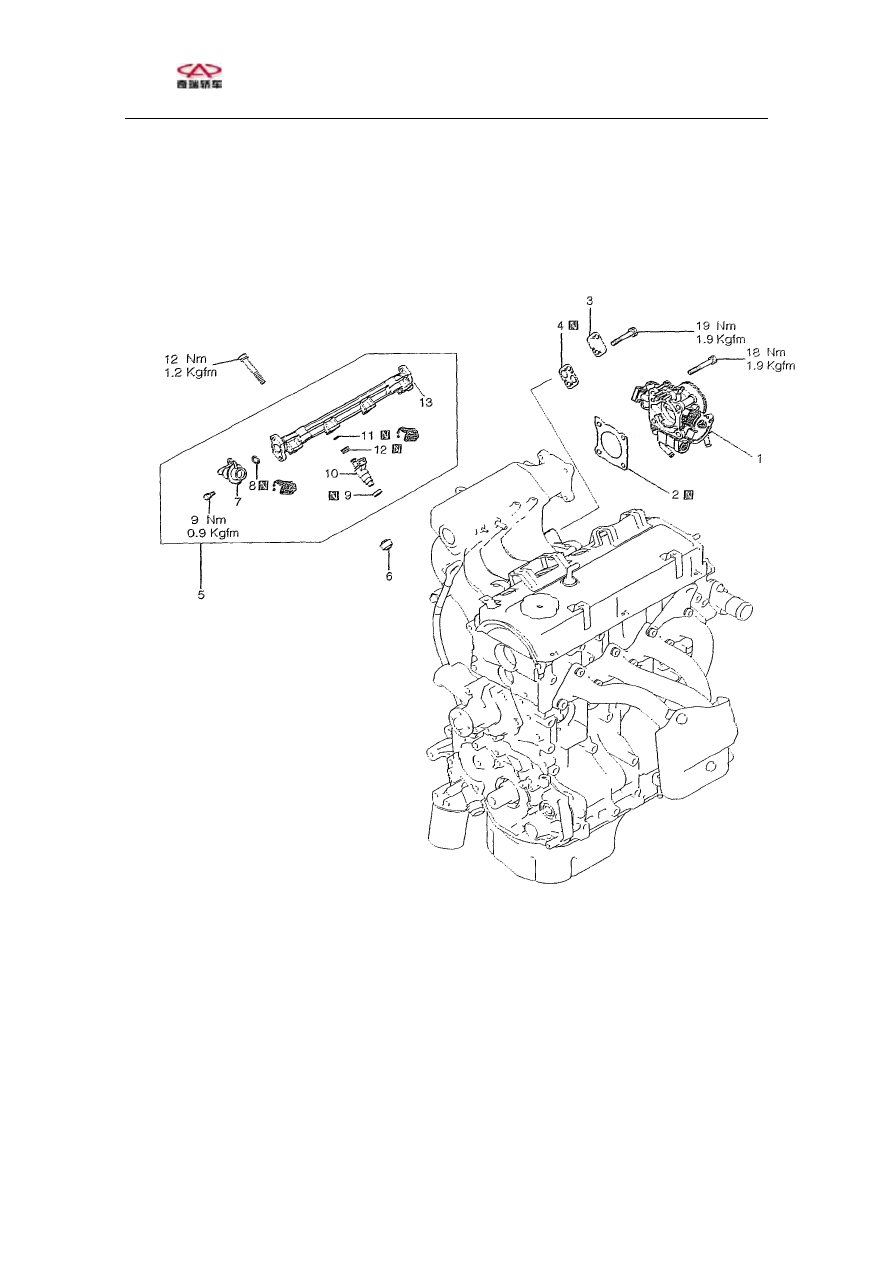

Exhaust Gas Return Valve (EGR)























































Remove Steps

1.Throttle body

2.Throttle body pad

3Lid

4.EGR valve gasket

5.Fuel injector & distribution tube components













































































6.Insulator

7.Fuel pressure regulator

8 O-Shape seal ring

9．Insulator

  10. Injector

11.O-Shape seal ring

12.Grommet

13．Fuel distribution tube








Maintenance Manual for Chery·Oriental Son

Engine Section







Installation Notice

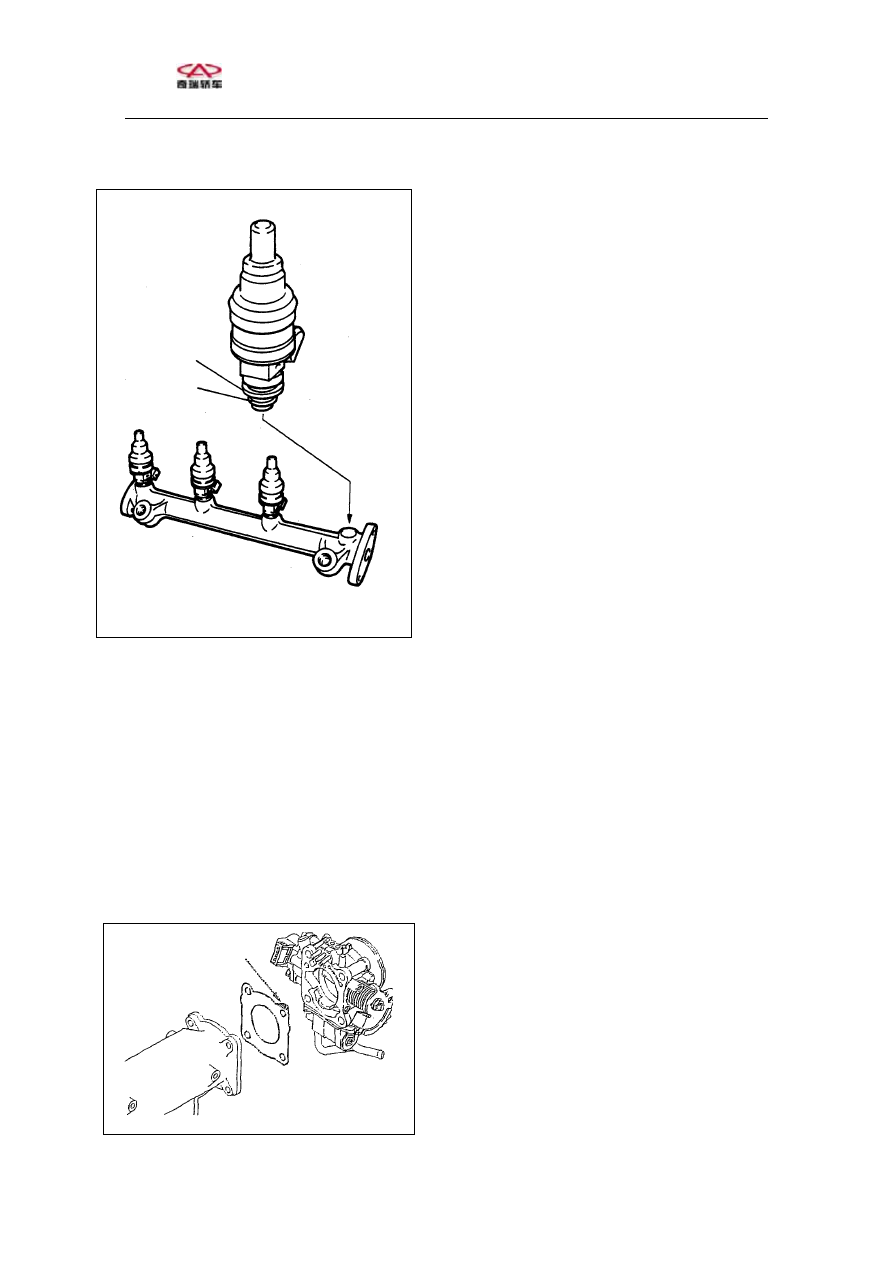

Fuel Injector Installation



(1)  Before fuel injector installation, please daub

a drop of clearly engine oil on O-shape seal

ring surface, which make installation easy.

(2)  Be careful enough not to destroy O-shape

seal ring when inserting the top end of

injector into fuel distribution tube.



























Grommet

O-shape r



ing

Fuel Pressure Regulator Installation

(1)  Daub a drop of clearly engine oil on

O-shape seal ring surface. And be careful not

to destroy the seal ring when inserting fuel

pressure regulator into fuel distribution tube.

Note：

Do not let engine oil enter into the

fuel distribution tube.

（ 2 ） Check if fuel pressure regulator run

smoothly. If not, O-shape seal ring may be

locked.  Please remove fuel pressure

regulator and check if the seal ring has been

destroyed. And then insert pressure

regulator into fuel distribution tube and

check it again.

Extrusion

Throttle Body Gasket Installation

(1)Install throttle body gasket as shown and

make extrusion at the position shown.





Chery·Maintenance Manual for Oriental Son



Manual Transmission





Manual Transmission – Oriental Son 7200MT

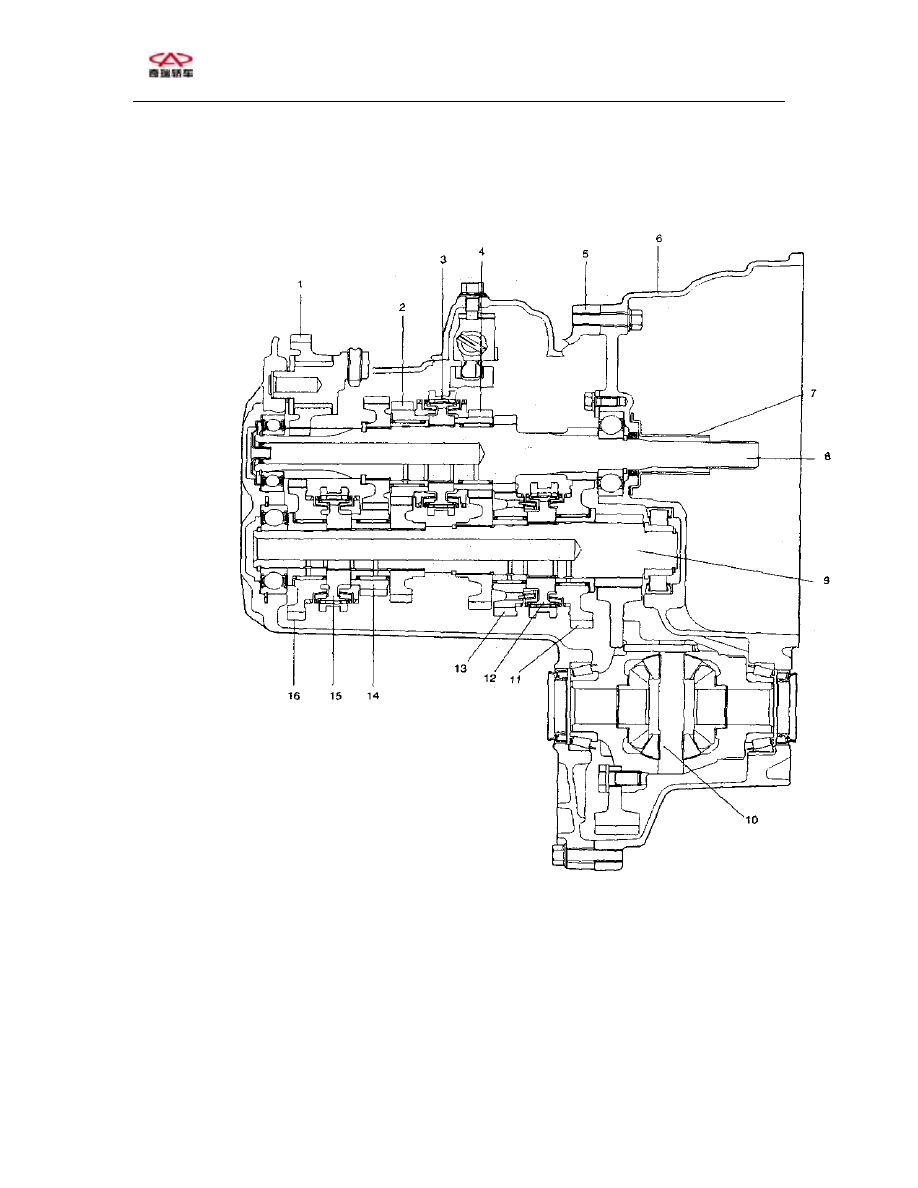

General Description

























1. Reverse idler gear
2. Fourth-speed gear
3. Third gear and fourth gear synchronizer
4. Third-speed gear
5. Gearbox cover
6. Clutch cover
7. Release bearing bracket
8. Input shaft

30193

9. Output shaft
10. Differential
11. First-speed gear
12. First gear and second gear synchronizer
13. Second-speed gear
14. Fifth-speed gear
15. Fifth gear and reverse gear synchronizer
16. Reverse-speed gear
