Chery B11. Manual - part 3

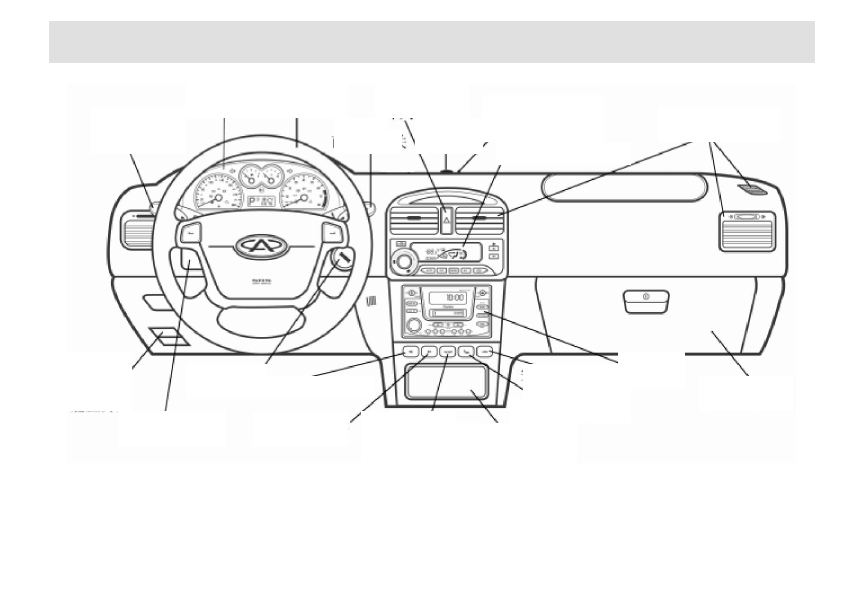

Instrument Panel

13

Head light
switch

Engine room cover
switch

Cluster

Glove box

Audio

Front ashtray/
Cigarette lighter

Ignition
swtich

Cluster dimmer

Steering wheel

Wiper
switch

Hazard flasher
switch

Light
sensor

Anti-theft warning
lamp

Air conditioner switch

Air conditioner vent

Front fog lamp switch

Rear fog lamp
switch

Rear window

defroste

r/

rearview
mirror heating

Seat heating switch

Air purification
switch

Instrument Panel

14

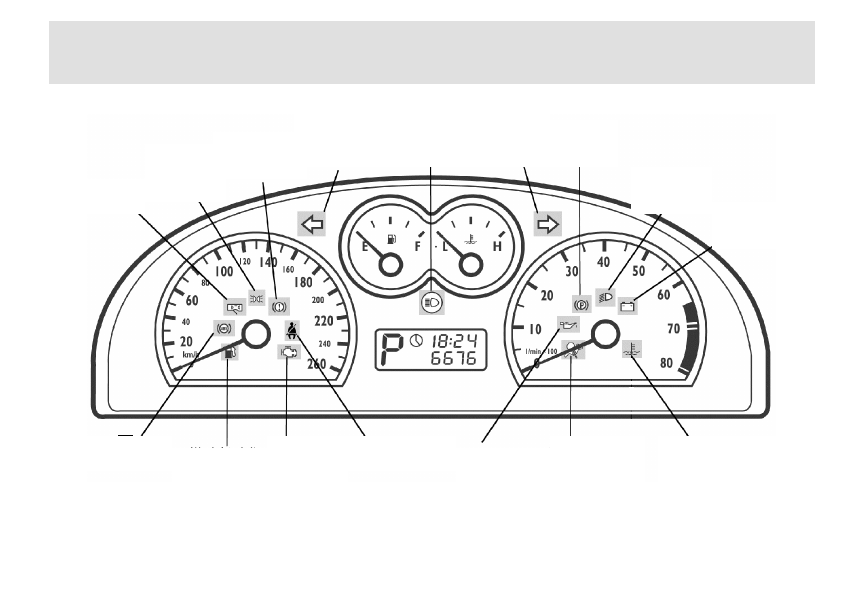

Insrument panel

Door ajar light

Parking
/position
indicator

Brake warning
light

ABS warning
light

Fuel indicator
light

Malfunction
Indicator
lamp

Low Engine

Oi

l

Pressure

Warning Lamp

Seatbelt warning
lamp

Discharge battery
warning light

Airbag warning
lamp

Coolant Temperature
/Level warning Light

Low beam
indicator
light

Parking
lamp

High beam
Indicator
light

Right turn
signal

indicato

r

light

Right turn
signal

indicato

r

ligh

Instrument Panel

15

Grey mark represents warning indicator

Instrument Panel

16

Indicator and Warning lights

Indicator and warning lamps are used to

show the working status of your vehicle or

indicate some problem might cause

serious damage. The corresponding

warning lamps light up or flash while a

fault occurs in some systems of vehicle.

Most of indicator or warning lamps light

up once for self-test whenever the ignition

key is turned on. If some warning lamps

do not light up, please contact your Cherry

Special Service Center. If some warning

lamps do not go out or flash after the

engine is started, please go to Cherry

Special Service Center.

Low-fuel indicator lamp

This low-fuel indicator lamp lights up

when there are less than 10 liters of fuel in

the fuel tank. Meanwhile, the needle of

fuel indicator reaches red zone.

Please refuel early when indicator lamp

lights up.

Antilock Brake System
Warning Lamp

ABS warning lamp lights up for a while

after ignition key is turned on. After that,

ABS system runs self-check function test

to confirm no fault occurs. If ABS warning

lamp does not go out or keeps flashing

when you are driving, it indicates there is

something wrong with the ABS system.

However, the brake system reverts to

conventional operation without ABS

unless brake system warning lamp lights

up. Please have your brake system

checked by your Cherry Special Service

Center as soon as possible.  You should

drive with necessary cautions before you

arrive at your Cherry Special Service

Center. To understand more ABS system

information, please see  “Brake system”

chapter for reference.
