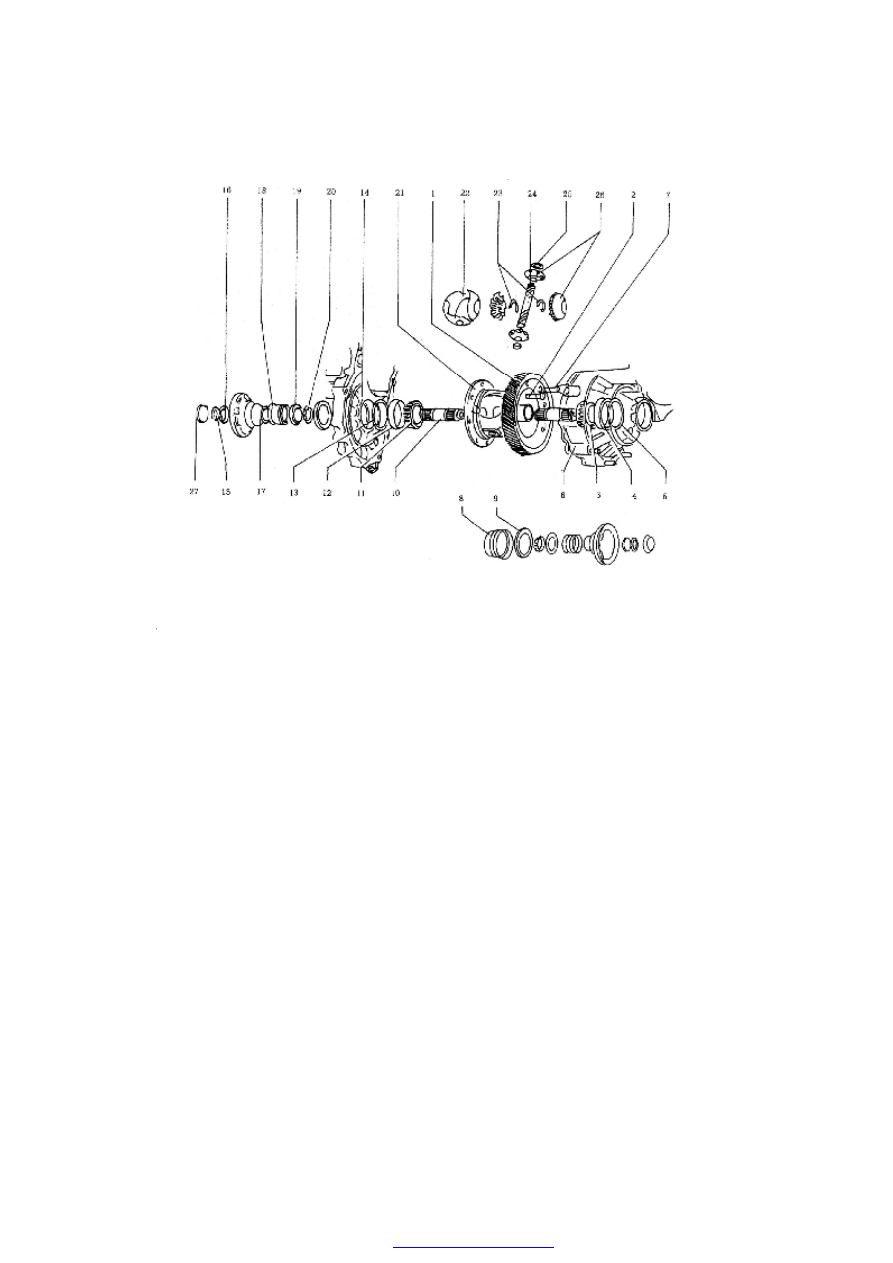

RESOLUTION GRAPH OF THE DIFFERENTIAL ASSEMBLY

RESOLUTION GRAPH



















1,  Final  drive  driven  gear  2,  Rivet  3,  11,  Needle  bearing  4,12,  Needle  bearing
external ring 5,13, Adjustment shim 6, Clutch housing 7, Rivet (may not use) 8,
Oil  seal  holder  9,  Oil  seal  10,  Small  axle  shaft  14,  Transmission  housing  15,
Output  flange  snap  ring  16,  Output  flange  dish  washer  17,  Output  flange  18,
Compression  spring  19,  Spring  seat  ring  20,  Damper  ring  21,  Differential
housing 22, Knob gasket 23, Snap ring 24, Planet gear shaft 25, Planet gear snap
ring 26, Axle shaft gear and planet gear 27, Output flange cover

Break down of differential assembly



DISASSEMBLY AND ASSEMBLY OF OIL SEAL AND OUTPUT FLANGE

——Remove flange cover by a special tool.





——Take out snap ring and dish washer.







——The  disassembly  of  this  part  can  be  carried

out  at  the  condition  not  break  down  the
transmission assembly.

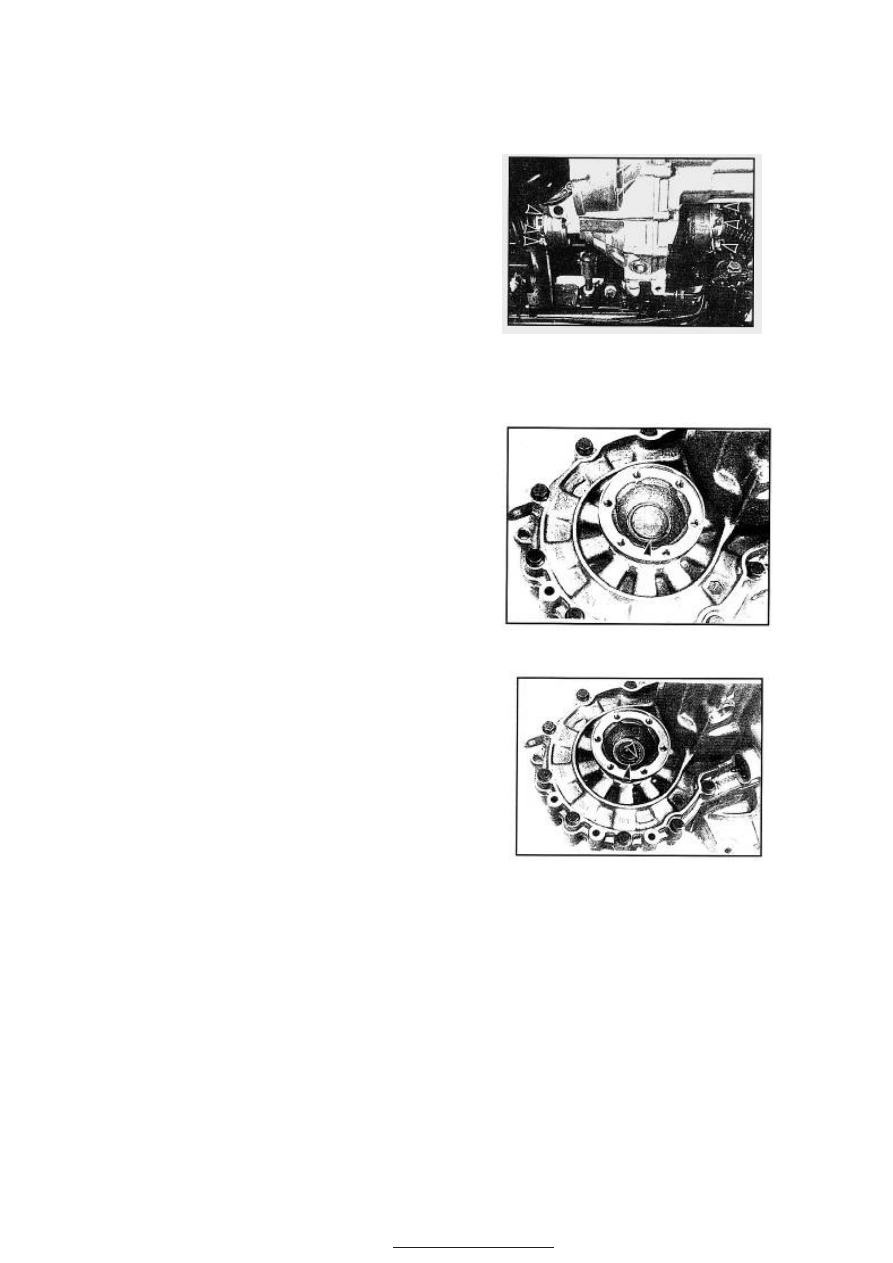

Disassembly:
— — Disassemble  the  connecting  bolt  between

propeller s haft and flange, disassemble drive
shaft and fix it on somewhere.



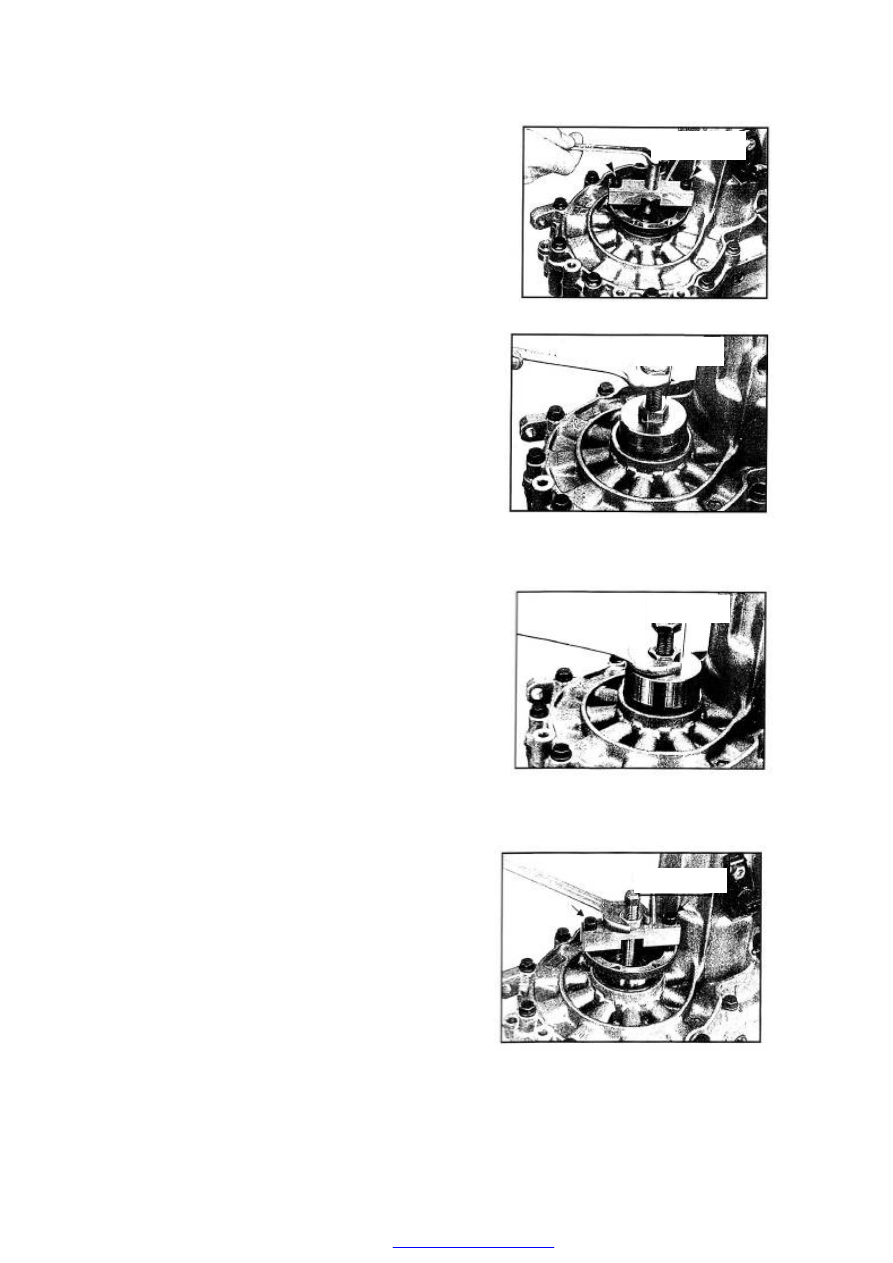

——See the picture, fix the special tool on flange

by M8 bolt, rotate the shaft of special tool by
wrench  to  disassemble  the  output  flange.
Take off spring seat and compression spring.



——Fasten  the  special  tool  on  oil  seal,  rotate the

special  tool  threaded  shaft  by  wrench  until
screw off the oil seal.



Assembly:

——Use the right size oil seal and lubricate its lip.

Put it to its right position  by  special tool and
rotate  the  screw  of  the  special  tool  make  oil
seal to its true position.



——For  the  assembly  of  output  flange,  you  can

use  press  or  special  tool  press  it  into  its
position, see the picture.

——Assemble dish washer and check if it is at its

right position

——Assemble snap ring and make sure it is inside

of snap ring groove.

——Assemble a new flange cover.

——Connect drive shaft and output flange

together, if it is necessary put lubricant to the
stipulated position.





Special Tool

Special Tool

Special Tool

Special Tool



!

"

!!



!

#



#

$

!

"

!

!

$

#

#

#



!



& #

!

#



"

!

'

(

'$

(

!

)

"

#

!



!

!

'

(

'$

(

%

#

*

+

!

!

#



"



!!

!

!



!



!

+







,



#

!!

$

$ !

!

!



#



*

"

!

#



!



$

$ !

!

#

#

,



#

$



!



,



!



+

$



!



!

+

$

$ !





! #

!

!

!

"



!

!

!



!



+

$



!



#

!
