signal,  the  airbag  will  be  activated  and
inflated.








----When  removing  the  liner  of  the  steering

wheel or  installing the  new one, the upper
surface of the liner should face upward. At
this  moment,  place  the  lock  rod  of  the
double-lock  connector  at  the  locking  state
and  place  it  carefully  to  prevent  it  from
damaging the connector. When storing, do
not place one liner on top of another liner.
(If  the  metal  surface  of  the  liner  is  placed
to  face  upward,  it  may  result  in  serious
accident  when  the  airbag  is  activated
accidentally.)




----Do  not  measure  the  resistance  of  the

activation  device  of  airbag.  (This  will
cause accidental activation of the airbag. It
is extremely dangerous.)

----Do  not  apply  any  grease  on  the  liner  of

steering  wheel,  and  do  not  wash  it  with
any kinds of detergents.

----Store  the  liner  of  steering  wheel  at  the

place

where

the

environmental

temperature  is  lower  than  93℃(200℉)
and  the  humidity  is  lower  than  40%,  and
away from electrical noises.

----Disconnect  the  airbag  connector  before

carrying out any welding work.

----When discarding the vehicle or the liner of

the  steering  wheel  separately,  the  airbag
should  firstly  be  activated  with  special
maintenance tools.











Correct placement

Incorrect placement





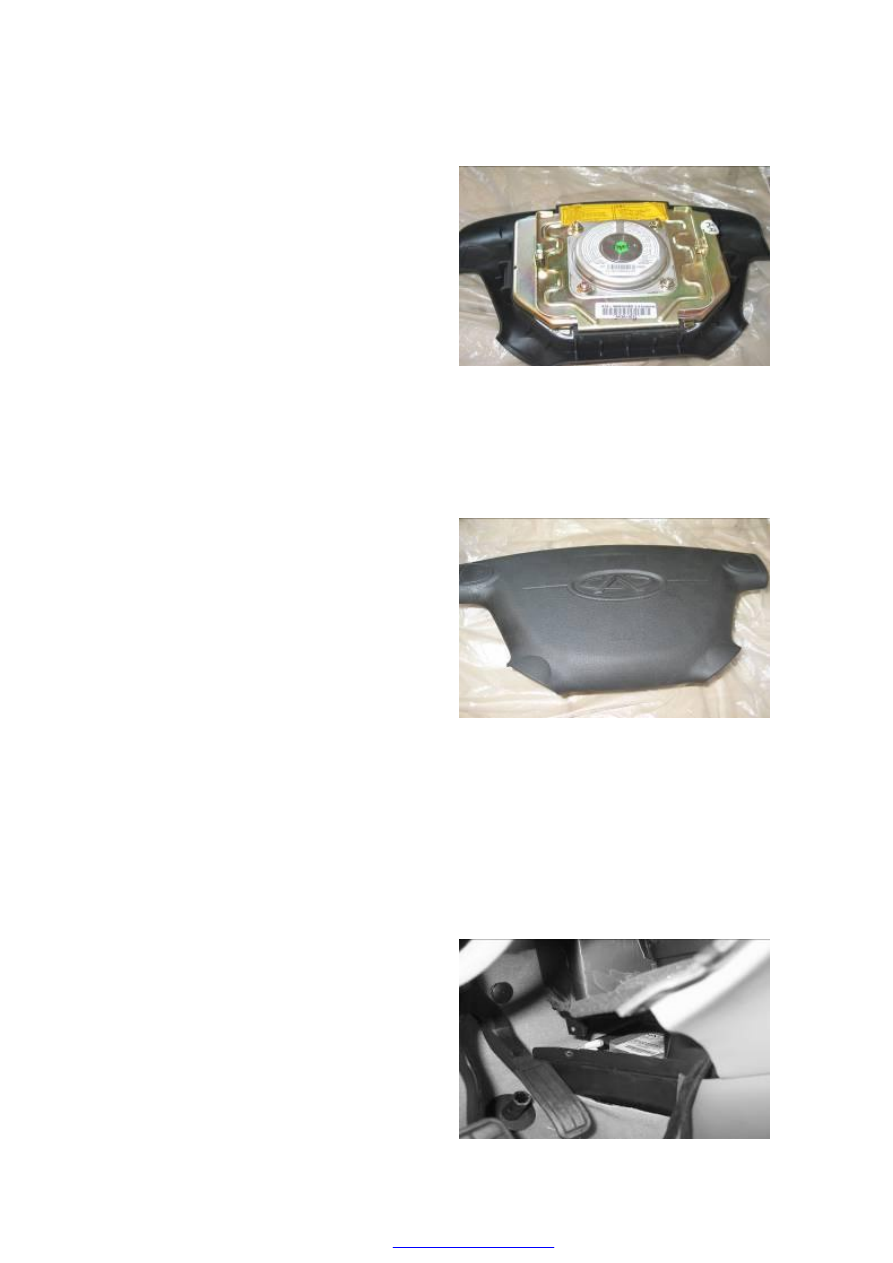

6. BCM(AIRBAG CONTROL MODULE)

----The  BCM  (airbag  control  module)  (See

figure)  is  installed  on  the  floor  under  the
heat  exchanging  radiator.  The  BCM
(Airbag  control  module)  includes  airbag
sensor,  safety  sensor,  diagnosis  circuit,
ignition  controlling  and  driving  circuit.  It
receives the signal  from airbag sensor and
determines  whether  to  trigger  the  SRS
system.



----In case any collision accident happens and

causes  the  airbag  to  activate,  do  not  use
the airbag computer again.

----The  maintenance  work  (even  if  it  is  only

loosening the fastening bolts of the central
sensor  assembly  of  the  airbag)  must  be
carried out at least 5  minutes after turning
the  ignition  switch  to  “LOCK”  position
and  disconnecting  the  battery  negative
cable.



7. WIRING AND CONNECTOR

The wirings of SRS system are all installed in
a  yellow  corrugated  conduit,  and  the
connectors  are  all  normal  yellow.  If  by  any
accident,  the  wiring  has  been  loosened  or  the
connector  damage,  they  must  be  repaired  or
replaced according to related instruction.



8. SRS CONNECTOR

The  connectors  of  SRS  system  are  all  yellow
in  order  to  be  identified  from  other
connectors.

The  connectors  of  SRS  system  are  facilitated
with  special  functions  and  specific  designed
features  to  ensure  high  reliability.  These
terminals  are  using  durable  gold-plated
terminals.  The  double  locking  plate  locks  the
electronic  connection  terminal  mechanism,
which  can  prevent  the  terminal  from  sliding

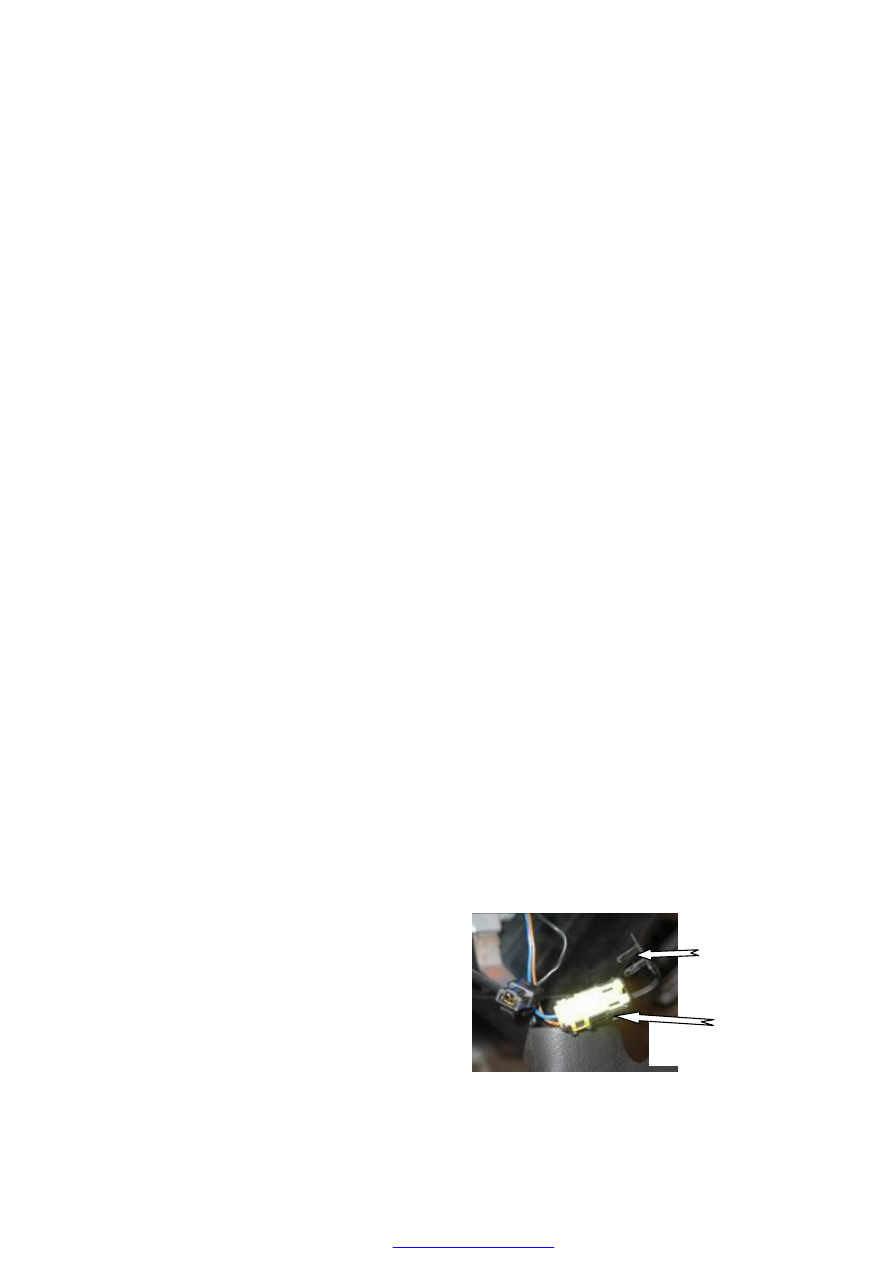

out. As shown in the figure:



Double

locking plate

Airbag connector







NOTES ON SAFETY OPERATION

During  the  maintenance,  if  the  proper  procedures  are  not  followed,  the  airbag  system  may
activate unexpectedly resulting  in  serious accident. The  fault arising during the  maintenance
work  may  cause  the  inability  of  the  activation  of  airbag  when  it  is  required  to  function.
Therefore  before  carrying  out  any  maintenance  (including  removing,  installing,  testing  or
changing for the components), the maintaining personnel must read all the instructions below
carefully,  and  carry  out  the  maintenance  according  to  the  following  proper  procedures
specified by the maintenance manual.

(1)  Sometimes  the  malfunction  of  SRS  (supplementary  protective  system)  is  difficult  to

ascertain,  therefore  the  malfunction  codes  become  the  most  important  information
resource  of  troubleshooting.  When  diagnosing  the  supplementary  protective  system,
check the malfunction codes firstly at all time, and then disconnect the battery.

(2)  The  maintenance  work  must  be  carried  out  at  least  5  minutes  after  turning  the  ignition

switch  to  “LOCK”  position  and  disconnecting  the  battery  negative  cable,  because  the
supplementary protective system has its own backup power supply.

(3) Even if the SRS is not activated after a slight collision, the airbag assembly and the airbag

sensor assembly must be inspected also.

(4)  Do not  use  the  SRS  components  from  other  vehicle.  Only  new  components  are allowed

for replacement if necessary.

(5) Do not repair the steering wheel airbag assembly and the airbag sensor assembly  for the

purpose of reusing.

(6)  Do  not  allow  the  steering  wheel  liner  to  shake,  or  come  close  to  some  magnets.  Do  not

allow the  steering wheel  liner and the airbag sensor assembly to expose in the  hot air or
flame directly.

(7)  If  the  steering  wheel  liner  and  the  airbag  sensor  assembly  have  already  been  dropped

down, or  there  are  cracks,  dents  or other  defects  on  the  housing,  support  or  connectors,
they  should  be  replaced  with  new  ones.  If  there  is  any  liquid  such  as  grease,  detergent,
engine oil or water on the steering wheel liner, clean it with a dry cloth immediately.

(8) Store the steering wheel liner in a flat and stable place, and face the top side upwards after

the removal. Never place anything on top of it.

(9)  The  airbag  must  be  disposed  firstly  when  discarding  the  vehicle  or  the  steering  wheel
liner.

(10) The  inflating device  in the steering wheel  liner will  become  very  hot after the airbag is

spread. Discard it only after it has been naturally cooled down.

(11) High resistance (at least 10kΩ/V) type volt-ohm meter should be used for diagnosing the

malfunctions in the electrical circuit.

(12) The  “notes”  indicated on the  tag  at the  peripheral  of  SRS  components  must  be  strictly





followed.

(13) After finishing the maintenance work for the supplementary protective system, the status

of SRS warning lamp should be inspected.
